• Model NO.：CS-FFXZ-100
• Certification：CCC, CE, EMC, LVD, RoHS, SASO
• Input Voltage：100-240V
• With Light Source：With Light Source
• LED Chips Brand：Epistar
• Main Body Material：Aluminum Alloy
• Light Source or Not：with Light Source
• Delivery Time：5-7days
• Warranty Option：2years,3years,5years
• Watt′s Option：50W Until 150W
• CRI：>80
• Light Color Opiton：White,Neutral, Warm White
• Chip′s Size：3030
• LED Qty /Module：72PCS,108PCS,192PCS
• Watt：100W
• Chip′s Brand Option：Epistar,Bridgelux, ,Osram,CREE
• Installation Height：7-9m
• Life Span：20, 000hours -50, 000hours
• Work Temperatu：-40ºC~+70ºC
• IP Rating Option：IP65 or IP67
• Transport Package：Carton+Plastic Foam
• Specification：L453W276H78MM
• Trademark：Capson Lighting
• Origin：China Guangdong
• HS Code：9405409080
• Production Capacity：100000pieces,Year

Basic Info.

Model NO. CS-FFXZ-100 Certification CCC, CE, EMC, LVD, RoHS, SASO Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Epistar Main Body Material Aluminum Alloy Light Source or Not with Light Source Delivery Time 5-7days Warranty Option 2years/3years/5years Watt′s Option 50W Until 150W CRI >80 Light Color Opiton White/Neutral/ Warm White Chip′s Size 3030 LED Qty /Module 72PCS/108PCS/192PCS Watt 100W Chip′s Brand Option Epistar/Bridgelux/ /Osram/CREE Installation Height 7-9m Life Span 20, 000hours -50, 000hours Work Temperatu -40ºC~+70ºC IP Rating Option IP65 or IP67 Transport Package Carton+Plastic Foam Specification L453W276H78MM Trademark Capson Lighting Origin China Guangdong HS Code 9405409080 Production Capacity 100000pieces/Year

Product Description

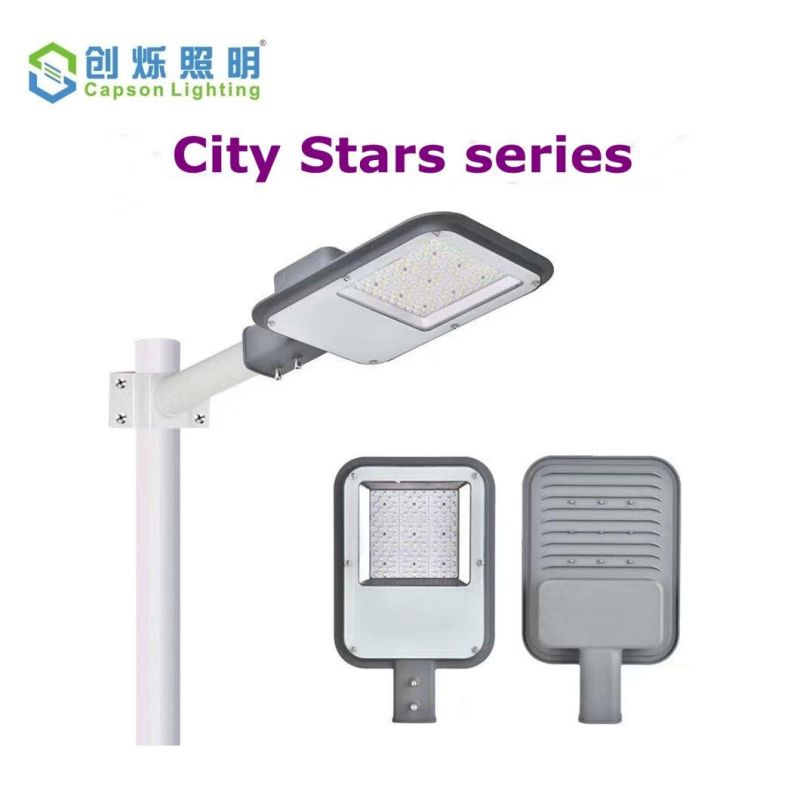

New Design 100W IP65 5 Years Warranty Hot sale Outdoor LED Street Light(CS-FFXZ-100)

Product name	LED Street Light 100W
Item No.	CS-FFXZ-100
Power option	50w ~ 150w
LED chips	Cree 3030 108pcs
Light effect	120lm/w
Lumen output	12000lm/w
Driver brand	Meanwell ELG or HLG
Input voltage	AC85V-265V
IP rating option	IP65 or IP67
Life span	25,000hours or >50,000hours
CRI (color rendition index)	≥80Ra
Power factor	≥0.95
Dimension	L453W276H78mm
Optional beam angle	60*130°
Material	Aluminum Alloy
Operating Tem	-40ºC~ +70ºC
Warranty	2,3,5,Years
Dimmable options	yes
Packing size	L46W29H11cm

The main characteristics
1. High-power CREE 3030SMD is used as the light source. Energy saving and environmental protection, long service life.

2. Toughened transparent glass, high temperature resistant, easy to light transmission, light transmittance up to 92%.

3. The radiator adopts aluminum alloy with high thermal conductivity, and the lamp surface adopts oxidation technology to resist corrosion and ensure heat dissipation.

4. Constant current source, good stability and high safety.

5. Energy saving up to 80%.

6. Beautiful appearance and easy installation.

7. Suitable for highway, urban road, bridge, port, factory lighting, etc.

8. Lamp cover material: die-cast aluminum shell, toughened safety glass, paint coating.

9. The metal part between the rod and the street lamp is designed to be the original rod size.
