• Model NO.：DL-ISSL2-100W
• Certification：CE, EMC, LVD, RoHS, SASO, ISO
• Input Voltage：12v
• With Light Source：With Light Source
• LED Chips Brand：Osram
• Solar Panel：Mono
• Guarantee：3-5 Years
• OEM：Available
• Transport Package：Carton,Wooden Frame
• Specification：186*31*7cm
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：60000units,Year

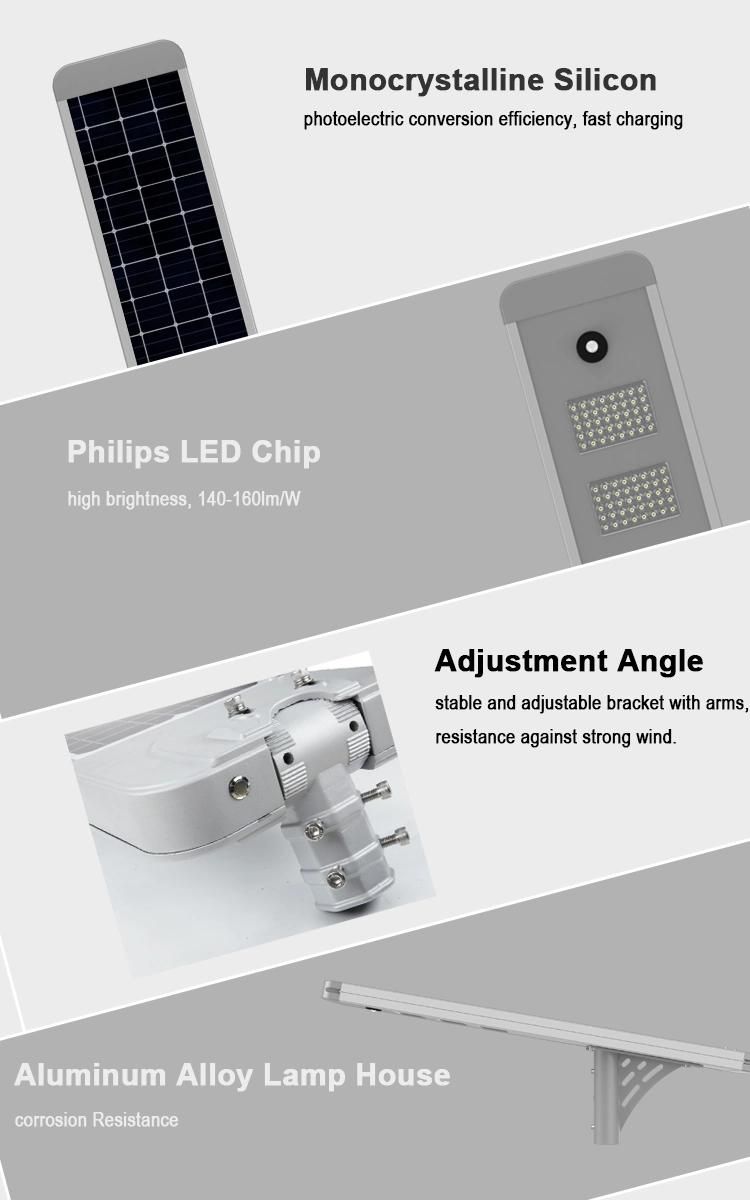

Model:DL-ISSL2-100WSolar panel power:18V 120W high efficiency monocrystalline siliconLamps material:Aluminium alloyBattery Type:lithium battery/LiFePO4 batteryCertificate:CE(EMC&LVD) & RoHS & IP65,other certificates are available Lumen (LM):14000-16000lmGuarantee3-5 yearsCharge time(by sun):6 hours in strong sunshineSaving mode:3-5 continuous rainy and cloudy daysWorking TEMP( ºC )-30ºC~60ºCCCT (K):6000-6500K(standard),2800-3300K,4000-4500KMounting height(m):8-10mDistance between 2 lights:25-30mLighting Ajustable Angle:90º*160ºQ'ty/ctn:

1 set/ctn

 Parameter for 20-120W All in One Solar Street Light:Model NO.DL-ISSL2-20WDL-ISSL2-30WDL-ISSL2-40WDL-ISSL2-50WDL-ISSL2-60WDL-ISSL2-80WDL-ISSL2-100WDL-ISSL2-120WLamp Power20W30W40W50W60W80W100W120WLed Chips Bridgelux/Nichia/or other brandsLumen2800
- 3200lm4200
- 4800lm

5600
-6400lm

7000
- 8000lm

8400
-9600lm

11200-12800lm

14000
-16000lm

16800-19200lmSolar Panel Power18V 40W18V 60W18V 70W18V 80W18V 90W18V 100W18V 120W18V 140WSolar Panel Type High Efficiency Monocrystalline SiliconSolar Panel Lifetime25 YearsBattery TypePowerful Lithium Battery with 7-8 Years LifetimeInstalling Height5-6m6-7m6-7m7-8m7-8m8-10m8-10m10-12mInstalling Distance 15-18m18-20m18-20m20-25m20-25m25-30m25-30m25-20mGuarantee3-5 Years
