AC 100-240V /277V 40W Ik10 LED Streetlight

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：3000K 4000K 5000K 5700K
  • Lamp Body Material：Aluminum
  • Power：40W-300W
  • Application：Square, Highway, Garden, Parking Lot
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-LD40H4
  • Certification：CE, C-tick, EMC, FCC, GS, LVD, RoHS, SAA, UL, ISO9001, ISO14001
  • Input Voltage：90~305VAC
  • With Light Source：With Light Source
  • LED Chips Brand：Lumileds
  • Surge Protection：10kv
  • Transport Package：Export Carton
  • Specification：431 x316 x136 mm
  • Trademark：ZGSM
  • Origin：China
  • HS Code：94054090
  • Production Capacity：50000PCS,Month

Description

Basic Info.

Model NO. ZGSM-LD40H4 Certification CE, C-tick, EMC, FCC, GS, LVD, RoHS, SAA, UL, ISO9001, ISO14001 Input Voltage 90~305VAC With Light Source With Light Source LED Chips Brand Lumileds Surge Protection 10kv Transport Package Export Carton Specification 431 x316 x136 mm Trademark ZGSM Origin China HS Code 94054090 Production Capacity 50000PCS/Month

Product Description

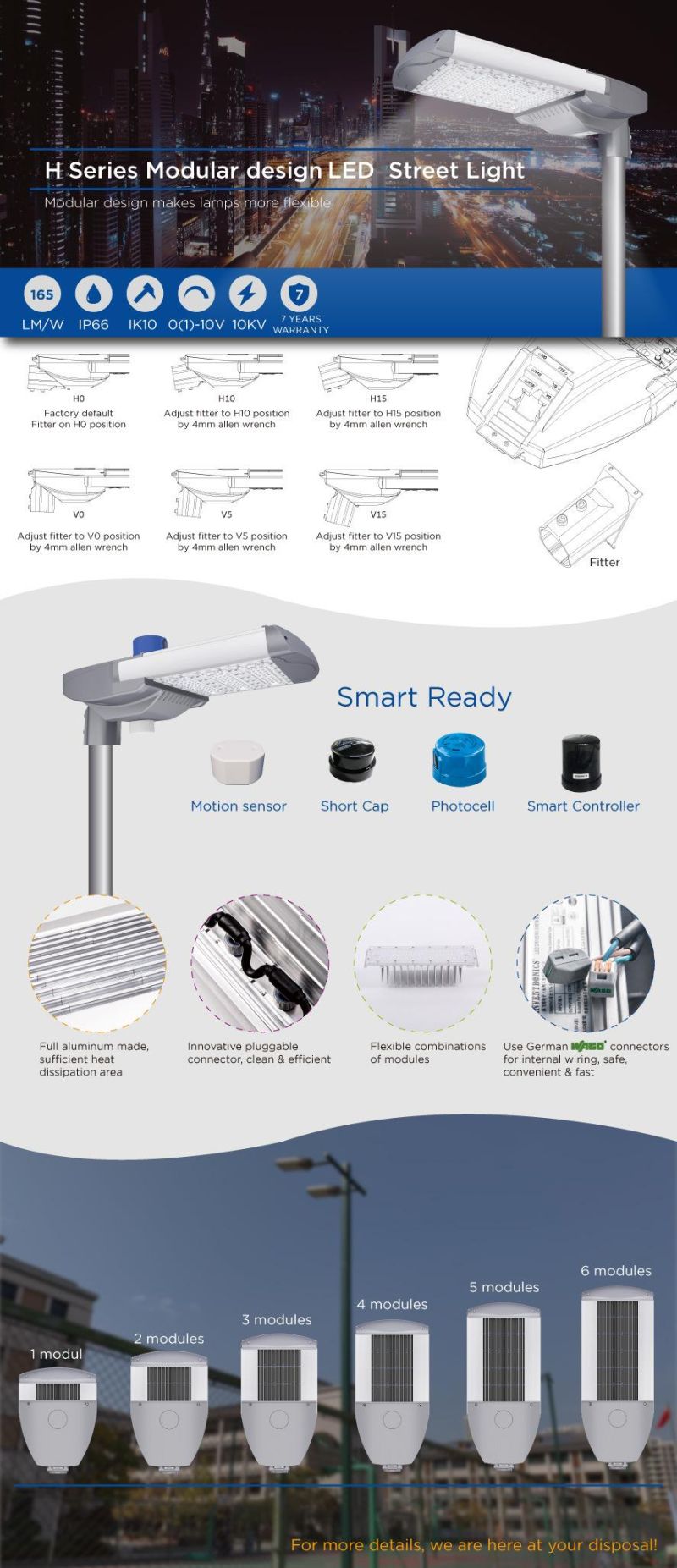

AC 100-240V /277V 40W Ik10 LED Streetlight
Series NoSeries H
Power40W, 50W, 60W, 80W, 100W,120W, 150W, 160W, 180W, 200W, 240W, 300W
Efficacy125-165lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK10
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType I, Medium; Type II, Medium; Type III, Medium; Type V, Short;
Mounting OptionSide entry or Vertical pole mounted
Warranty5 Years
CertificationENEC, CE, CB, ROHS, SAA, UL, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA /Zhaga Socket, Motion Sensor, Non-Dimmable, 1-10V Dimmable, Zigbee or LORA control
AC 100-240V /277V 40W Ik10 LED Streetlight
