• Model NO.：ZGSM-LD165H
• Certification：CE, EMC, Energy Star, GS, LVD, RoHS, SAA, UL, CB GS
• Input Voltage：100-240V,277V
• With Light Source：With Light Source
• UL File：E466856
• Transport Package：1unit,Carton
• Specification：CE, ROHS, GS, CB, UL, CUL, DLC
• Trademark：ZGSM
• Origin：Lin′an, Hangzhou, Zhejiang, China
• HS Code：940540900
• Production Capacity：50, 000 PCS,Month

SpecificationsModelZGSM-LD165HLED BrandLUXEON® TX//LGDriver BrandMeanwell HLG seriesNorminal Wattage165WLED Module Quantity5 modulesInput Voltage100-240/277VACPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>110lm/wLamp Rated Lumen output18150 lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric TypeType I Medium;Type II Medium;Type III Medium,TypeV,ShortOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance> 100000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportIK RatingIK08 with test reportCertificationCE,ROHS,GS,CB,UL,cUL,DLC,LM-79,SAAOptional Function1-10V DC or PWM Signal or Resistance DimmingTimer/Photocell ControlWarranty5 years  Packing DetailsFixture Dimension723 x316 x136 mmFixture Weight9.0 kg /19.8 lbsPacking Dimension780 x370 x200 mmPacking Weight10.6 kg /23.4 lbs

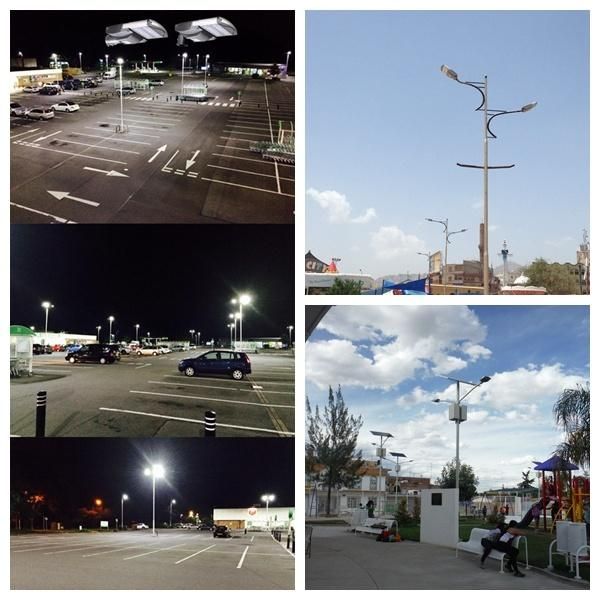

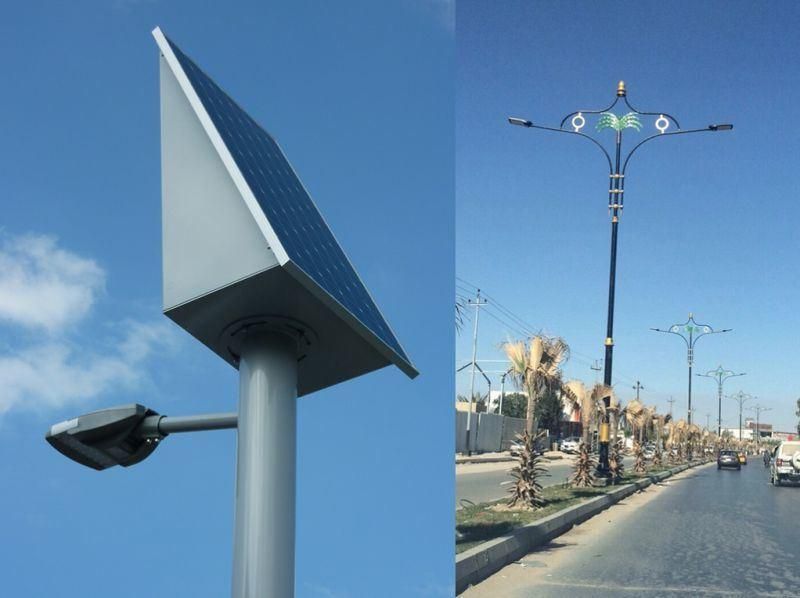

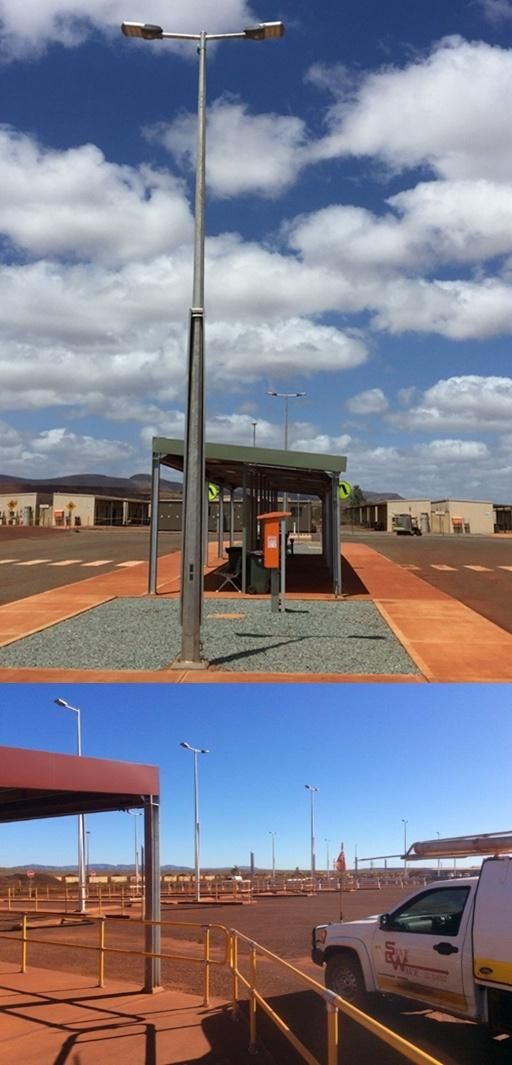

Project show

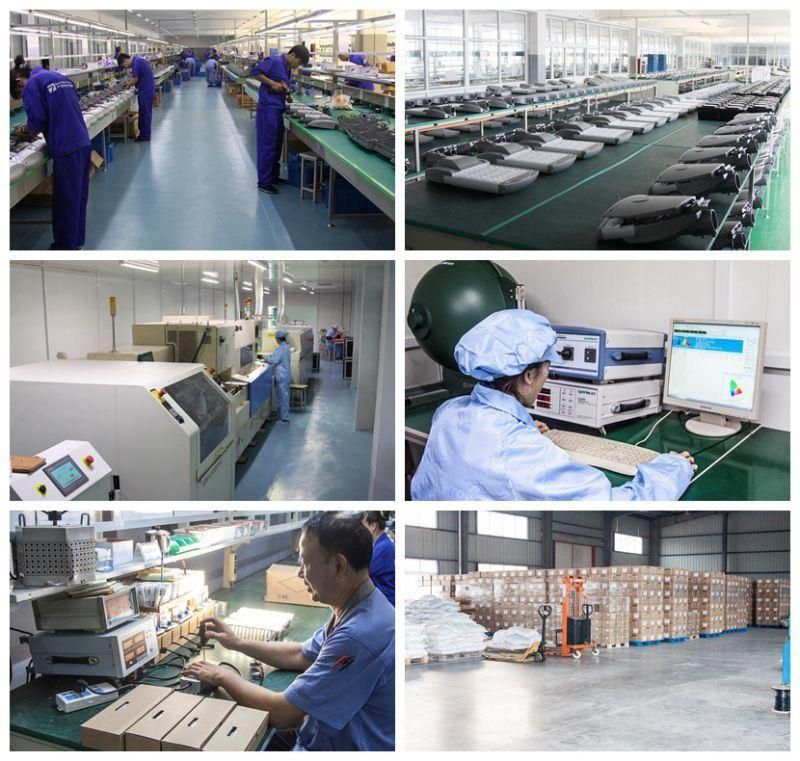

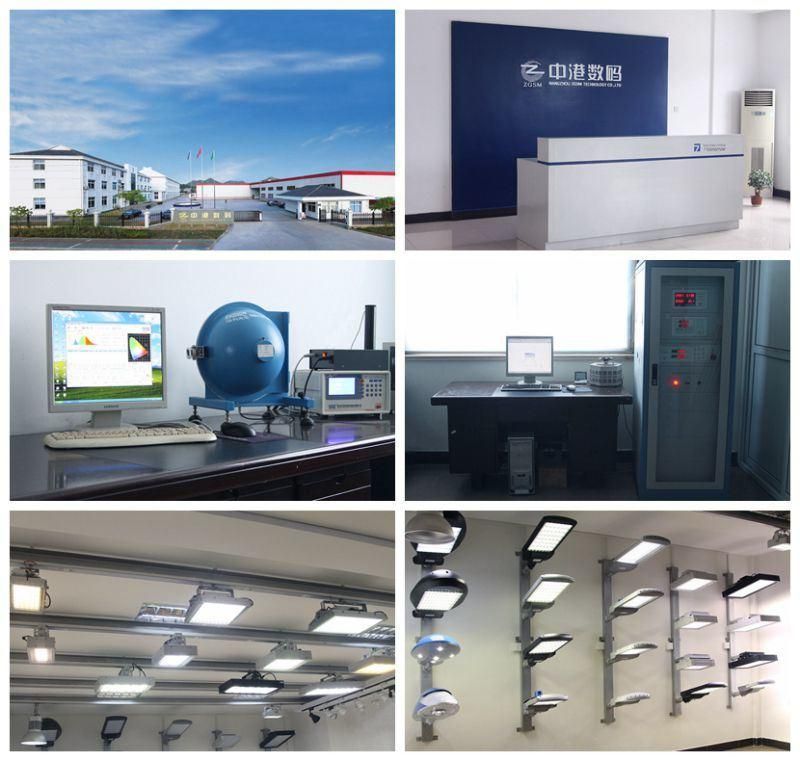

Factory show
