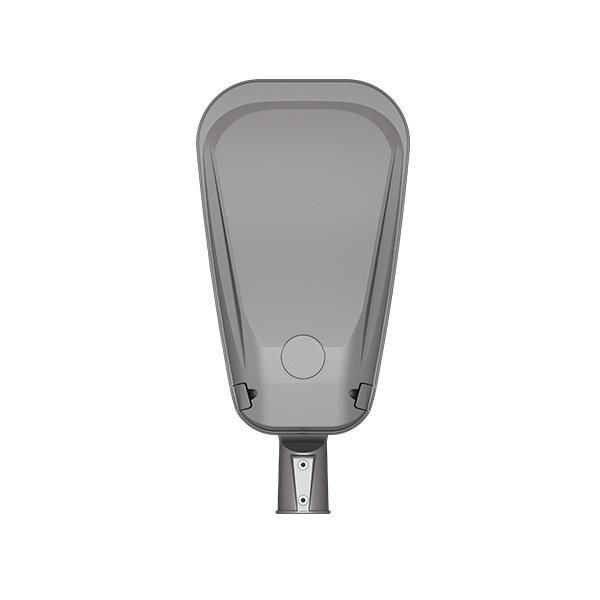

• Model NO.：ZGSM-LD60KM

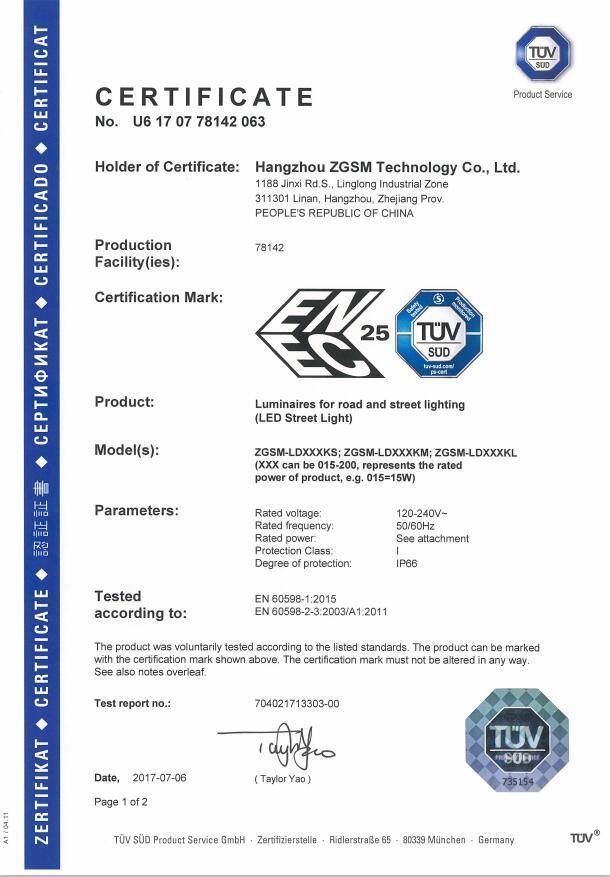

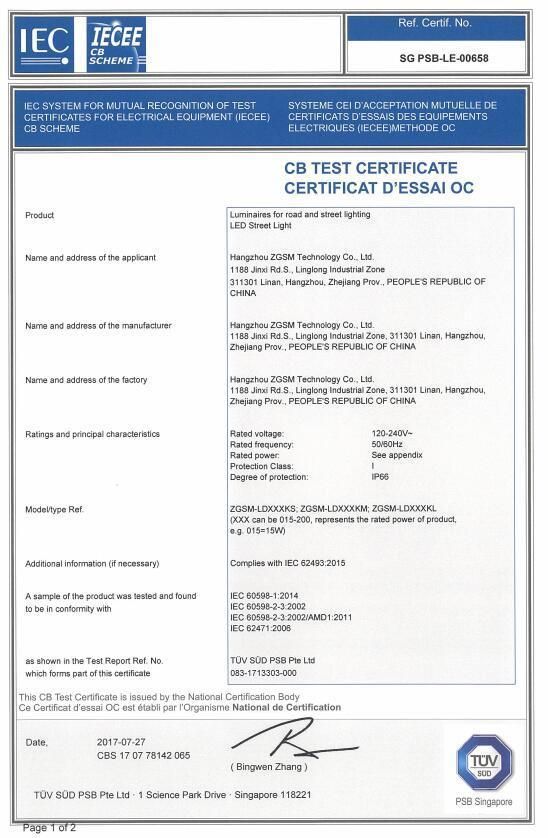

• Certification：CB, CE, EMC, FCC, LVD, RoHS, ENEC
• Input Voltage：12V 24V 110V 230V 277V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• Working Voltage：12VDC,24VAC,110VAC,220VAC
• Lens Material：PC
• Standard(S)：IEC60598
• Working Lifetime(Hour)：75000hours
• Guarantee：7 Years
• Light Source：Lumileds
• CRI：70 (80optional)
• Housing Color：Dee Grey , Light Grey
• Optic：Type I , II, III
• Control Options：Photocell or Smart Control
• Pole Fitter Diamter：60mm 50mm
• Surge Protection：10kv
• Dimming：1-10V, Dali, PWM, Timer
• Rate：IP66 Ik08
• Body：Die-Cast Aluminum
• Transport Package：Strengthening Cartons, Wooden Cases
• Specification：60W
• Trademark：ZGSM
• Origin：China
• HS Code：9405409000
• Production Capacity：2000PCS,Day

SpecificationsModelZGSM-LD60KMLED BrandLumiledsDriver BrandINVENTRONICS/MEANWELLNorminal Wattage60WLED Module Quantity1 PCB moduleInput Voltage100-240/277VAC/DC12/24VPower Efficiency>90%Power Factor>0.95Lamp Rated Luminous Efficiency>130lm/wLamp Rated Lumen output49407800 lm (Lumen tolerance +/- 5%)Color Rendering IndexRa>70Color Temperature3000K,4000K,5000K,5700KPhotometric TypeType I,  II,  IIIOptimal Operating Temperature25°Storage Temperatures-40°C~50°CWorking EnvironmentBetween-40°C~+50°C, 10%~90%RHTotal Harmonic Distortion< 10%Lumen Maintenance>78000 hours -L70, @25 ºC (77 ºF)Wind IndexForce 12Body and Shell MaterialsAnodized AluminumIP RatingIP66 with test reportIK RatingIK08with test reportCertificationCE,ROHS, ENEC CB, ,LM-79. LM80Optional Function1-10V PWM, DALI, Timer  ,PhotocellWarranty5years/ 7 years  Packing DetailsFixture Dimension 726x357x127mmFixture Weight7.8kgPacking Dimension785 x415x200 mmPacking Weight9.8 kg
