• Model NO.：LCD-FA-100W
• Certification：CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, SAA TUV
• Operating Voltage：24V
• Input Voltage：220V
• LED Chips Brand：Osram
• Transport Package：Carton Box
• Specification：220x180x88 mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

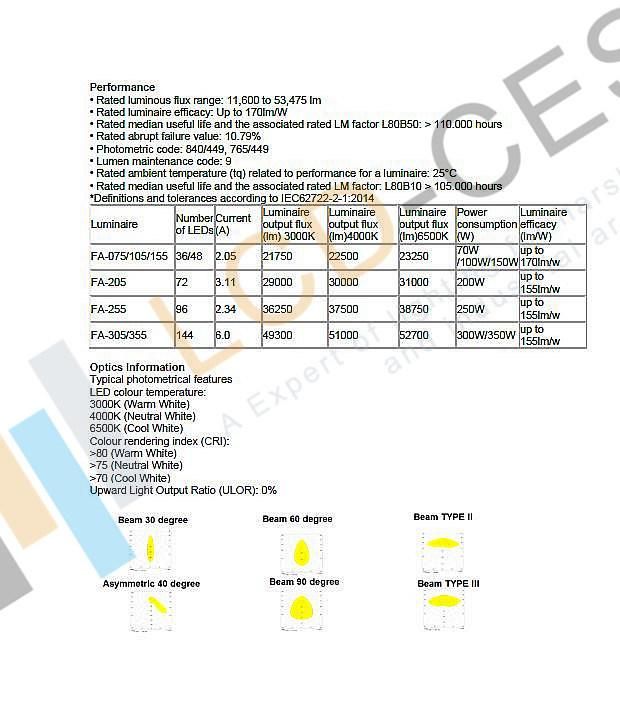

LuminaireNumber of LEDsCurrent (A)Luminaire output flux (lm) 3000KLuminaire output flux (lm)4000KLuminaire output flux (lm)6500KPower consumption (W)Luminaire efficacy (lm/W)FA-205723.11290003000031000200Wup to 155lm/w

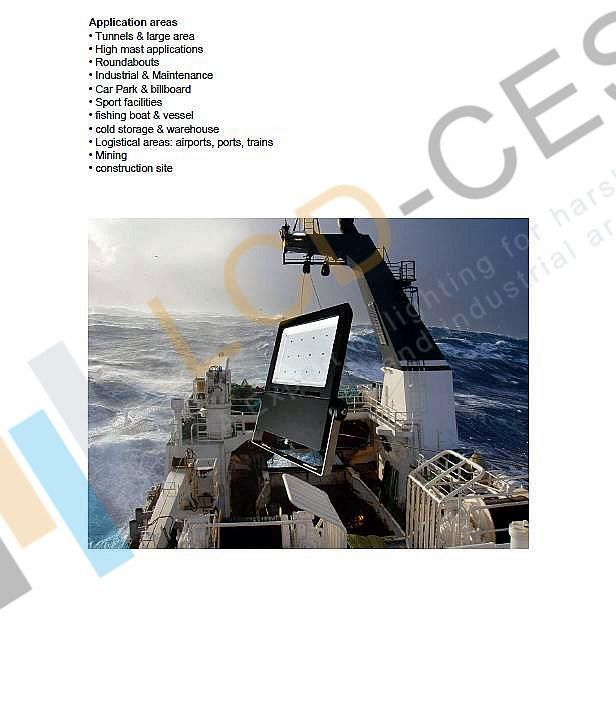

Application areas





• Tunnels & large area
• High mast applications
• Roundabouts
• Industrial & Maintenance
• Car Park & billboard
• Sport facilities
• fishing boat & vessel
• cold storage & warehouse
• Logistical areas: airports, ports, trains
• Mining
• construction site



ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request

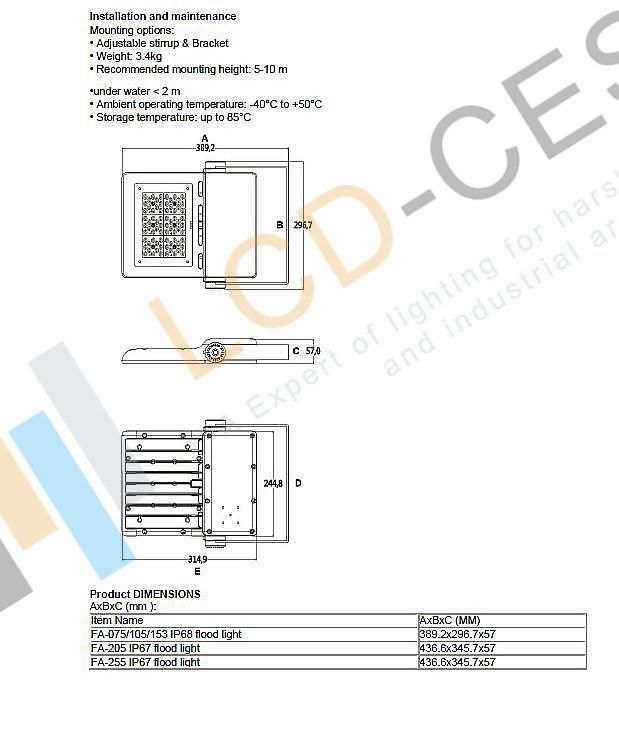

Product DIMENSIONS

Item NameAxBxC (MM)FA-085/105/153 IP67 flood light389.2x296.7x57FA-205 IP67 flood light436.6x345.7x57FA-255 IP67 flood light436.6x345.7x57FA-305/353 IP67 flood light582x385x60

Weight (kg ):

Item NameWeight (KG)FA-085/105/153 IP67 flood light3.4FA-205 IP67 flood light4.8FA-255 IP67 flood light7.2FA-305/353 IP67 flood light7.5

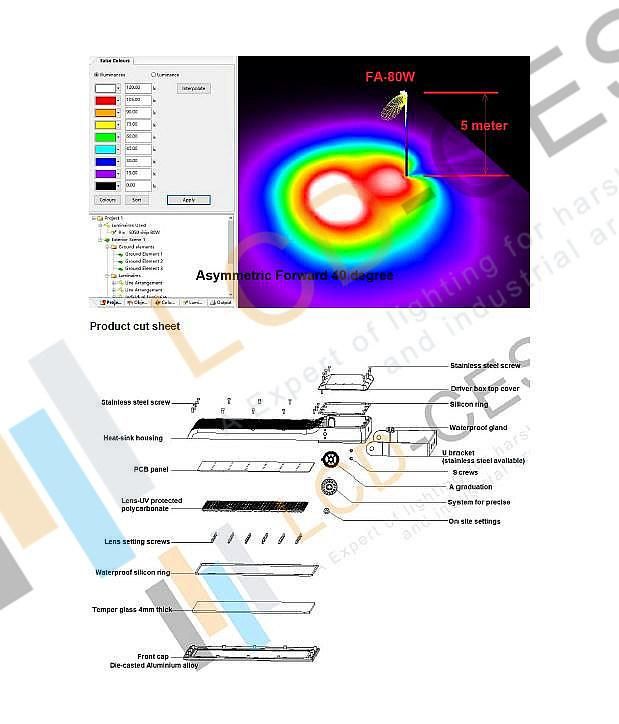

Product Construction

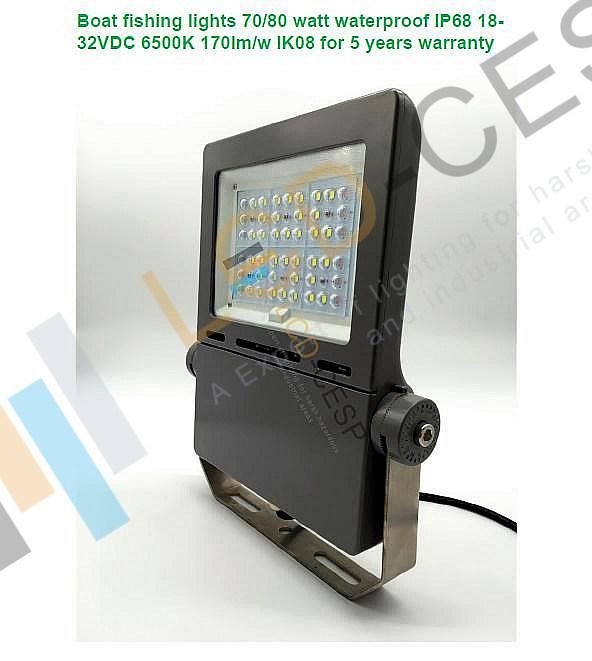

Product Photos

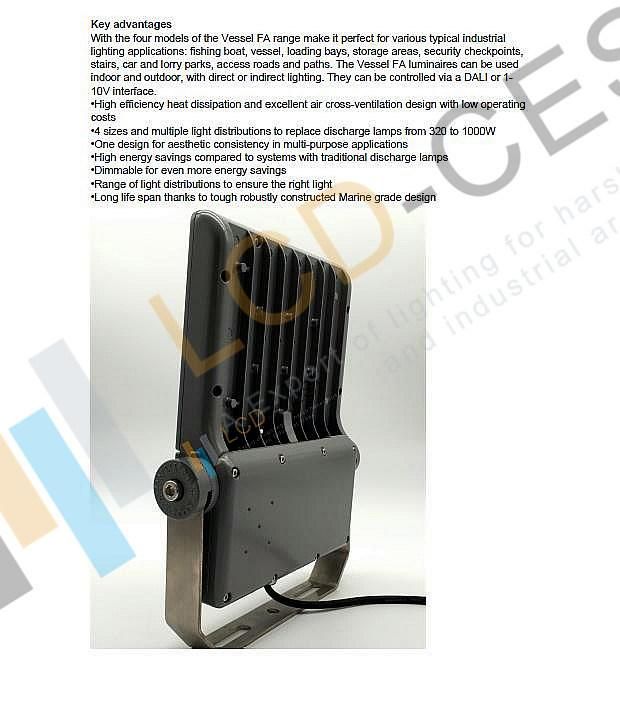

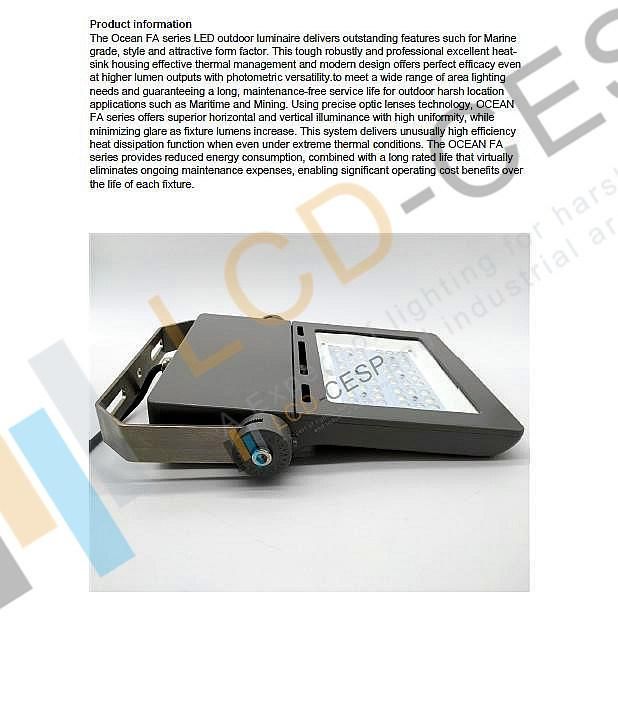

SUITABLE FOR: The FA series is a new series of waterproof LED flood lights made in the high quality factory - ideal for saving energy while illuminating stairs, parking
garages, driveways, tunnels, and virtually any building exterior and Marine and Mining Sites, Heavy Industrials, Storage Facility, Paper mills, Wastewater Treatment Plants, Loading Docks, Platforms, Shipyards, Chemical Processing Facility, Petrochemical Processing Facility. The Flood light Series LED Luminaires are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or where wind, water, snow or high ambient can be expected. They can be used in locations made harsh by the presence of weather.LCD-FA Series are ideal for retrofit of existing HPS/MH and offer higher efficacy for increased energy savings, lower maintenance costs and shorter paybacks.

Best-in-class system efficacy - Up to 130 Lm / W
Universal Voltage: AC 100~277V / 347~480V (50/60Hz)
Instant illumination and restrike - no warm-up time required
Wide ambient temp. range from - 30 C to + 50 C ( -40 F ~ + 140 F)
Safe and reliable heat transfer - Offering a T-rating of T5
Shock-and vibration-resistant - Durable LEDs with solder-less board connection Copper-free aluminum body and frame -corrosion resistant
All exposed fasteners with Carbon steel or high quality stainless steel#316
High Temperature silicone gasketing
Thermal shock and impact resistant glass lens
Harsh & Hazardous Duty

(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***INDUSTRIEL PROJECTEUR
PROJECTEUR IP65
FOURNI AVEC UN CONNECTEUR DE LIAISON IP67
Extérieurs ou intérieurs. Éclairage de forte puissance
EXTERNAL PROJECTOR
PROJECTEUR INDUSTRIEL
PROJECTEUR HAUTE PUISSANCE 100W - 150W & 200W
Étanche LED ultra performant à choix de puissance intégré.
