Outdoor Parking Lot Garden Road 100W 200W LED Street Light Replace 400W Halgoen HPS Lamp
Rayborn Lighting Co., Ltd.- Power Supply：AC
- Color Temperature：3000K,4000K,5000K,6000K
- Lamp Body Material：Aluminum Alloy
- Power：100W
- Application：Square, Highway, Garden, Parking Lot, Urban, Bridge, City, Public, Village, Countryside
- IP Rating：IP65
Base Info
- Model NO.：RB-STE-100W
- Certification：CE, EMC, LVD, RoHS, VDE
- Input Voltage：AC100-277V
- With Light Source：With Light Source
- Item No.：Rb-Ste-100W
- LED Chip：Lumileds High Brightness LED Chip
- CCT：3000K,4000K,5000K,6000K
- Power Factor(PF)：>0.96
- LED Efficiency：130lm,W LED Street Light
- Fixture Efficiency：>95%
- Viewing Angle：140*90 Degree
- Material：Pure Aluminum
- Warranty Time：5years
- IP Rate：IP65 Waterproof Dustproof
- Transport Package：1PC,Carton
- Specification：CE,ROHS
- Trademark：Rayborn
- Origin：China
- HS Code：9405409000
- Production Capacity：40, 000PCS
Description
Outdoor LED Street light Feature :
LED Chip: SMD LED Chips which is the most famous Brand in chips field, high efficiency and long lifespan, high quality.
Power Supply: SUNPER LED Street light use Meanwell approved driver, it improved lights performance. Power efficiency ≥92.
Color temperature: LED Street light provide a range of color temperatures from 3000, 4000,5000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly hermetically sealed providing IP65.
Great light uniformity: LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
LED Street light Competitive Advantage :
1. CE & RoHS & SAA IP65 approved, Quality Guaranteed
2. Imported original SMD3030 LED chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 5 years warranty and 50.000 hours lifespan
Package details of Outdoor LED Street light :
Installation Caution :
2. In order to prevent the lamp off, make sure the installation is correct.
3. Do not use in a corrosive gas.
4. Do not cover any material in the body.
5. For safety, please tangible take a good ground.
6. Decomposition of the product, modification, or improper construction .

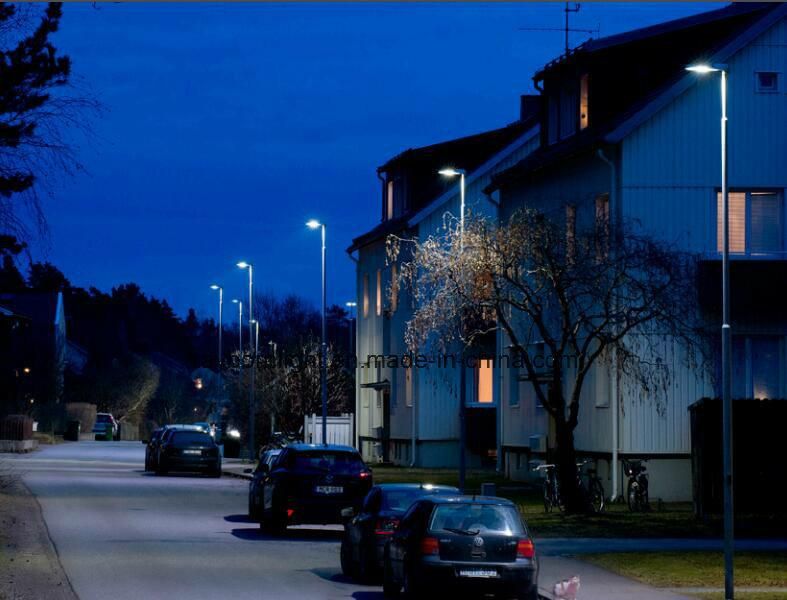

LED Street Light Applications:
1. Playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
LED Street light more than 24hours aging test :
Before shipping, all the LED streetlights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
Payment terms:
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities
Rayborn services:
?1. Your inquiry related to our products or prices will be replied in 24hours.
?2. OEM & ODM are welcomed, OEM brand is available.
?3. Any defective products within warranty will get maintenance or replacement unconditionally.
?4. Protect your sales area .
FAQ :
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable.
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many LED Street Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
