Rectangle Square Shape LED Inground Light LED Underground Light
Chongqing Xinyuanhui Optoelectronic Technology Co., Ltd.- Color Temperature：Warm White
- Lamp Body Material：Stainless Steel
- Power：4W
- No. of Light Source：≤10PCS
- IP Rating：IP68
- Application：park
Base Info
- Model NO.：XYH-XT006
- Certification：CE, EMC, LVD, RoHS, IP68,ISO9001
- Input Voltage：24v
- Light Source：With Light Source
- LED Chips Brand：Epistar
- LED Chip：Epistar,CREE
- Beam Angle：10-120 Degree Optional
- Control Method：Auto Color Change,4 Wire Color Change,Single Color
- Lifespan：50000hrs
- Installation Method：Disc Type
- CCT：2700-7000K
- Color：R,G,B,Y,W,Ww,RGB
- Place of Origin：Chongqing,China
- Brand Name：Xyh
- Warranty：2years
- Cable：Jhs
- Transport Package：Standard Packaging
- Trademark：XYH
- Origin：Chongqing
- HS Code：9405409000
- Production Capacity：20000,Month
Description
Beam Angle
30°as Standard,10°,60°,90°,120° Optional
Colour
R,Y,G,B,W,WW,RGB
Lifespan
50,000hrs, L70@ 25ºC
Control method
Single color,Auto RGB color Change,RGB 4 wires color change (With remote),DMX512 control
Installation method
Material
304 stainless steel, High light transmission tempered glass,Anti-aging silicone sealing ring
Cable
Special underwater waterproof cable 1 meter
Temperature
Operating temperature -40ºC-+45ºC
Storage temperature -40ºC-+70ºC
Certification
CE,RoHs,ISO9001,IP68
Waterproof level
IP68
Electric parameters
Model
Rated power
Voltage
XYH-XT006-4X1W
4W
AC/DC24V,AC220V

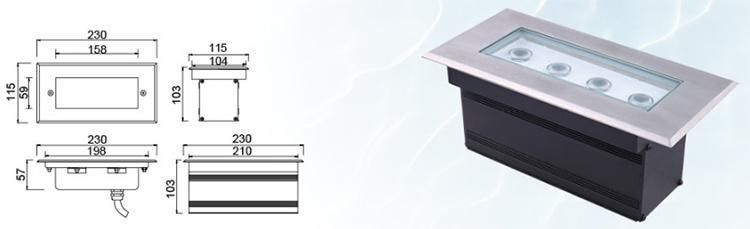

Physical parameters
Dimension
Reference weight
φL230*W115*H103mm
2.4KG

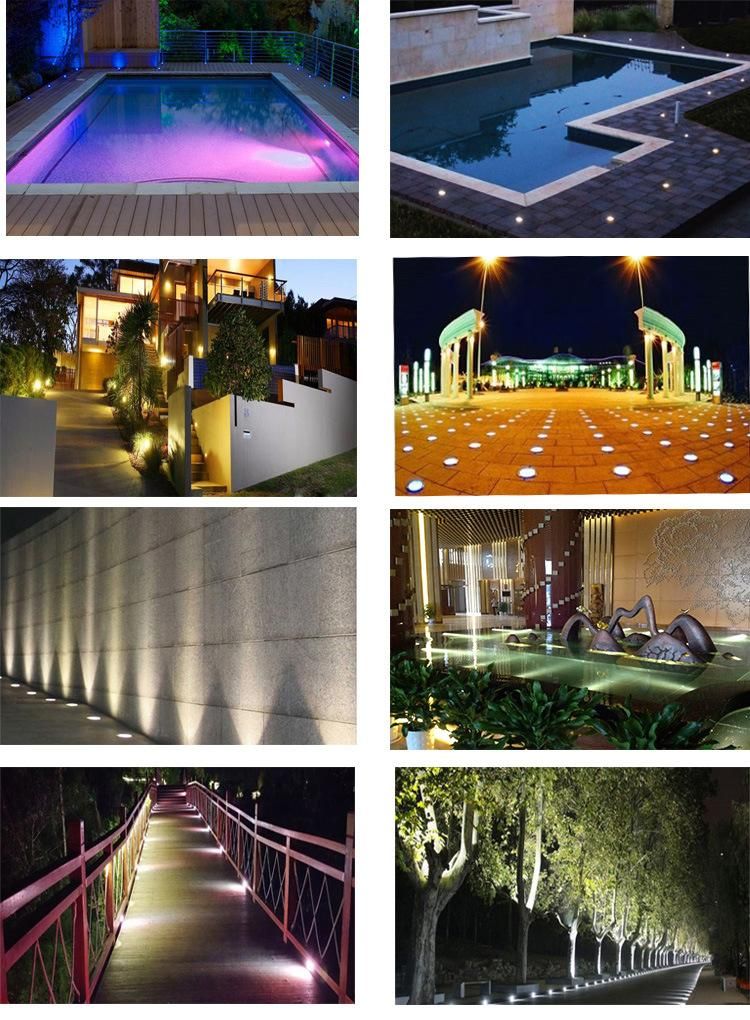

Our led underground light,led underwater lights, fountain lights can be installed in parks, apartments, communities, hotels, large or small fountains, where water can be installed.

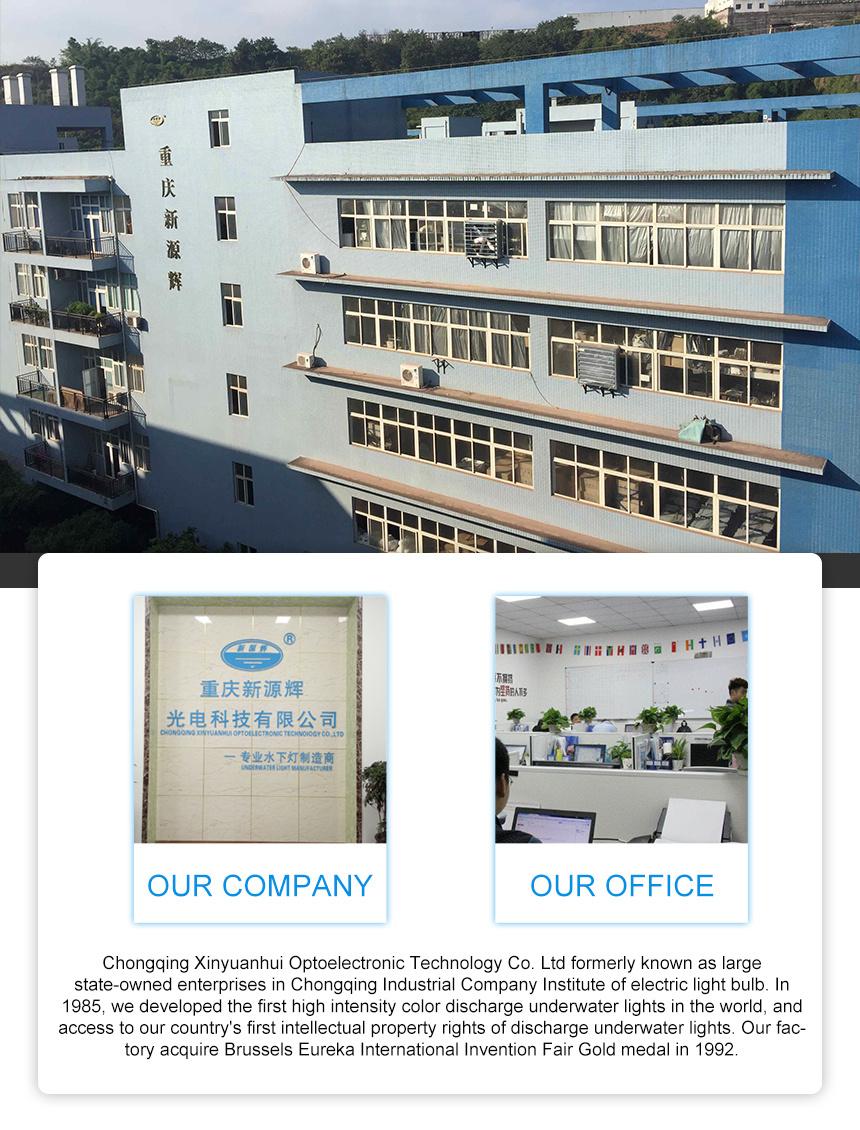

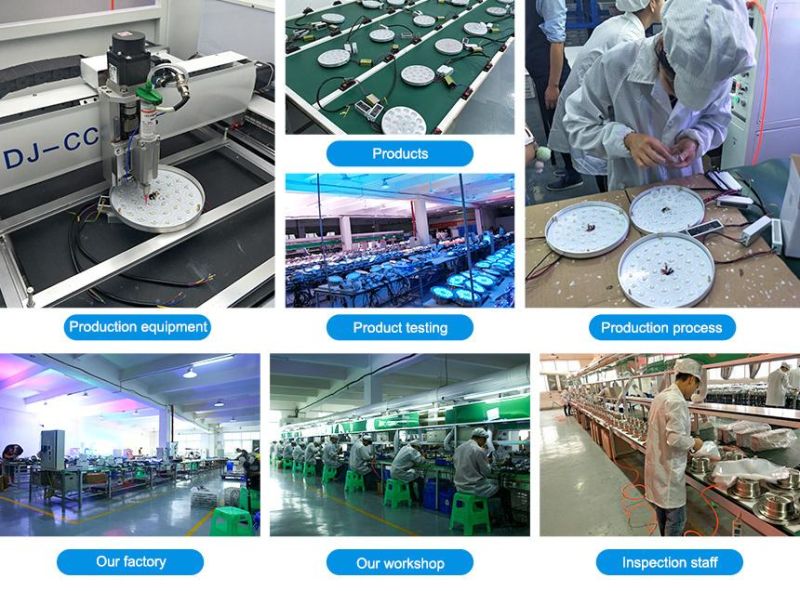

Chongqing Xinyuanhui Optoelectronics Technology Co., Ltd is a professional outdoor landscape lights factory specialized in LED Underwater lights, LED Fountain Lights, LED Underground Lights,LED Pool Lights,LED Wall Washer Lights, and some other lights for outdoor landscape. Our products passed IS09001-2015,CE,ROHS,IP68 protection level certifications.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more thanQ3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
