LED Outdoor Lighting

Home > Product > LED Floodlight

LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt

Rayborn Lighting Co., Ltd.
  • Color Temperature：Cool White
  • Lamp Body Material：Aluminum
  • Power：200W, 300W, 400W, 500W, 600W, 800W, 1000W
  • Projection Distance：18-25m
  • Application：Park, Square, Factory, Garden, Outdoor Billboard
  • IP Rating：IP66

Base Info

  • Model NO.：RB-FLL-500WSD
  • Certification：CE, C-tick, EMC, ETL, FCC, LVD, RoHS, SAA, UL
  • Operating Voltage：100-240V
  • Input Voltage：220V
  • LED Chips Brand：Lumileds
  • Type：LED Floodlight,LED Flood Light
  • Dimming Function：1-10V, PWM, Dali Dimmable
  • Material：Aluminum+PC
  • Emitting Color：3000K,4500K,5000K,6500K
  • Base Material：Aluminum
  • Chip：CREE,Lumileds Chip
  • Driver：Meanwell Hlg,Elg
  • Angel：60,90,120,60*150deg
  • LED Power：50W-1000W
  • Transport Package：1PCS,Box
  • Specification：CE,EMC,ETL,SAA
  • Trademark：RAYBORN
  • Origin：China
  • HS Code：940540900
  • Production Capacity：40, 000PCS,Month

Description


400W LED Flood Light Main Technical ParametersItem No.:RB-FLL-400WSDInput Voltage:AC 100~277VFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:>93%LED Power400WLED Chip:lumiledsPower Driver:MeanWell HLGLED QTY:400pcsLED Working Voltage:DC 42~48VSystem Consumption:410WLED Luminous FluxWarm White45000LMPure White47000LMCool White48000LMViewing Angle:60/90/120degreeAverage  Illuminance10M306LUXIlluminance AreaHeight 10MDia.12 M  points visibleHeight 20MDia.23 M points visibleHeight 40MDia.46 M points visibleIlluminance Uniformity:>0.6Color TemperatureWarm White2700K~3500KPure White4000K~5500KCool White6000K~7000KColor Rendering IndexRa>80Light Distribution:LED points visibleLED Junction Temperature:≤115Working Temperature:-35~55IP Grade:IP65Working Life-span:50000 HPower Line:1.0 three lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellBlack and silver is availableCertificateCE /ROHS/UL/SAANet Weight:6.5KGLED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt

LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt

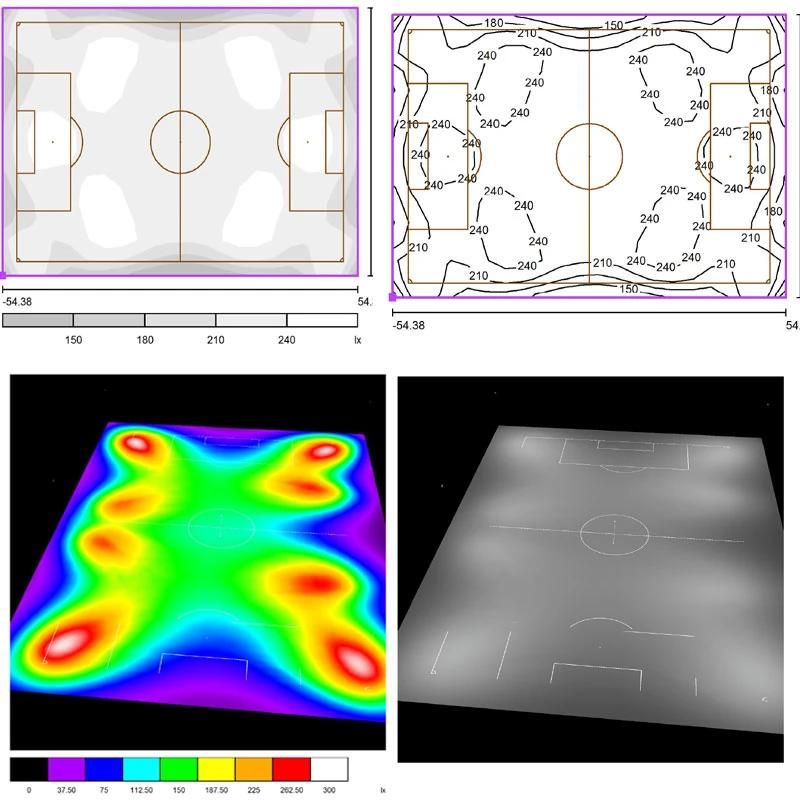

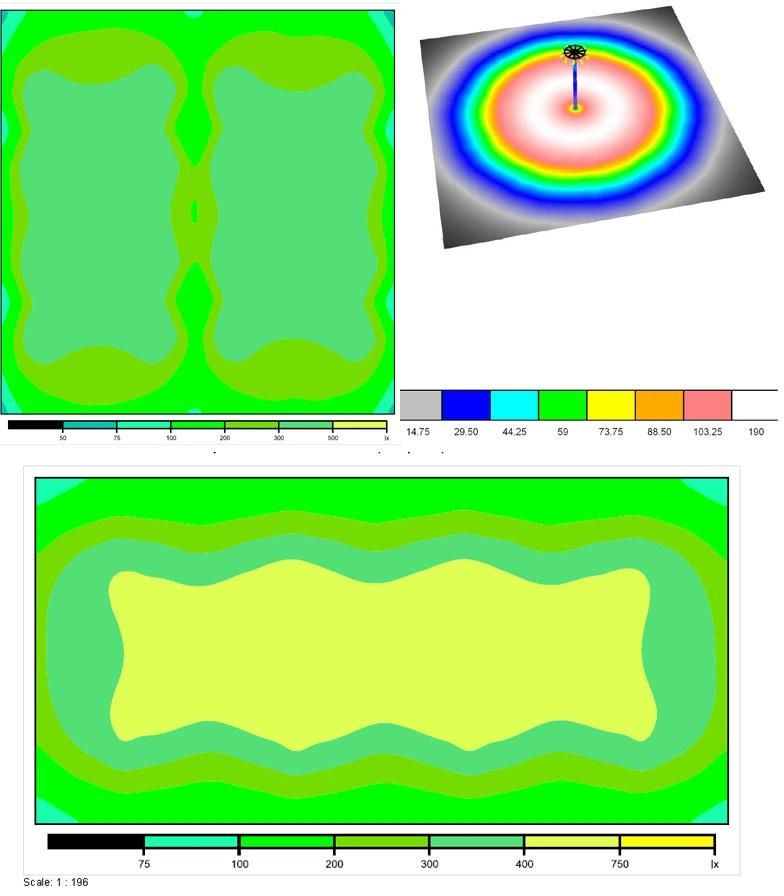

Flood Light Design Simulation:
LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt
LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt

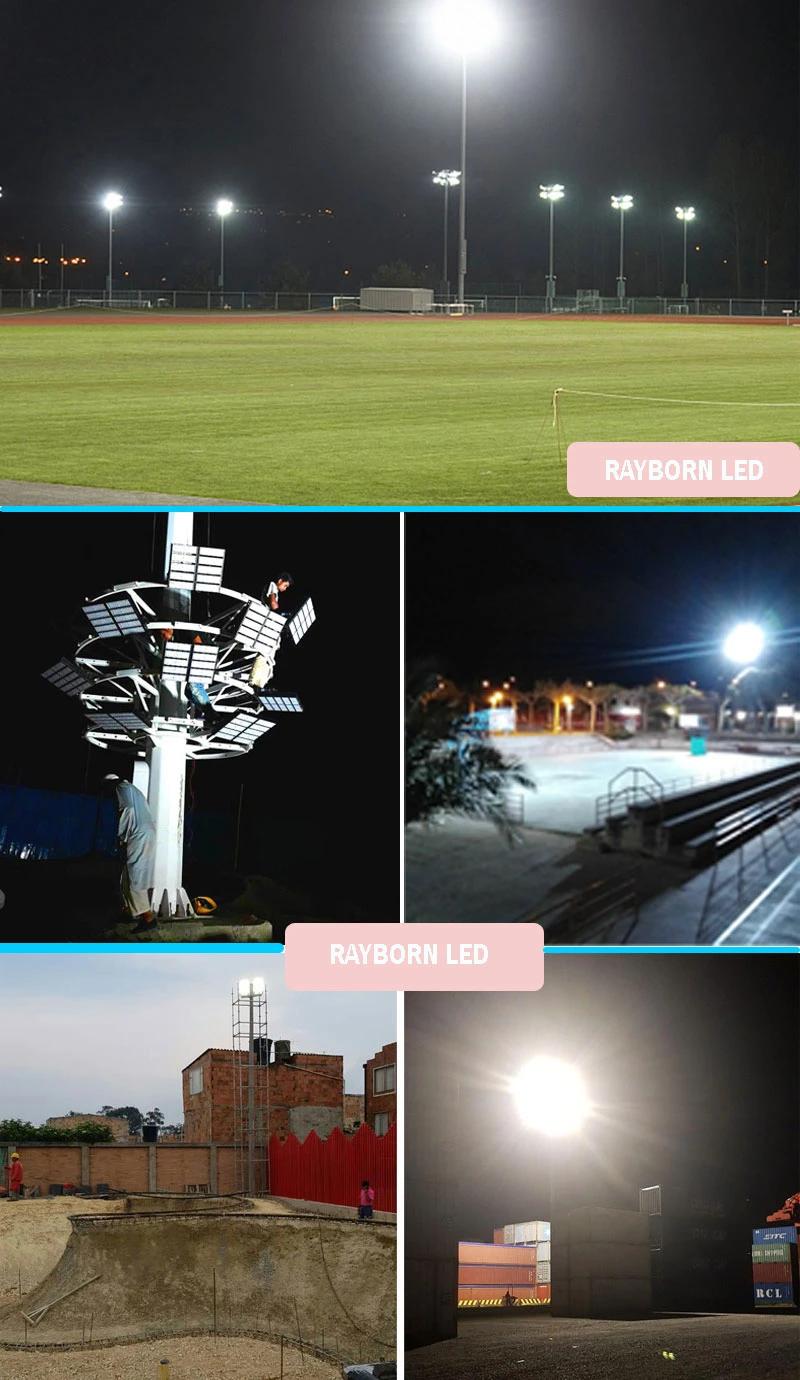

 Applications:

Widely used in factory, gymnasium, billboards, buildings,landscaping, Warehouse the site of light project and decorative lighting project etc.
LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt

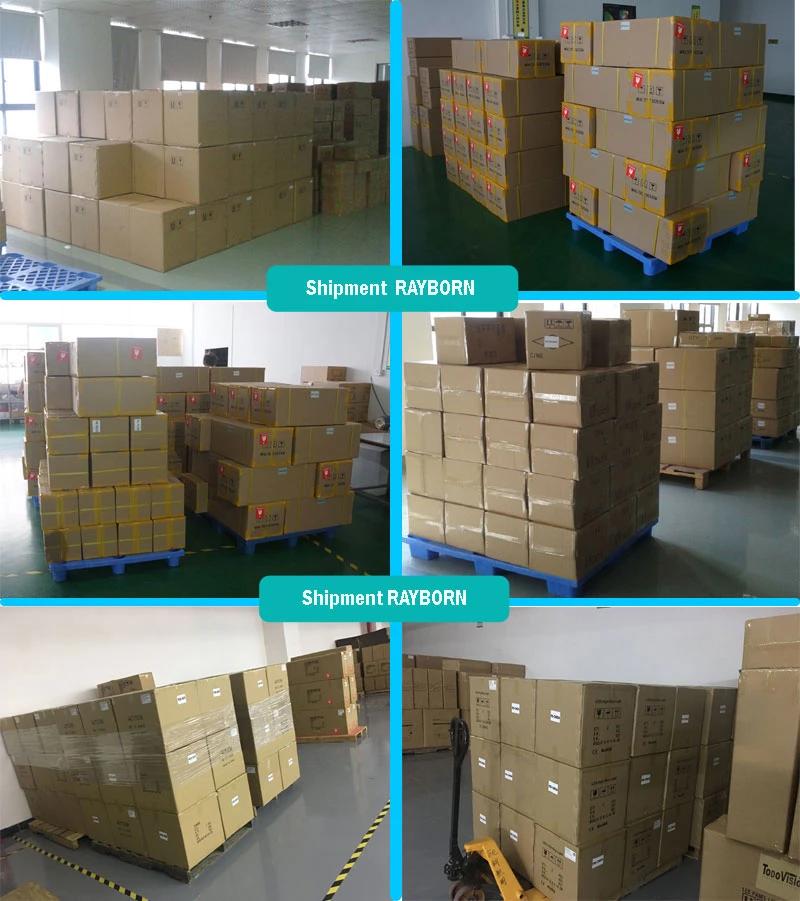

LED Floodlight Sea Transportation:
LED Spotlight 500W Outside Dimmable LED Flood Light Reflecor 500 Watt
