• Model NO.：82731
• Certification：CE, EMC, GOST, LVD, RoHS
• Input Voltage：DC12V,DC24V,AC100-240V
• Light Source：With Light Source
• LED Chips Brand：CREE,Bridgelux
• Mounting Sleeve：ABS
• Size：Dia130mm*H132mm
• Ik Rate：08
• Front Cover：304#,316# Stainless Steel
• Installation Method：Recessed and Buried
• Lens Angle：8 ,15 ,25 ,30 ,45 ,60
• Glass：Clear, Diffused Tempered Glass
• Accessories：Honeycomb Louver, Concentric Cell Optional
• Transport Package：Shockproof Carton Box
• Specification：29X29X31(8PCS,CTN),G. W: 10kgs,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：30000PCS,Month

Basic Info.

Model NO. 82731 Certification CE, EMC, GOST, LVD, RoHS Input Voltage DC12V/DC24V/AC100-240V Light Source With Light Source LED Chips Brand CREE/Bridgelux Mounting Sleeve ABS Size Dia130mm*H132mm Ik Rate 08 Front Cover 304#/316# Stainless Steel Installation Method Recessed and Buried Lens Angle 8 /15 /25 /30 /45 /60 Glass Clear/ Diffused Tempered Glass Accessories Honeycomb Louver/ Concentric Cell Optional Transport Package Shockproof Carton Box Specification 29X29X31(8PCS/CTN)/G. W: 10kgs/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 30000PCS/Month

Product Description

Adjustable Beam Angle Outdoor Inground Lights Landscape Path Street Road IP67 Buried Inground Driveway Lamp

Feature and Benefits:1.IP67 waterproof for outdoor walk/path/ parking lot/garden/square lighting use;
2. Input Voltage:12V/24VDC standard;
3. Rich Color for options: Single Color and RGB Color;
4. RGB version can be worked with DMX+DMX Decoder or remote controller;
5. 316 Stainless steel front cover+tempered step glass+aluminum alloy can be withstand car traffic;
6. Using high-quality and high-precision material and structural waterproof, easy to maintain.
 Main Specification:
Housing: Outdoor dark grey powder coated aluminum T=60-80um Adhesion of ISO class 1/ASTM class 4B
Front Cover: 304# or 316# Stainless Steel
LED Source: 3x1W/3x2W/3X1 RGB/3x2W RGB/3x3W RGB 3in1 LED
Lens: Optical lens, efficiency ≥85%
Glass: Tempered step glass T=8mm
Glass pressure capacity: Full area=2500kgs
Gasket: Molding shaped silicone seal
Operating temperature: -20ºC to 40ºC
Power cable: H05RN-F 2x0.75mm² L=0.5m (low voltage)
                      H05RN-F 3x0.75mm² L=0.5m (Single color/high voltage)
                      H05RN-F 4x0.75mm² L=0.5m (for RGB)
Mounting sleeve: ABS

Product Models

Item No.	Lighting Source	Lens beam angle (°)	Consumption(Watt)	Input Voltage(V)	IK rate
82731	3x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	DC12V/DC24V	09
82731H	3x1W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	AC100-240V	09
82732	3x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	6.2	DC12V/DC24V	09
82732H	3x2W LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	6.2	AC100-240V	09
82733	3x1W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	3.2	DC12V/DC24V	09
82734	3x2W RGB LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	5.8	DC12V/DC24V	09
82736	3x3W RGB 3in1 LED	8°/15°/25°/30°/45°/60°/90°/ Asymmetrical lens	9.2	DC12V/DC24V	09

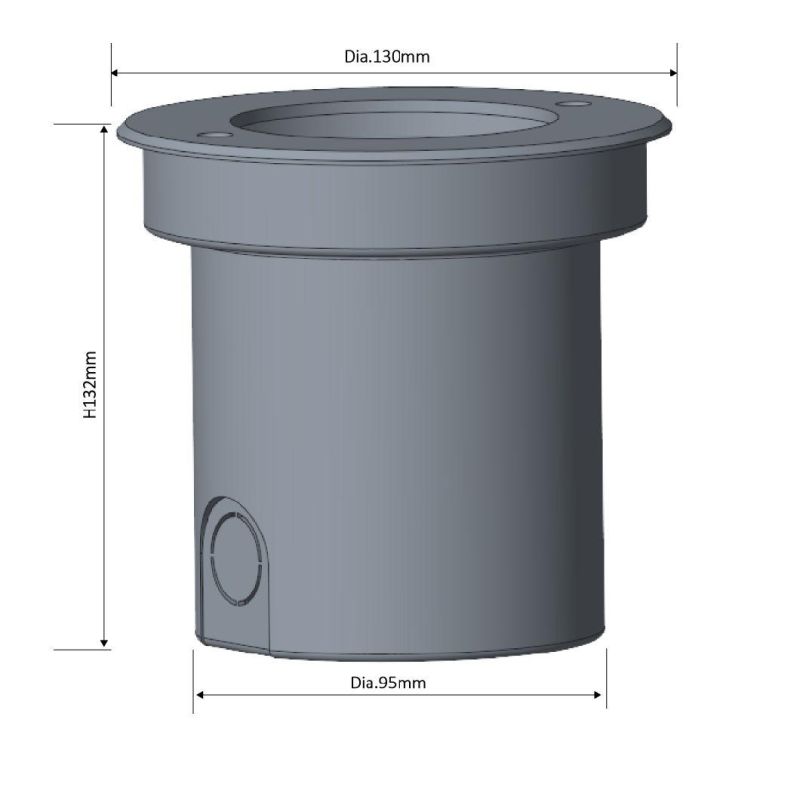

Product Size (Unit: MM)

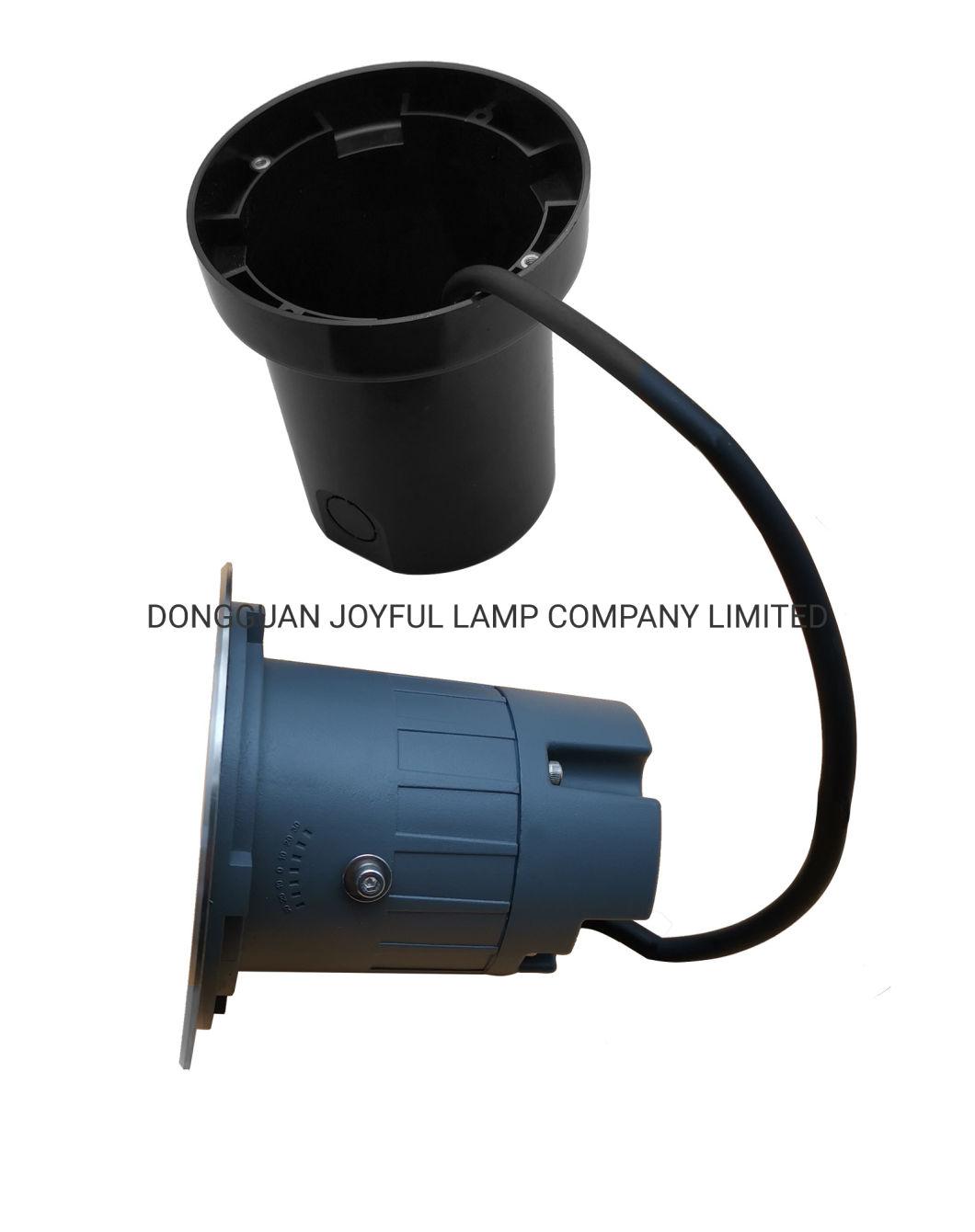

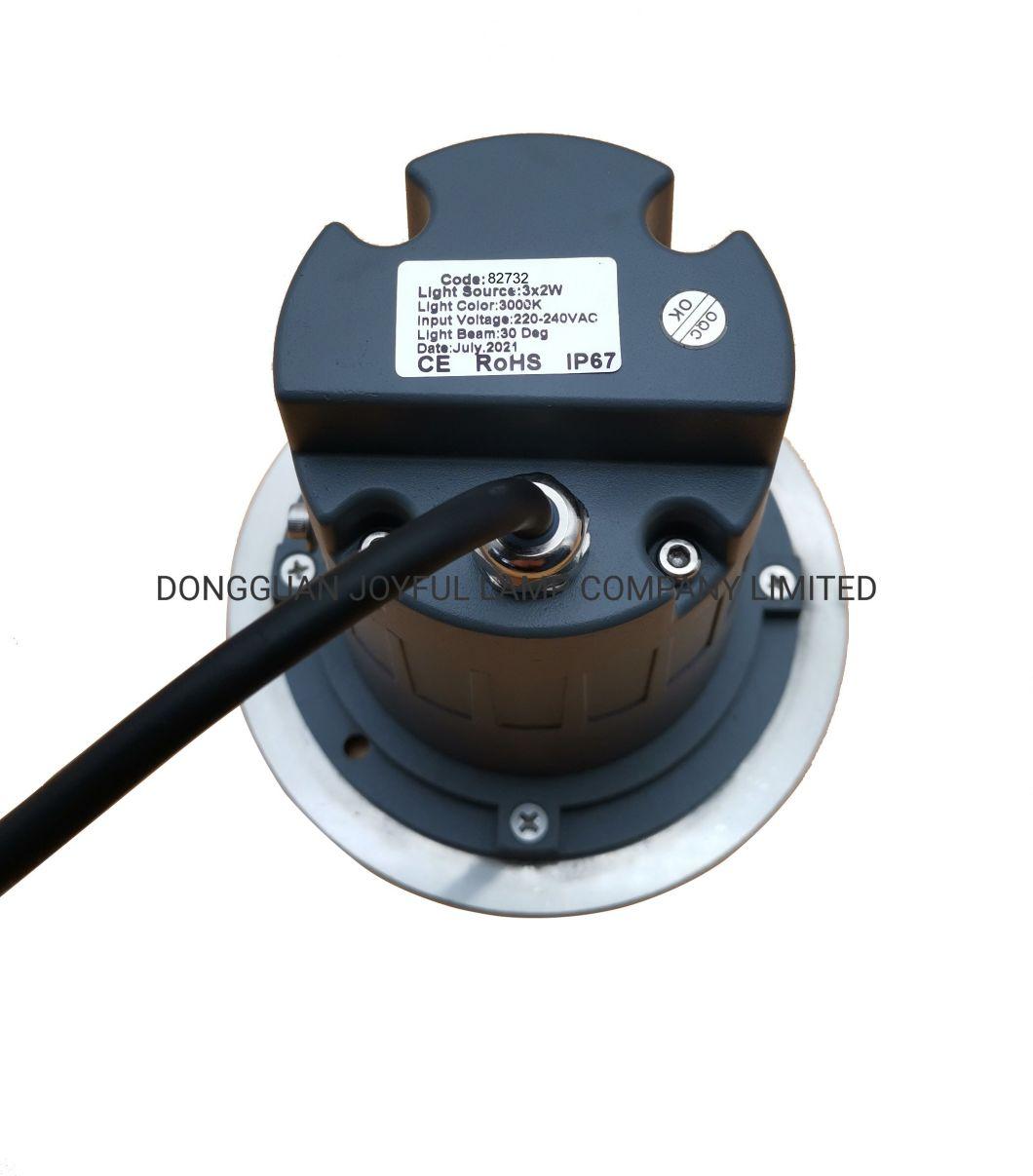

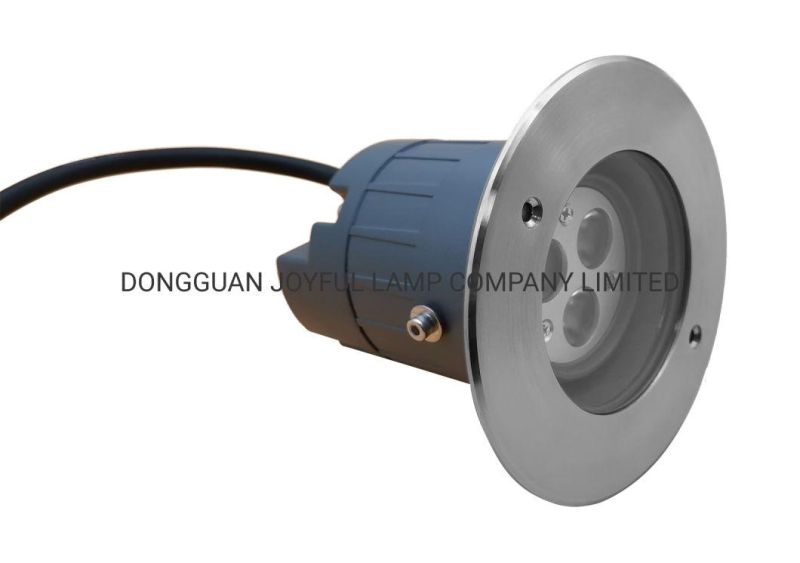

Product Pictures

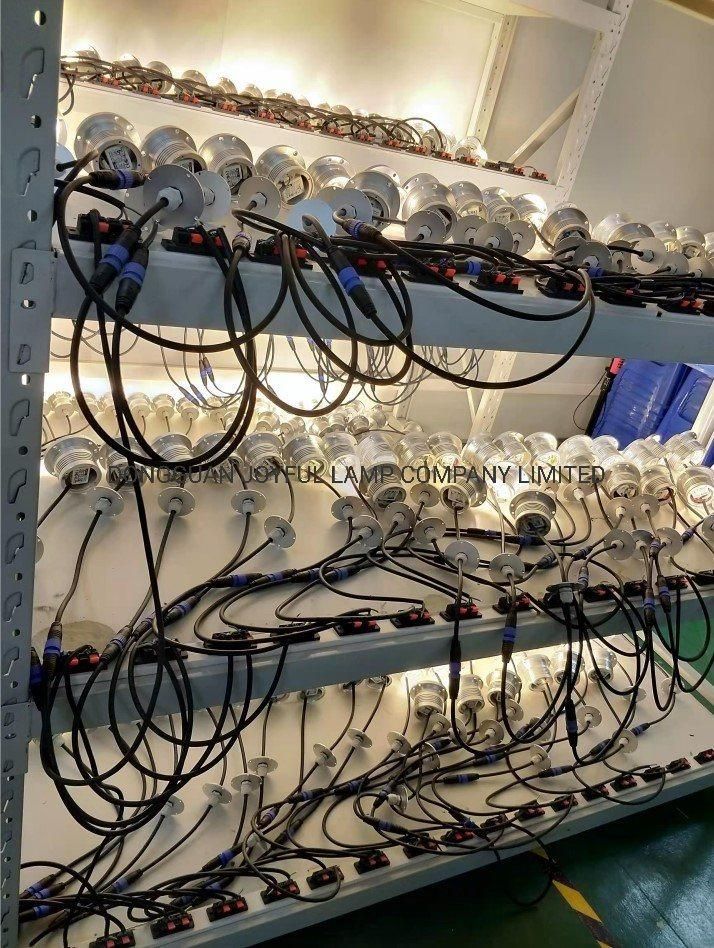

Production and Test

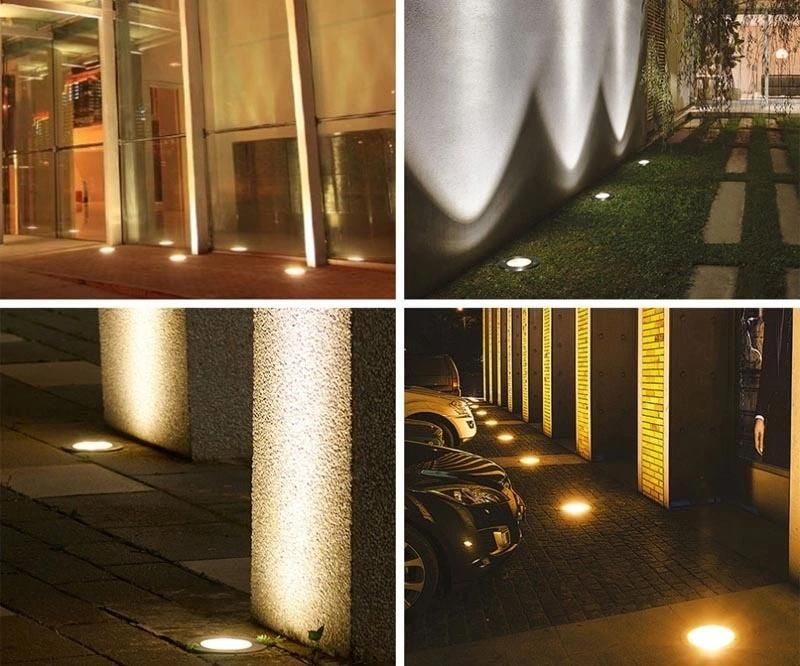

Product Application

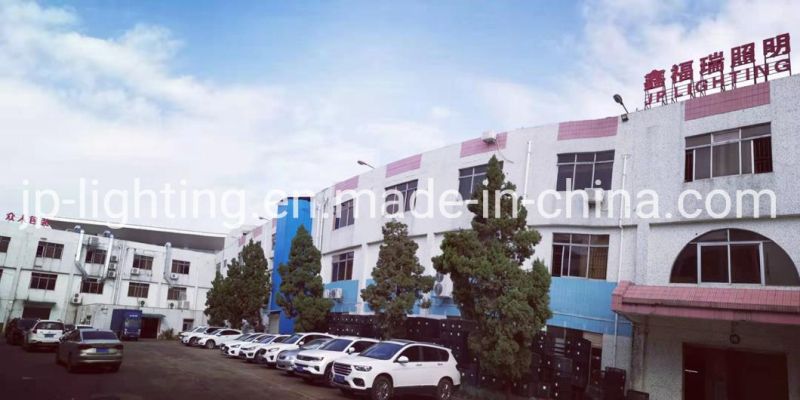

Factory View

Packaging and Delivery

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What are your main products?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 working days for sample making.
2.15-30 working days for mass products production time. It is up to the quantity.

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long do you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle do you need?
6.What's the quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
