150W LED Street Lighting for Public City Lighting

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：3000K 4000K 5000K 5700K
  • Lamp Body Material：Aluminum Alloy
  • Power：150W
  • Application：Square, Highway, Garden
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-LD150KL
  • Certification：CE, EMC, GS, LVD, RoHS, SASO
  • Input Voltage：AC 100-240 DC 24
  • With Light Source：With Light Source
  • LED Chips Brand：Lumileds
  • Warranty：5 Years
  • Name：LED Public Light
  • Product：LED Street Light
  • Transport Package：Export Cartons
  • Specification：ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS
  • Trademark：ZGSM
  • Origin：China
  • HS Code：94054090
  • Production Capacity：50000PCS,Month

Description

Basic Info.

Model NO. ZGSM-LD150KL Certification CE, EMC, GS, LVD, RoHS, SASO Input Voltage AC 100-240 DC 24 With Light Source With Light Source LED Chips Brand Lumileds Warranty 5 Years Name LED Public Light Product LED Street Light Transport Package Export Cartons Specification ISO 9001, ISO14001, CE, ROHS, FCC, TUV, SGS Trademark ZGSM Origin China HS Code 94054090 Production Capacity 50000PCS/Month

Product Description

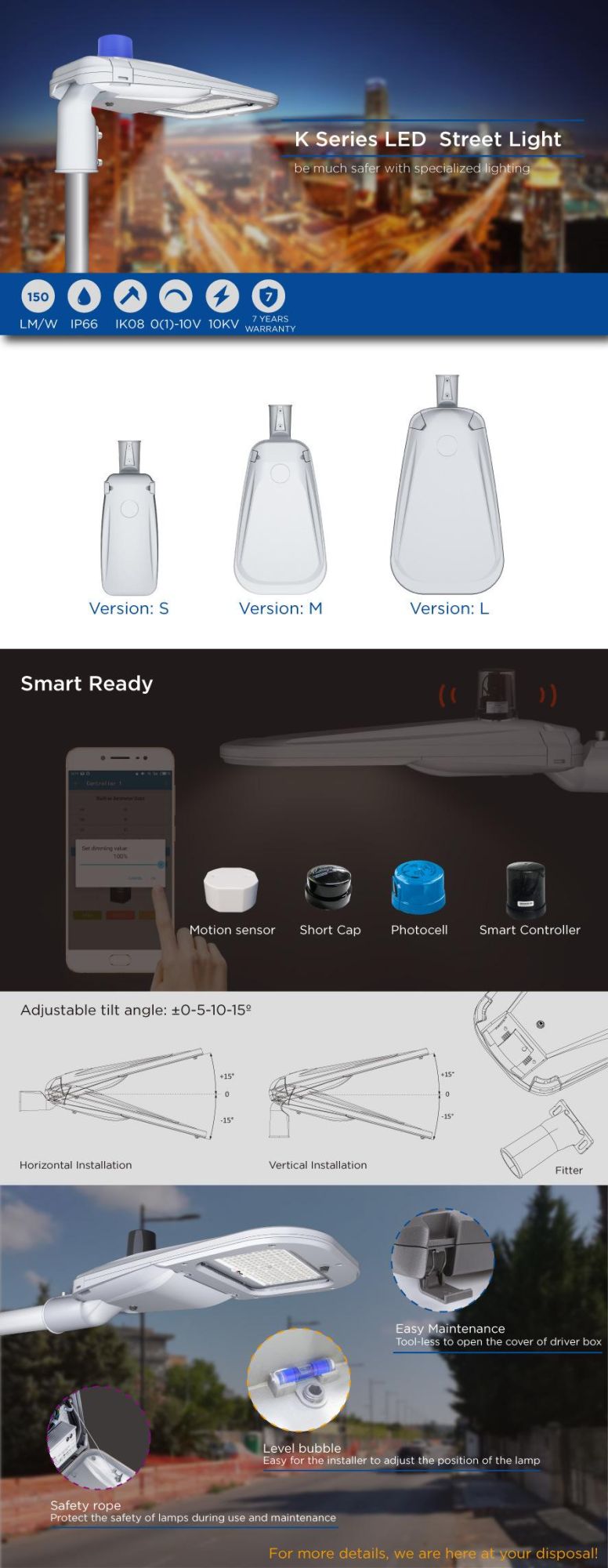

Series K Toolless Open Street Led Light
K series street led light adopts a full die-casting aluminum design, which makes it elegant and modern. Many of our client's projects will give priority to this street light. K series has three different sizes, with wattages ranging from 25 to 200W to meet different project requirements. The buckle design allows the lamp to be opened without tools, which facilitates the replacement of the LED driver. Its circuit breaker is a convenient design for installers which also protects their safety. With respirators whose function is protecting the lamp from the damage of moisture to its components and prolonging the service life of the lamp. It also has some other small detailed designs, such as terminal block and level bubble. All of these make the K street led light an ideal road lighting fixture.
150W LED Street Lighting for Public City Lighting150W LED Street Lighting for Public City Lighting

Series NoSeries K
Power25W, 35W, 55W, 60W, 90W,120W, 150W, 180W, 200W
Efficacy125-150lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK08
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType I, Medium; Type II, Medium; Type III, Medium;
Mounting OptionSide entry or Vertical pole mounted
Warrantys5 Years
CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
