• Model NO.：817038
• Base Type：LED+MPCB
• IP Rating：IP65
• Shade Type：Clear Glass
• Certification：CE, EMC, LVD, RoHS
• Voltage：DC24V,AC100-240V
• Body Size：L160mm*W160*H79mm
• Working Temperature：-20-+40 Centigrade
• Luminous Flux：80-90lm,W
• LED Sources：3 X SMD5050
• Working Lifetime：50000hrs
• Transport Package：Shockproof Carton Box
• Specification：8PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 817038 Base Type LED+MPCB IP Rating IP65 Shade Type Clear Glass Certification CE, EMC, LVD, RoHS Voltage DC24V/AC100-240V Body Size L160mm*W160*H79mm Working Temperature -20-+40 Centigrade Luminous Flux 80-90lm/W LED Sources 3 X SMD5050 Working Lifetime 50000hrs Transport Package Shockproof Carton Box Specification 8PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 3000PCS/Month

Product Description

Outdoor Recessed Led Step Light With Clips Easy Installation For Stair/ Square/Steet/Room

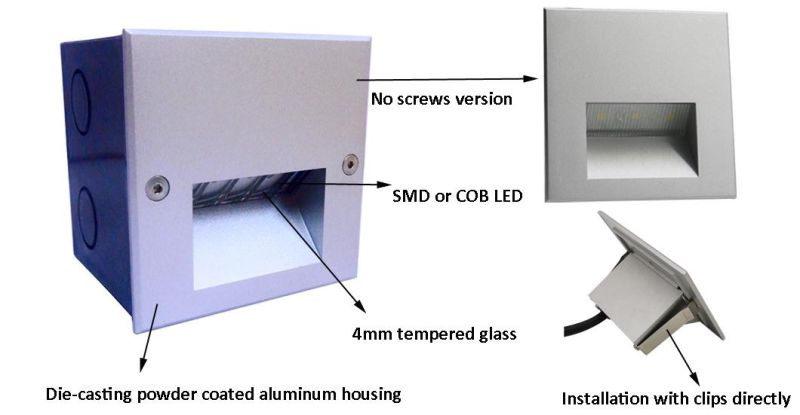

Feature and Benefits1.IP65 outdoor stair/wall/step/corn/stairway/park lighting use;2.IP65 rating with CE certificated;3.Rated Lifespan: 50,000+ hours;
4.Easy to install and operate,with clips for installation directly;5.Excellent heat conductivity aluminum, high efficiency constant current drivers;
6.Packing detail: 1pc/inner box, 8pcs/ctn,G.W: 3.5kgs; Main Specification

Housing	12# Die-casting outdoor powder coated aluminum
Face cover	12# Die-casting outdoor powder coated aluminum
Glass	4MM Tempered glass
Lens	Optical lens, efficiency≥85%
Product Dimension	L95mmxW95mm
LED	SMD LED or COB LED
Cable gland	IP67 Copper and nickel coated
Gasket	Tooling shaped seal
Operating temperature	-20ºC to 40ºC
Power cable	H05RN-F2x0.75mm2L=0.3m (low voltage)  H05RN-F3x0.75mm2L=0.3m (high voltage)

Product Models

Item No.	Lighting Source	Lens Beam Angle (°)	Consumption(Watt)	Input Voltage(V)	IK Rate
817067	3xSMD 5050	120°	1.5	DC24V/AC100-240V	10
817038	1x3W COB LED	120°	3.3	DC24V/AC100-240V	10

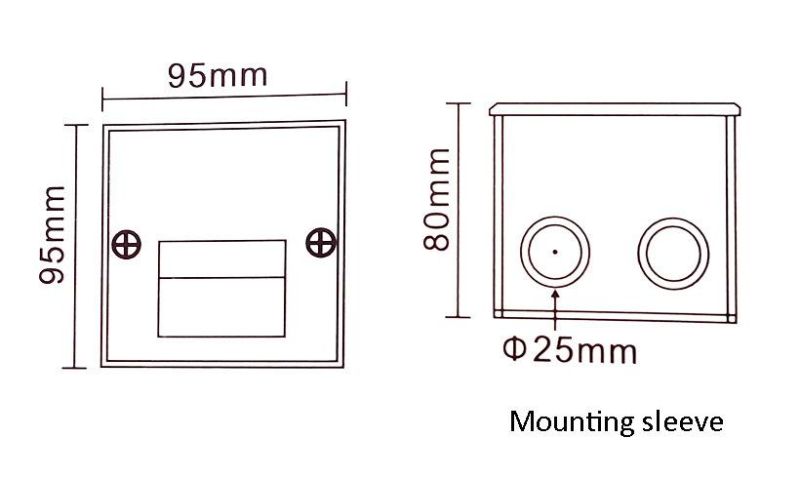

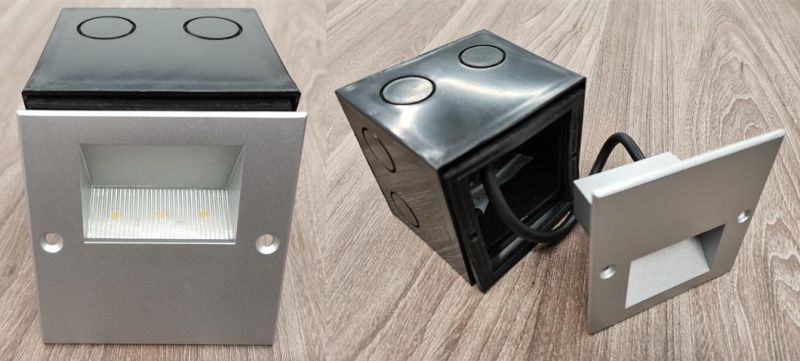

Product Dimension  Product Picture

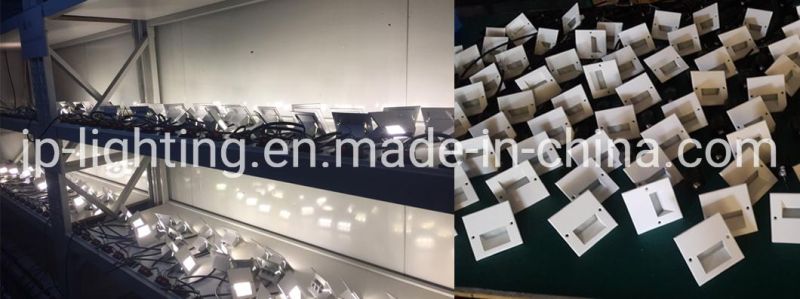

Production Test

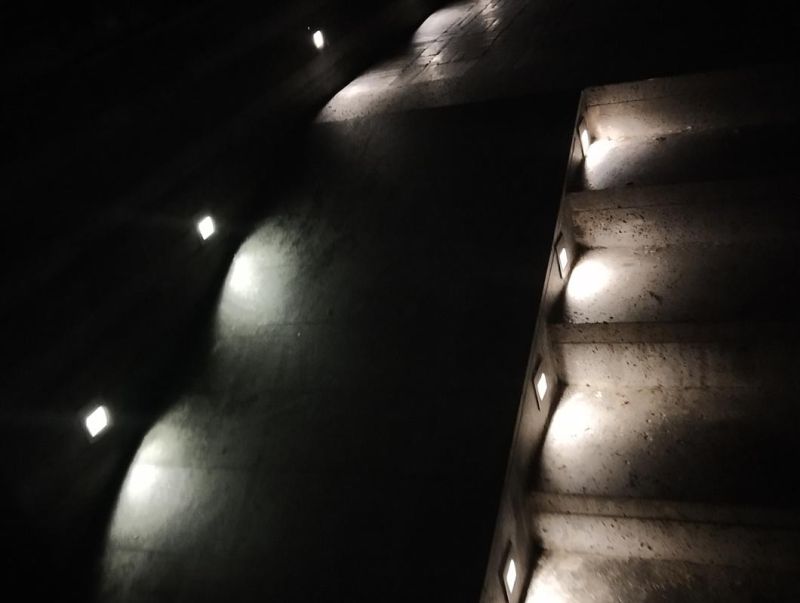

Product Application
Suitable for Outdoor lighting, stair, step, park, gallery, corridors of villa, hotel, decorative lighting residential, commercial etc.
