• Model NO.：DL-ISSLA4-100W
• Certification：CE, RoHS, ISO
• Input Voltage：12v
• With Light Source：With Light Source
• LED Chips Brand：Bridgelux
• Solar Panel：18V 28W Polycrystalline Silicon
• Lifetime：25years
• Battery：3.2V 30ah LiFePO4 Battery
• LED Chips：Bridgelux or Other Brand
• Lumen：14000-16000lm
• Charge Time：6 Hours in Strong Sunshine
• Working Time：3-5 Continuous Rainy and Cloudy Days
• Working Temperature：-30~60 Celsius
• Colour Temperature：6000-6500K(Standard), 2800-3300K, 4000-4500K
• Height of Installation：5-7m
• Distance of Installation：8-10m
• Certificate：CE(EMC&LVD) & RoHS & IP65, ISO
• Carton Size：75*25*12(Cm)
• Net Weight：5.3kg
• Gross Weight：6.0kg
• Transport Package：Carton,Wooden Frame
• Specification：71*21*8(cm)
• Trademark：DAWN
• Origin：China
• HS Code：9405409000
• Production Capacity：60000units,Year

Model NO.DL-ISSLA4-50WDL-ISSLA4-100WDL-ISSLA4-150W

LampPower

50W100W150WLumen8000-9000lm16000-18000lm24000-27000lmSolar Panel Power18V 20W18V 28W18V 35WSolar Panel Type High Efficiency Mono Silicon  Solar Panel Lifetime25 YearsBattery TypeLiFePO4 Battery with 5years LifetimeWarranty Years3-5 Years

Product Features

1.Integrated design,all in one solar LED street light, solar panel,Led chips, battery,cotroller,motion sensor,etc,
   all in(on) a light,without extra cable, save shipping cost and labour cost.

2.Easy to ship,carry and install.

3.Energy saving and environment friendly by perfect combination of solar power and LED lighting.

4.High capacity and long life Lithium battery,5-year theoretical working life and high-temperature resistance,
   make the whole light a longer life.

5.Safe and reliable rain-proof & water-proof design.

6.Alumina Alloy is used for main structure in order to preventing dusty and corrosion,is also good for heat dissipation.

7.Different power control according to time period, lower brightness when less people after midnight, in order to saving
   energy and improve practicability.

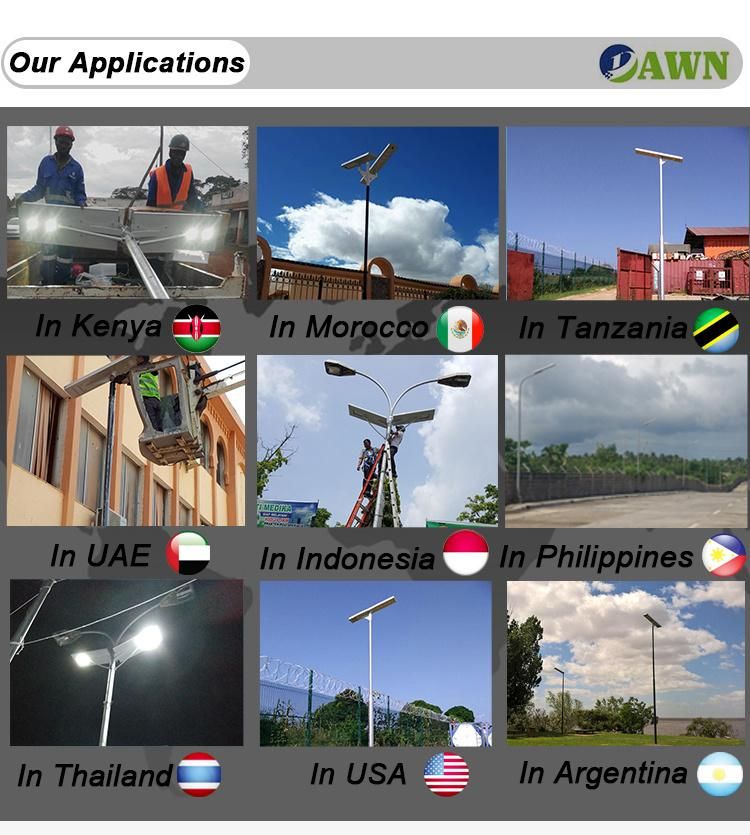

Our Integrated All In One Solar LED Street Lights are widely used for
ollowing situations:



A:Street & Highway                    B:Garden                        C:Jogging and Bike Path

D:Entrance                                  E:Park Lot                       F:Perimeter Security

G:Yard                                          H:Boat Dock                   I:Sidewalk

J:Farm & Ranch                          K:Fence                          L:Private Road

M:Park                                          N:Campus                      O:Lakeside

P:outside of Museum,Library,Stadium,Music Hall           Q:Remote Area
