• Model NO.：LV-30W
• Certification：CE, EMC, RoHS
• Operating Voltage：85-265V
• Input Voltage：AC85-265V
• LED Chips Brand：Bridgelux

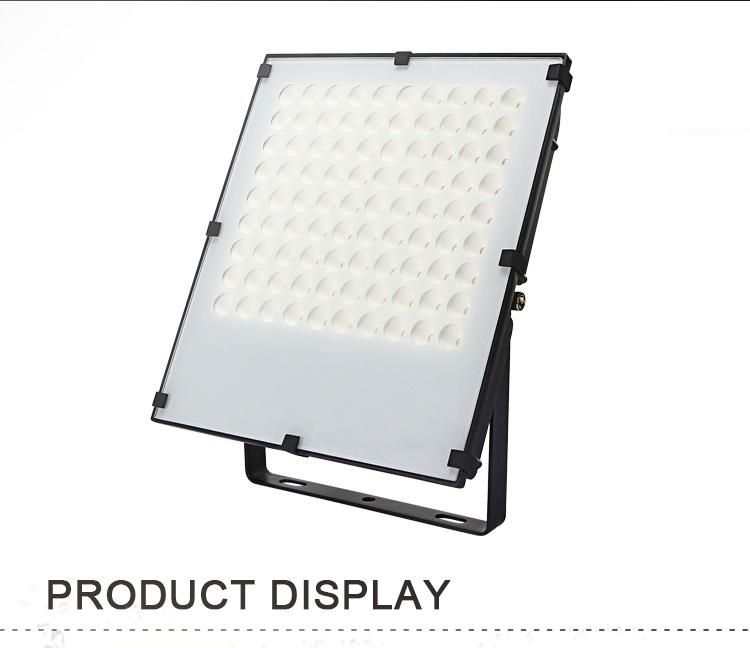

• Product Name：Outdoor LED Flood Light
• Type：Energy Saving Outdoor LED Flood Light
• Item：SMD LED Outdoor Flood Light
• Material：Die-Cast Aluminum
• Usage：Indoor,Outdoor LED IP65 Floodlight
• LED Light Source：SMD
• Feature：High Brightness
• Lamp Luminous Efficiency(Lm/W)：80-90lm,W
• Power Factor：PF>0.9
• CRI (Ra>)：80
• Working Temperature (ºC)：-20~+50
• Lifespan (Hours)：50000
• Color Temperature(CCT)：2700K-6500K
• Beam Angle：120°
• IP Grade：IP65 Wateproof
• Transport Package：Customize
• Specification：180*155*40mm
• Trademark：KCD
• Origin：China
• HS Code：940542
• Production Capacity：200000piece,Pieces,Month

Model NO.SizePowerLuminous FluxCCTCRIVoltageLife SpanAngleMaterialKCD LV-10W126*110*40mm10W1000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-20W165*140*40mm20W2000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-30W180*155*40mm30W3000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-50W227*190*40mm50W5000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-100W268*310*45mm100W10000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-150W378*310*48mm150W15000lm2700-6500K>8085-265V>5000090°AluminumKCD LV-200W444*333*50mm200W20000lm2700-6500K>8085-265V>5000090°Aluminum

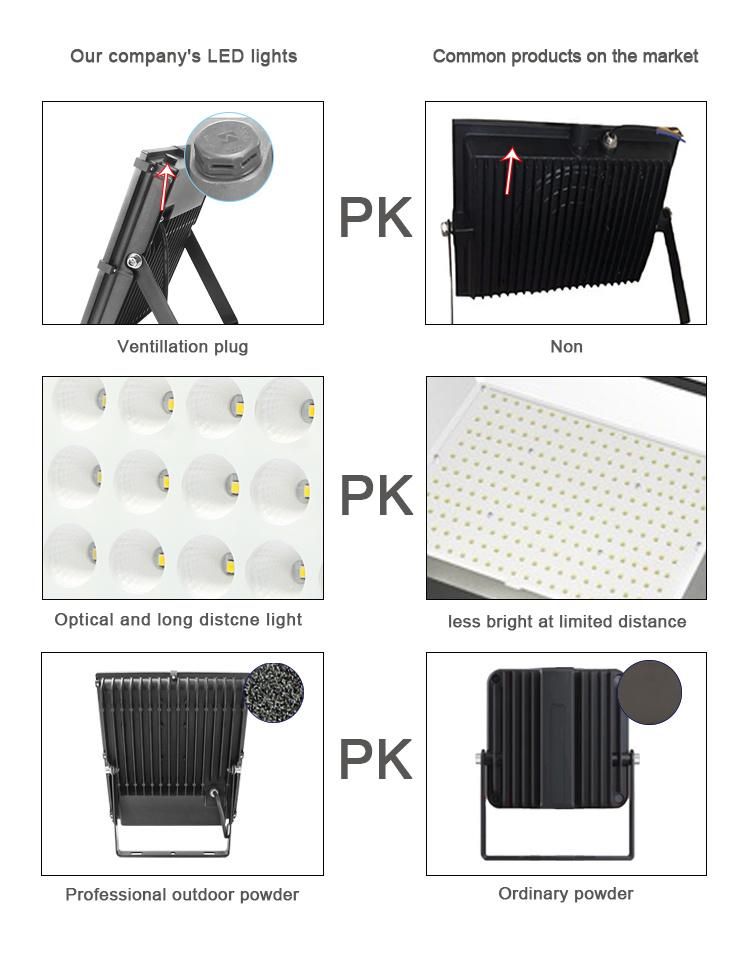

PRODUCT ADVANTAGES AND FEATURES

Integrated cooling design, elegant, efficient.

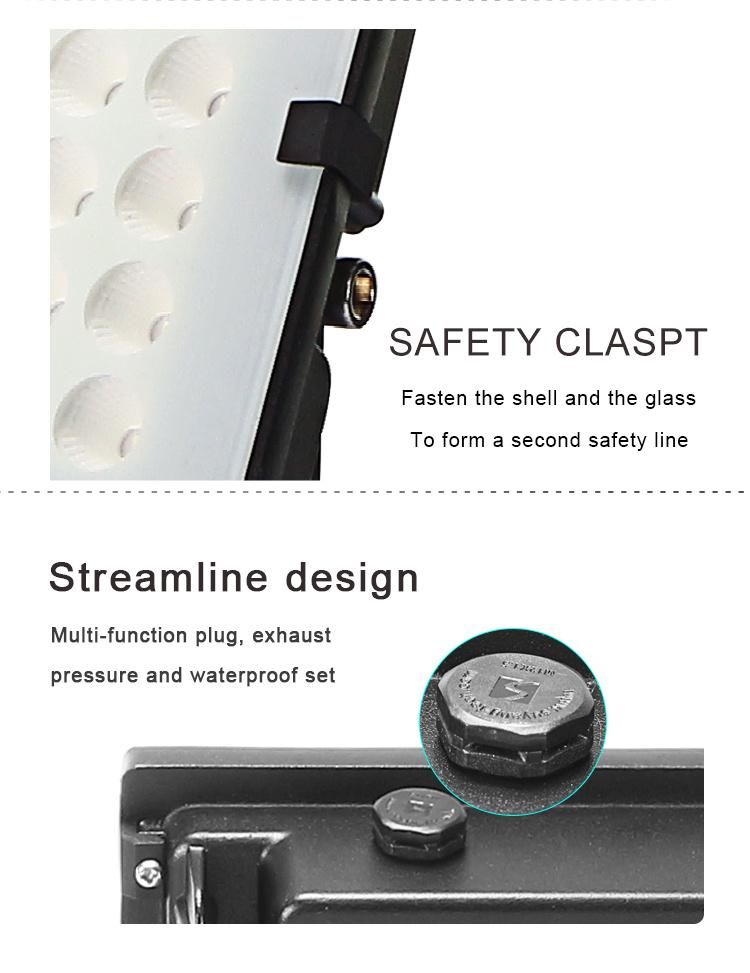

Streamline design,more beautiful appearance, no accumulation.

ADC12# die-cast aluminum body,excellent heat performance ,more durable.

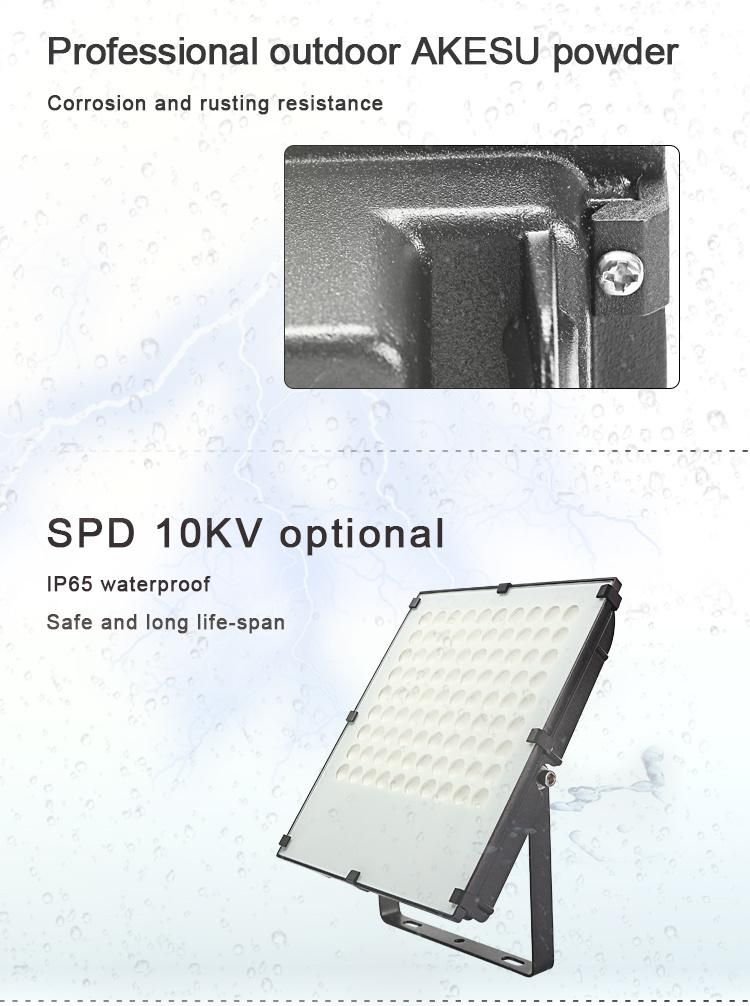

Professional outdoor painting,stainless steel components,giving excellent performance

in anti- corrsion and anti-rusting,widely used in different environment.

Light transmittance up to 94%,easy to improve in the future.

FAQ:

Q1:Can I have a sample order for led light?

Yes,we welcome sample order to test and check quality,Mixed samples are acceptable.



Q2.What about lead time?

Sample needs 3-5 days,mass productions time needs about 25 days for large quantity.



Q3.ODM or OEM is acceptaed?

Yes,we can do ODM&OEM,put your logo on the light or package both are available.



Q4.Do you offer the guarantee for the products?

Yes,we offer 2-5 years warranty to our products.



Q5.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL,UPS,FedEx or TNT.It usally takes 3-5 days to arrive.Airline and shipping are also optional.


Q6.How is the after sales service?

We have a professional team which is in charge of after-sales service,also a service hot-line dealing with your complains and feedback.
