IP66 400W Marine LED Flood Lights 400W LED for Building Light

Rayborn Lighting Co., Ltd.
  • Color Temperature：Pure White
  • Lamp Body Material：Aluminum
  • Power：400W
  • Projection Distance：>35m
  • Application：Park, Square, Factory, Garden, Hockey Court
  • IP Rating：IP65

Base Info

  • Model NO.：RB-FLL-400WSD
  • Certification：CE, EMC, LVD, RoHS, SAA, SASO
  • Operating Voltage：85-265V
  • Input Voltage：AC100-277V
  • LED Chips Brand：Semileds
  • Delivery Timed：7-10 Days
  • Transportation：by Air ,Sea, Express (DHL, FedEx, UPS, TNT etc.)
  • Power Factor：>0.98
  • Power Efficiency：>92%
  • Driver：Meanwell Hlg Stadium SMD Flood Light
  • Viewing Angle：60,90,60*150 Degree
  • Color Rendering Index：Ra>80
  • Working Life-Span：50000 H LED Halogen Flood Light
  • Warranty：5 Years Stadion Light 1000W
  • CCT：3000K, 4000K, 5000K, 6000K
  • Transport Package：1 Piece,Carton
  • Specification：CE, RoHS, UL, SAA
  • Trademark：Rayborn
  • Origin：China
  • HS Code：9405409000
  • Production Capacity：40, 000PCS,Month

Description

≤115ºC

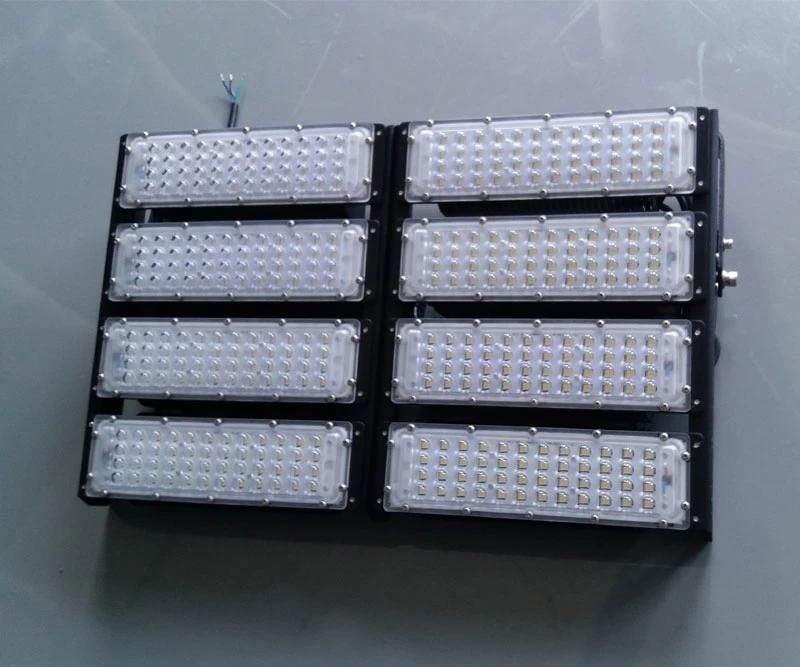

400W Led flood light picture:
IP66 400W Marine LED Flood Lights 400W LED for Building Light
IP66 400W Marine LED Flood Lights 400W LED for Building Light

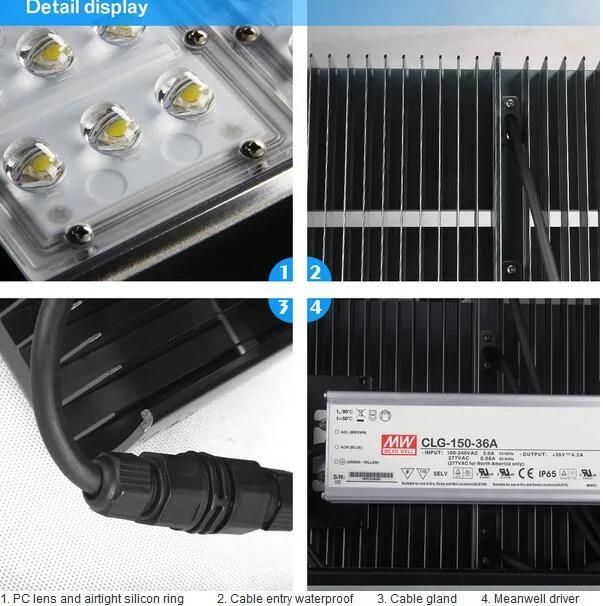

 SMD module led flood light feature:LED Chip: SMD LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality. Power Supply: Rayborn LED flood lights are adopted Meanwell UL approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92. Colour temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior. Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light. Housing: Finned aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC. Cable: silicon rubber cable for power input. Fasten with screw in the cable gland. Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty. Certification:  FCC CE RoHS ULapproval. Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance. Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.IP66 400W Marine LED Flood Lights 400W LED for Building Light




  Features of Outdoor Flood light LED : 1.  High efficiency to meet rigorous photometric requirements.2.  System rating 50,000 hours LM80 to reduce maintenance.3.   LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.4.  LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.5.  Passed DesignLights Consortium (DLC) qualifications.6.  Vented housing design isolates LED module from driver for long life and improved performance.7.  Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.8.  Adjustable mounting bracket allows you to direct light where you need it.9.  IP65 Rated.
IP66 400W Marine LED Flood Lights 400W LED for Building Light



Primary competitive advantages of our new design LED flood lights as below :

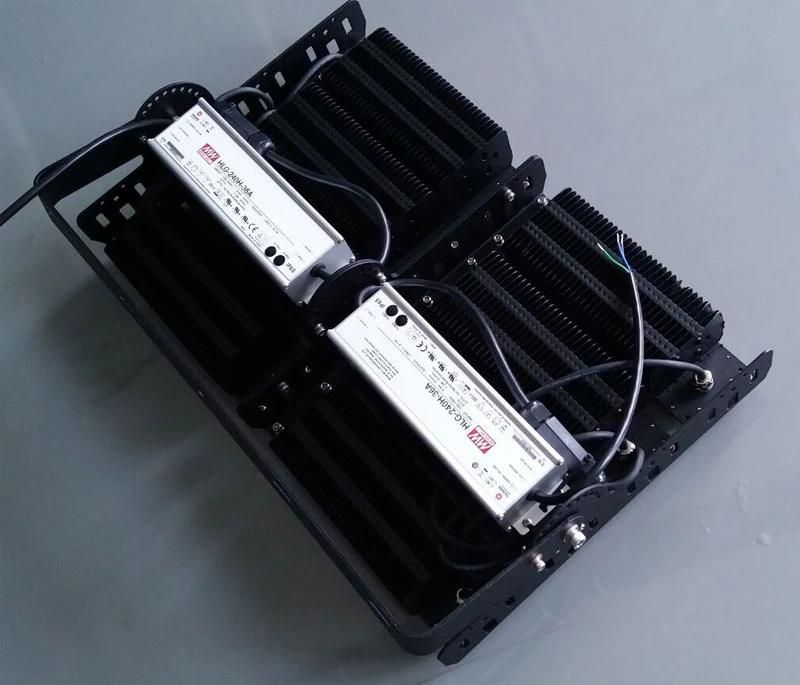

1. Taiwan MeanWell drivers, SMD LED chips.

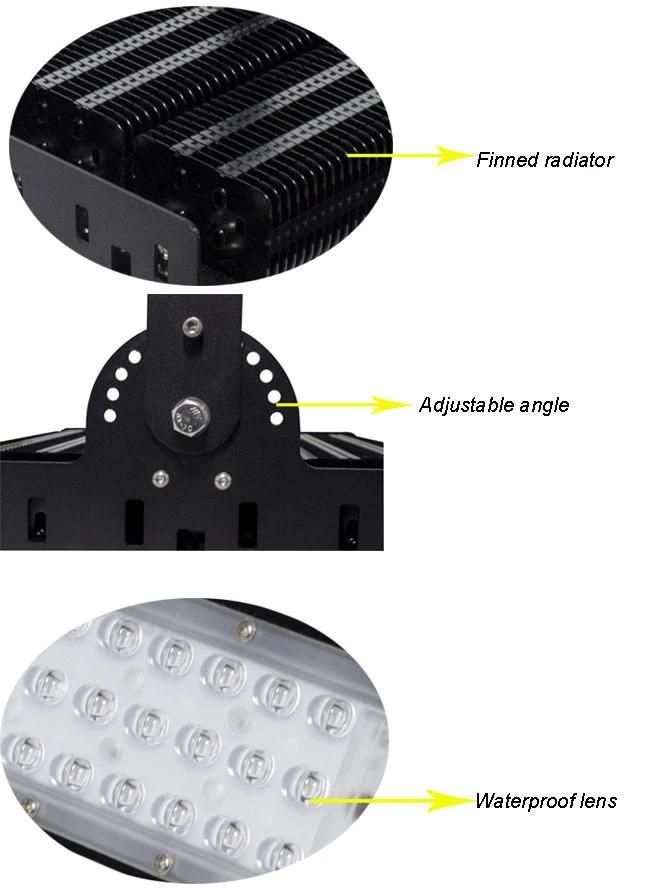

2. Finned radiators, very good heat dissipation.
3. Flexible positions can be adjusted within 180°.
4. Waterproof IP65 design,elimination mist,avoid condensation,widely used for indoor and outdoor environment.
5. Reflector 60° 90° 60*150° beam angles are available,meet the requirements of professional light distribution and can be use at different place.
6. 50W to 400W can be chosen, 3 years warranty.
IP66 400W Marine LED Flood Lights 400W LED for Building Light


Standard Tennis court Lighting plan simulation:

IP66 400W Marine LED Flood Lights 400W LED for Building Light


Installation information of Flood LED Light :

1. Check all the parts and accessories of LED flood light;
2. Must cut off the power supply before installation;
3. Make sure the flood light is fixed tightly to the surface of place for installation ;
4. Connect the power line of flood light with power supply, then switch on the power.
5. When the flood light is working, it must be kept vertical downward.


Applications of IP65 LED Flood Light :

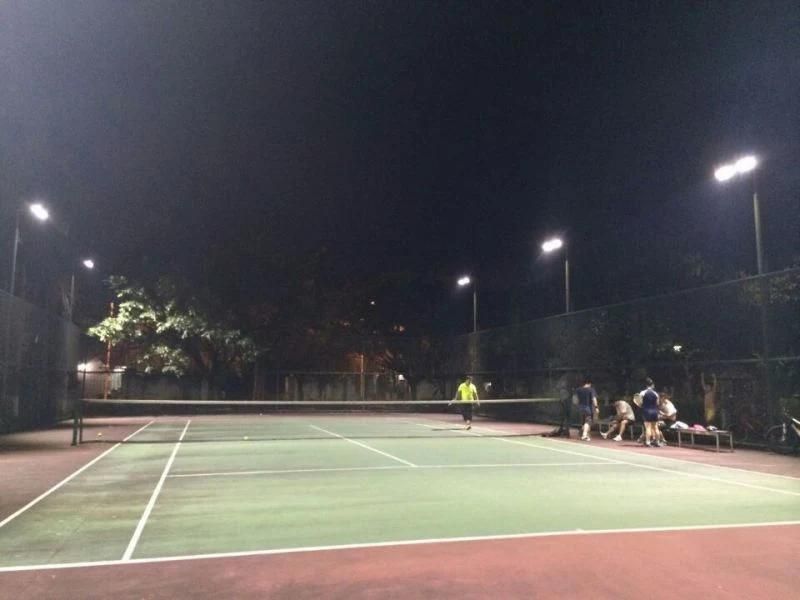

1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
IP66 400W Marine LED Flood Lights 400W LED for Building Light


Strict Tests of LED Flood lighting :

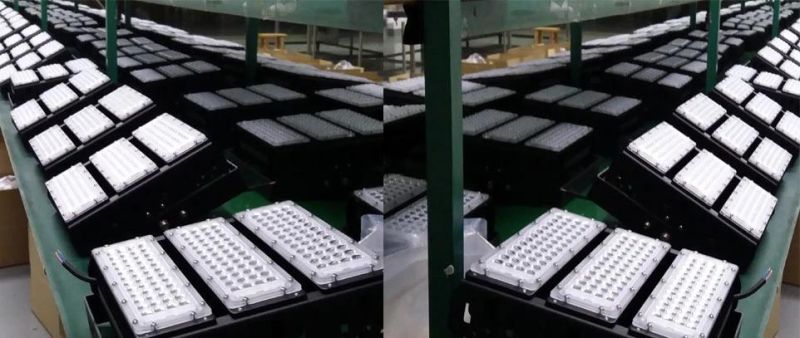

Before shipping, all the LED flood lights will be over 12 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled  less than 0.1%. Quality is ensured, you can be assured.
IP66 400W Marine LED Flood Lights 400W LED for Building Light



Packaging of flood Light LED :

Our individual package maximize protecting the flood lights from transfer damage in transit.
1. Label on backside of each flood light and your required label is available.
2. One piece led flood Light per carton.
3. This is our regular packing of the led flood light, if you need, we can also custom your own color packing and put your logo on it.

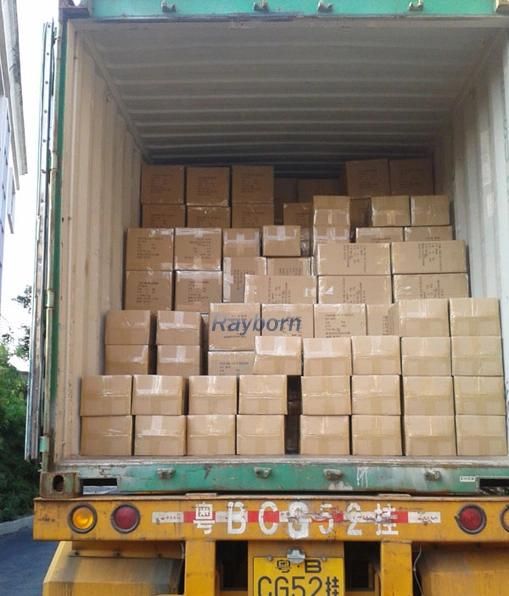

Shipping of LED flood lamps : By sea,air,express (DHL,FedEX,UPS,TNT etc.)

Big quantity advised to be shipped by sea.
Samples advised to be shipped by express.
Samll quantity advised to be shipped by air.
IP66 400W Marine LED Flood Lights 400W LED for Building Light





Rayborn Good Service:
1. Your inquirey related to our products or price will be replied within 24 hours.
2. All your inquireies will be well explained by our experienced staff.
3. OEM&ODM,also provide customized service.
4. Distributor ship is available for your unique design and some our current models.
5. We will keep secret for customer sale area,design ideas and all other private information.
