• Model NO.：ZGSM-LD80Kmini2
• Certification：CB, CE, FCC, GS, LVD, RoHS, SAA, SASO, Ce, FCC, RoHS, TUV, SGS
• Input Voltage：100-240,277V
• With Light Source：With Light Source
• LED Chips Brand：Lumileds
• Product Namer：Motion Sensor 80 Watt LED Street Light
• Material：Die-Cast Aluminum, Lens:PC
• IP：IP66
• Ik：Ik10
• Lumen Output：15730 Lm (3030chips); 17050 Lm (5050chips)
• LED Optic：Type II
• Driver：Meanwell, or Inventronics
• Working Temperature：-40 to +50degree
• Voltage：AC 100-240,200V or DC 12V,24V
• Dimming：Dali, 0-10V, Timer
• Luminous Efficiency：>143 Lm ,W(3030chips); 155 Lm ,W (5050chips)
• Transport Package：1PC,Carton, Carton Size: 735*195*120 mm
• Specification：717*178*99 mm, 3.84 kgs
• Trademark：ZGSM
• Origin：China
• HS Code：94054090
• Production Capacity：100000 PCS,Year

Basic Info.

Model NO. ZGSM-LD80Kmini2 Certification CB, CE, FCC, GS, LVD, RoHS, SAA, SASO, Ce, FCC, RoHS, TUV, SGS Input Voltage 100-240/277V With Light Source With Light Source LED Chips Brand Lumileds Product Namer Motion Sensor 80 Watt LED Street Light Material Die-Cast Aluminum, Lens:PC IP IP66 Ik Ik10 Lumen Output 15730 Lm (3030chips); 17050 Lm (5050chips) LED Optic Type II Driver Meanwell, or Inventronics Working Temperature -40 to +50degree Voltage AC 100-240/200V or DC 12V/24V Dimming Dali, 0-10V, Timer Luminous Efficiency >143 Lm /W(3030chips); 155 Lm /W (5050chips) Transport Package 1PC/Carton, Carton Size: 735*195*120 mm Specification 717*178*99 mm, 3.84 kgs Trademark ZGSM Origin China HS Code 94054090 Production Capacity 100000 PCS/Year

Product Description

Motion Sensor 80 Watt LED Street Light with Photocell

ZGSM Kmini2 series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.

All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.

Kmini 2 series LED street light has main advantages as below:
-Tool-less design, easy for maintenance
- Nice quality with very reasonable prices.
Lumileds 3030 or 5050 Chips.
- Mean Well or Inventronics Driver.
- 60W to 130W power range.
- 136-163lm/W Luminaire Efficacy .
- 10KV Surge Protection.
- 100,000 Hours Lifespan(L70).
- 5 Years Warranty.
- ENEC, IEC, CE, RoHS,LM80, ISO9001, ISO14001,ISO50001,BSOHSAS18001
- Smart body would not only make the price competitive, but also reduce the freight cost.

Model	ZGSM-LD80Kmini2
LED Brand	LUMILEDS® LUXEON 3030 2D, 5050
Driver Brand	Meanwell or Inventronics
Norminal Wattage	80W
LED Quantity	112 units /112mA 3030chips; 44 units / 75mA 5050 chips
Input Voltage	100-240/277VAC/DC12/24V
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>144 lm /w(3030chips); 156 lm /W (5050chips)
Lamp Rated Lumen output	11520 lm (3030chips); 12480 lm (5050chips)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K or 5700K
Photometric Type	Type II;Type II BLS
Optimal Operating Temperature	25ºC
Storage Temperatures	-40°C~50°C
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 100000 hours -L70, @25 ºC (77 ºF)
Materials	Housing: Die-cast aluminum, Lens: PC
IP Rating	IP66 with test report
IK Rating	IK10 with test report
Certification	TUV, ENEC, CB, CE (EMC and LVD), IK10 IP66, IEC62471, IEC62788, EMC, LVD, CE, ROHS, IOS9001, ISO14001,ISO 50001,  LM80
Optional Function	Dali, 1-10V DC or PWM Signal or Resistance Dimming, Timer, Photocell
Warranty	5 years

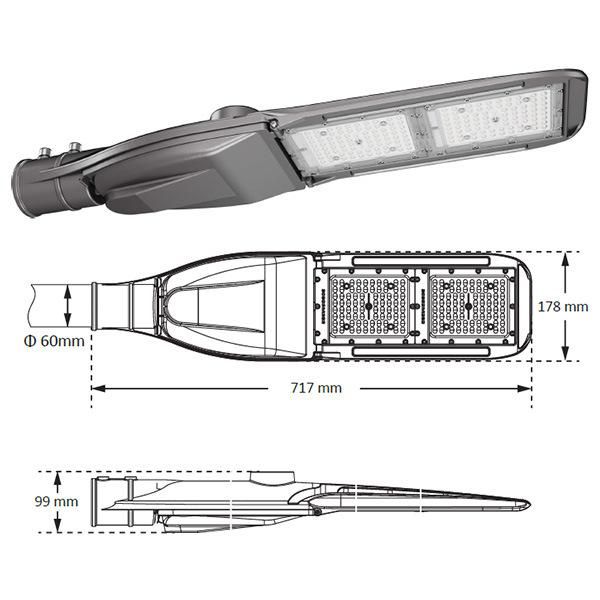

Fixture Dimension	717*178*99 mm
Fixture Weight	3.84 kgs
Packing Dimension	735*195*120 mm
Packing Weight	4.42 kgs

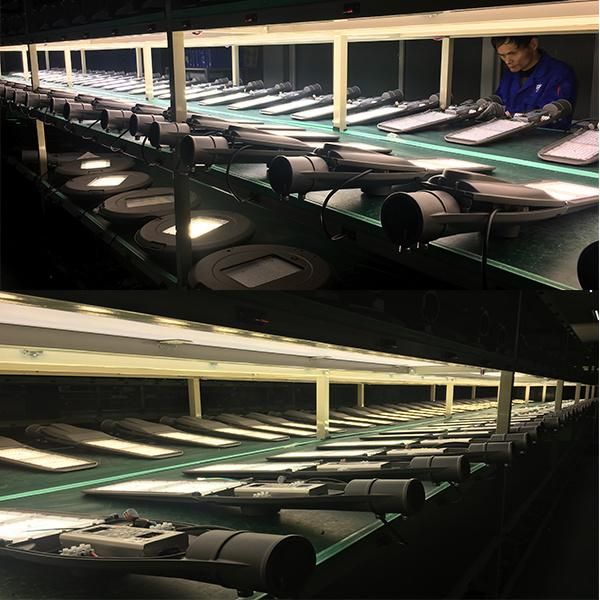

ZGSM Production Line Picture:

ZGSM Contacting info as below:
