Zgsm-Ld120km LED Street Lights 120W

HANGZHOU ZGSM TECHNOLOGY CO., LTD.
  • Power Supply：AC
  • Color Temperature：3000K 4000K 5000K 5700K
  • Lamp Body Material：Aluminum Alloy
  • Power：60W

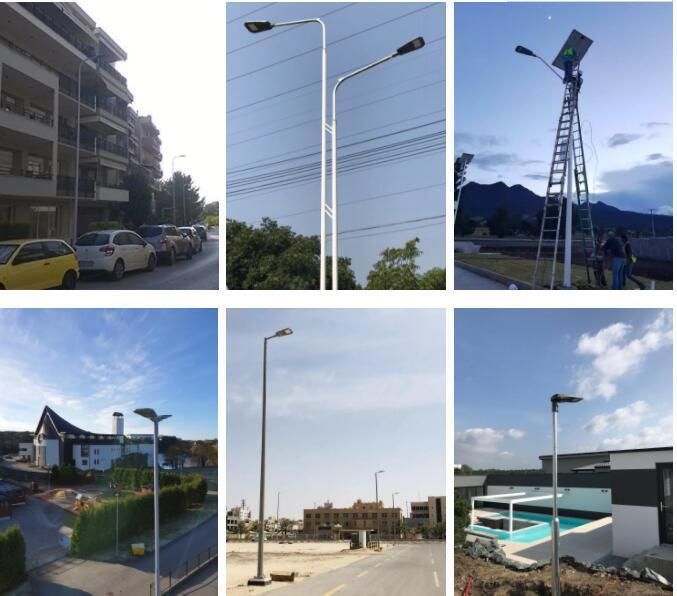

  • Application：Highway, Outdoor Parking Lot
  • IP Rating：IP66

Base Info

  • Model NO.：ZGSM-LD120KM
  • Certification：CE, EMC, FCC, LVD, RoHS, ENEC, Lm-79, Lm-80
  • Input Voltage：100-240V,277V, 50,60Hz
  • With Light Source：With Light Source
  • LED Chips Brand：Lumileds 3030 2D or 5050
  • Light Source：LED Light
  • Lens：Glass
  • CRI：>70
  • Working Lifetime(Hour)：100000 Hours
  • Transport Package：Export Cartons
  • Specification：EN60598, CE, IEC
  • Trademark：ZGSM
  • Origin：China
  • HS Code：940540900
  • Production Capacity：500, 000 PCS,Month

Description

Basic Info.

Model NO. ZGSM-LD120KM Certification CE, EMC, FCC, LVD, RoHS, ENEC, Lm-79, Lm-80 Input Voltage 100-240V/277V, 50/60Hz With Light Source With Light Source LED Chips Brand Lumileds 3030 2D or 5050 Light Source LED Light Lens Glass CRI >70 Working Lifetime(Hour) 100000 Hours Transport Package Export Cartons Specification EN60598, CE, IEC Trademark ZGSM Origin China HS Code 940540900 Production Capacity 500, 000 PCS/Month

Product Description

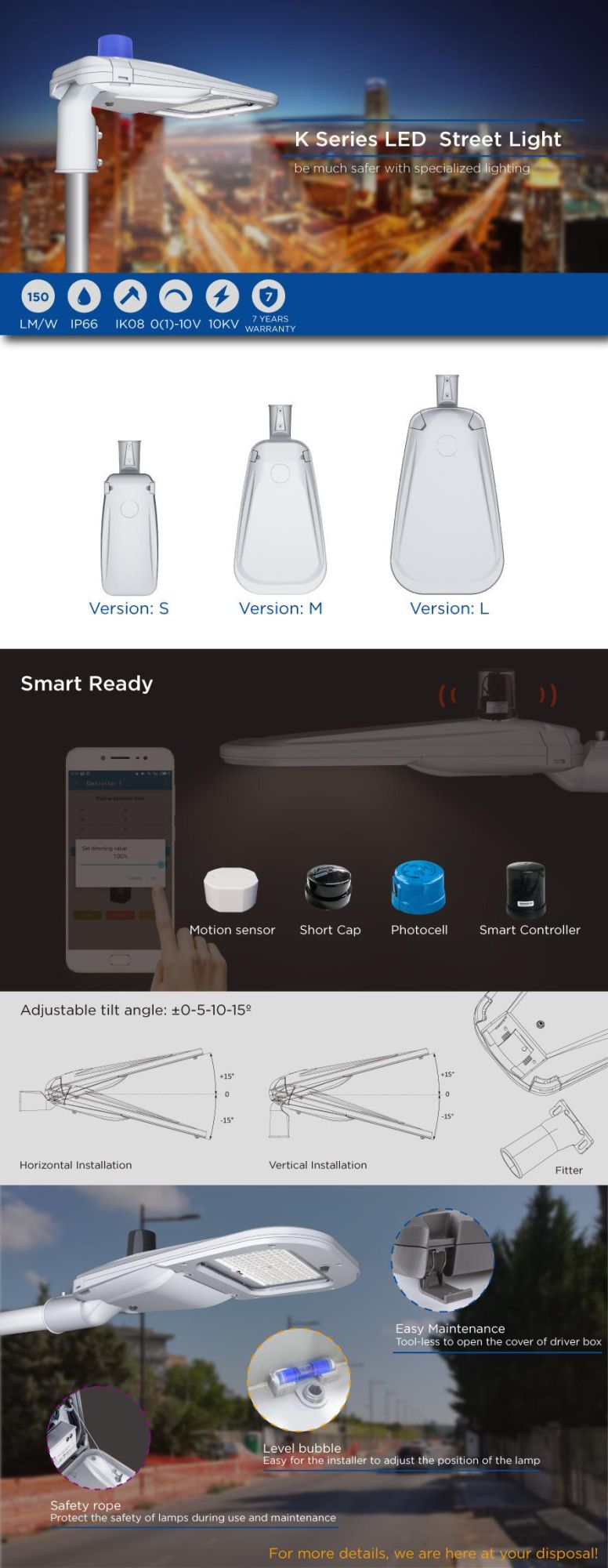

Zgsm-Ld120km LED Street Lights 120W
Series NoSeries K
Power25W, 35W, 55W, 60W, 90W,120W, 150W, 180W, 200W
Efficacy125-150lm/W
Input Voltage100-240/277 VAC, 50 / 60 Hz
Power Factor>0.95
Surge Protection10KV (Default) / 20KV (available on request)
IP RatingIP66
IK RatingIK08
CCT3000K, 4000K, 5000K, 5700K
CRIRa>70 (Default) / Ra>80
Operating Temperature-40°C to + 50°C
Beam AngleType I, Medium; Type II, Medium; Type III, Medium;
Mounting OptionSide entry or Vertical pole mounted
Warrantys5 Years
CertificationENEC, CE, CB, ROHS, LM79, LM80, LM82, LM84, TM-21, ISTMT, IEC62471/62788
ControlPhotocell, DALI Dimmable, NEMA / Zhaga Socket, Motion Sensor, 1-10V Dimmable, Zigbee or LORA control
Zgsm-Ld120km LED Street Lights 120W
