• Model NO.：RB-FLL-300WSD
• Certification：CCC, CE, C-tick, EMC, FCC, LVD, RoHS, SAA, VDE
• Operating Voltage：DC36-42V
• Input Voltage：AC100-277V
• LED Chips Brand：SMD3030
• Body Material：Aluminum Alloy
• Packaging：One Piece Per Carton
• Angle：60,90,60*150degrees
• Power Driver：Meanwell
• Applications：Baseball Court, Basketball Court, Golf Course
• Voltage Options：110V, 220V, 347V, 480V
• Dimming Function：1-10V, PWM, Dali Dimmable
• Leading Time：7-10 Working Days
• Replacement：1000W Metal Halide Light, Halogen Light
• Wattage Options：50W-500W LED Floodlight
• Transport Package：1piece One Carton
• Specification：CE, RoHS, SAA, C-tik, EMC, LVD, FCC
• Trademark：Rayborn
• Origin：China
• HS Code：94054090
• Production Capacity：20000pieces,Month

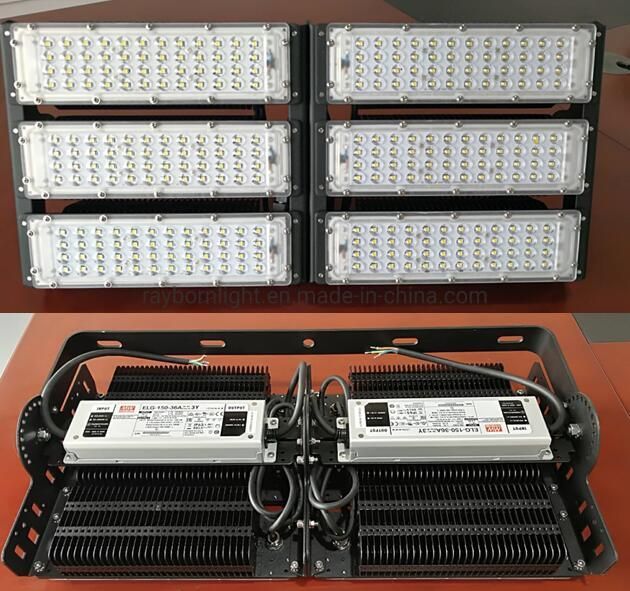

300W LED Floodlight Main Technical ParametersItem No.:RB-FLL-300WSDInput Voltage:AC 100-277VFreqency Range:50Hz~60HzPower Factor:>0.98Power Efficiency:>92%Lamp DriverMeanwell DriverLED Chip:SMD3030LED Power300WLED QTY: 288pcs LED Working Voltage:DC36 ~42VSystem Consumption:305WLED Luminous FluxWarm White33000LMPure White36000LMCool White36000LMViewing Angle:60/90/60*150°Illuminance Uniformity:>0.6Color TemperatureWarm White3000K~3500KPure White5000K~5500KCool White6000K~6500KColor Rendering IndexRa>80Light Distribution:LED points visibleLight Design:LED+The secondary light distribution lensLED Junction Temperature:≤115ºCWorking Temperature:-35ºC~55ºCIP Grade:IP65 Working Life-span:50000 HPower Line:1.0 mm2 three lineConnect WireBrownLBlueNYellow / GreenGThe color of the lamp shellBlack Size:598*283*130mm

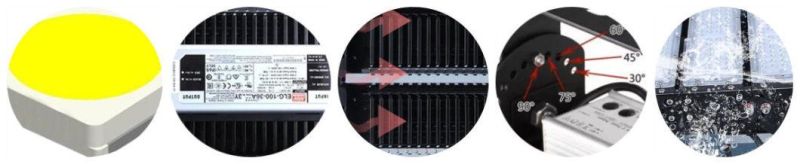

LED Flood light Features:

LED Chip: SMD3030 LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: SUNPER LED flood light use Meanwell driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: DLC FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.

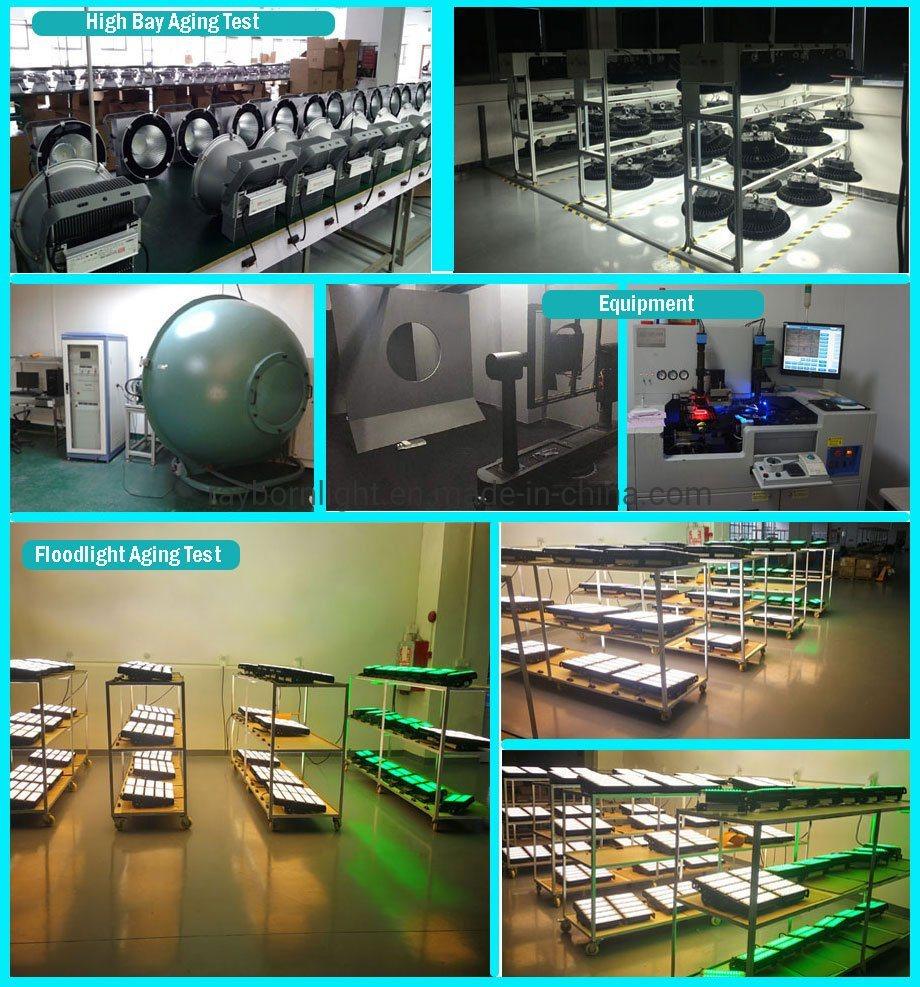

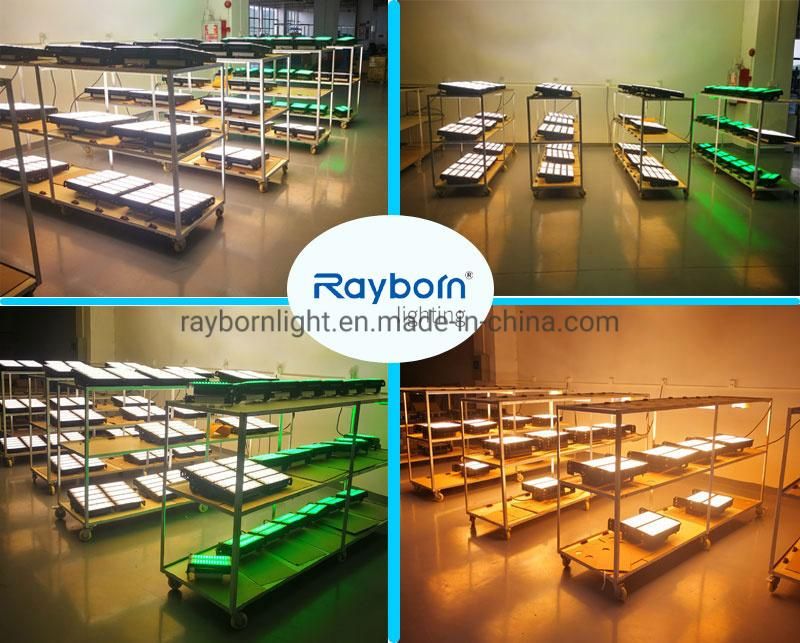

Tests of LED FLood Light:
All of our led flood lights must go through many strict tests before shipping, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.

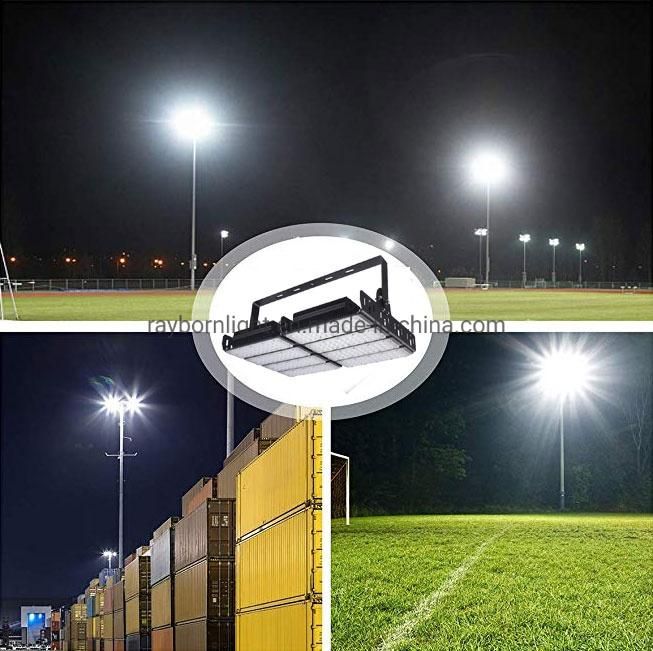

Applications of led flood light:
1.   Store, plaza, mall, supermarket and pedestrian street lighting.
2.   Square, park, roadside, yard, lawn and garden lighting.
3.   School, hospital, mansion outline lighting.
4.   KTV, club, bar, hotel outline lighting.
5.   Other indoor and outdoor occasions.





Our service
1.  Your inquiry related to our products or prices will be replied within 24 hours.
2.  Well-trained and experienced staffs to answer all your enquires in fluent English.
3.  OEM & ODM welcomed, our professional R&D dept. will realize your customized lighting.
4.  Distributorship is offered for your unique design and some of our current models.
5.  Protection of your sales area, ideas of design and all your private information.




Trade terms
1.  Payment: T/T, L/C and paypal are available.
2.  Lead time: Sample Order: 5-7 working days. Bulk Order: 10-15working days.
3.  Package: 1pcs-carton or as your custom package.
4.  Shipping freights are quoted under your requests.
5.  Shipping port: Shenzhen port
6.  MOQ:10 pcs
7.  Discounts are offered based on order quantities.

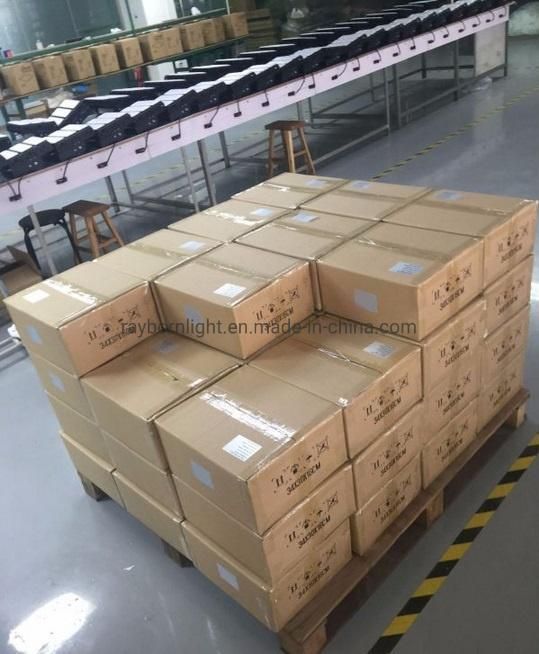

Packaging of LED flood lights:

Item	Dimension	Carton Size	Gross Weight	Packaging
50w led flood light	315*93*130mm	33*22*22cm	4.9KG	2PCS/carton
100W led flood light	315*180*130mm	35*26*16cm	4.5KG	1PCS/carton
150W led flood light	315*270*130mm	35*31*16cm	5.5KG	1PCS/carton
200W led flood light	315*373*130mm	39*35*16cm	7KG	1PCS/carton
250W led flood light	315*463*130mm	55*35*16cm	8.9KG	1PCS/carton
300W led flood light	598*283*130mm	64*33*17cm	10.5KG	1PCS/carton
400W led flood light	598*373*130mm	64*44*19cm	13KG	1PCS/carton
500W led flood light	598*453*130mm	63*53*17cm	15KG	1PCS/carton

Shipping of flood LED lights: By sea,air,express (DHL,FedEX,UPS,TNT etc.)
1. Big quantity advised to be shipped by sea.
2. Samples advised to be shipped by express.
3. Small quantity advised to be shipped by air.





After-sales service:
1.  We offer 3-5 years warranty base on different price and products.
2.  Any quality issue, we will replace for free within guarantee period.
3.  Any accessories, we always support our customers.

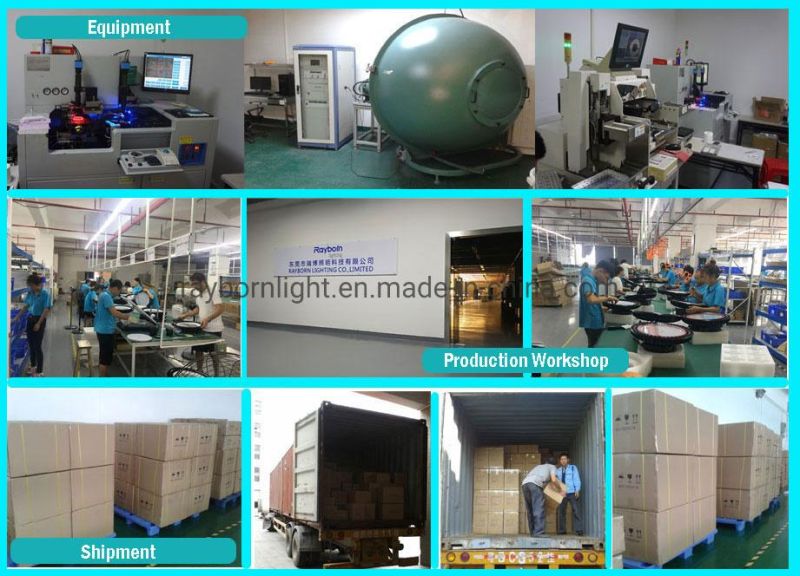

Company Information:
1. Rayborn Lighting Co.Ltd is a professional LED manufacturer, focuing on industrial Led Light and commerical Led light research, development,production, sales and service,was in High-end operation and service provider in High power led.Under the conuntry "saving" policies,we are striving to create environmental protection,energy saving,long life lighting and earned a reputation of being a quality supplier of LED lighting.

2. We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.

3. With the direction of High power led light,industrial Led light and commerical Led light,company developed milti-stlye series of Led lighting,including Led Flood light,Led Tunnel Light,Led High Bay light,Led Ceiling light,Led Tube Light,Led Down Light,Led Strip,Led Bulb,Led spot light.

4. We warmly welcome domestic and overseas agents and wholesaler to join us,to light up a green planet,for a more environmental earth.





Certifications



FAQ
Q1. What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.

Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 3~5 years warranty depending on different types.

Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.

Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.

Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.



Price can be negotiable. We warmly welcome you to take some samples to test quality first.
Should you have any interest or further questions, please feel free to contact me at any time.
Looking forward to having a chance to cooperate with you.
