• Model NO.：832362S
• IP Rating：IP65
• Certification：CE, EMC, LVD, RoHS
• Voltage：24VDC,100-240VAC
• Light Source：With Light Source
• Ik Rate：08
• Driver：Constant Current Output
• Life Span：>50000rhs
• Beam Angle：15,30,45,50,90 Degree
• Work Temperature：-20-40 Centigrate
• LED Source：36PCS LEDs
• Transport Package：48X42X35(4PCS,CTN),G. W: 21kgs,CTN
• Specification：4PCS,CTN
• Trademark：JP Lighting
• Origin：Dongguan, Guangdong, China
• HS Code：94054090
• Production Capacity：5000PCS,Month

Basic Info.

Model NO. 832362S IP Rating IP65 Certification CE, EMC, LVD, RoHS Voltage 24VDC/100-240VAC Light Source With Light Source Ik Rate 08 Driver Constant Current Output Life Span >50000rhs Beam Angle 15/30/45/50/90 Degree Work Temperature -20-40 Centigrate LED Source 36PCS LEDs Transport Package 48X42X35(4PCS/CTN)/G. W: 21kgs/CTN Specification 4PCS/CTN Trademark JP Lighting Origin Dongguan, Guangdong, China HS Code 94054090 Production Capacity 5000PCS/Month

Product Description

High Quality Aluminum Led Landscape Garden Spot Light Outdoor IP65 Led Spike Light Garden Spotlight For Plaza/Park/Courtyard/Pedestrian Mall/ Landscape/Architectural Lighting/Project Lighting
Feature and Benefits:1. Energy Saving . Saving 85%-90% power than traditional halogen lamp.
2. Advanced super long lifespan and stable driver.
3. Optional DALI, 1-10 V, PWM, TRIAC dimmable support.4. Instant working after turn on , no warm up time required.
5. No UV or IR radiation in the beam, mercury free.
6. Eco-friendly . No mercury and other harmful materials
Main Specifications:
Housing: 12# Die-casting grey powder coated aluminum T=60-80µm Adhesion of ISO class 1/ASTM class 4B
Glass: Tempered glass.T=4mm
Lens: Optical lens, efficiency≥85%
Cable gland: IP-68 PG-9 copper and nickel coated
Gasket: Molding shaped silicone double seal
PCB: Excellent heat conductivity aluminum, coefficient of Heat Conductivity≥2.0w/mk
LED Colour Temperature:·2700K·3000k /·4000K·6000k
Driver: Constant current output
Single color LED=1-circuit output
RGB 3in1 LED =3-circuit output
Operating Temperature: -20ºC~40ºC
Power cable: H05RN-F3x0.75mm²,L=1m
                      H05RN-F3x0.75mm²,L=1m(high voltage)
                      H05RN-F4x0.75mm²,L=1m(for RGB)

Products Model:

Item No.	Light source	Lens beam angle(°)	Consumption(watt)	Input Voltage(V)	Ik rate
832181S	18x1W	15°/30°/45°/60°/90°	18.5	DC24V/AC100-240V	08
832182S	18x2W	15°/30°/45°/60°/90°	37.2	DC24V/AC100-240V	08
832361S	36x1W	15°/30°/45°/60°/90°	36.5	DC24V/AC100-240V	08
832362S	36x2W	15°/30°/45°/60°/90°	72.1	DC24V/AC100-240V	08

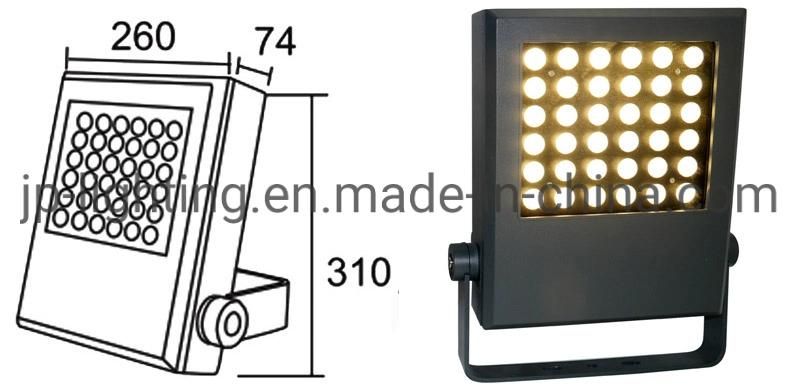

Products Size(MM):

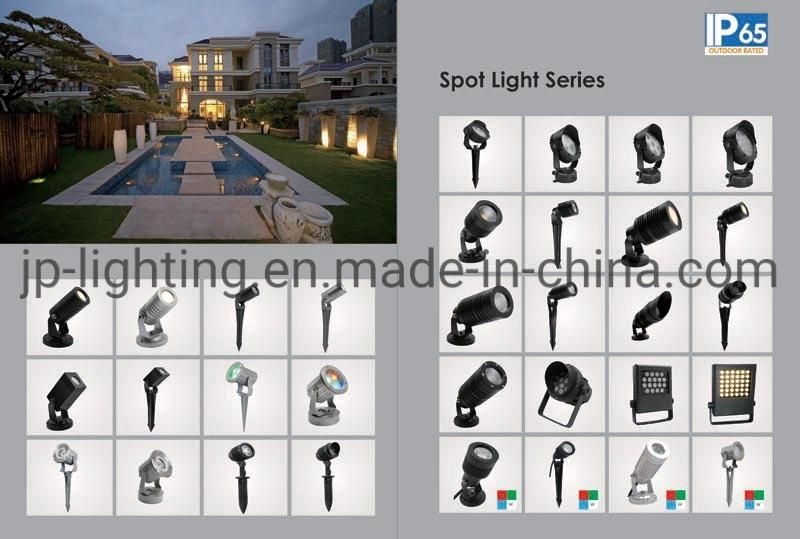

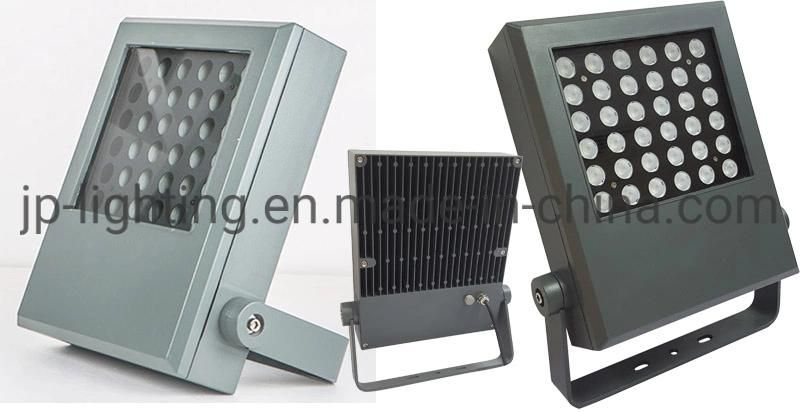

Products Picture:

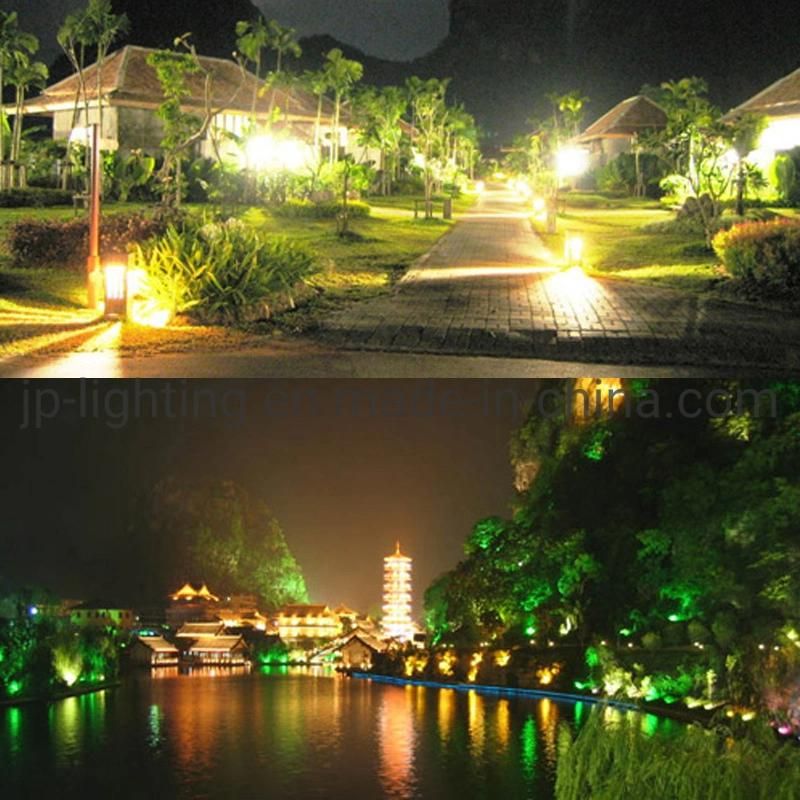

Application:
Garden lighting,Park lighting,Residential lighting,Square lighting and so on.

FAQ

Are you a manufacturer?
Yes, We are a professional manufacturer with 15 years experience.

What is your main product?
1.Outdoor LED wall light
2.LED garden spot/spike light
3.LED inground light
4.LED underwater light(fountain light, swimming poool light, underwater spot light)
5.LED wall washer light

What is the company sample system?
1.Sample charge should prepaid.
2.Sample can be customized,If the order QTY is more than 1000Pcs.

How we can pay for?
1.30% advanced payment. 70% balance payment.
2.We accept L/C, T/T, Western Union, and Paypal.
3.Our shipping terms is EXW, FOB, CIF

How about the delivery time?
1.About 5 work days for sample making
2.15-30 work day for mass products production time. It is up to the quantity

What information should I let you know when I want to make a inquiry?
1.Which body color do you want?
2.What kind of light color do you prefer?
3.How long did you need about light cable?
4.Which voltage ( low voltage or high voltage)?
5.What kind of beam angle did you need?
6.How many quantity do you need?

Why choose us?
1.One-stop services:  Innovative design, professional product light effect. Excellent product quality, sincere service concept. For exterior lighting provides an integrated, one-stop integrated lighting solution!

2.Experience R&D, production and sales team: We have an mature and experienced team. Some members have more than 15 years of work experience in the field of lighting. JP Lighting factory covers an area of 2,000 square meters and the annual sales of more thank $10 million.

3.Strict quality control process: JP lights use the high quality components. All material must be strictly screened. All JP lights will undergo strict testing before shipping, including integrating sphere testing, aging test, waterproof test, etc. Due to rich experience and professionalism, JP Lighting's product defect rate is strictly controlled within 1%.

4.Products worldwide with high reputation: We participate in various industry lighting exhibitions, our products are all over Asia, Europe, Oceania, Africa and Central and South America, Middle East. All products have got great comments for high quality and excellent service.
