• Model NO.：LCD-FK-50-LN60-ST316
• Certification：CE, C-tick, EMC, Energy Star, ETL, LVD, PSE, RoHS, SAA, UL, TUV
• Operating Voltage：220-240V
• Input Voltage：220V
• LED Chips Brand：Osram
• Transport Package：Carton Box
• Specification：179x145x32 mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Consumo
ConsumptionAltura de montaje
Assembling height10w 20W 30W 50W 70W 100W 150W 200W2-15meterVoltaje
VoltageFrecuencia
Frequency100-277 V AC or 10-24VDC50/60 HzGrado de Protección
Protection level

Óptica

Optic

IP66 IK08Eficiencia / Efficiency : 90%FHS
UHFVida útil
Life span<1%L70 >50.000h

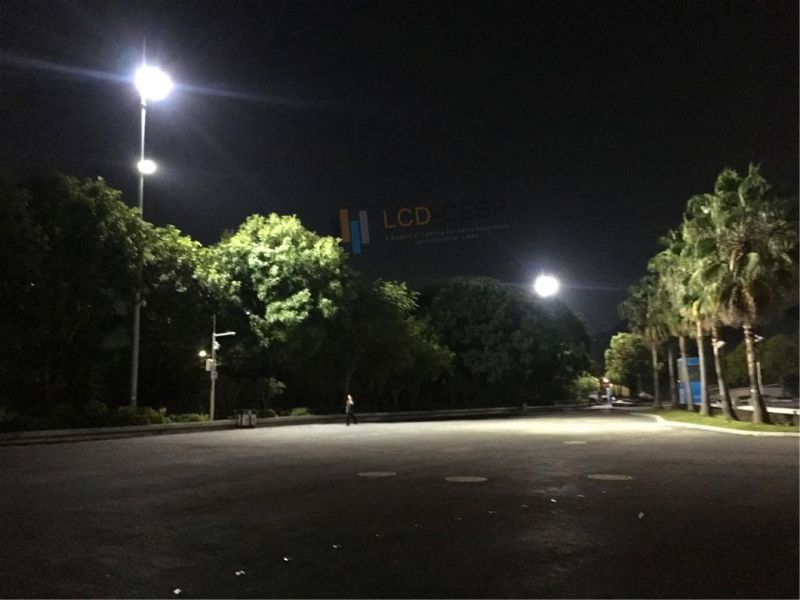

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

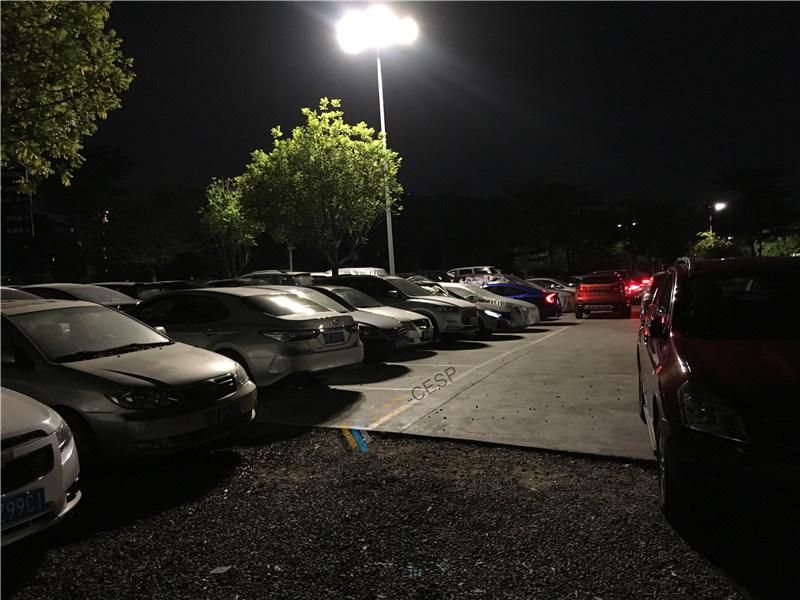

- Car parking lighting

- Road & billboard lighting



Such as a project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 5 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.



Product dimension review

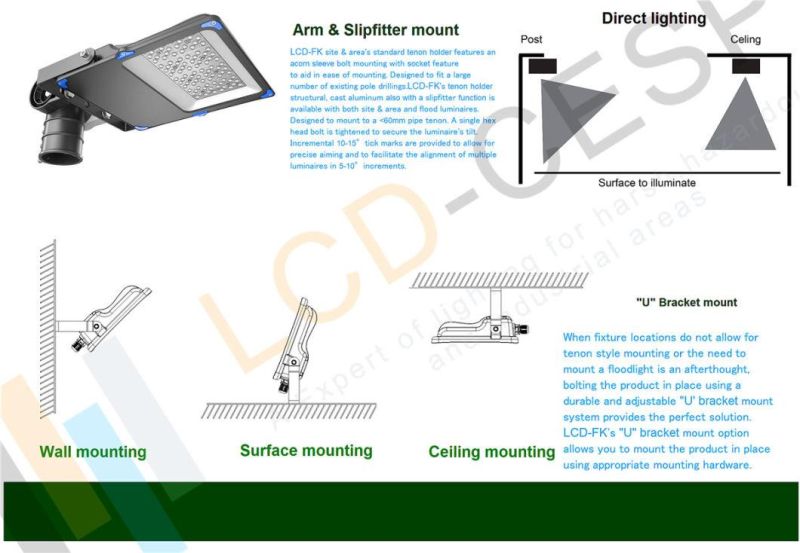

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking



Installation review

FK features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.

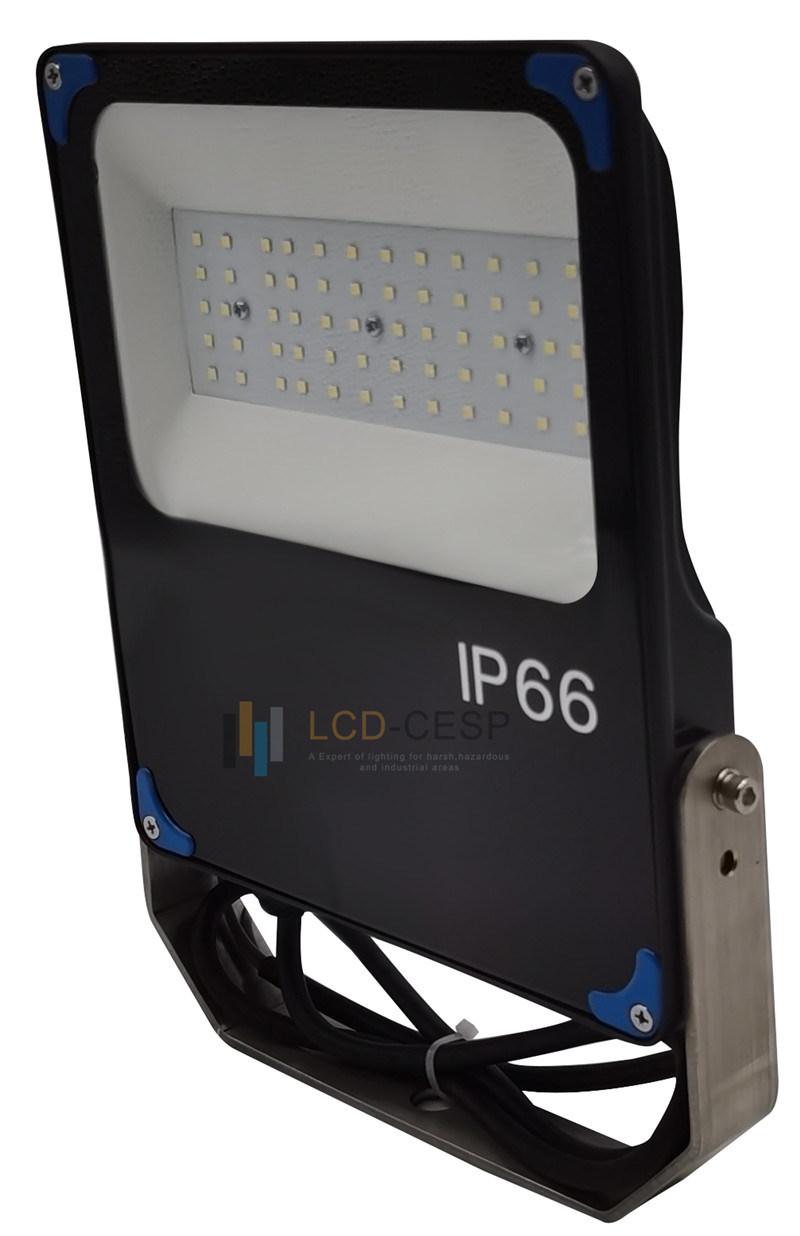

Low Voltage 50W DC12V-24V 6750 Lumen Outdoor LED Flood Lights

led outdoor flood light bulbs 50W DC12V 6750lm IP66 Aluminum die cast ADC12



Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz or 12V 24V
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 5-8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 135-150lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 SDCM

Application:

Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.



Products features

 MaterialAluminium die cast ADC12 housing +4mm temper glass faceEfficacyup to 150 lumen /wattLEDs chipLUMILEDs SMD5050SDCM<5  Optic beam7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40Ingress protectionIP66Mech. impact protection codeIK08 Impact ratingMounting"U" bracket / slipfitter

without compromising light quality or a sense of security for those in the area.



Power saving and free maintaining





Floodlight configurations





Mounting

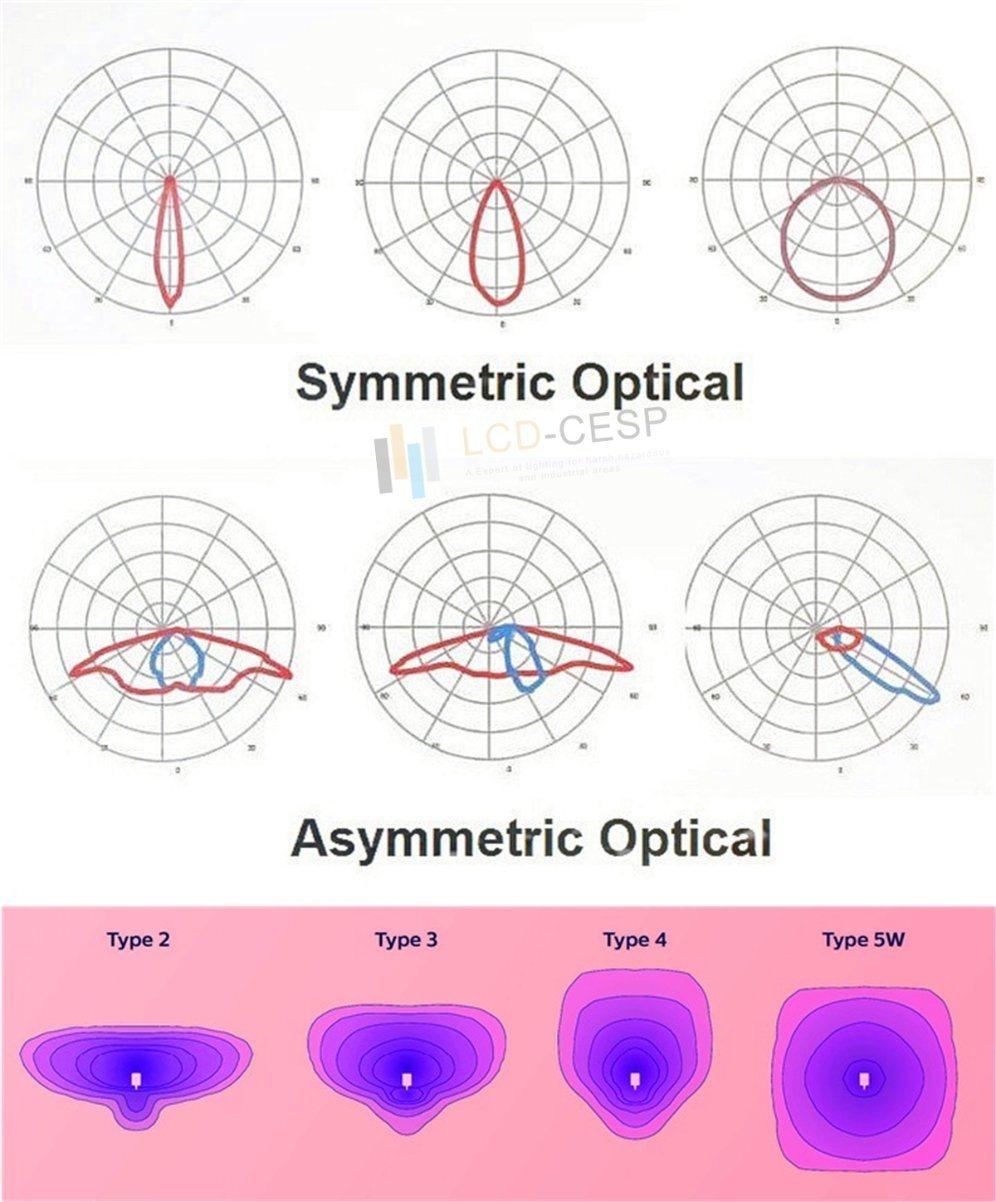

Optical distributions

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40

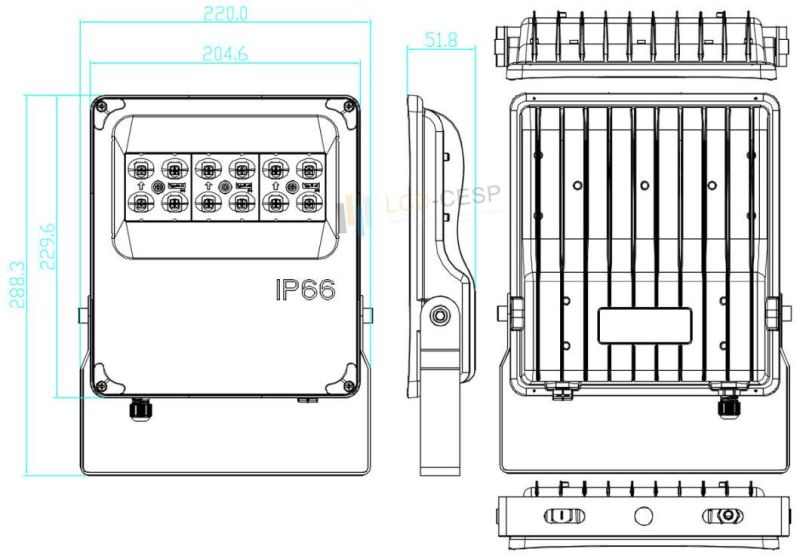

Dimension





Products Specification





Model No.           Power(W)      Lumens(lm)         Color temperature                    Input Voltage  Current    Weight(kg)    Dimensions (mm)

LCD-FLY-013         10W               1300              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        0.54Kg         179x145x32
LCD-FLY-023         20W               2600              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        0.65Kg         189x148x32
LCD-FLY-033         30W               3900              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.25Kg         261x194x47
LCD-FLY-053         50W               6500              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.50Kg         350x265x69
LCD-FLY-083         80W             10400              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        1.70Kg         350x265x69
LCD-FLY-103        100W            13000              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        2.85Kg         397x308x68
LCD-FLY-153        150W            19500              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        4.18Kg         441x347x68
LCD-FLY-203        200W            26000              3000k / 4000k / 6500K               85 ~ 265VAC    0.12A        4.50Kg         500x385x68

SUITABLE FOR: LED FLY Series, a professional, powerful,energy saving replacement for high intensity discharge lamps.With a compact and modern design, LUMILEDs (3030) SMD LED chips, a high lumen maintenance factor with Meanwell driver or LCD brand CE&TUV driver , we have developed an outstanding combination of high performance & bright LEDs to create one of the most powerful fixtures on the market.
Strong housing corrosion resistant made of black Extruded aluminum,featuring high heat dissipation and superior aesthetics with longer lifetime. High transmission rate tempered glass increases rate up to 93%,anti-impact rating IK08. Advanced heat sink design ensures LED does not exceed temperature ratings across all specified ambient conditions. An overall IP65 grade to ensure fully water-proof. Our state of the art UL CE TUV etc driver, or be includes a built in 10kV surge suppressor with universal voltage capacity 100-277v 50/60Hz. Ideal for indoor and outdoor area lighting such as Marine, Mining, landscaping, buildings,and parking areas. Works well for wall mounting or ground mounting.
(1)DC available on special request
(2)Warm white available indent only
*AC Current rating at 85 ~ 265VAC
**Black housing
***Marine coating
***Highlight
Extruded aluminum heatsink housing body painted with epoxy powder prior to phosphating. Tempered anti-shock thermal silkscreen glass. Built-in electronic ballast Meanwell driver or TUV LCD brand driver, CE standard 1m cable. The polished anodized aluminum faceted louver.
***Extruded Aluminum housing thermal conductivity about 230w/(m.k) and 2.5 times of popular aluminum alloy's 97w(m.k),the more fast way spreading LEDs engine's heat into the air ensure a long lifespan for products.
***High quality housing surface ensure a perfect painted with epoxy powder for the strongest corrosion resistant.
***New hotspot thermal management technology.
***Definitely and incredible dust deposition prevention and easily simply cleaning.
Light source: LED multichip technology with LUMILEDS or OSRAM LEDs chip.
Direct light emission. Installation by mean of supplied bracket. Over-temperature control circuit inside.
