• Model NO.：LLX-LY-1601
• Certification：CCC, CE
• Input Voltage：90-305V
• LED Chips Brand：Sanan
• Lumen Flux：8357
• Lumen Efficacy：139.95lm,W
• CRI：>70
• Beam Angle：150*70°
• Working Environment：-40-50°
• Lifetime：>50000h
• Transport Package：Carton
• Specification：520*329*90mm
• Trademark：LONGLUX
• Origin：Zhejiang
• Production Capacity：50000,Year

Basic Info.

Model NO. LLX-LY-1601 Certification CCC, CE Input Voltage 90-305V LED Chips Brand Sanan Lumen Flux 8357 Lumen Efficacy 139.95lm/W CRI >70 Beam Angle 150*70° Working Environment -40-50° Lifetime >50000h Transport Package Carton Specification 520*329*90mm Trademark LONGLUX Origin Zhejiang Production Capacity 50000/Year

Product Description

Feature:

1.Adoption Lepower exclusive light source and ZAG Lens. Compared with similar products,the luminous efficiency can rise 8% and light transmittance up to 98%. 2. Fan channel thermal design, reduce lamp weight, with excellent heat dissipation, reduce light decay, prolong lamp lifetime. CHEM modular design, effectively reduce maintenance costs. 3. Driven by high efficiency constant current and 60% energy-saving than traditional lamps; over -current protection, over-voltage protection, lightning protection, high temperature protection, fully ensures the long life span and high stability. 4. Durable,long lifetime,and last up to 50000 hours; no need to replace frequently and less daily maintenance. 5. Green product,no UV or IR radiation, no mercury pollution. 6. With Excellent exterior design, the lamp is waterproof and dust proof, protecting rate: IP66. 7. Fast response,no flicker; wide operating voltage range. 8. LEDs which packaged by multi-chips is high lumen, stable performance, low light failure and no dead lights.

Application:
This product mainly applies to highway,urban roads and secondary roads,stadium,sidewalk, residential area,industry sites, square area,park ,school ,villa and courtyard,etc.street lighting.

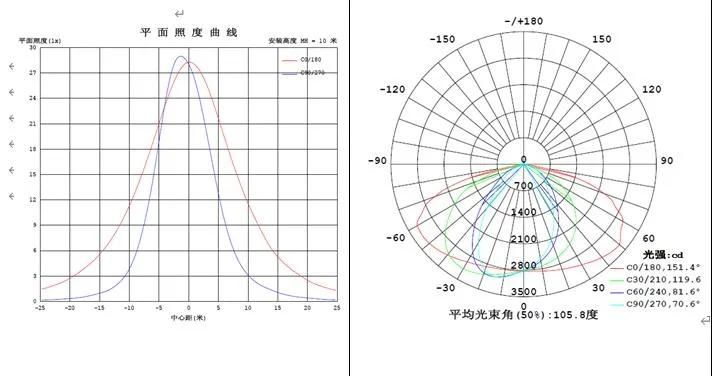

Plane illuminance & Destribution Corve:

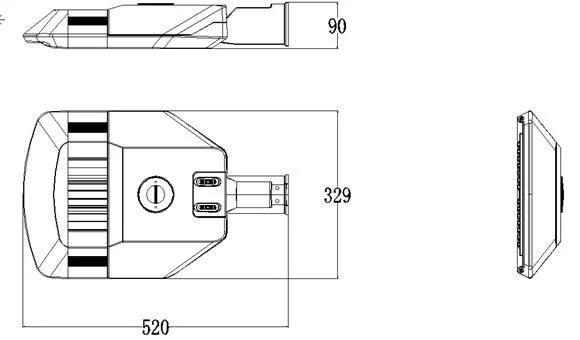

Dimension:

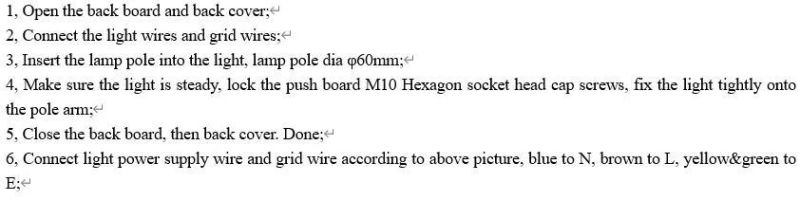

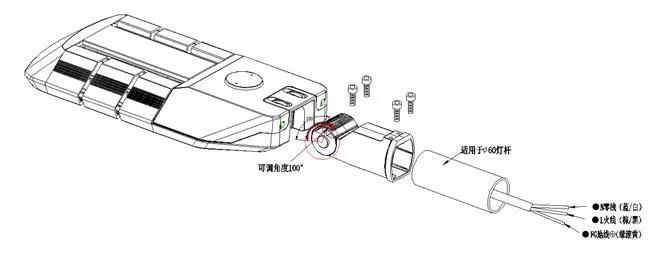

Installation diagram and instruction:
