• Model NO.：LCD-HYLY-053-LN30
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, LVD, PSE, RoHS, SAA, UL, TUV SAA
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：CREE
• Transport Package：Carton Box
• Specification：189x148x32 mm
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405421000
• Production Capacity：50000PCS , Year

Óptica

Optic

Application review

- Low area & job site lighting
- Building surrounds
- Façade lighting

- Car parking lighting

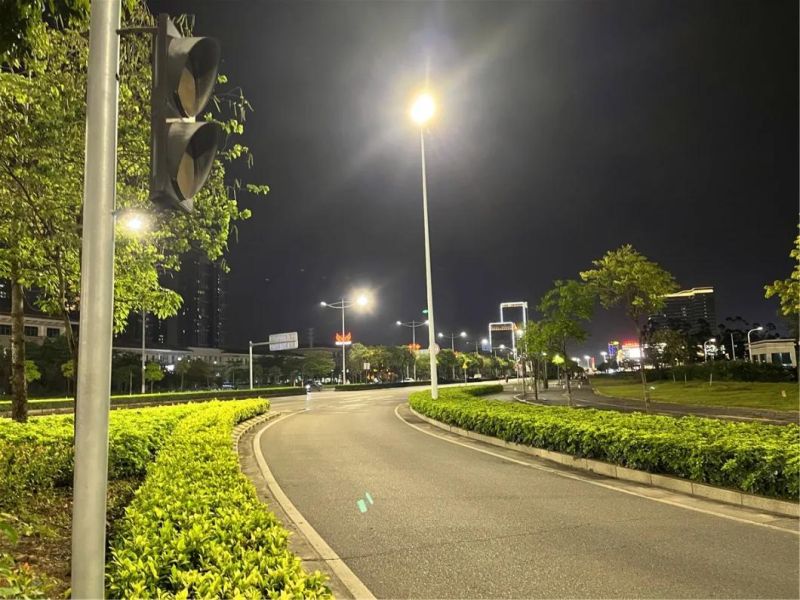

- Road & billboard lighting

Project details:
Building with Surrounds: 300m2
Energy costs: 0.12 $usd/kWh
Illuminance: 50lx
Calculation period: 15 years
Changing lamps every 2 years for the traditional/non-LED solution
LED: Cleaning the luminaires every 3 years
Operating hours: 4380 h/a
All calculations are based on an annual increase of energy and operating costs of 5%.


Product dimension review

Mounting options
Three mounting options to cover all low area lighting applications.

Wall or ceiliing mounted --Area & site

Surface mounted--Facade

Mast & Post--Road & Car Parking

Installation review

FLY features a super lightweight design and is pre-wired for effortless installation.

Slim, compact and lightweight Market leading size/weight/output ratio for high performance with low aesthetic impact.

FLY's lean lightweight design also makes it easy to carry, install and integrate onto existing structures.

Pre-wired. Quick and easy installation with no wiring.

Low Voltage 20W DC12V 2600 Lumen Outdoor LED Flood Lights
led outdoor flood light bulbs 20W DC12V 2600lm IP66 Aluminum die cast ADC12


Slim Floodlight specifications:
-- Direct lighting luminaire for use with LEDs.
-- Corrosion resistant die-cast aluminium body
-- Installation with bracket on surface and floor.
-- Mains voltage: 220-240V / 50-60Hz.
-- Clever thermal design with internal cooling pins.
-- Narrow, medium and wide beam angles available.
-- Led colour temperatures optionally 3000K, 4000K and 6000K.
-- Suitable for illumination up to 8 meter height.
-- Internal silicon gaskets ensure IP protection.
-- All external screws are stainless steel.
-- Double layer polyester powder paint resistant to corrosion and salt spray fog.
-- Up to 120lm/W efficiency (4000K - 800mA)
-- High colour consistency: <3 sdcm="" />Application:

Floodlight with broad spread light distribution. Various lighting tasks can be implemented such as floodlighting building surfaces, walls, plants etc. The use of LED technique offers optimal light output with low power and durability as well.

Products features

without compromising light quality or a sense of security for those in the area.

Power saving and free maintaining

Floodlight configurations

Mounting

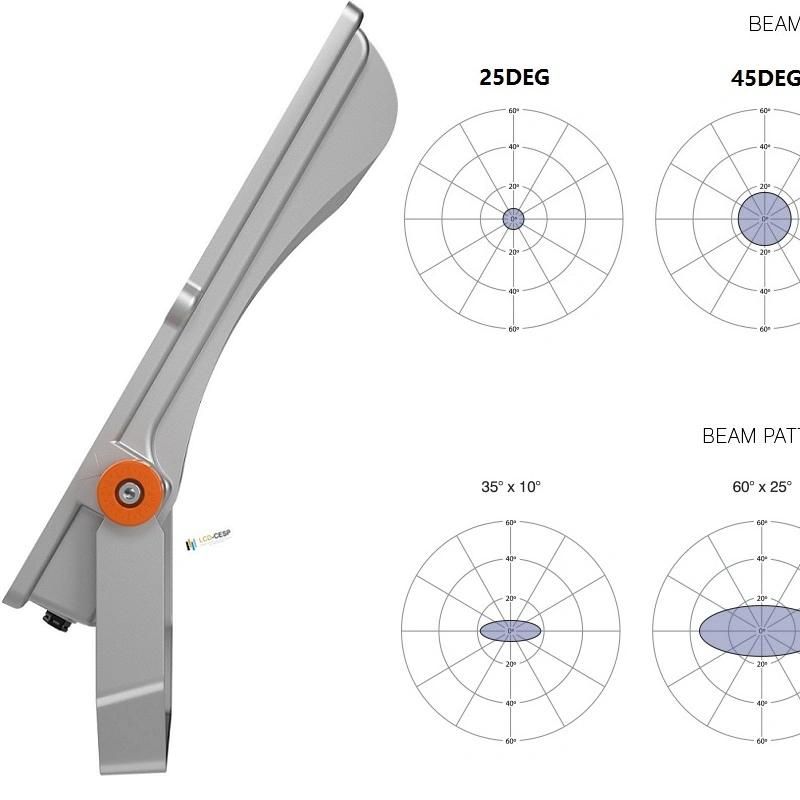

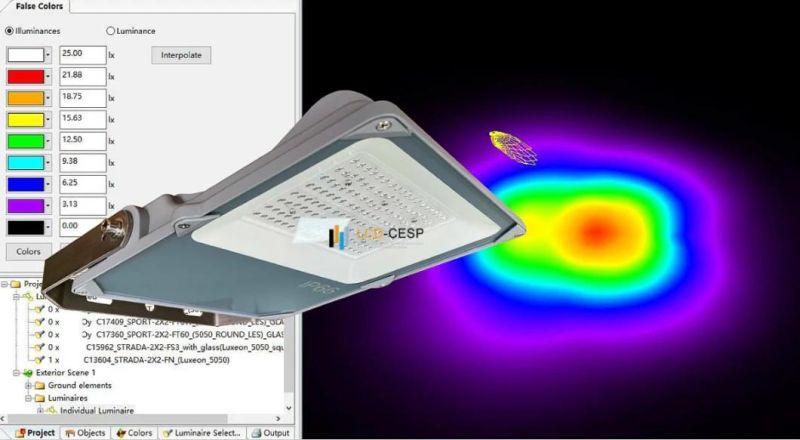

Optical distributions

Optic lens: 7°, 15°, 30°, 60°, 90°, 120°, TYPE 2/3/4/5,Asymmetric 40

Dimension

Products Specification
