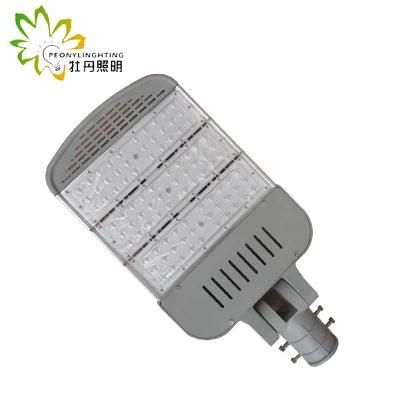

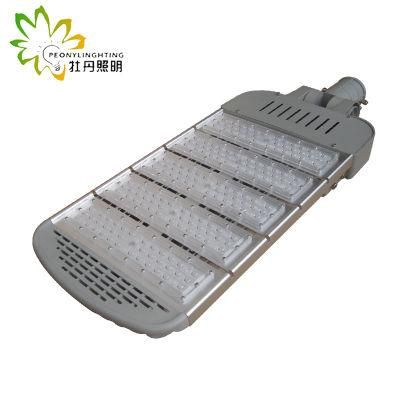

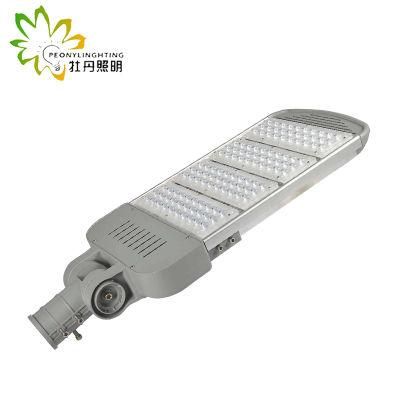

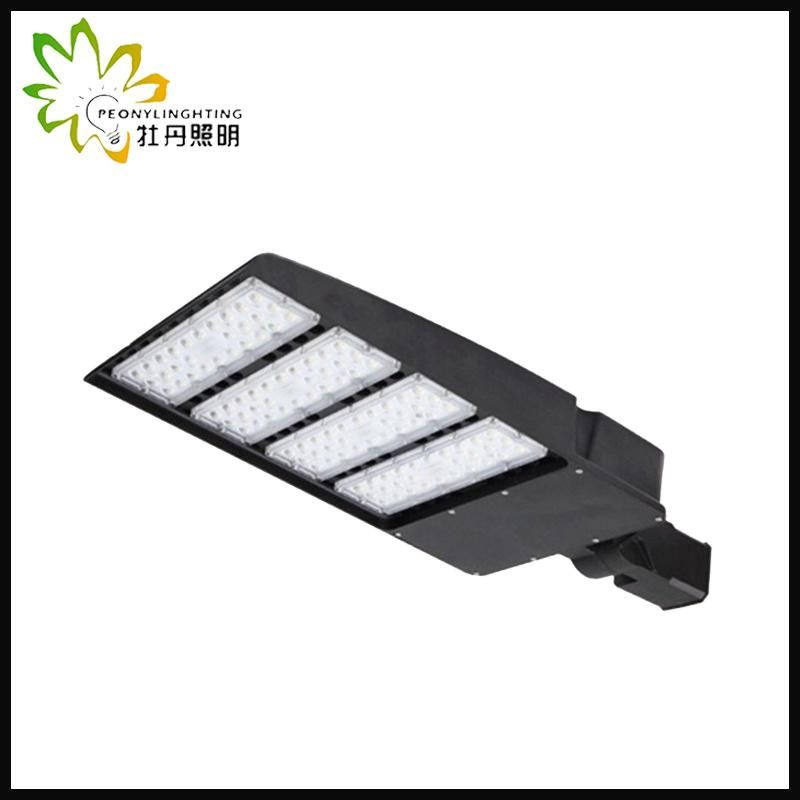

300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light

Peony Lighting Technology Co., Ltd.
  • Power Supply：AC
  • Color Temperature：2700-6500K
  • Lamp Body Material：Aluminum
  • Power：300W
  • Application：Square, Highway, Garden
  • IP Rating：IP65

Base Info

  • Model NO.：PL-LD-022E -300W
  • Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Input Voltage：AC90-305V
  • With Light Source：With Light Source
  • LED Chips Brand：Lumileds 3030SMD
  • Transport Package：Export Standard Cartons
  • Specification：785*390*14mm
  • Trademark：PEONYLIGHTING
  • Origin：China
  • HS Code：940510000
  • Production Capacity：500000PCS,Year

Description

Basic Info.

Model NO. PL-LD-022E -300W Certification CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE Input Voltage AC90-305V With Light Source With Light Source LED Chips Brand Lumileds 3030SMD Transport Package Export Standard Cartons Specification 785*390*14mm Trademark PEONYLIGHTING Origin China HS Code 940510000 Production Capacity 500000PCS/Year

Product Description

300W new model of led street light ---Module Led Parking Lot Light,led shoebox light
300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light

Key Features

1 Using led modules ,lumileds 3030smd light source. Lamp luminous efficiency can reach 130LM/W

2 Driver box can be opened without tools ,easy to maintain

3 Installation degree is adjustable from -90 ~ +90.

4 Beautiful appearance and unique designIP65

Datesheet

Specification
Power: 300W
CRI:>70/80
LED Qty:448PCS*3030smd
Driver:Meanwell SOSEN
Imput Voltage: AC100-265V
Luminous Flux (lm):110-130lm/w
Light color: 3000/4000/6000k
IP Rating:IP65
View Angle:Type
Power Factor: ≥0.90
Warranty :5-8 years

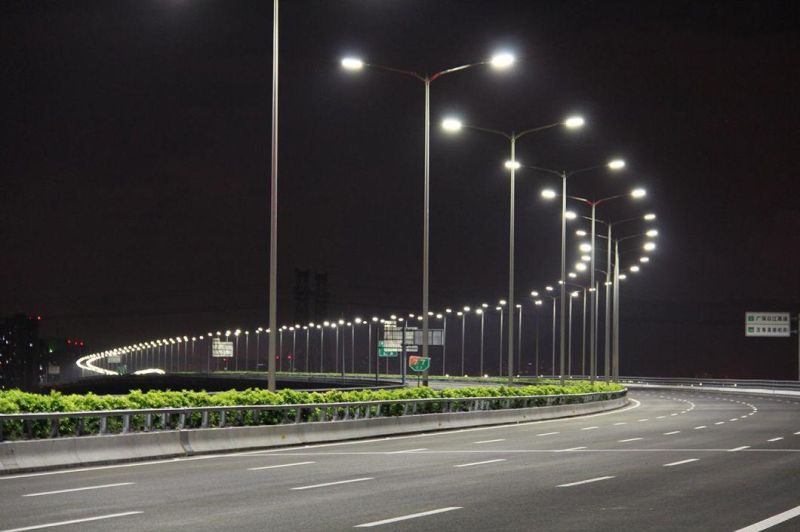

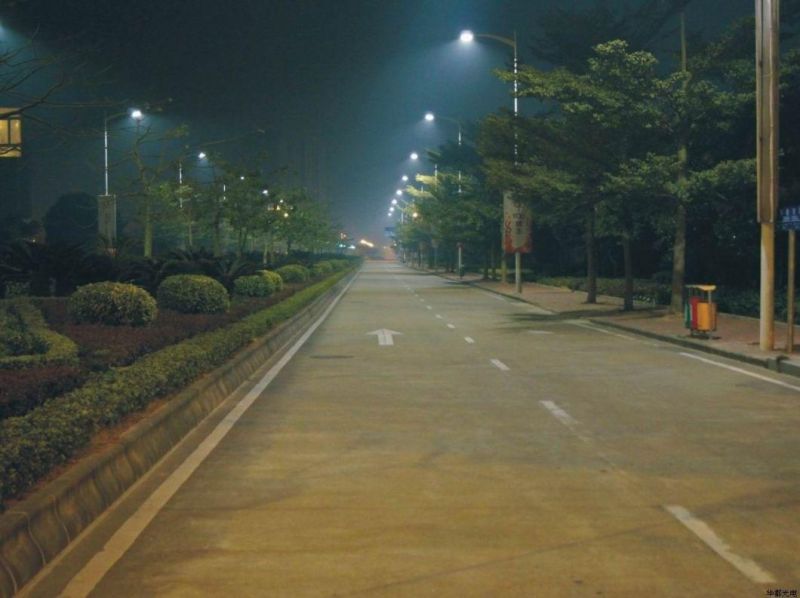

Application
road, park, highway ,country yard etc.
300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light
300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light

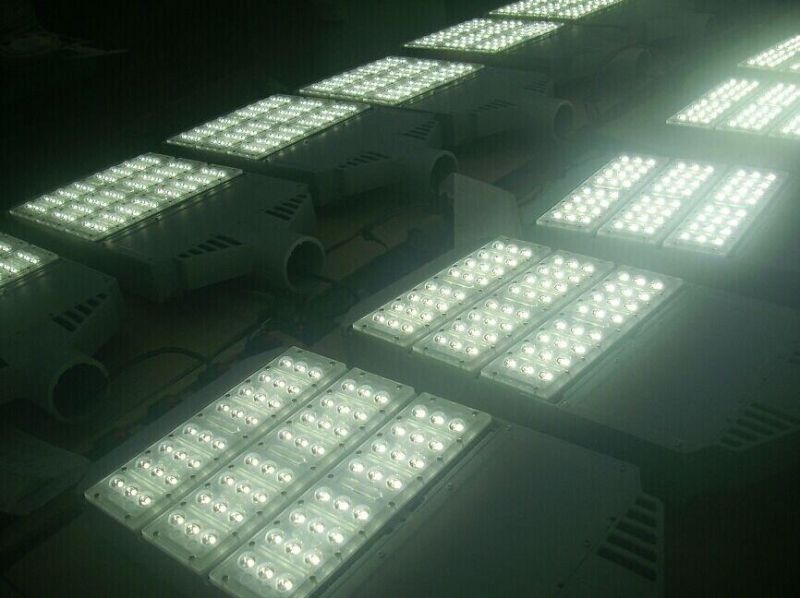

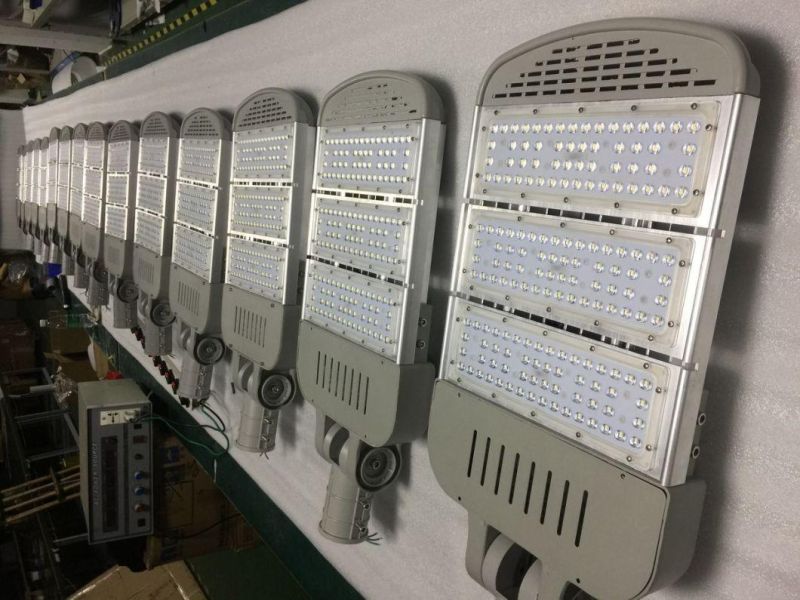

Workshop
300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light

300W New Model of LED Street Light ---Module LED Parking Lot Light, LED Shoebox Light

FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
