• Model NO.：PBMNISL-06
• Certification：CCC, CE, RoHS, IEC, CQC, Ies, ISO9001, ISO14001
• Input Voltage：DC 12V,24V
• With Light Source：With Light Source
• LED Chips Brand：SMD
• LED Chip：Famous Brand
• Light Efficiency：120-130lm,W
• Solar Panel Type：Mono-Crystalline Silicon
• Solar Panel Efficiency：20.5%
• Battery Type：Lithium Iron Phosphate
• Viewing Angle：140*70 Degree
• Life Time：>50000 Hours
• Working Temperature：-30~+70
• Power Type：LED Light
• Lamp Classification：Solar Light
• Transport Package：Carton and Bubble
• Specification：Product size: 505*235*85mm
• Trademark：Phoebus
• Origin：China
• HS Code：9405410000
• Production Capacity：500000,Year

Basic Info.

Model NO. PBMNISL-06 Certification CCC, CE, RoHS, IEC, CQC, Ies, ISO9001, ISO14001 Input Voltage DC 12V/24V With Light Source With Light Source LED Chips Brand SMD LED Chip Famous Brand Light Efficiency 120-130lm/W Solar Panel Type Mono-Crystalline Silicon Solar Panel Efficiency 20.5% Battery Type Lithium Iron Phosphate Viewing Angle 140*70 Degree Life Time >50000 Hours Working Temperature -30~+70 Power Type LED Light Lamp Classification Solar Light Transport Package Carton and Bubble Specification Product size: 505*235*85mm Trademark Phoebus Origin China HS Code 9405410000 Production Capacity 500000/Year

Product Description

10W Outdoor All in one Led solar light with motion sensor

LED Power	10W
Flat compact Solar panel	10W,10years span life.
Li-ion battery	3.2V,11Ah
LED Chip	2835 SMD chip, 15LEDs
Luminous efficiency	>120 lm/W
Controller	5A
Charging time	9-10 hours
Lighting time	More than 3 nights(Dim lighting mode)
Ray sensor	<10Lux
PIR sensor	<5m,120°
Install height	2.5-3.5m
Material	Aluminum
Size	505*235*85mm
packing size	522*250*100mm
weight	2.3kg
Working temperature	-25ºC to 65ºC
Warranty	3 years

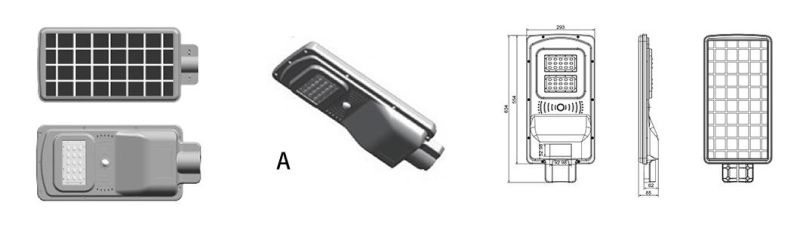

10W Outdoor All in one Led solar light CAD Design

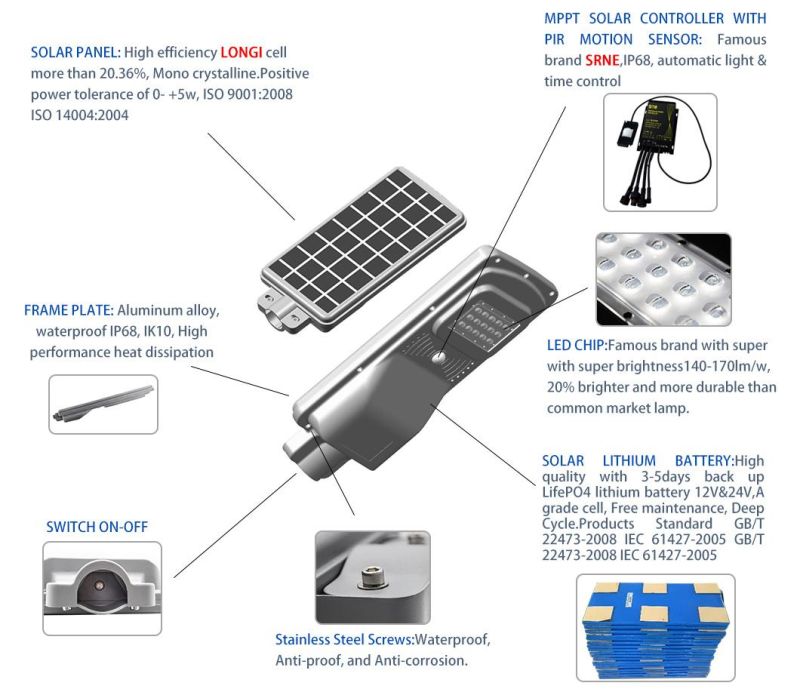

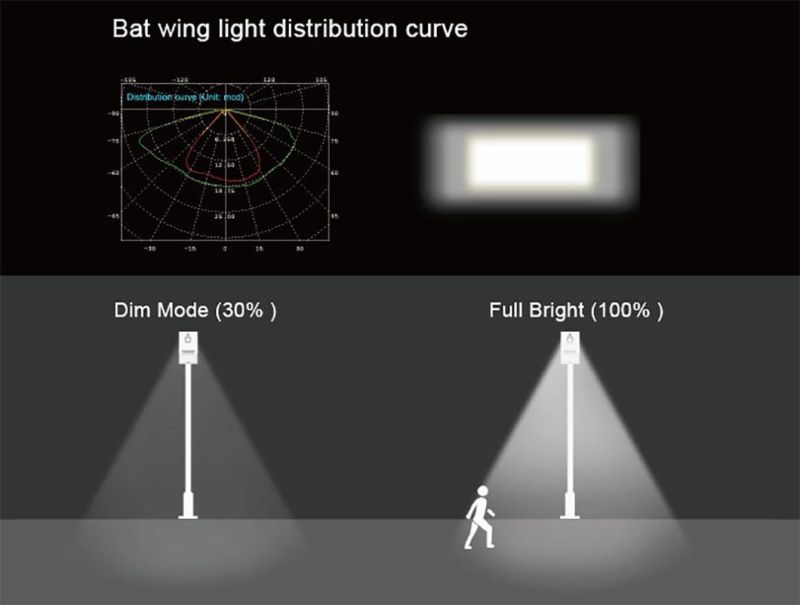

All in one Led Solar Light Parts Details Intelligent All in one solar street light 10W Working Modes

More About Phoebus
FAQ
1. Are Phoebus lighting and TianXiang the same company or not?
A: Yes, they are the same company but different offices. Phoebus lighting is Tianxiang's primary brand.

2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

3. Is it OK to print my logo on led light product?
A: Yes. It's welcomed. We do many OEM and ODM for customers.
Please inform us formally before our production and confirm the design firstly based on our sample.
 4. Are Phoebus lights any good? Why choose us?A: Phoebus lighting uses all the best materials, provides reasonable solar light solutions with the original price. We aim to do long time business and services. Phoebus lightings are your Engineering and installation specialist.
