• Model NO.：Die-casting led street light housing MLT-SLH-FXS-I
• Certification：CE
• Input Voltage：90V-305V
• With Light Source：Without Light Source
• LED Chips Brand：SMD 3030
• Model No.：Die-Casting LED Street Light Housing Mlt-Slh-FXS-I
• Dimension of Housing：53.5cm(L)*20cm(W)*12cm(H)
• Fixture Material：Die-Casting Aluminum Alloy
• Surface Finish Color：Sanded Gray or Customized Color
• Material of Diffuser：High Transmittance Tempered Glass
• Effective MCPCB Mounting Size：150mm(L)*100mm(W)
• Recommended LED Power：30W to 60W
• Driver Box Dimension：180mm(L)*60mm(W)*38mm(H)
• Pole Mounting：Φ50 or 60mm Pipe
• Adjustable Slip Fitter：-15°to +15°
• Standard Photocell：Optional
• Quick Disconnection Terminal Block：Optional
• Transport Package：Export Carton
• Specification：Die-casting led street light housing MLT-SLH-FXS-I
• Trademark：Moonlight
• Origin：China
• HS Code：9405990000
• Production Capacity：18000PCS,Month

Basic Info.

Model NO. Die-casting led street light housing MLT-SLH-FXS-I Certification CE Input Voltage 90V-305V With Light Source Without Light Source LED Chips Brand SMD 3030 Model No. Die-Casting LED Street Light Housing Mlt-Slh-FXS-I Dimension of Housing 53.5cm(L)*20cm(W)*12cm(H) Fixture Material Die-Casting Aluminum Alloy Surface Finish Color Sanded Gray or Customized Color Material of Diffuser High Transmittance Tempered Glass Effective MCPCB Mounting Size 150mm(L)*100mm(W) Recommended LED Power 30W to 60W Driver Box Dimension 180mm(L)*60mm(W)*38mm(H) Pole Mounting Φ50 or 60mm Pipe Adjustable Slip Fitter -15°to +15° Standard Photocell Optional Quick Disconnection Terminal Block Optional Transport Package Export Carton Specification Die-casting led street light housing MLT-SLH-FXS-I Trademark Moonlight Origin China HS Code 9405990000 Production Capacity 18000PCS/Month

Product Description

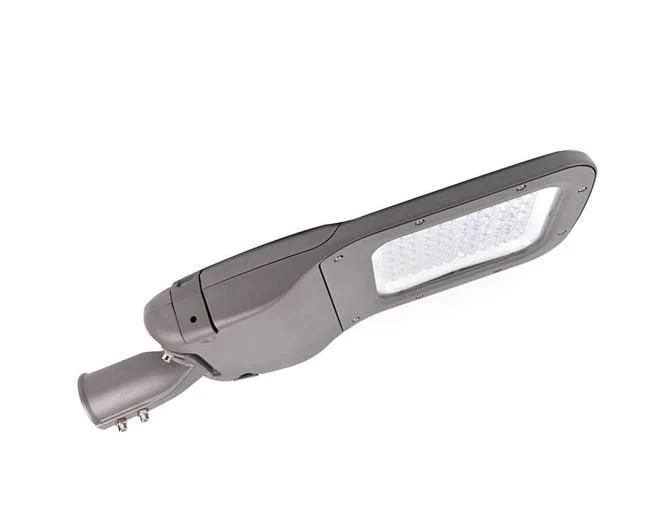

Die-casting LED Street Light Housing MLT-SLH-FXS-II

Brief Introduction
This Die-casting LED street light housing fixture MLT-SLH-FXS-II is the smallest size of SMD LED street light housing fixture from Moonlight LED street light F series. Modern design, precision die-casting molded and superior corrosion resistant coating finish housing with standard twist lock photocell mounting platform, make this LED street light housing can be used for variety of LED roadway lighting applications.

Feature

• Durable aluminum alloy die-casting LED Street Light housing for heavy-duty outdoor lighting applications.
• Ribbon-free and compact design.
• Easy drainage system.
• Separate LED light engine and driver box for easy maintenance.
• Tool-less design for replace the LED driver without any tool.
• Large driver box complies with variety of drivers and dimming options.
• Both cover and bottom of the driver box have the GND bosses for security.
• Plastic electrostatic spraying to resist corrosion, chipping and fading.
• Adjustable knuckle slip fitter help to adjust the led street light fixture on-site for optimal photometric performance, which make sure that the light distributions are specifically adapted to the real needs of the area to be lit.
• 5mm high light transmittance tempered glass diffuser.
• Silicon gaskets.
• SUS304 stainless steel bolts for fastening.
• The powder coated die-cast clips make it a harmonious overall with the rest of the luminaire.
• Twist lock photocell mounting platform for lighting control.
• Quick disconnection terminal block mounting platform for disconnect the power supply for linemen handling security.
• IP66 rated, protect from all dust and harsh weather.
• Standard sanded gray finish.
• Easy to assemble, install and linemen friendly maintain.

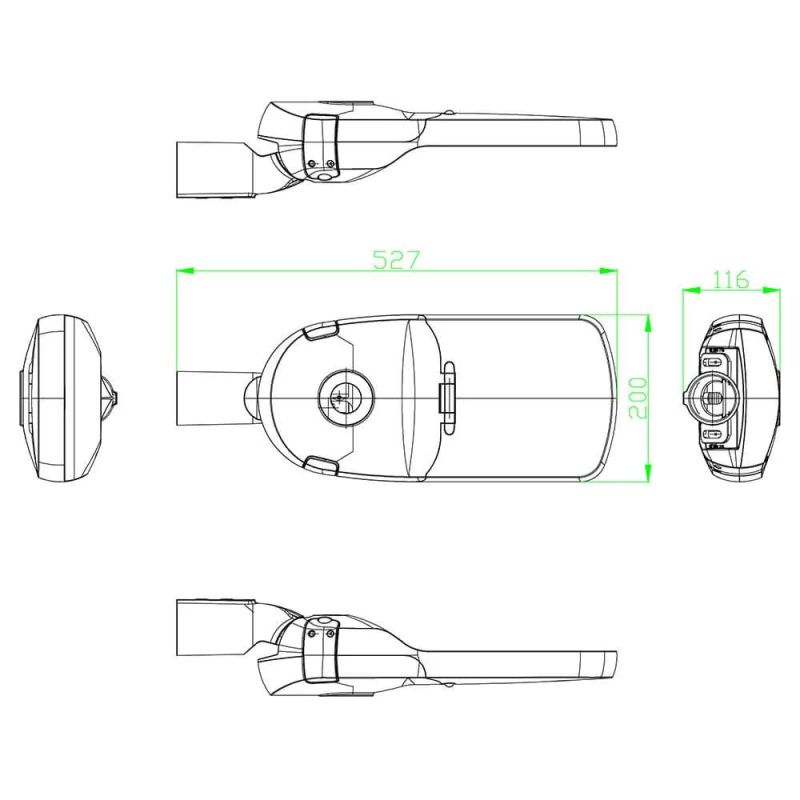

Mechanical Dimensions


Parameter

Model No.	Die-casting LED Street Light Housing MLT-SLH-FXS-II
Dimension of Housing	53.5cm(L)*20cm(W)*12cm(H)
Fixture Material	Die-casting Aluminum Alloy
Surface Finish Color	Sanded Gray or Customized color
Material of Diffuser	High Transmittance Tempered glass
Effective MCPCB Mounting Size	150mm(L)*100mm(W)
Recommended LED Power	30W to 60W
Driver Box Dimension	180mm(L)*60mm(W)*38mm(H)
Pole Mounting	Φ50 or 60mm pipe
Adjustable Slip Fitter	-15°to +15°
Standard Photocell	Optional
Quick Disconnection Terminal Block	Optional
IP Rating	IP66

Packing Information


Net Weight	2.90kg/PCS
Gross weight	3.42kg/carton
Quantity	1PCS/ carton
Carton Size	57.5cm(L)*24.5cm(W)*15cm(H)

Application
This heavy-duty, modern design and cost-effective die-casting LED street light housing fixture is typically used as 30W-60W LED street lighting fixture. LED street lighting is used extensively in urban settings, along small town downtown main streets, in residential neighborhoods, in commercial districts, public squares, in industrial parks, at interstate highway interchanges, bridges, and rural intersections.
