• Model NO.：QYLDL024
• Certification：CE, RoHS
• Input Voltage：100-240V
• With Light Source：With Light Source
• LED Chips Brand：Epistar
• Trademark：QIYA
• Origin：Jiangsu
• HS Code：94054090
• Production Capacity：5000

Basic Info.

Model NO. QYLDL024 Certification CE, RoHS Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Epistar Trademark QIYA Origin Jiangsu HS Code 94054090 Production Capacity 5000

Product Description

1.Led heat sink using high pure aluminum die castiong and become, the surface of polyester powder coating process, strong corrosion resistance and beautiful appearance, execellent heat dissipation.
2.Led light source adopts imported from Taiwan chip, well-know domestic manufacturers package, thus ensuring the stability of the LED lamp, make the products in the color temperature, display index excellent lighting effects.
3.Led driver power supply with wide voltage constant current design, product use waterproof technology, anti surge voltage uo to 6000 volts, through the CE Rohs certification and testing, to ensure the stability of the products , soas to ensure the service of the lamp.
4.The lamp is protected by full toughened glass and soloca gel sealing strip, which ensures the protection grade of the lamp for a long time.
5.Applicable to urban roads , main roads, highways and other places.




model	QYLDL024	QYLDL024	QYLDL024
power(W)	50W-60W-80W	100W-120W	150W-180W
voltage(V)	AC110V-268V	AC110V-268V	AC110V-268V
lumens(lm/w)	≥110 lm/w	≥110 lm/w	≥110 lm/w
color temperature(K)	3000k-6500k	3000k-6500k	3000k-6500k
Working temperature	-20ºC~+45ºC	-20ºC~+45ºC	-20ºC~+45ºC
Size (mm)	620*260*101	720*280*112	880*340*122
warranty	>50000h	>50000h	>50000h
IP rating	IP65	IP65	IP65

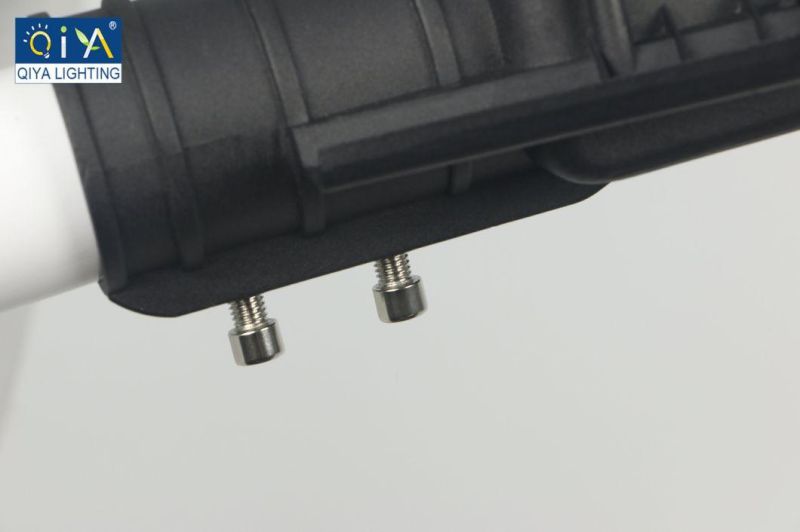

installation method	Sleeve type	Sleeve type	Sleeve type
