• Certification：CB, DLC, CCC, CE, ETL, LVD, UL
• Input Voltage：100-270V
• With Light Source：With Light Source

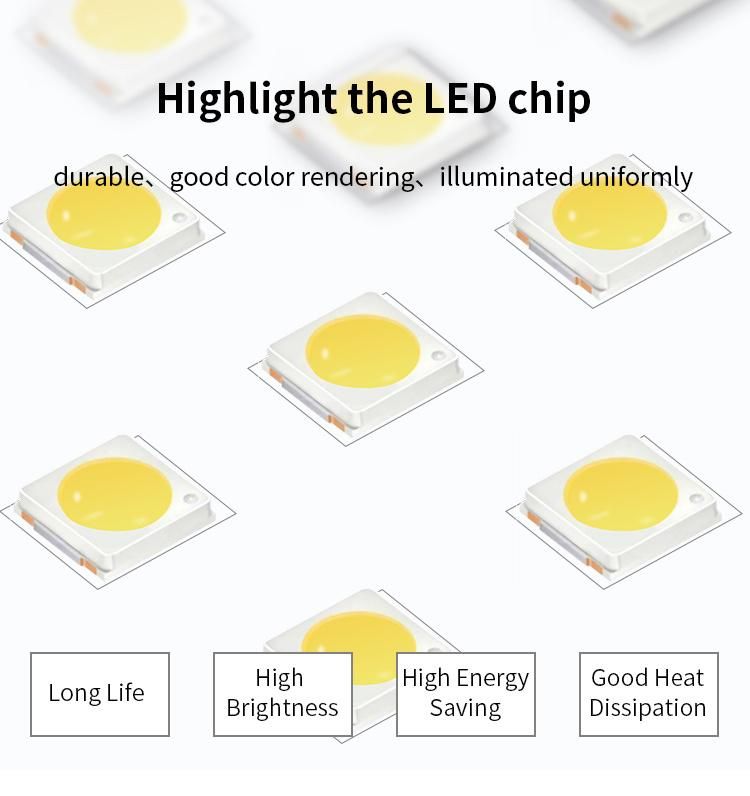

• LED Chips Brand：CREE
• Efficiancy：140lm,W
• CRI：70
• Driver：Meanwell
• Beam Angle：90°
• Location：Wet
• Lifetime：50000h
• Warranty：5 Years
• Transport Package：Carton
• Specification：450*225*70,1400*540*140
• Trademark：longlux
• Origin：China
• Production Capacity：50000

Basic Info.

Certification CB, DLC, CCC, CE, ETL, LVD, UL Input Voltage 100-270V With Light Source With Light Source LED Chips Brand CREE Efficiancy 140lm/W CRI 70 Driver Meanwell Beam Angle 90° Location Wet Lifetime 50000h Warranty 5 Years Transport Package Carton Specification 450*225*70/1400*540*140 Trademark longlux Origin China Production Capacity 50000

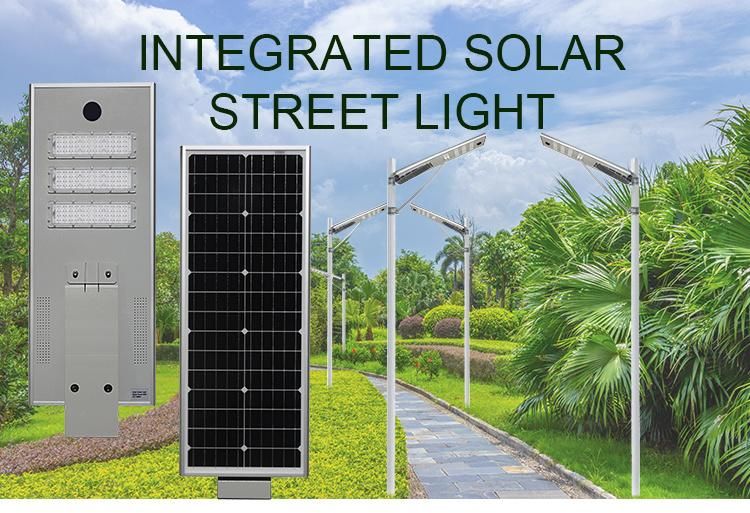

Product Description

Specification

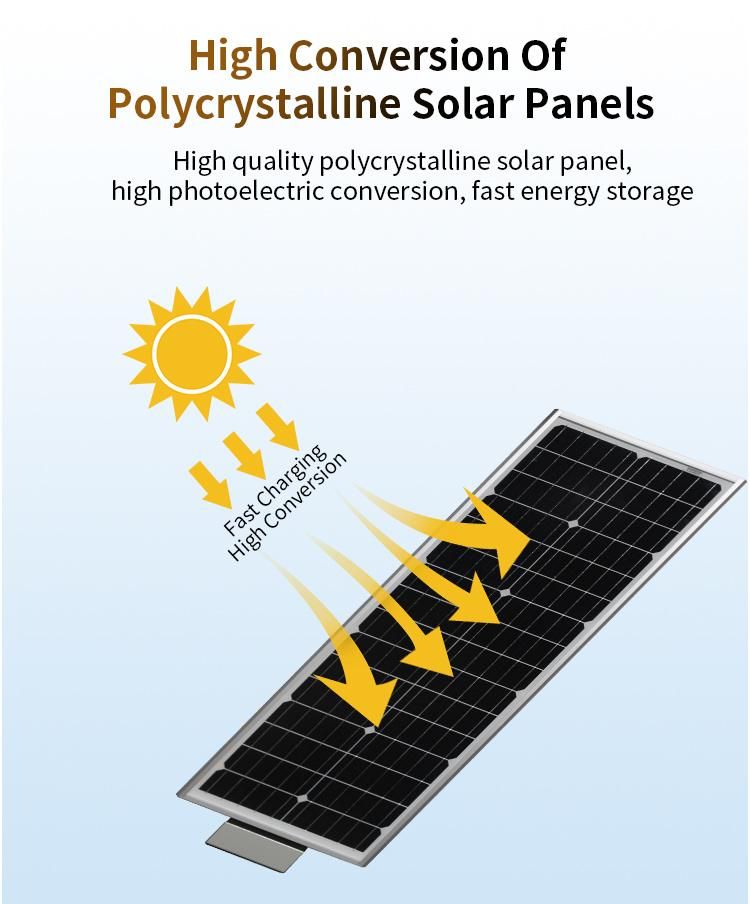

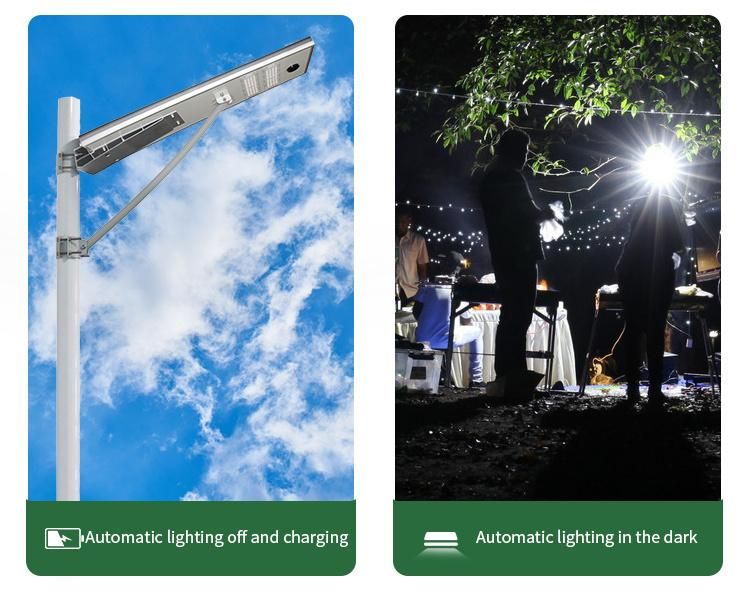

1. Charging Time: 6H of effective sunlight
2. Using PC lens to adjust beam angle. Type-/III/IV/V lighting distributions meet various area lighting requirements
3.  Self-cleaning function to achieve best heat dissipation
4.  Tool-free access to driver,  easy for installation and maintenance

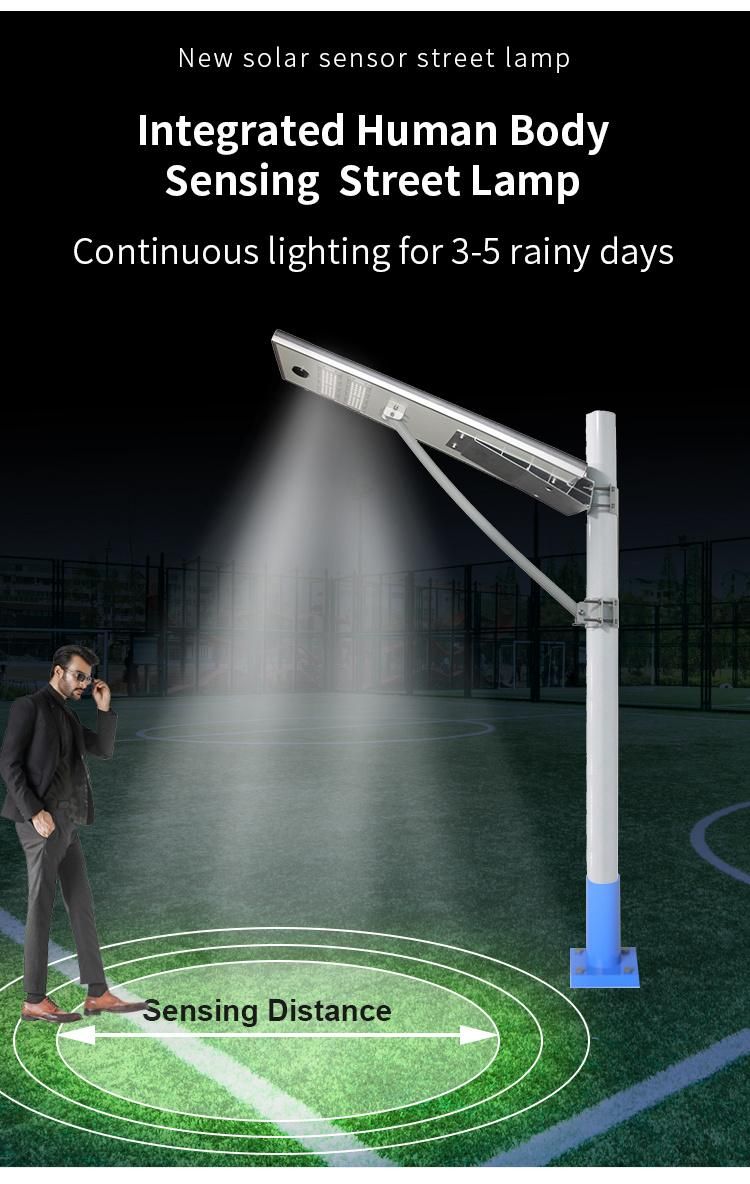

5.  Photocell and motion sensor optional for intelligent control
6.  Different kinds of installation brackets,east to change.
7.  Elegant appearance and modular design.

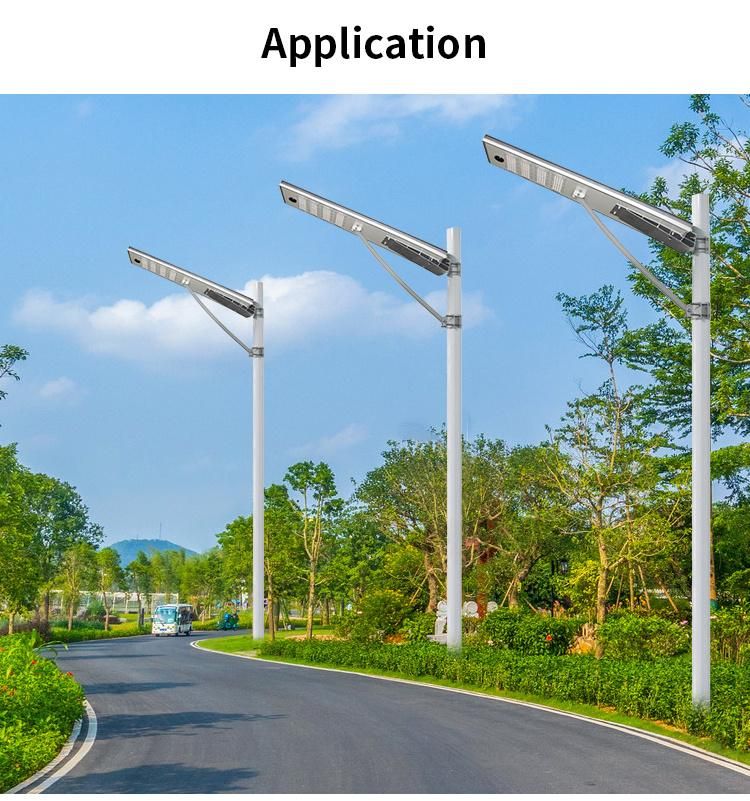

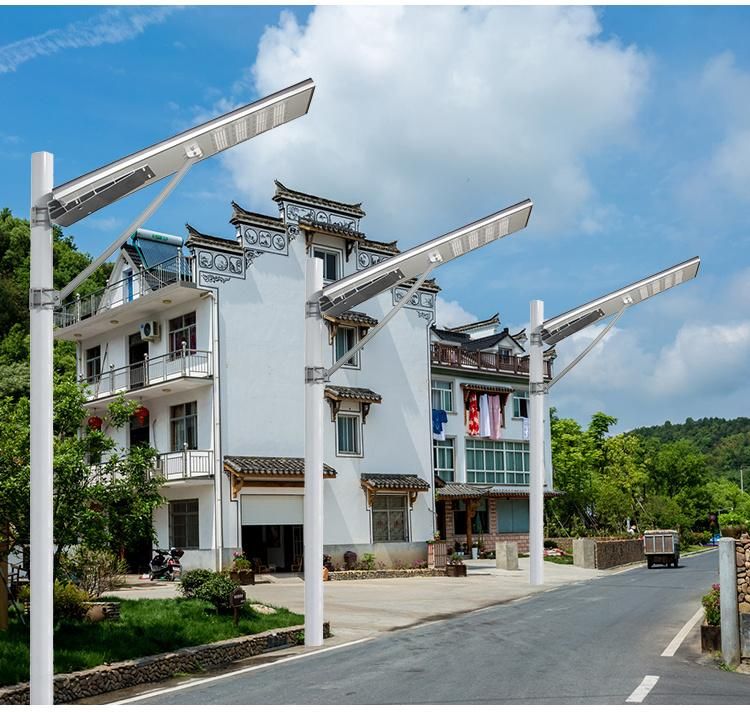

8.  Application: Residential areas, Parking lot, City squares, Industrial parks, Gardens

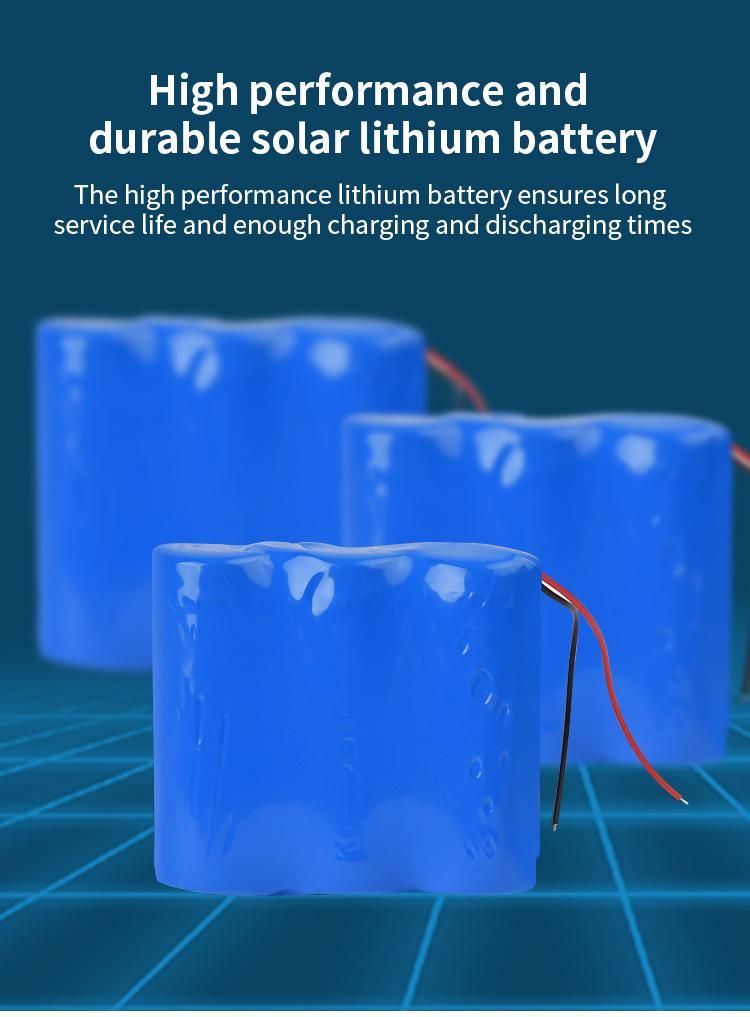

Model No.	Wattage(W)	Solar Panel	Battery  Capacity	Size(MM)	Mounted Height(M)	Working Time	SMD3030 (PCS)
LLX-SSL-T11R	5-10	10V/12W-10V/15W	4.2V/13.2AH	450*225*70	3-4	2-3 rainy days	49
LLX-SSL-T12R	20	15V/25W	12.6V/10AH	670*315*70	4-5	3-5 rainy days	90
LLX-SSL-T13R	40	16V/50W	12.6V/17.6AH	840*370*70	5-6	3-5 rainy days	130
LLX-SSL-T11	8-15	10V/12W-10V/15W	4.2V,13.2AH/15.4AH	460*225*50	3-4	3-5 rainy days	28
LLX-SSL-T12	25-30	15V/30W-15V/40W	12.6V,12AH/14AH	670*320*50	4-5	3-5 rainy days	56
LLX-SSL-T13	40-50	16V/45W	12.6V,22AH/26.4AH	840*370*50	5-6	3-5 rainy days	96/144
LLX-SSL-T4	30	18V/40W	12.6V/22AH	920*300*90	5-6	3-5 rainy days	48*2
LLX-SSL-T42	40	18V/50W	12.6V/22AH	785*370*90	5-6	3-5 rainy days	48*2
LLX-SSL-T5	50	18V/70W	12.6V/26.4AH	1150*300*90	5-6	3-5 rainy days	48*3
LLX-SSL-T52	60	18V/80W	12.6V/26.4AH	1000*370*90	6-7	3-5 rainy days	144
LLX-SSL-T6	60-80	18V/80W	12.6V/42AH	1170*425*90	6-7	3-5 rainy days	192
LLX-SSL-T7	100-120	18V/150W	12.6V,60AH/80AH	1400*540*140	8-9	3-5 rainy days	192
