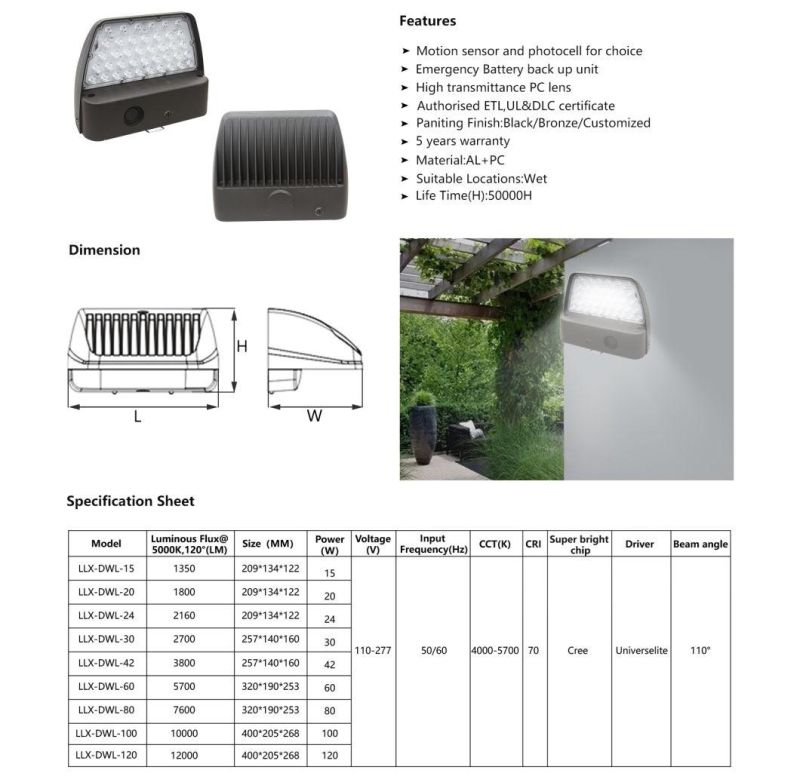

LED Wallpack Light Down Wall Lamp 15W Outdoor Light
Hangzhou Longlux Electronic Technology Co., Ltd.- Style：Modern
- Color Temperature：Warm White,Pure White
- Lamp Body Material：Al+PC
- Irradiated Area：110°
- IP Rating：IP65
- Certification：CE
Base Info
- Model NO.：LLX-DWL-15
- Voltage：110-277V
- Transport Package：Carton

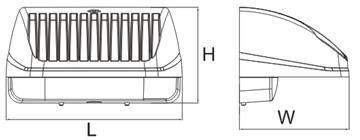

- Specification：209*134*122
- Trademark：LONGLUX
- Origin：Zhejiang
- HS Code：9405100000
- Production Capacity：50000,Year
Description
Basic Info.
Model NO. LLX-DWL-15 Voltage 110-277V Transport Package Carton Specification 209*134*122 Trademark LONGLUX Origin Zhejiang HS Code 9405100000 Production Capacity 50000/YearProduct Description
SUGGESTED METHOD OF INSTALLATION:ALWAYS SWTICH OFF THE MAINS SUPPLY BEFORE INSTALLATION.

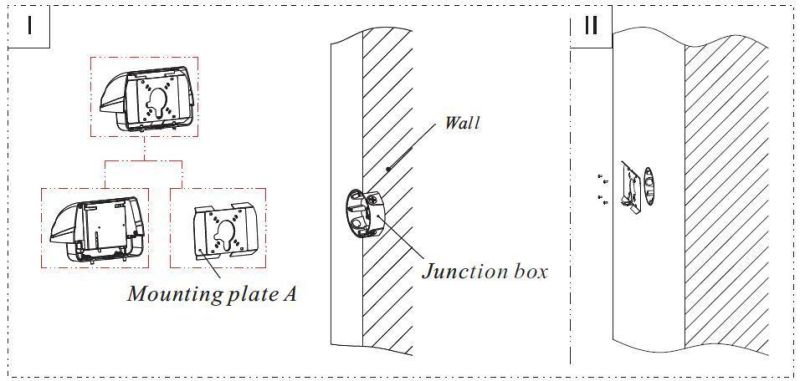

STEP 1: Take off mounting plate A from the fitting. (Fig. I)
STEP 2: Mount the mounting plate A to the Junction box in the wall. (Fig. II)
Place adhesive gasket first if necessary.

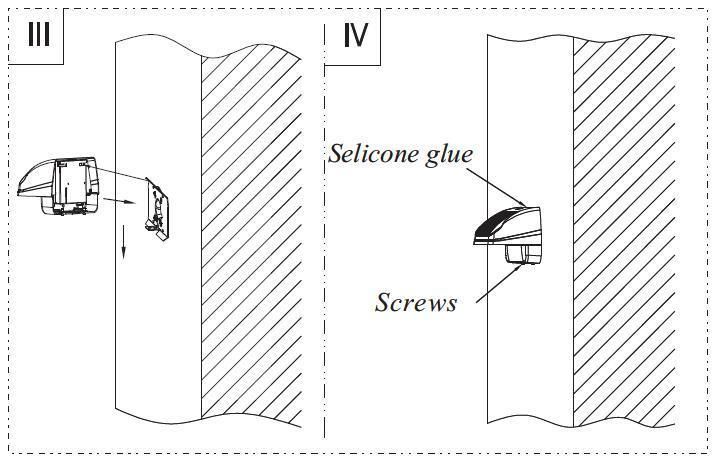

STEP 3: Hold the fitting, connect the wires and push the wires back to the junction box in the wall.
Seat the fitting on the mounting plate A and swing down into the place. (Fig.III)
STEP 4: Tighten the screws to make the fitting secured, apply silicone glue around the fitting where it touch the wall, for better sealing. (Fig. IV)
