• Model NO.：BR-AIT20W
• Certification：CE, FCC, RoHS, SASO
• Input Voltage：12V, 24V, 110V, 220V
• With Light Source：With Light Source
• LED Chips Brand：CREE
• Transport Package：Carton
• Specification：Exporting Standard
• Trademark：BR SOLAR; AS SOLAR
• Origin：China
• HS Code：94054090
• Production Capacity：6000PC,Month

Basic Info.

Model NO. BR-AIT20W Certification CE, FCC, RoHS, SASO Input Voltage 12V, 24V, 110V, 220V With Light Source With Light Source LED Chips Brand CREE Transport Package Carton Specification Exporting Standard Trademark BR SOLAR; AS SOLAR Origin China HS Code 94054090 Production Capacity 6000PC/Month

Product Description

20W All in Two Solar Street Light with Lithium Battery


1. Brief Introduction of All in Two Solar Street Lights:
All in Two solar street light is a new type of street light based on All in One solar street light.

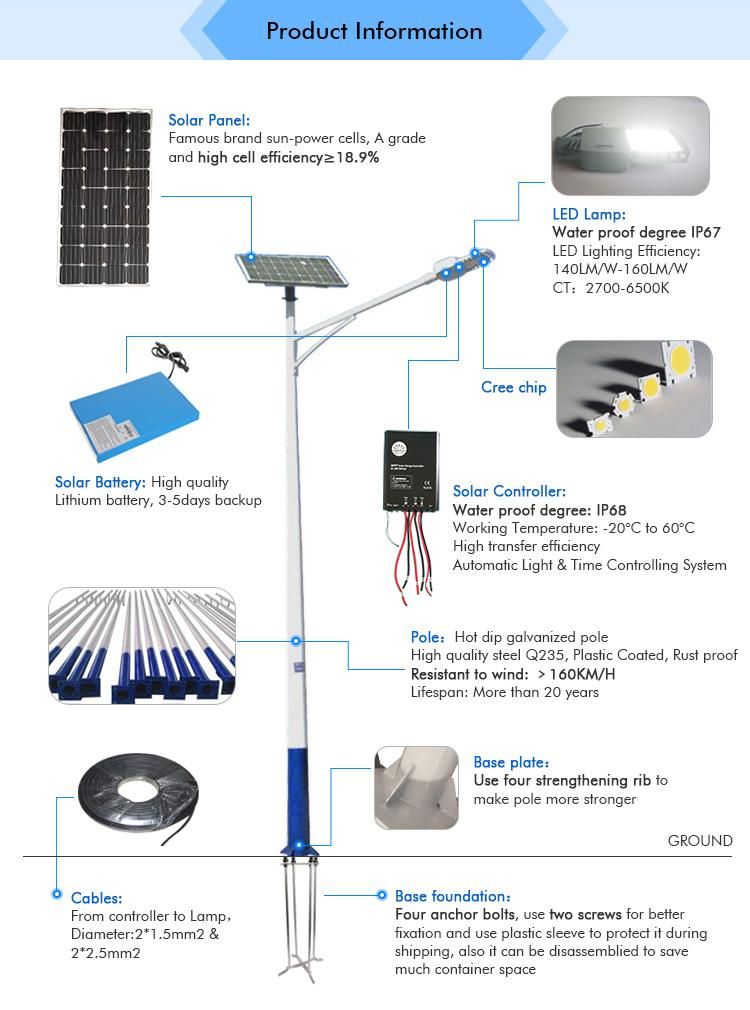

All In One Solar Street Light integrates the green energy parts solar panel, LED lamp and the LiFePO4 battery into a single product, with human intelligence induction system to control the lighting mode automatically. But the All in Two solar street light is to separate the solar panels separately, and the other parts are gathered inside one LED light body.

20W Super Bright LED Lamp	11-12Hrs 2-4 Nights Lighting
Solar Panel: Lifespan:20-25 years	60W,18V, A Quality, High Efficiency 17% Monocrystalline Silicon Adding Aluminum Frame, Tempered Glass.
Lithium Battery and Battery Box Lifespan:5-10 years,	24Ah/11.1V, Lithium Type. Li-NiCoMn Material, Fireproofing, Deep Cycle 96%. Maintenance Free, Blast Protection.

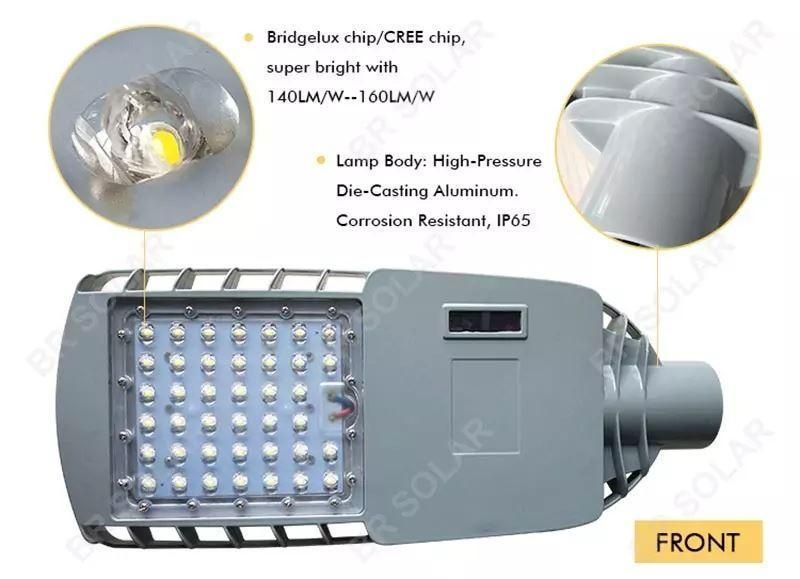

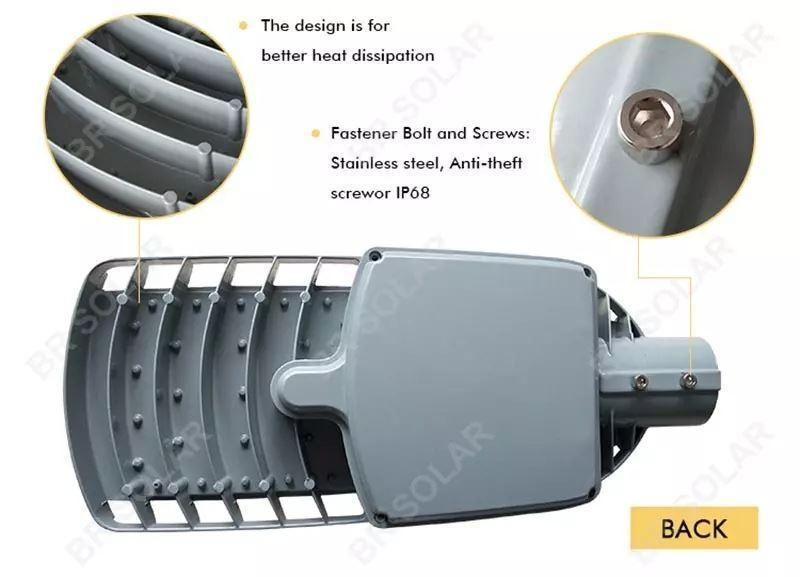

Lamp source: High Power LED Lifespan: More Than 80000 Hrs 20% brightness over traditional Light	20W 12V LED White Color, 3000LM, 6000K, IP66, Viewing Angle: 120° Bridgelux from USA with High Brightness Die-casting Aluminum, All In One Type, High transmittance & Density LED Lens,
Steel Pole And Pole System: Lifespan: More than 20 years	4-5M Height, Space Between Light: 15-20M Steel, Hot-Dip Galvanized. Plastic Coated, Rust Proof, Resistant to Wind: ≥150KM/H

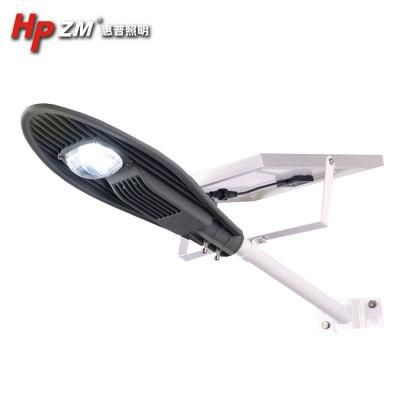

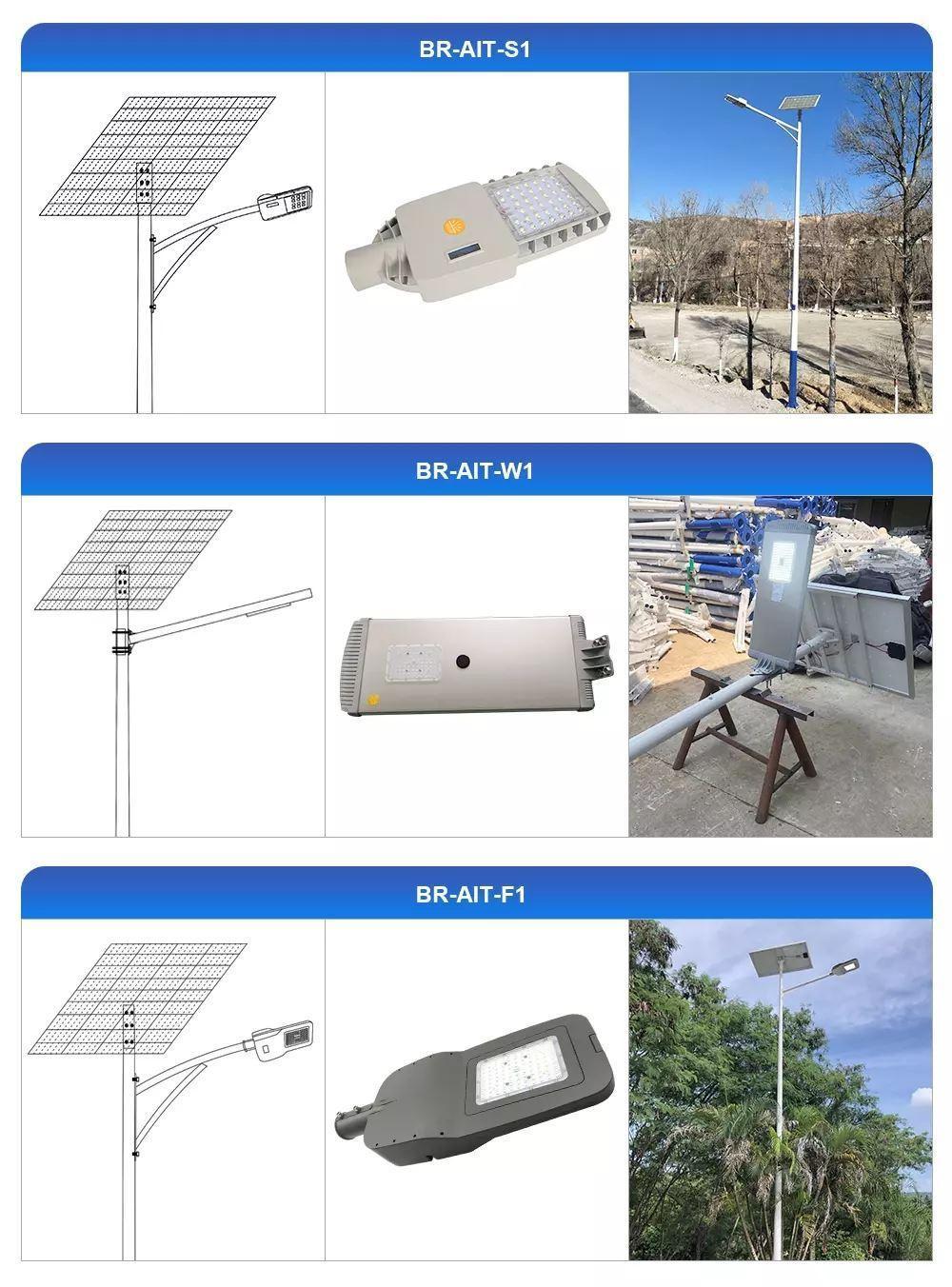

2. Some Pictures for two types of All in Two Solar Street Lights:
3. Advantages of Our All In Two Solar Street Lights:
1). Micro-controller and LED lamp and lithium battery into one system, simple and stylish.

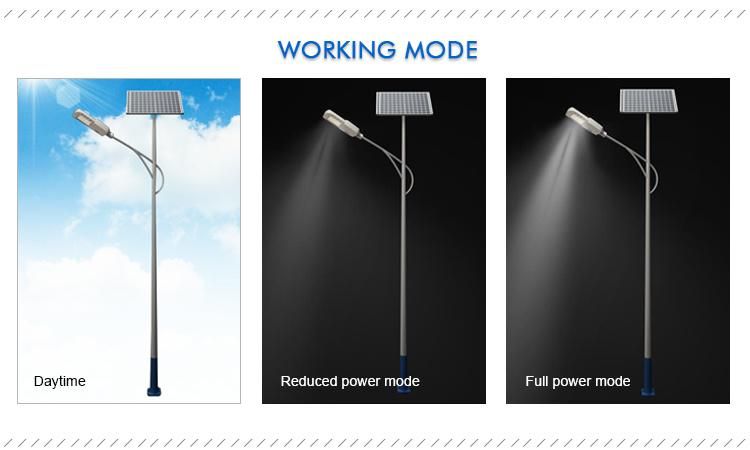

2). Light control system and time Control system perfectly, ensure whole system energy-efficient.
3). Solar panel power can be design according to local solar condition.
4). Lithium battery-Adopt lithium battery to replace traditional gel battery, longer lifetime.




4. Power Range of All In Two Solar Street Lights:
We have 20W-100W All in Two solar street lights for your choosing, and can customized according to your requirements!
Range:
20W All In Two Solar Street Lights;30W All In Two Solar Street Lights;
40W All In Two Solar Street Lights;50W All In Two Solar Street Lights;
60W All In Two Solar Street Lights;80W All In Two Solar Street Lights;
100W All In Two Solar Street Lights;
Other Power Is Available For Choosing.

BR-AIT20W	BR-AIT30W	BR-AIT40W
Solar panel: 18V 60W	Solar panel: 18V 80W	Solar panel: 18V 100W
Lithium battery: 11.1V/24Ah	Lithium battery: 11.1V/36Ah	Lithium battery: 11.1V/45Ah
LED Lamp: 12V 20W	LED Lamp: 12V 30W	LED Lamp: 12V 40W
Mounting Height: 4-5M	Mounting Height: 5-6M	Mounting Height: 6-7M
Space Between Light: 15-20M	Space Between Light: 15-20M	Space Between Light: 18-20M
Product Size: 510*220*100mm	Product Size: 510*220*100mm	Product Size: 510*220*100mm
BR-AIT60W	BR-AIT80W	BR-AIT100W
Solar panel: 18V 150W	Solar panel: 36V 200W	Solar panel: 36V 240W
LifePO4 battery: 11.1V/50Ah	LifePO4 battery: 22.2V/45Ah	Lithium battery: 22.2V/50Ah
LED Lamp: 12V 60W	LED Lamp: 24V 80W	LED Lamp: 24V 100W
Mounting Height: 8M	Mounting Height: 8-10M	Mounting Height: 8-10M
Space Between Light: 20-25M	Space Between Light: 20-35M	Space Between Light: 20-35M
Product Size: 510*210*90mm	Product Size: 700*280*100mm	Product Size: 700*280*100mm
