LED Outdoor Lighting

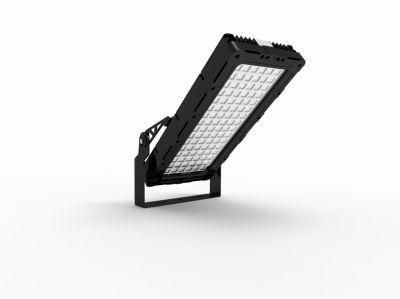

IP65 Waterproof Outdoor 100W 70W 50W 30W 20W 10W LED Flood Light Spotlight Lamp

Yueqing Huipu Lighting Co., Ltd.
  • Color Temperature:Pure White
  • Lamp Body Material:Aluminum
  • Power:10W,20W,30W,50W,70W,100W
  • Projection Distance:25-35m
  • Application:Park, Square, Factory, Garden
  • IP Rating:IP65

Base Info

  • Certification:CE, EMC, LVD
  • Operating Voltage:AC85-265V; AC220-240V
  • Input Voltage:220V
  • LED Chips Brand:Bridgelux
  • LED Light Source:SMD 2835
  • CRI (Ra>):80
  • Beam Angle(°):120 Degree
  • Working Temp.:-20 - 50ºC
  • Warranty:2 Years
  • Lifespan:50000h
  • Transport Package:White Box,Color Box,Customized
  • Specification:Check detail in list
  • Trademark:HPZM or OEM
  • Origin:China
  • HS Code:9405409000
  • Production Capacity:5000PCS,Day

Description

SpecificationsPacking Details VoltagePowerSize/mmChip Type
 /Led QtyCableColor Temp.CRIPFQty/CtnCarton SizeG.W.
 / kgsLED Flood Light/
SMD / Aluminum
/BKAC85-265V
AC220-240V10W103*83SMD2835/
10PCS0.3mt3000K
 4000K
 6000KRa>80>0.950pcs57*34*14cm12kgs/ctnAC85-265V
 AC220-240V20W121*95SMD2835/
 32PCS0.3mt3000K
4000K
6000KRa>80>0.920pcs29*27*13cm6kgs/ctnAC85-265V
AC220-240V30W160*122SMD2835/
 32PCS0.3mt3000K
 4000K
6000KRa>80>0.920pcs35*32*17cm10kgs/ctnAC85-265V
AC220-240V50W205*160SMD2835/
64PCS0.3mt3000K
4000K
6000KRa>80>0.920pcs44*38*19cm19kgs/ctnAC85-265V
AC220-240V100W270*210SMD2835/
128PCS0.3mt3000K
4000K
6000KRa>80>0.910pcs23*39*29cm16kgs/ctnAC85-265V
AC220-240V150W298*231SMD2835/
160PCS0.3mt3000K
4000K
 6000KRa>80>0.910pcs23*39*29cm16kgs/ctnAC85-265V
AC220-240V200W380*280SMD2835/
256PCS0.3mt3000K
4000K
6000KRa>80>0.94pcs43*34*34cm4kgs/ctnAC85-265V
AC220-240V300W460*339SMD2835/
384PCS0.3mt3000K
4000K
 6000KRa>80>0.93pcs49*30*40cm3kgs/ctnIP65 Waterproof Outdoor 100W 70W 50W 30W 20W 10W LED Flood Light Spotlight Lamp

-Use professional flood light's thermal grease under the chip, let the heat run out quickly.

-Use professional waterproof glue to seal every hole

-Use toughened glass, hard enough and won't be broken during transportation

-With reasonable compact light structure, and expertise radiating design, ensure the lights working temperature lower,reduce light decay and expand lifetime

-High efficiency constant current driver , power factor can reach 0.95

-Work perfectly in the high humidity environments -No delay start, no glare

-Energy-saving: saving 80% than the ordinary lamp;

-Eliminates maintenance and reduces costs.

-Easy installation

IP65 Waterproof Outdoor 100W 70W 50W 30W 20W 10W LED Flood Light Spotlight Lamp

Application

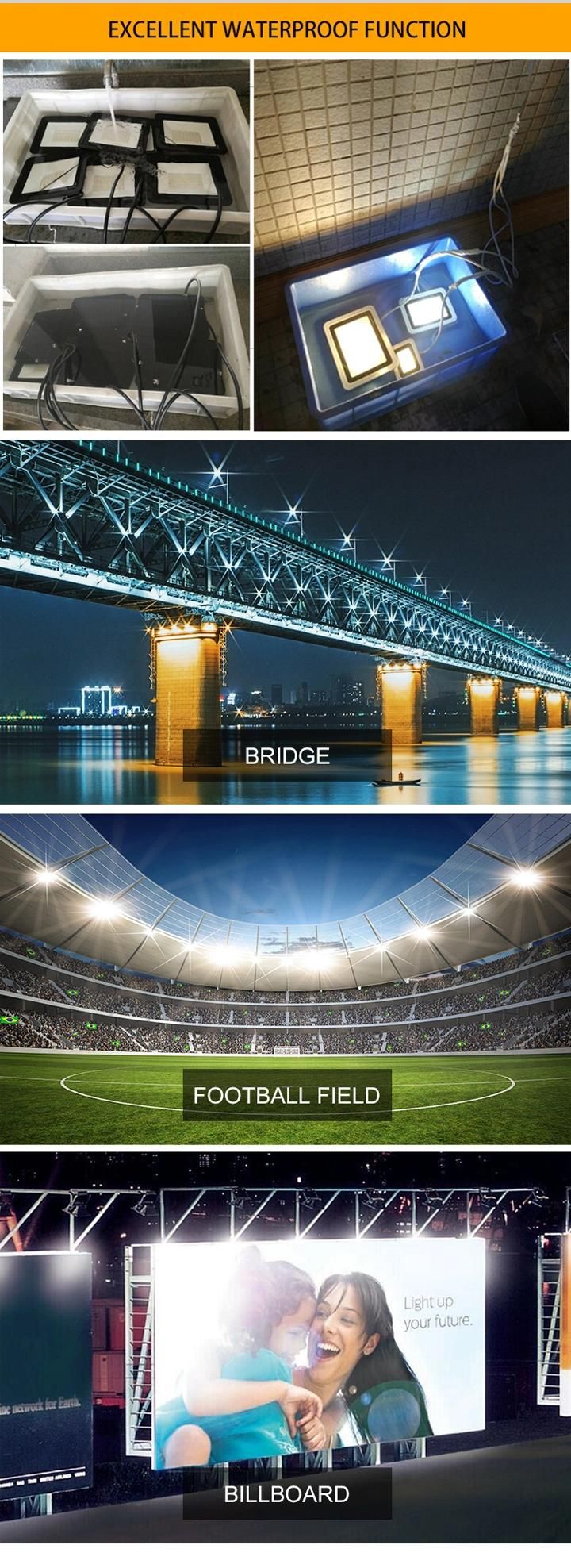

1.Workshop, factory, station, hypermarket, exhibition, center, gym
2.Advertising board, outdoor advertisements ,wall ,gymnasium and so on

IP65 Waterproof Outdoor 100W 70W 50W 30W 20W 10W LED Flood Light Spotlight LampIP65 Waterproof Outdoor 100W 70W 50W 30W 20W 10W LED Flood Light Spotlight Lamp
