LED Outdoor Lighting

High Quality20/25/30/35m High Mast Lighting Pole

BAODE LIGHTING GROUP CO., LTD.
  • Color Temperature:Pure White
  • Lamp Body Material:Aluminum
  • Pole Height:20-25m
  • Power:1000W 2000W
  • Projection Distance:70m
  • Usage:Public Works

Base Info

  • Model NO.:BDD25
  • IP Rating:IP65
  • Certification:CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
  • Input Voltage:220V
  • LED Chips Brand:Bridgelux
  • Source:Halide Lamp
  • Height:8-40m
  • Usuage:Road Lighting
  • Lifting System:Motor Drive
  • Material Steel:Q345
  • Light:Halide Lamp
  • Transport Package:Carton and Crate
  • Specification:CE ROHS FCC ISO
  • Trademark:baode
  • Origin:Yangzhou
  • HS Code:9405409000
  • Production Capacity:10000 Pieces Per Year

Description

Height

From 18 m to 50m

Suit for

Airport ,seaport,plaza,stadium ,square,highway station,street way ,etc

Shape

round or polygon

Material

Q345B/A572,minimum yield strength>=345n/mm2

Q235B/A36,minimum yield strength>=235n/mm2

Torrance of dimension

+- 2%

Lighting Source

400 W- 5000 W high pressure sodium flood light,light extension :up to 30 000 m²

Light plate

Various figure of selection ,material with hot dip galvanization steel frame

Lifting system

Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute

Equipped e;antiferromagnetism brake and break -proof device,manual operation applied under power cut

Electric appliance control device

Electric appliance box to be be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting mode

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Joint of Poles

Insert mode,innerflange mode,face to face joint mode .

Design of pole

Against earthquake of 8 grade

Wind Speed

80 Km/Hour

Welding

We has past flaw testing.Internal and external double welding makes the welding in shape

Thickness

6 mm to 20 mm

Production Process

Raw material test→Cutting→Molding or bending →Welding (longitudinal )→Dimension verify→Flangewelding→Hole drilling→Calibration→Deburr→Galvanization or powder coating ,painting→Recalibration→Thread→Packages

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required





APPLICATIONS



Plaza High Mast Lighting

Airport High Mast Lighting

Highway High Mast Lighting

Storage-yard High Mast Lighting

Industrial-plant High Mast Lighting

Park High Mast Lighting

Dock High Mast Lighting

Stadiums High Mast Lighting

Overpass High Mast Lighting

Toll-station High Mast Lighting

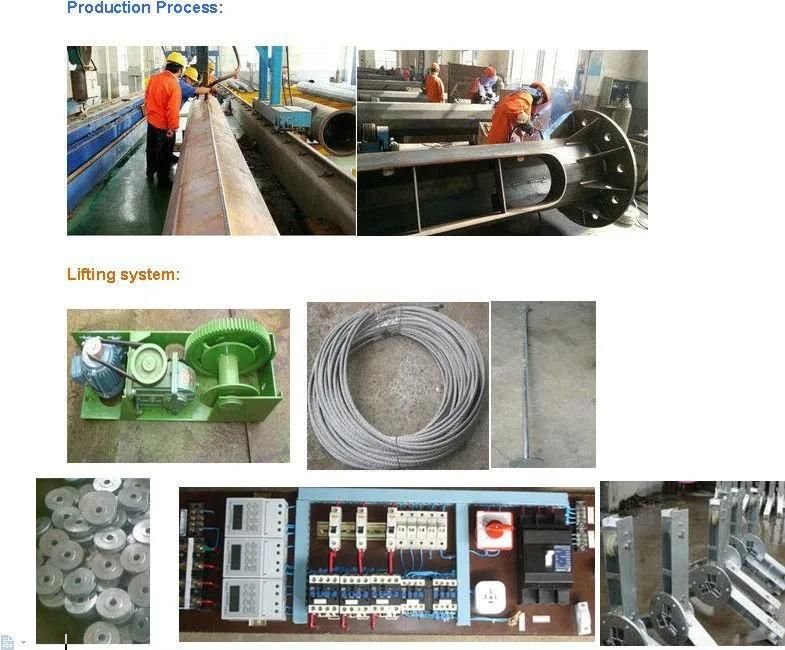

Production Process

Raw material testCuttingMolding or bending Welding (longitudinal ) Dimension verifyFlangeweldingHole drilling Calibration Deburr Galvanization or powder coating, PaintingRecalibrationThreadPackaging

Packages

Our poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

Lifting system

Latch barrel with inner mounting bracket locker is mounted to an underside of the mast-top pulley assembly. Furthermore, all steel cables are not exposed and more effectively protected.

Latching mechanism latched on steering arms is able to release strain on steel cables when in the operation position. The process of latching on and off is stable and without vibration.

The bumper is designed on the luminary mounting bracket for avoiding direct damage between mast-top assembly and the raising luminary mounting bracket.

The leveling device for luminary support bracket is easy to operate and convenient to adjust level.

Special designed red-flag indicator has obvious visual effects and reflects actual situation of latching operation.

 Testing
Baode Lights Good Performance 20m LED High Mast Lighting Tower with Factory Direct Supply



Packages:

Bulb wrappings for high mast lighting poles, individual cartons for lamps and controlling equipments, etc. A 40' HP loads 7-20M/ 6-25M/ 5-30M/ 4-35M high mast lights.

Our projects
Baode Lights Good Performance 20m LED High Mast Lighting Tower with Factory Direct Supply



Lead Time
20 days on receipt of payment for 10 high mast light poles

Payment Terms
30% in advance and 70% before shipment for our products
