• Model NO.：PL-LD-067-150W
• Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Input Voltage：AC90-305V
• With Light Source：With Light Source
• LED Chips Brand：CREE
• Transport Package：Export Standard Cartons
• Specification：600*380*136mm
• Trademark：PEONYLIGHTING
• Origin：China
• HS Code：9405409000
• Production Capacity：500000PCS,Year

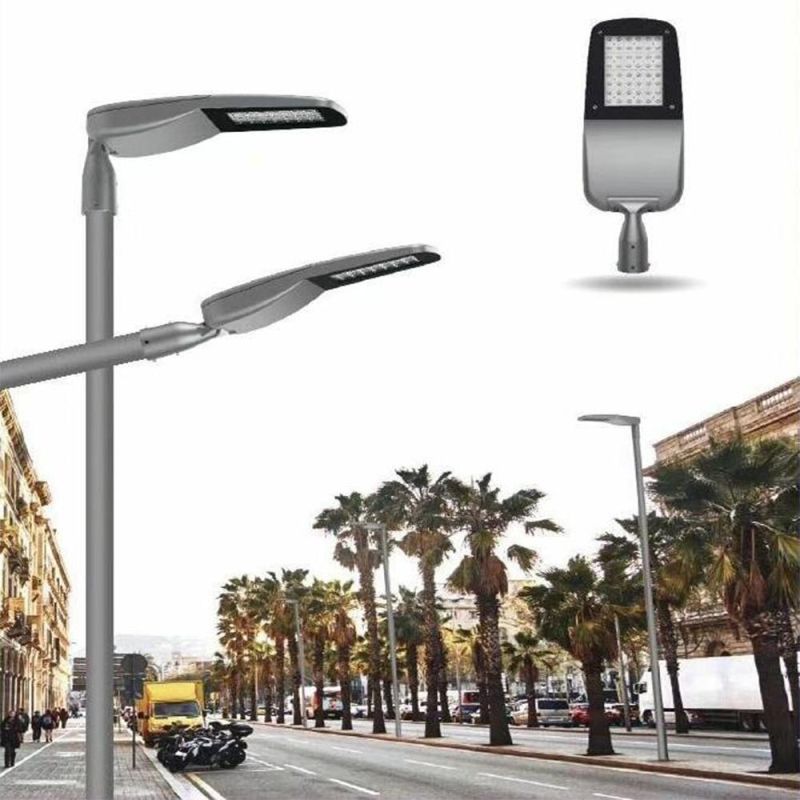

LED Street light  Specifications

Model

PL-LD-061

PL-LD-061

PL-LD-061

Input Voltage

100-305 V AC

Power

30W 40W 50W 60W

70W 80W 90W 100w  120W

150W 180W 200W

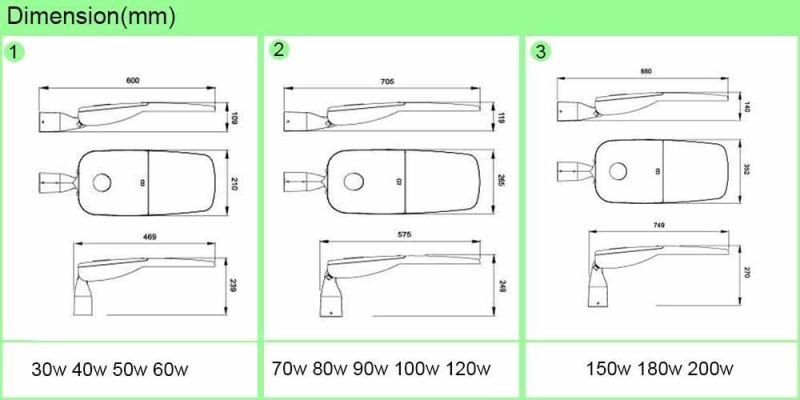

Size(mm)

600*210*109mm

706*265*119mm

880*352*140mm

LED chip

Lumileds  3030SMD

CRI

Ra>70/80

Power Factor

>0.95

Light efficiency

140-150LM/W

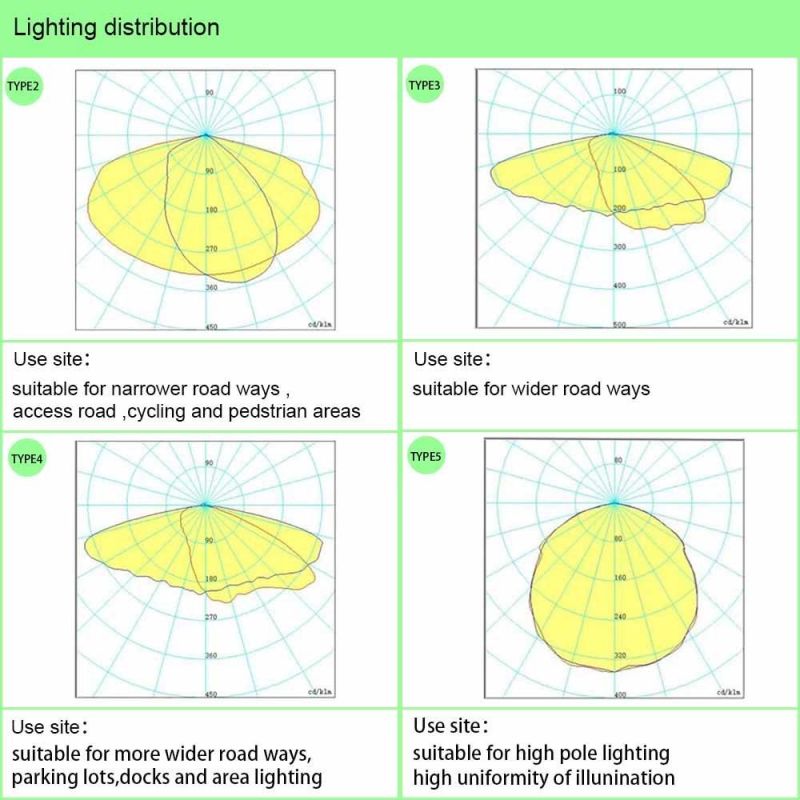

Beam angle

T2 T3 T4 T5

LED driver brand

Inventronics , Meanwell driver ELG/HLG series

Surge protection

6KV/10KV/20KV as customers' rerquirement

Waterproof and IK

IP66 IK10

Housing material

Die-cast  Aluminum +Steel glass

Work temperature

-50°C ~ +50°C

Lifespan

50000 hours

warranty

5 -8years

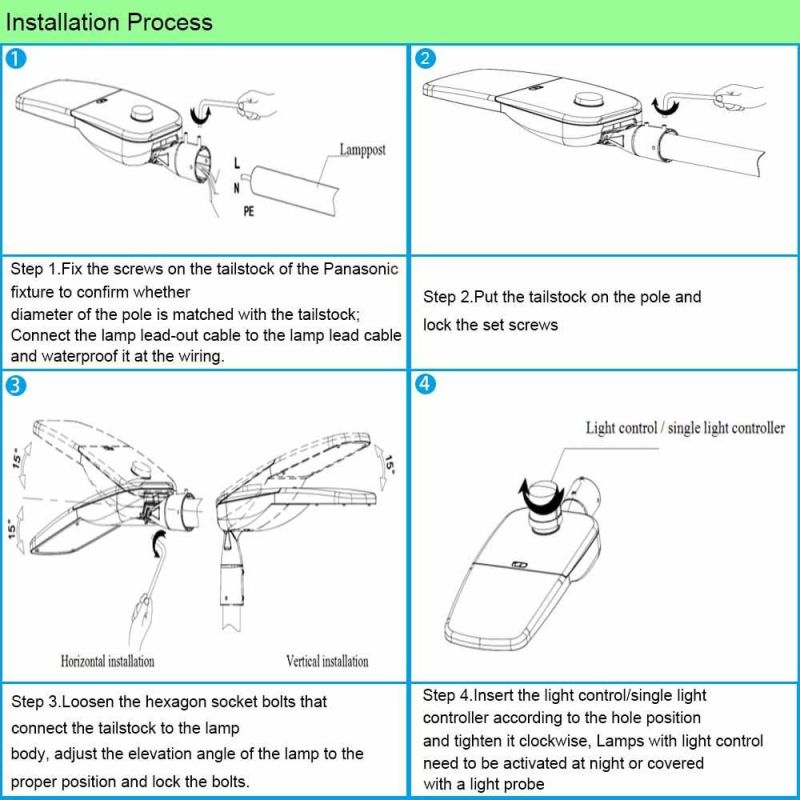

Installation:
Please read the full text before installation. Failure to follow the instructions may result in various hazards. Step 3. Loosen the hexagon socket head bolts connected to the lamp body, adjust the elevation angle of the lamp to the proper position and tighten the bolts.
note:
1. The working voltage of this type of lamp or the constant current source of the lamp according to the product specification and reference product label:
2, all the steps must comply with the national installation standards, all connections are connected and waterproof
Treatment, the specific project step line method is determined by the construction site requirements and conditions;
3. The connection mode of the lamp adopts Y-connection. If the external flexible wire of the lamp is damaged, the wire shall be manufactured.
Replace the business or its service agents or similarly qualified personnel to avoid danger;
4, the lamps must be well grounded with the outside world; non-professionals must not disassemble or maintain the product, it is strictly prohibited to live
5, the installation of the lamp should be able to withstand no less than 30Kg of gravity, no occlusion around the luminaire affects the use of the luminaire;
6. Please check the items carefully after opening. If there is any damage, please contact the supplier immediately, and do not use it yourself;
7. Non-professional technicians, please do not repair or modify this product without authorization;
8. To ensure the service life of the product. Please do not use it in places where the acid mist is strong;
installation steps;







FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
