• Model NO.：PBTX05-12
• Implement of Reflect：High Purity Aluminum
• Cover：Toughened Glass
• Uniformity：>0.8
• Lens：Polycarbonate
• Power Factor：>0.95
• Working Environment：-60°c~70°c
• Fastener Bolt and Screws：Stainless Steel
• Transport Package：Carton+Bubble
• Specification：90W LED power
• Trademark：PHOEBUS or OEM
• Origin：China
• HS Code：9405410000
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. PBTX05-12 Implement of Reflect High Purity Aluminum Cover Toughened Glass Uniformity >0.8 Lens Polycarbonate Power Factor >0.95 Working Environment -60°c~70°c Fastener Bolt and Screws Stainless Steel Transport Package Carton+Bubble Specification 90W LED power Trademark PHOEBUS or OEM Origin China HS Code 9405410000 Production Capacity 100000PCS/Month

Product Description

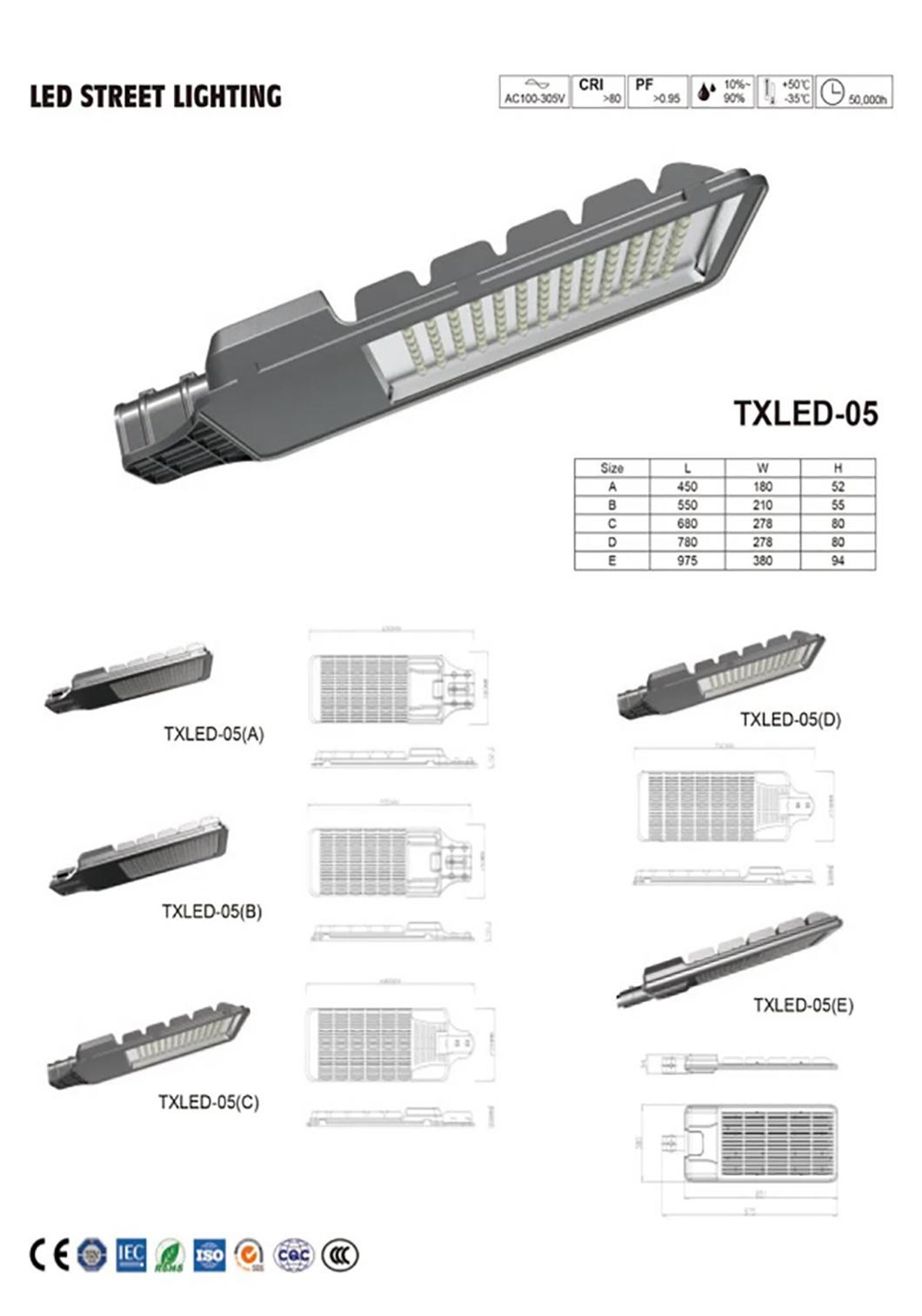

90W LED street light technical specification

Product Name	TXLED-05C
Max Power	90W/120W
Supply voltage range	100-305V AC
Temperature range	-25ºC/+55ºC
Light guiding system	PC lenses
Light source	LUXEON 3030
Color temperature	3000-6500k
Color rendering index	>80RA
Lamp Lumen	>120 lm/w
Chip Lumen	>150LM/W
LED luminous efficiency	90%
Lightning protection	10KV
Service life	Min 80000 hours
Housing material	Die-cast aluminum
Sealing material	Silicone rubber
Cover material	Tempered glass
Housing color	As customer's requirement
Protection class	IP65
Mounting diameter option	Φ60mm
Suggested mounting height	5-12m

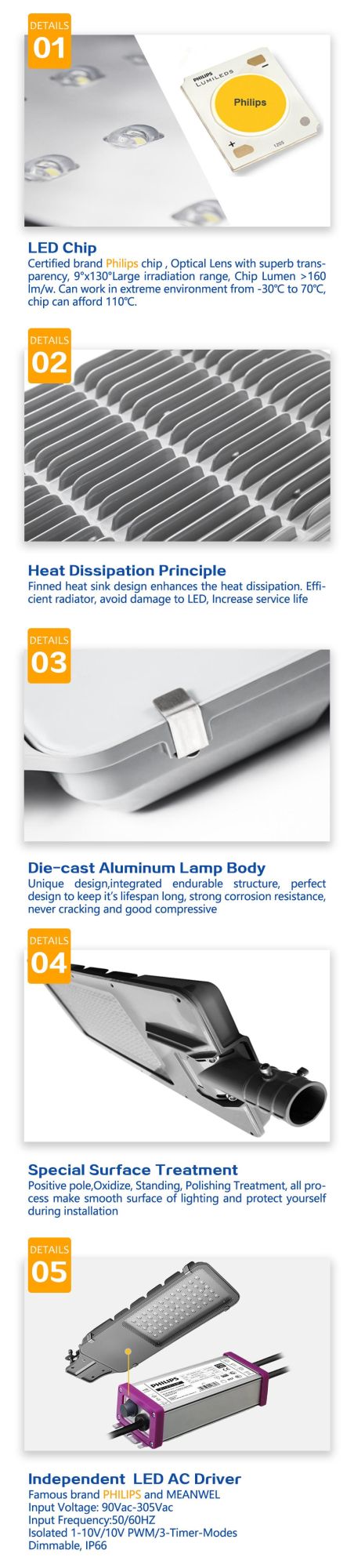

90W LED street light technical details30W LED street light testingStep 1: LEDS Failure analysis and reliability testing
The cause of the LED chip deterioration is determined through accelerated testing. We use SEM-EDX, chemical analysis, and other methods to investigate the causes of failures, such as the location of deterioration and defects in material deterioration.

Step 2: LEDS Accelerated High temperature and High humidity testing.
LED products are known to deteriorate sealing resins, phosphors, reflectors, and bonding due to high temperature and humidity, resulting in total luminous flux decrease and emission color change. In addition to the degradation evaluation of LEDS (LED chips, LED modules) under high temperature and humidity conditions, a separate high temperature test under low humidity conditions can be used to investigate the degradation under the high temperature and effect on the LED by high temperature.

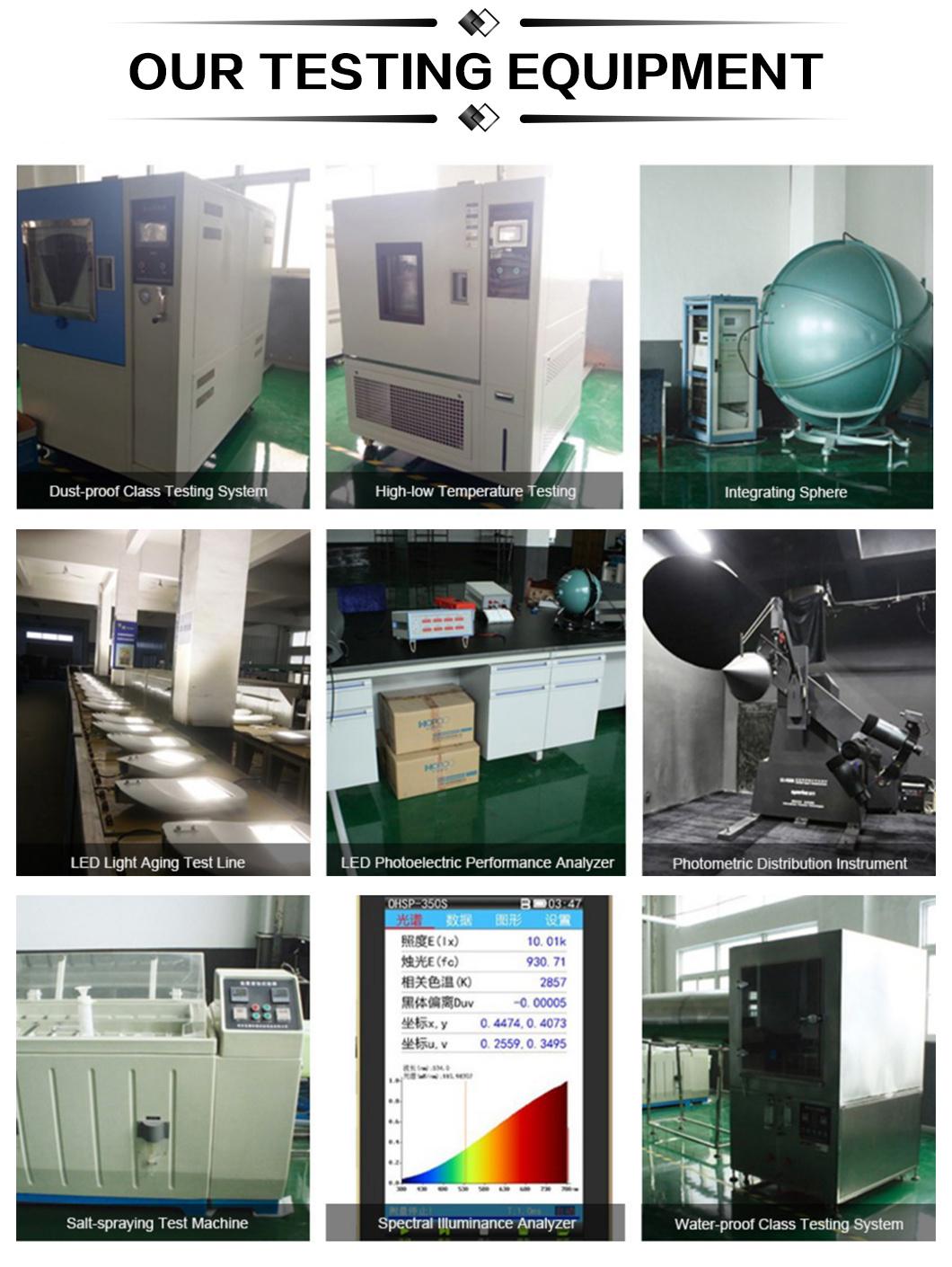

Step 3: Total luminous flux and Spectral distribution measurement by large integrating sphere
To evaluate the performance and reliability of LED and other lighting equipment, we provide highly accurate measurement results using a large integrating sphere with a diameter of 2 m and a spectrophotometer. By measuring and analyzing changes in brightness and spectral distribution before and after the reliability test, we can investigate the cause of deterioration.
OUR SERVICES
Before- Sales Service:1.Quick Response: 24Hrs Online Service.2.Competitive Quotations: Professional And Competitive Factory Price,Based On Superior Quality.3.Factory Visiting:Online And Offline Factory Tour Guidance. New Factory Workshop Space Of 65000m²,Add Old Factory Space Of 6300m². 4.Value-added Service : Provide CAD Drawings, Project Site DIALUX Analysis, OEM Nameplate.5.Sole And General Agent Service Available:  According To The Details Of The Order.
6.OEM&ODM: Any Your Customized Lighting We Can Help To Design And Apply In Product.
7,Sample Support :1 Piece Sample Support To Do Quality Test And Display.
8,Multiple Payment: Methods by TT, L/C or Cash, Logistics Customs Clearance Services.

Medium-Sales Service:1.Raw Material And Testing: Stick To Superior Quality Famous Brand Raw Material. Scientific Product Testing Management.2.Photo Feedback: Feed Back Of Production Process, Packing And Inspections.3.Quality Control: 100% Product Quality Inspections Before Shipping.4.Provide Certificates: CE, SGS, ROHS, TUV And SONCAP, PVOC, CQC, SASO,etc. 5.Packing: Exquisite Packaging With Export Carton And Protection Foam, Export Pallets Or Wooden Cases.
After-Sales Service:1.Product Warranty: 5-10 Years Warranty. Provide Manufacturer's Quality Warranty Certificate. 100% Quality Questions Follow Up Within Warranty Period.2.Spare Parts: Free 1% As Spare Parts For Replacement In Case Any Defect, Or Replace New Products For Quality Problem Within Warranty Period.3.Loading And Logistics: Detailed Packing And Loading List For The Order Send By Email After Shipping. Timely Logistics Tracking.4.Installation Guide:  One To One Video Guide Or PPT Display, On Site Installation Guide For Big Order.
5. Protection Of Private Information: Your Sales Area, Ideas Of Design And All Your Private Information.
FAQ
1.Are Phoebus lighting and TianXiang the same company or not?
A: Yes, they are the same company but different offices. Phoebus lighting are Tianxiang's primary brand.

2. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

3. Is it OK to print my logo on led light product?
A: Yes. It's welcomed. We do many OEM and ODM for customers.
Please inform us formally before our production and confirm the design firstly based on our sample.
4. Are Phoebus lights any good? Why choose us?A: Phoebus lighting use all the best material, provide reasonable solar lights solutions with original price. We aim to do long time business and services. Phoebus lighting are your Engineering and installation specialists.
