200W High Power LED Street Light IP65 Outdoor LED Street Light
Zhongshan Capson Lighting Technology Co., Ltd.- Power Supply：AC
- Color Temperature：3000K,4500K,6000K
- Lamp Body Material：Aluminum Alloy
- Power：200W
- Application：Square, Highway, Garden, Parking Lot
- IP Rating：IP65
Base Info
- Model NO.：CS-LD03

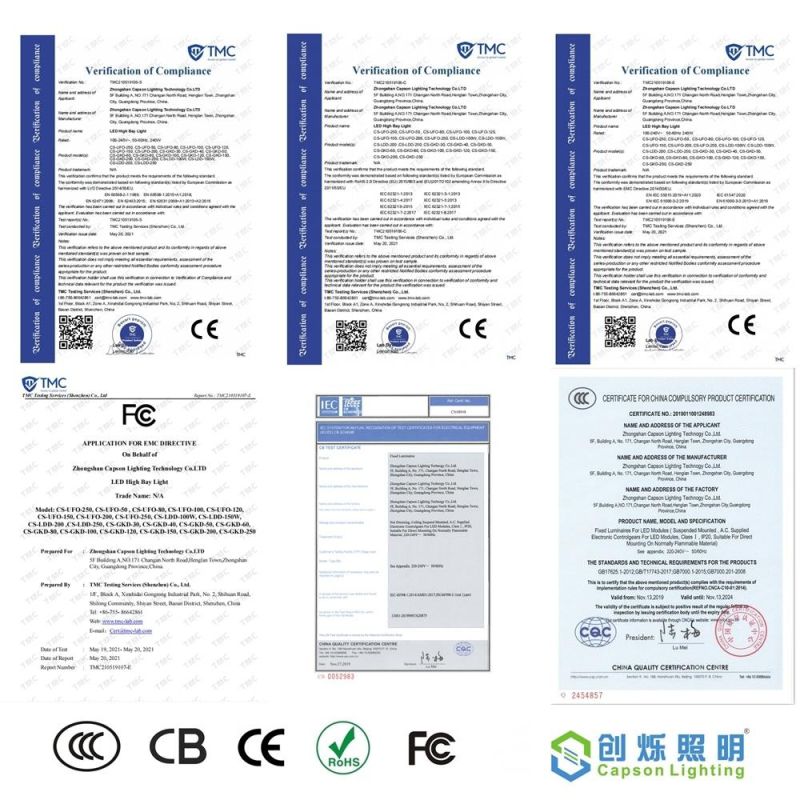

- Certification：CCC, CE, EMC, LVD, RoHS, SASO
- Input Voltage：180V-240V
- With Light Source：With Light Source
- LED Chips Brand：Epistar
- Transport Package：Body Box Plus Sponge
- Specification：L700W260H95
- Trademark：Capson Lighting
- Origin：China Zhongshan
- HS Code：9688841222
- Production Capacity：100000pieces,Year
Description
Basic Info.
Model NO. CS-LD03 Certification CCC, CE, EMC, LVD, RoHS, SASO Input Voltage 180V-240V With Light Source With Light Source LED Chips Brand Epistar Transport Package Body Box Plus Sponge Specification L700W260H95 Trademark Capson Lighting Origin China Zhongshan HS Code 9688841222 Production Capacity 100000pieces/YearProduct Description

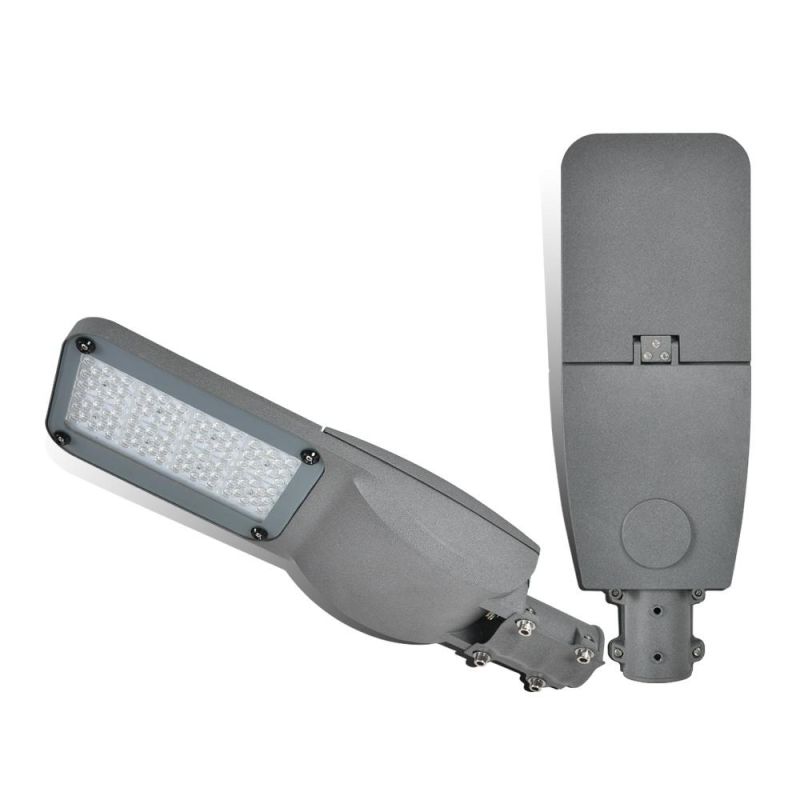

120W High Power 50000 Hours Warranty Outdoor LED Street Light(CS-LD03-120)| Product name | LED Street Light 120W |
| Item No. | CS-LD03-120 |
| Power option | 50w ~ 120w |
| LED chips | Cree 3030 100pcs |
| Light effect | 120lm/w |
| Lumen output | 14400lm/w |
| Driver brand | Inventronics 0-10V |
| Input voltage | AC180V-240V |
| IP rating option | IP65 or IP67 |
| Life span | 35,000hours or >70,000hours |
| CRI (color rendition index) | ≥80Ra |
| Power factor | ≥0.95 |
| Dimension | L650W260H95mm |
| Optional beam angle | 60*120° |
| Material | Aluminum Alloy |
| Operating Tem | -40ºC~ +70ºC |
| Warranty | 3,5,7Years |
| Dimmable options | yes |
| Packing size | L70W31H14.5cm |

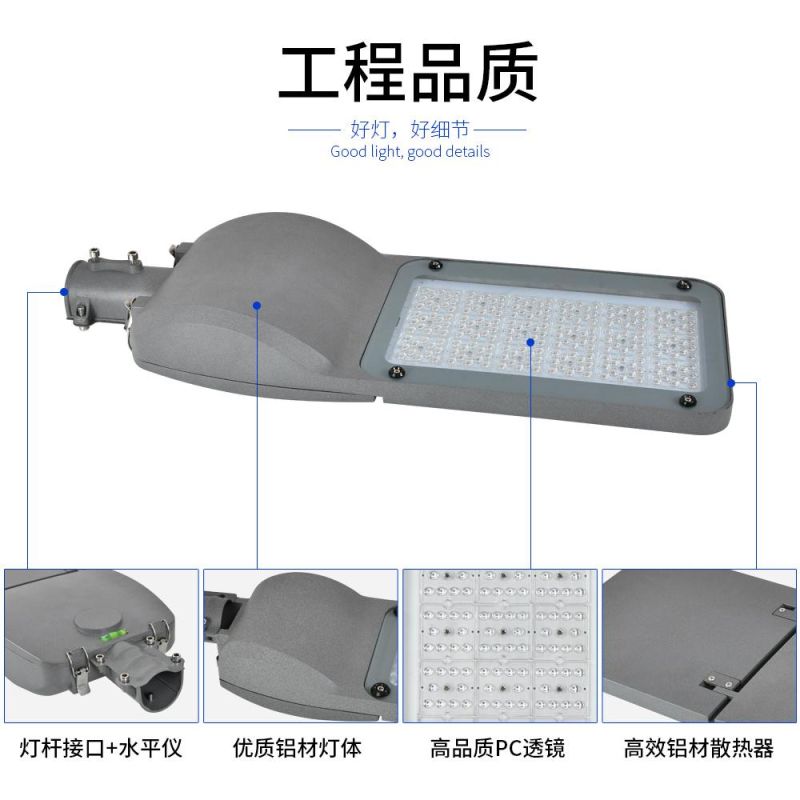

The main characteristics
1. High-power CREE 3030SMD is used as the light source. Energy saving and environmental protection, long service life.
2. Toughened transparent glass, high temperature resistant, easy to light transmission, light transmittance up to 92%.
3. The radiator adopts aluminum alloy with high thermal conductivity, and the lamp surface adopts oxidation technology to resist corrosion and ensure heat dissipation.
4. Constant current source, good stability and high safety.
5. Energy saving up to 80%.
6. Beautiful appearance and easy installation.
7. Suitable for highway, urban road, bridge, port, factory lighting, etc.
8. Lamp cover material: die-cast aluminum shell, toughened safety glass, paint coating.
9. The metal part between the rod and the street lamp is designed to be the original rod size.
