200W with ENEC Ce 5years Warranty LED Outdoor Lighting Lamp LED Street Light
Peony Lighting Technology Co., Ltd.- Power Supply：Lamp
- Color Temperature：2700-6500K
- Lamp Body Material：Die-Cast Aluminium + Toughed Glass
- Power：200

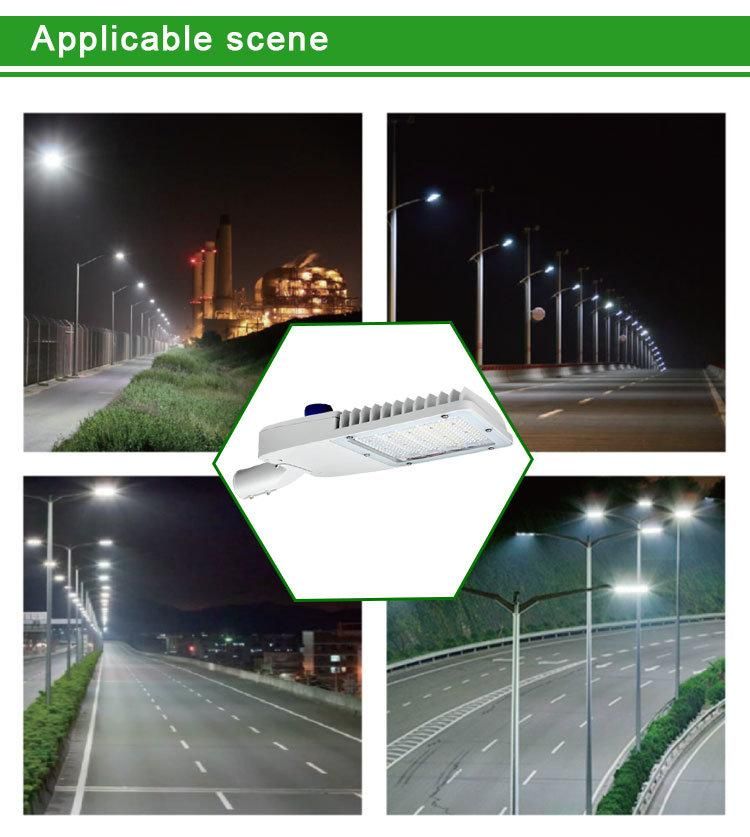

- Application：Highway, Parking Lot, Road,Park,Country Yard
- IP Rating：IP66
Base Info
- Model NO.：PL-LD-069S-200
- Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
- Input Voltage：AC90-305V
- With Light Source：With Light Source
- LED Chips Brand：Lumileds
- Transport Package：69.5*37.5*13.5cm
- Specification：720*320*119mm
- Trademark：Peony
- Origin：China
Description
LED Street light Specifications
Model
PL-LD-069S
PL-LD-069S
PL-LD-069S
Input Voltage
100-305 V AC
Power
30W 40W 50W 60W 70W 80W 90W 100W 120W
150W 180W 200W
240W 300W

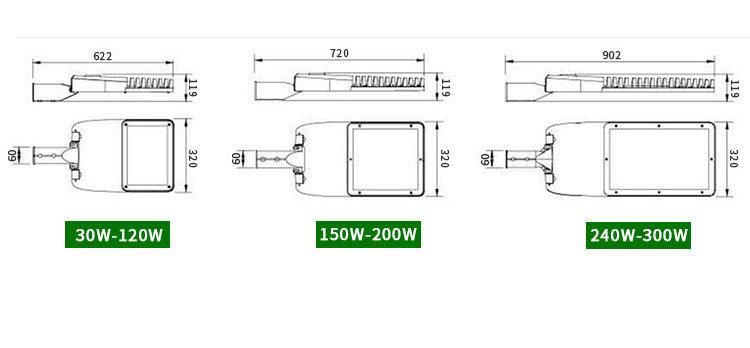

Size(mm)
622*320*119mm
720*320*119mm
902*320*119mm
LED chip
Lumileds 5050SMD
CRI
Ra>70/80
Power Factor
>0.95

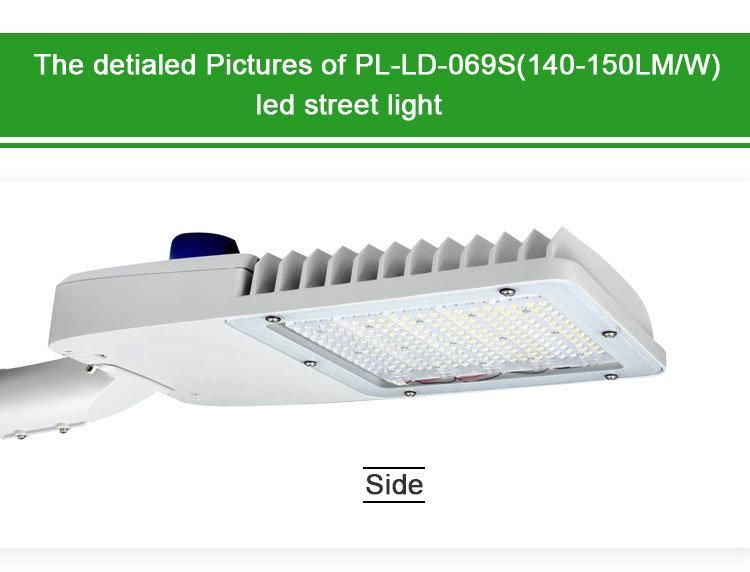

Light efficiency
150LM/W±5%

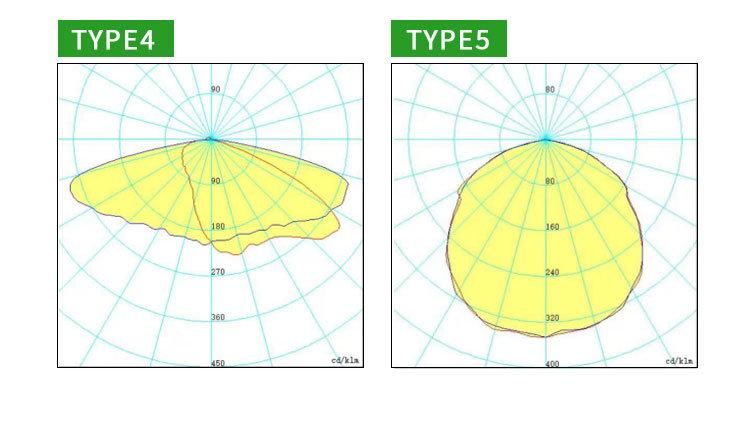

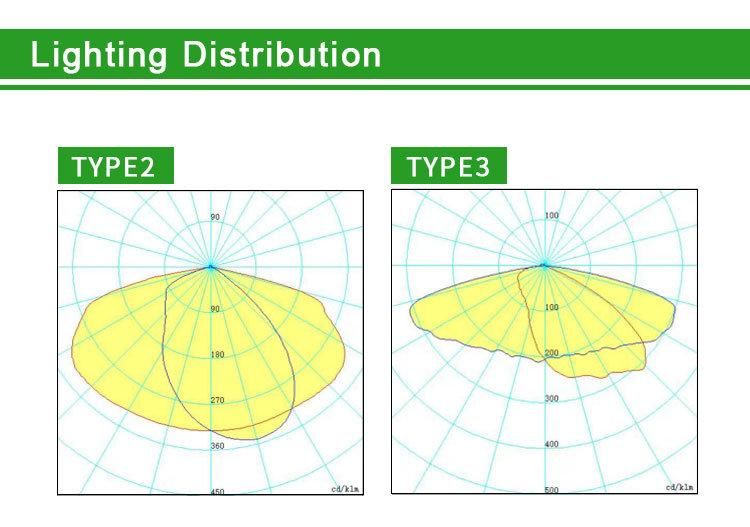

Beam angle
T2 T3 T4 T5

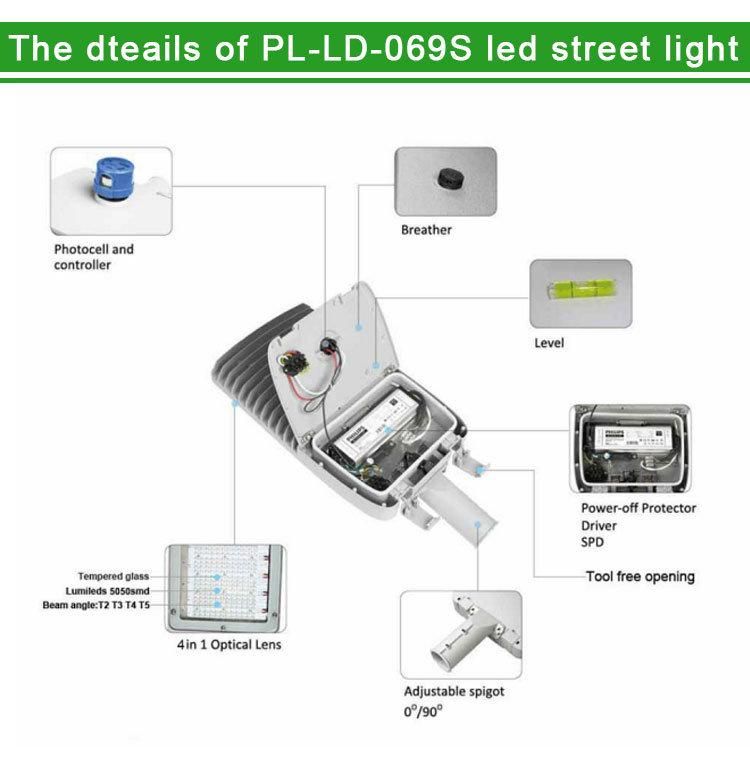

LED driver brand
Inventronics, Meanwell driver ELG/HLG series
Surge protection
6KV/10KV/20KV as customers' rerquirement

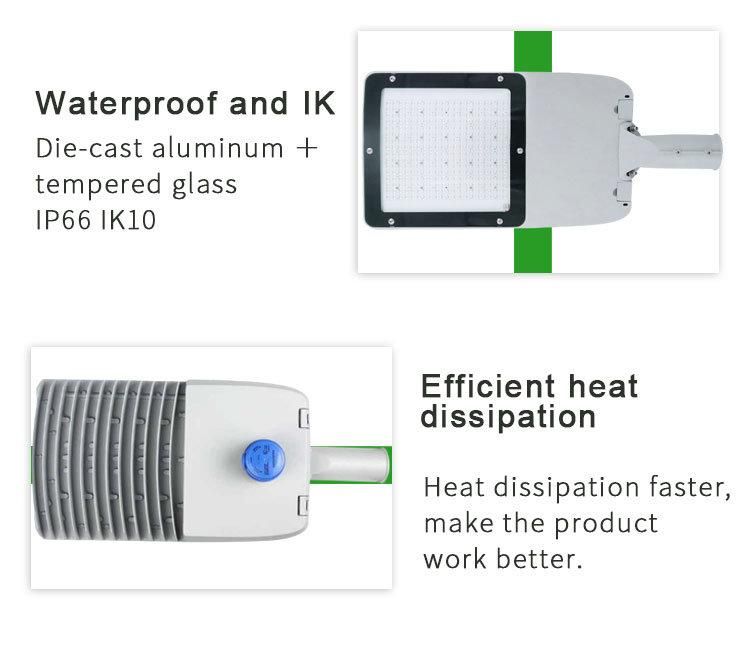

Waterproof and IK
IP66 IK10
Housing material
Die-cast Aluminum +Steel glass
Work temperature
-40ºC~50ºC 20%~90% H.R
Lifespan
50000 hours
warranty
5 -8years
FAQ
Q: Whether the LED lights really have 50,000 hours lifespan?
A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from
in lab,actual lifespan is only <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.
Q: For same power,why different suppliers with different brightness?
A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip
and same brightness version,the brightness will be slight difference.But please make clear the brightness difference
between LEDs and lamp fixture.
Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized
in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,
while a cooler (higher color temperature) light is used to enhance concentration in offices.
Q: What is CRI?
A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.
Q: What is PF and efficiency?
A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
