• Model NO.：FJ-FL-G05
• Certification：CE, EMC, LVD, RoHS, SAA, SASO, CB
• Operating Voltage：85-265V

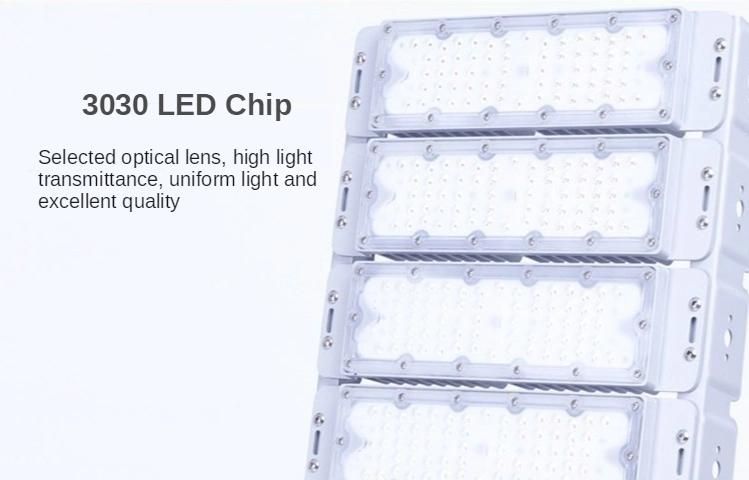

• LED Chips Brand：Lumi LEDs 3030
• Housing Color：Dark Grey,Black,White
• Housing Materials：Aluminum Ad12
• SPD：10kv,15kv,20kv,40kv
• Warranty：5years
• HS：9405409000
• LED Driver：Meanwell,Osram,Inventronic,Sosen
• CIR：>70
• Ik：Ik09
• Lumen：>125lm,W
• Dimmable or Not：Yes
• Working Lifetime：50000 Hours
• Model Number：Fj-FL05-500W
• Working Temperature：-20 - 50
• Power Factor：0.95
• Beam Angle：60,90°
• Transport Package：Carton + EPE
• Trademark：Fujing
• Origin：China
• HS Code：9405409000

Basic Info.

Model NO. FJ-FL-G05 Certification CE, EMC, LVD, RoHS, SAA, SASO, CB Operating Voltage 85-265V LED Chips Brand Lumi LEDs 3030 Housing Color Dark Grey/Black/White Housing Materials Aluminum Ad12 SPD 10kv/15kv/20kv/40kv Warranty 5years HS 9405409000 LED Driver Meanwell/Osram/Inventronic/Sosen CIR >70 Ik Ik09 Lumen >125lm/W Dimmable or Not Yes Working Lifetime 50000 Hours Model Number Fj-FL05-500W Working Temperature -20 - 50 Power Factor 0.95 Beam Angle 60/90° Transport Package Carton + EPE Trademark Fujing Origin China HS Code 9405409000

Product Description



Features:

1.High efficiency MEANWELL Driver,ELG series.
2.Imported original Filips LED Chip.

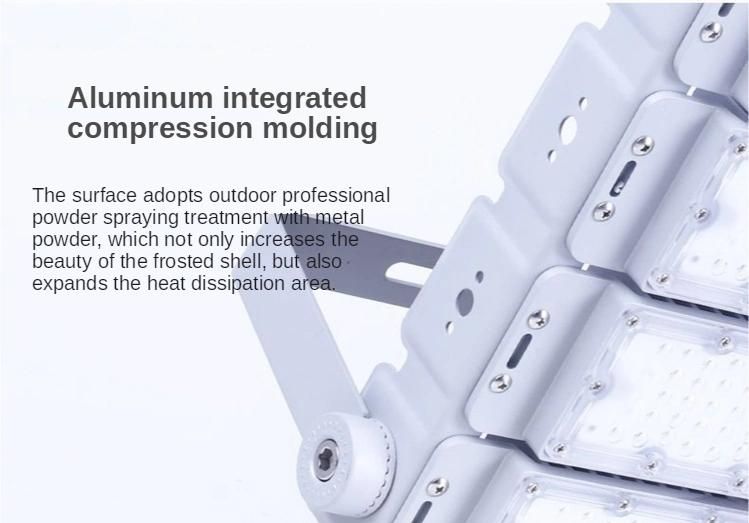

3.Aluminum lamp housing with cooling fins,excellent structure for heat dissipation.
4.The surface of lamp is electrophoresis treated,oxidation resistance and anti-corrosion.
5.Dust-proof,moisture proof and waterproof ,IP66 rated.
6.Excellent optics design,higher luminous efficiency.
7.Compare to traditional lamps can save energy 60%-70%.
8.5 years warranty.

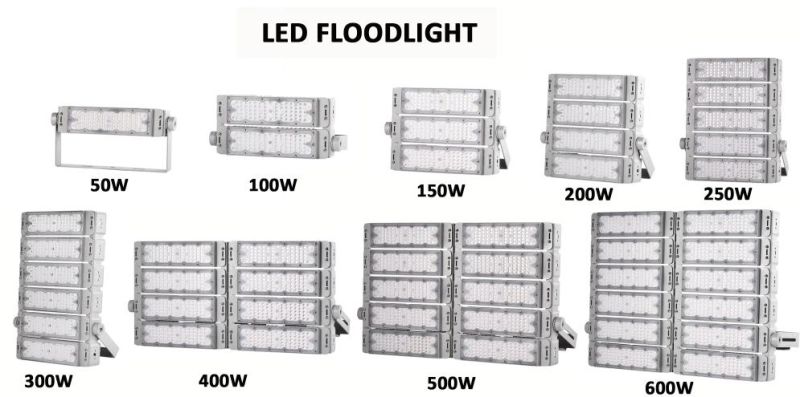

Item No	Led watt	LED Brand	Lumen	Working voltage	PF	IP	Beam angle	CCT	Size
FJ-FL-100W-G04	100W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*100*180mm
FJ-FL-200W-G04	200W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*205*180mm
FJ-FL-300W-G04	300W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*305*180mm
FJ-FL-400W-G04	400W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*410*180mm
FJ-FL-500W-G04	500W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	400*515*180mm
FJ-FL-600W-G04	600W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*305*180mm
FJ-FL-800W-G04	800W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*410*180mm
FJ-FL-1000W-G04	1000W	Epistar	125lm/w	AC180-265V	0.95	IP65	60/90°	2700-7000K	765*515*180mm

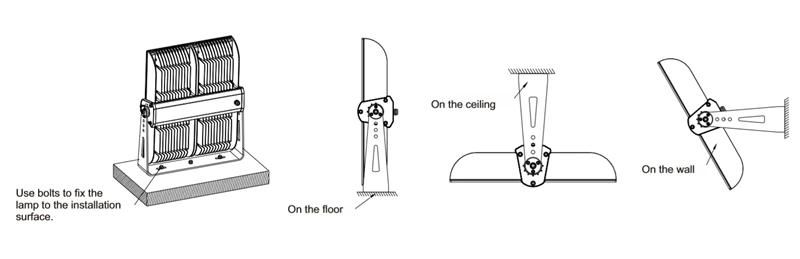

Installation

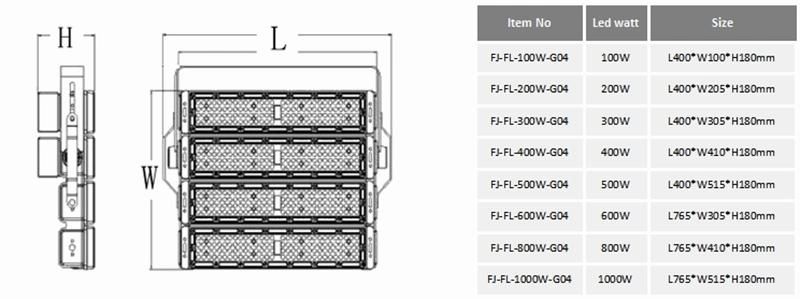

Size

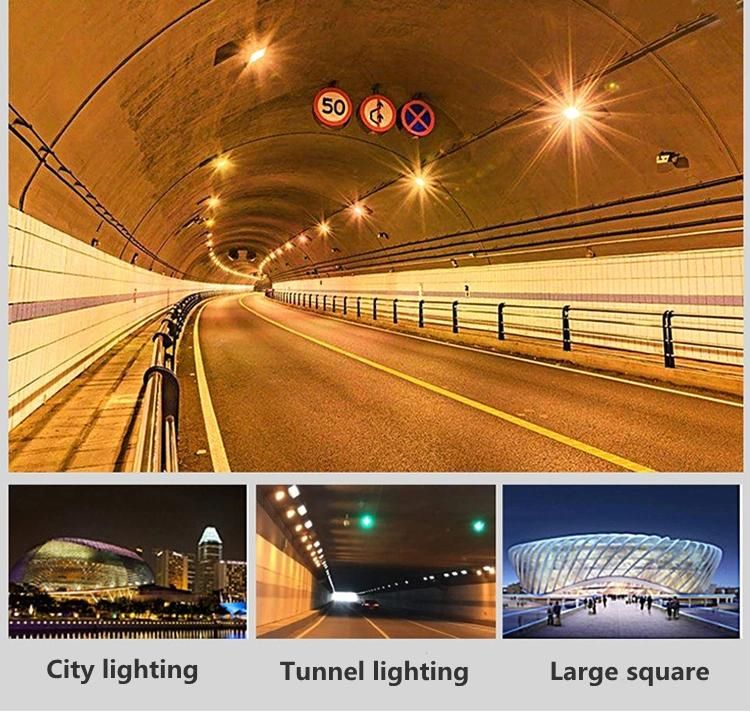

Application




Before Sale Service



1. We provide a professional offer. Provide detailed product test reports and related specifications.

2. We provide professional-led lighting technology support to meet the requirements of customers about photoelectric color.

3. Within 12 hours of the corresponding customer inquiry, our commissioner will promptly get in touch with the customers.



After-Sale Service



1. Norming Lighting products come with 5-year limited warranty from the date of the purchase by the clients.

2. If a material or workmanship defect arises and a valid claim is received within the warranty period, we will replace the items only and bear the shipping cost for both sides.

3. We could not be held liable for damages to personal property due to misuse or improper care and maintenance of items.

4. There is no fault rate for the items we delivered, if there is a lamp that does not work when you get it, just contact us. If we should be responsible for it after we test, we will replace it for you.

5. We are equipped with a good after service department and never escape our responsibility.



RFQ




Q OEM/ODM, or customer's logo printed is available?
Yes, OEM/ODM, customer's logo is welcomed

Q Delivery date?
7days for sample, 15-20days for order

Q What's your payment terms?
30% T/T in advance, balance before shipment

Q How to control your quality?
We have a professional QC team. control the quality during the mass production and inspect the complete goods before shipping.

Q If we don't have a shipping forwarder in China, would you do this for us?
We can offer you the best shipping line to ensure you can get the goods timely at the best price.

Q l never come to China before, can you be my guide in China?
We are happy to provide you one-stop service, such as booking tickets. pick up at the airport, booking a hotel, accompany visiting market or factory....…

Q If you can send me a sample?
Yes, we can send you the sample for checking our quality, you need to pay the sample fee, we will refund to you once you place the order from us. this is to show the sincerity of business cooperation, it's also our company's rule.
