LED Outdoor Lighting

Home > Product > LED Street Light

Housing Die-Cast Aluminum Alloy LED Lights Parking Lot 80W LED Flood Light 12000lm Pole Mount LED Light IP65 AC 100-277V CE RoHS Outdoor Area LED Street Light

LCD (HK) -CESP LIGHTING CO., LIMITED
  • Power Supply：AC
  • Color Temperature：3000K-5000K
  • Lamp Body Material：Aluminum Alloy
  • Power：80W
  • Application：Square, Highway, Garden, Parking Lot, Warehouse, Work Site
  • IP Rating：IP65

Base Info

  • Model NO.：LCD-FE-083-LN10
  • Certification：CB, DLC, CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
  • Input Voltage：100-240V
  • With Light Source：With Light Source
  • LED Chips Brand：CREE
  • Transport Package：Carton Box
  • Specification：350x265x69mm
  • Trademark：LCD brand
  • Origin：Shenzhen City, China
  • HS Code：9405409000
  • Production Capacity：50000PCS , Year

Description

Remark :                                                            Depending on the location temperature. For more details, please contact us.

OPTICAL INFORMATIONModel NoLCD-FE-50LCD-FE-80LCD-FE-100LCD-FE-150LCD-FE-200LED SourceLUMILEDS SMD3030/5050LUMILEDS SMD3030/5050LUMILEDS SMD3030/5050LUMILEDS SMD3030/5050LUMILEDS 3030/5050CCT2700K-6500K2700K-6500K2700K-6500K2700K-6500K2700K-6500KLuminous Efficiency130lm-155lm/w130lm-155lm/w130lm-155lm/w130lm-155lm/w130lm-155lm/wBeam angle     Power supplyMeanwell / Ph driverMeanwell / Ph driverMeanwell / Ph driverMeanwell / Ph driverMeanwell / Ph driverInput Voltage90-305V,50/60Hz90-305V,50/60Hz90-305V,50/60Hz90-305V,50/60Hz90-305V,50/60HzPF>0.95>0.97>0.97>0.97>0.97THD<20%<20%<20%<20%<20%IP RatingIP65 / IP66IP65 / IP66IP65 / IP66IP65 / IP66IP65 / IP66Operating Temperature-30ºC to +55ºC-30ºC to +55ºC-30ºC to +55ºC-30ºC to +55ºC-30ºC to +55ºCCertificationsCE,ROHS, SAA,C-tick, TUVCE,ROHS, SAA,C-tick, TUVCE,ROHS, SAA,C-tick, TUVCE,ROHS, SAA,C-tick, TUVCE,ROHS, SAA,C-tick, TUVDimension (MM)362x290x240mm362x290x240mm362x290x240mm362x290x240mm362x290x240mmWatt options50W80W100W150W200WN.W. (KG)10.6KG10.6KG10.6KG10.6KG10.6KG

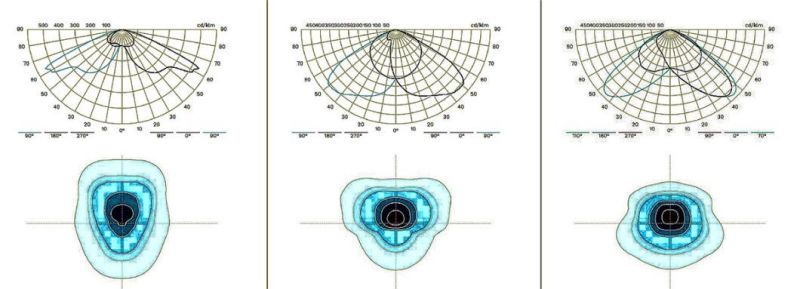

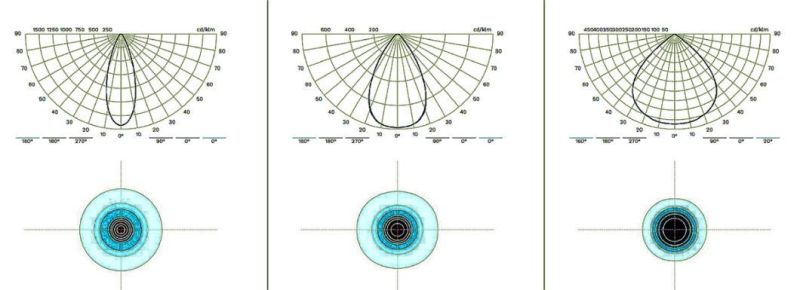

LIGHT DISTRIBUTIONS
Housing Die-Cast Aluminum Alloy LED Lights Parking Lot 80W LED Flood Light 12000lm Pole Mount LED Light IP65 AC 100-277V CE RoHS Outdoor Area LED Street LightHousing Die-Cast Aluminum Alloy LED Lights Parking Lot 80W LED Flood Light 12000lm Pole Mount LED Light IP65 AC 100-277V CE RoHS Outdoor Area LED Street LightHousing Die-Cast Aluminum Alloy LED Lights Parking Lot 80W LED Flood Light 12000lm Pole Mount LED Light IP65 AC 100-277V CE RoHS Outdoor Area LED Street Light
