• Model NO.：QYTGL161-30W
• Certification：CE, RoHS
• Operating Voltage：85-265V
• Input Voltage：24V
• HS Code：94054090
• Production Capacity：10000

Basic Info.

Model NO. QYTGL161-30W Certification CE, RoHS Operating Voltage 85-265V Input Voltage 24V HS Code 94054090 Production Capacity 10000

Product Description

Patent number:ZL 2015 30248632.5
Light source: led
Input votage(V):AC 220-240V 50/60hz
Lamp luminous efficiency(lm/w):100
Beam angle(°):120
Lamp body material: aluminum
Color temp.:5000k-6500k
Led chip: Samsung chips, philips chips
Item type:flood light
Lamp power(w):30W,50W
Cri:>75
Working temperature(ºC):-20-35
Ip rating:ip65
Brand name:QiYa
Lumen output:4250lm
Color:withe,black, customizaton
Weight:1.2kg
Led light source: samsung
Certicication:ccc,ce,saso
Power:30W
Working lifetime:3years




1. Die casting Aluminum body
2. Tempered glass:heat-proof,crash-proof
3. Reflector in pure aluminum
4. Steel bracket
5. Stainless steel external nuts and screws
6. Available in Class I
7. High light transmittance lens
8. Without drive

Application:building,square,advertising,parking garage,wharf



Product model number	Power	Input voltage	Size (mm)	Luminous flux (lm)	Ra	Power efficient	Weight(kg)

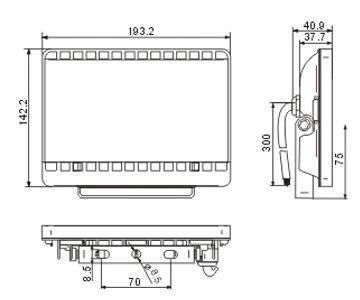

QYTG161	30W	110V-240V	193*142*40	2550	75	>95	0.6
QYTG161	50W	110V-240V	269*201*40	4250	75	>95	1.2
QYTG162	110W	110V-220V	510*365*53	11000	75	>95	5
QYTG162	220W	110V-220V	510*500*53	22000	75	>95	5
