Equal to 250W HPS 60W Solar Street Lighting Systems
Yangzhou Bright Solar Solutions Co., Ltd.- Power Supply：Solar
- Lamp Body Material：Aluminum Alloy
- Power：60-100W
- Application：Square, Highway, Garden, City Center for Mainroad
- IP Rating：IP65
- Certification：CCC, CE, CQC, Energy Star, FCC, GS, LVD, PSE, RoHS, SASO
Base Info
- Model NO.：BRH-L1A Solar Street Lighting Systems
- Input Voltage：24v
- With Light Source：With Light Source
- LED Chips Brand：Bridgelux
- Lighting Effect：Equal to 250W High Pressure Sodium Lamp
- IP Level：IP65,IP66,IP68 Against Thief
- Lamp Source：LED Lamp,Sodium Light,Metal Halide Lamp
- Lamp Choosing：15W,24W,30W,42W,60W,70W,80W,100W,120W
- Warranty：2 Years,3 Years,5 Years
- Average Life：>8000h,8000h
- Pole Height：8m
- PV Module：High Efficient 140W*2PC
- Gelled Battery：Fee Maintence, Deep Cycle, Sealed Type
- Solar Controller：Automatic Control
- Transport Package：90PC,40′hq Container
- Specification：60W LED Design Solar Street Lighting System
- Trademark：BRIGHT; AS SOLAR; BR SOLAR
- Origin：China
- HS Code：94054090
- Production Capacity：5000PC,Month
Description
Detailed Specification for 8M pole 60W Solar Street Lighting System

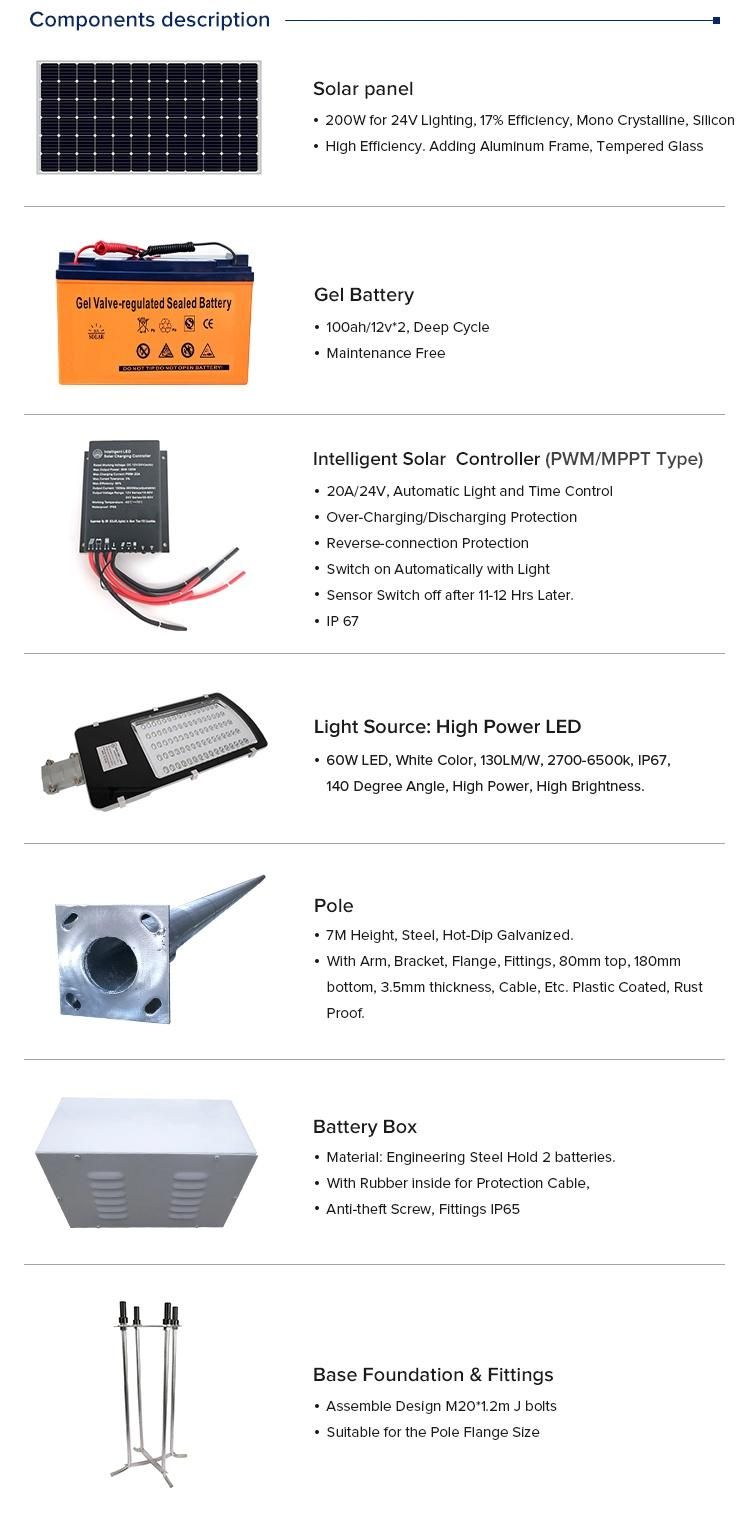

Part Name and Lifespan
Technical Specification
Solar Panel:
Lifespan:20-25 years
120W*2PC Polycrystalline. High Efficiency. A-class
Adding Aluminum Frame, Tempered Glass.
Gelled Battery
Lifespan:5-8 years
120Ah/12V*2PC, Gelled battery, Sealed Type.
Deep cycle. Maintenance Free
Intelligent Solar Controller
Lifespan:5-10 years
15A/24V,IP68. Automatic Light and Time Control
Over-charging/discharging Protection
Switch on Automatically with Light Sensor;
Light source: High Power LED
Lifespan: More than 50000-100000Hrs
60W LED, White Color,7800LM/PC,6500K,IP65,
High Power, High Brightness.
Lamp Housing:
Lifespan: More than 20 years
Die-casted Aluminum, IP65
High transmittance & Density toughened glass,
Battery Box:
Engineer Steel, hang on the pole.
GI Pole System:
Lifespan: More than 20 years
8M Height, tapered Pole, Steel,
Hot-Dip Galvanized. Plastic Coated, Rust Proof,
Resistant to Wind: ≥150KM/H

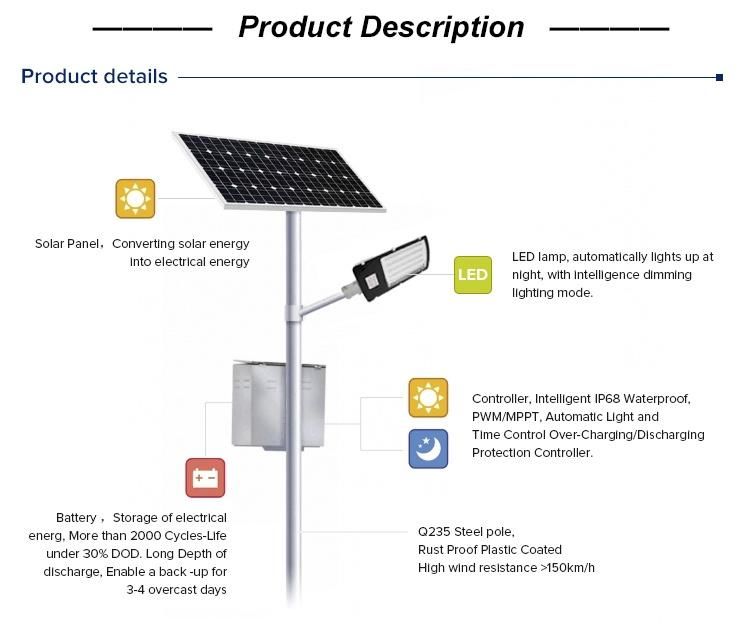

BR SOLAR marked Solar Street Lighting System Working Principle:
1LED solar street light relies on solar energy, which is clean, endless and environment-friendly. 2 The system is mainly composed of solar panel, light source, controller and free-maintenance battery. 3 In daytime, when there is sunshine, the solar panel can convert the solar energy to electric energy and store it in the battery. At night or rainy or cloud condition, the battery shall supply power for normal lighting. 4 The controller can judge the brightness of daylight and automatically switch on the light. The whole process is operating in completely automatic mode, without human action.
Some Points Before You Choosing BR SOLAR Products of Solar Street Lighting System:
First:
1).the power of your required LED light?
2).the height of the pole?
3).how many hours/night the light can work?
Second: If you have no idea on the above question, we could design for you,
please inform us:
1). What's the width of road?
2). What's your request on the power of the light source?
The Third:
Please choose your favorite model from our website or the catalogue.
Pls Enter light1978.en.made-in-china.com or http://light1978.en.made-in-china.com for more information about BR SOLAR marked BR-S1 Of 80W LED Solar Street Lights.
Pls send us more details about your purchasing,
Thank you for your time and attention.
