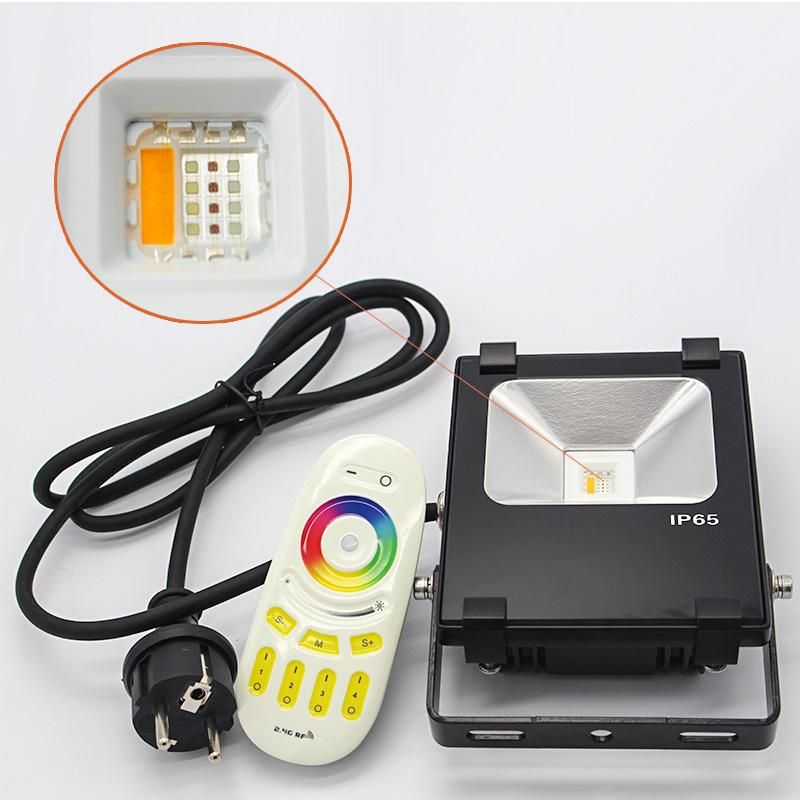

• Model NO.：PL-FL-CL2-RGBW 10W led flood light
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：COB RGB
• Transport Package：CTN Size: 405*315*215mm N. W: 6.7kg G. W: 7.2kg
• Specification：ctn size: 405*315*215MM N. W: 6.7KG G. W: 7.2KG
• Trademark：Peonylighting
• Origin：China
• Production Capacity：10000

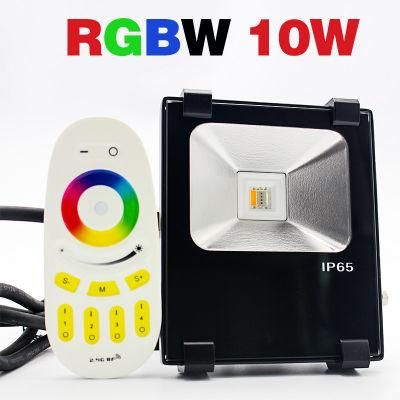

arametersRemarkPL-FL-CL2-RGBW
10W led flood lightPower: 10W
Input Votage:AC90V-260V
Material:Aluminum + glass
IP grade:IP65
LED:1pcs COB RGBWBeam angle :120°
WW :360-450lm
R : 250-300lm
G : 200-300lm
B : 60-80lm   lamp size:158.5×132×53mm
ctn size:158.5X132X53mm
N.W:650g G.W:750gPL-FL-CL2-RGBW
20W led flood lightPower: 20W
Input Votage:AC90V-260V
Material:Aluminum + glass
IP grade:IP65
LED:1pcs COB RGBWBeam angle :120°
WW :600-650lm
R : 500-600lm
G : 400-450lm
B : 120-150lmlamp size:203×155×64mm
ctn size:203X155X64mm
N.W:1230g G.W:1300gPL-FL-CL2-RGBW
30W led flood lightPower: 30W
Votage:AC90V-260V
Material: Aluminum+Toughed glass
IP grade:IP65
LED:1pcs COB ETI chip
meanwell driver APV-2536Beam angle :120°
WW :750-800lm
R : 700-800lm
G : 600-700lm
B : 200-250lmlamp size:219×170×64mm
ctn size:158.5X132X53mm
N.W:1500g G.W:1800gPL-FL-CL2-RGBW
50W led flood lightPower: 50W
Input Votage:AC90V-305V
Material:  Aluminum+Toughed glass
IP grade:IP65
LED:1pcs COB ETI chip meanwell
driver APV-35-24Beam angle :120°
WW : 1100~1200lm
R : 1000-1100lm
G : 900-1000lm
B : 300-400lmlamp size:219×170×64mm
ctn size:219X170X64mm
N.W:1500g G.W:1800g

Advantage:

1.The higher luminous efficiency and lower light fades,extraordinary lightness

2.stable quality transformer,over voltage/current protection

3.Built-in driver with wire connector, easy install

4.High brightness, energy saving & environmentally friendly products




Maintenance:

1,The power must be cut off before maintaining.

2,Cleaning the glass of the product in regular time to ensure the good efficiency.

3,Cleaning the housing and radiator in regular time to ensure the good performance of heat sinking.

4,Can use the screwdriver open the cover and take out of the driver to change a new.And connection of the wires of AC driver please follow below:Brown to connect "L",Blue to connect "N",Yellow to connect "",And the red or white wires of DC connect the positive pole of driver,and the black wire connect the negative pole of driver.and don't mix the positive pole and negative pole.





5,Please take measures of lightning protection, and ensure the Input voltage which is stable.

6,Pls put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.

7,Don't disassemble by yourself,  avoid the electric shock as there is high voltage inside the lamp.

8  Don't upside down when installing or lighting the lamp

9,Please ask the qualified professional person for help.



Application:

Widely used in household, hotel room ,show room, corridor, hotel lobby, public place of entertainment andso on

Our Service:1>. Fast deilvery: For samples 3 working day. For bulk order: 5-12working days. We produce over 2000PCS LED spotlight /day.2>. Good Quality control: We have our own LEDs Encapsulation room, we produce LED drivers by ourselves. All 3 years warranty with UL, cUL, ETL, Energy-star, PSE, BV CE certificates.3>. Mature OEM Service: With 8 years LED lighting manufacture.

We can suppy FREE laser print label, color box design etc.

FAQ

Q: Can we get a sample to test?

A :  Yes , we can provide sample to you for testing,  just please inform the specific models , size , power , color temperature.

Q: What's the delivery time?

A :  Around 3~5 days after get payment for samples,   7-10 working days after get deposit for mass order.

Q: Do you have the technic supports ?

A: Of course,  after you receive the lamps, if you have any questions, please tell us, We can try my best to help you .

Q:  What's the payment term?

A :  We accept TT ,  Western Union,L/C.  For samples ,  full payment is required upon order confirmation. For mass orders,  30% deposit upon order confirmation and 70% balance before shippment.

Please read the instruction carefully before you use the product.We keep the right of final explanation for the instruction and the product.The product will keep updating continues.And sorry for the no notice for the updating.sure the Input voltage which is stable.






Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
