Coc Auto Lifting and Lowering 20m Solar LED System High Mast Lighting (BDGGD1)

BAODE LIGHTING GROUP CO., LTD.
  • Color Temperature：Warm White
  • Lamp Body Material：Aluminum
  • Pole Height：18m-35m
  • Power：100-1000W
  • Projection Distance：50m-100m
  • Usage：Public Works

Base Info

  • Model NO.：BDGGD1
  • IP Rating：IP65
  • Certification：CCC, CE, CQC, FCC, RoHS
  • Input Voltage：220V
  • LED Chips Brand：Bridgelux
  • Warranty：3 Years
  • Life Span：20-25years
  • Lighting Hour：10-12 Hours
  • CCT：3000-6000k
  • Metal Protection：Hot Dipped Galvanized
  • Working Temperature：-35 - 45
  • Steel：Grade Q-235
  • Wind Index：Grade 12
  • Color：According to Clients′ Requirement
  • CRI：70
  • Transport Package：Plastic and Box
  • Specification：CE, ROHS, FCC
  • Trademark：Baode
  • Origin：Yangzhou Jiangsu
  • HS Code：940540900
  • Production Capacity：5000 Piece,Pieces Per Month

Description

Heightfrom 18m to 50 mSuit forhighway, expressway, parkway, freeway, central motorway junction, truck and bus terminals, railyards, ship docks, airports, ferry terminals, prisons, industrial and commercial sites, international borders.Shaperound, multi-pyramidal, column form, polygonal or conicalMaterial
Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
Tolerance of Dimension±2%Lighting Source400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²Light plateVarious figure of selection ,material with hot dip galvanization steel frameLifting System
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute
Equipped e; ant ferromagnetism brake and break -proof device, manual operation applied under power cut
Electric Appliance Control DeviceElectric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting modeSurface treatmentHot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.Joint of PolesInsert mode, inner flange mode, face to face joint mode .Design of poleAgainst earthquake of 8 gradeWind Speed80 Km/HourWeldingWe has past flaw testing. Internal and external double welding makes the welding in shapeThickness6 mm to 20 mmProduction ProcessRaw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→PackagingPackagesOur poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

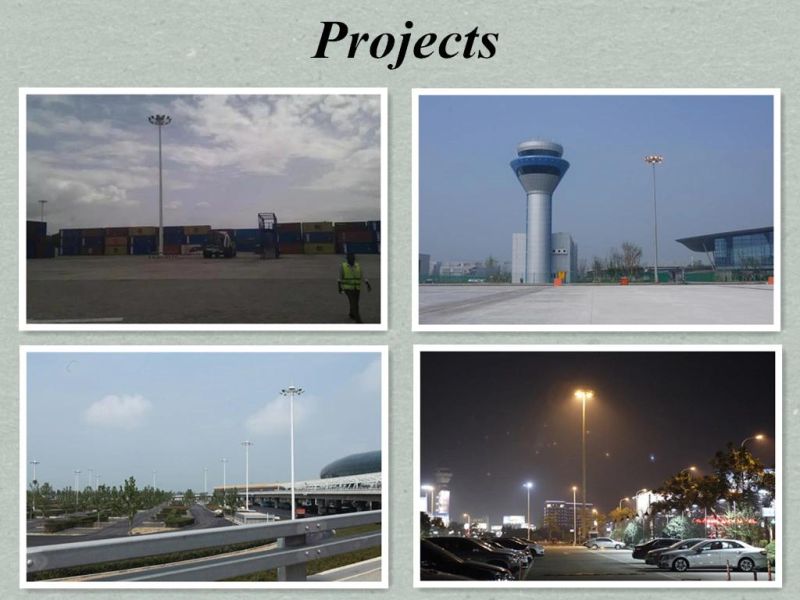

Our Projects:

Angola Seaport&plant area high mast lighting project

Morocco Seaport high mast lighting project

Bangladesh Seaport high mast lighting project

Yangzhou Airport  high mast lighting project

Chengdu Airport  high mast lighting project

Beijing Airport   high mast lighting project
