• Model NO.：TP-PRJ4-1000W
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE
• Operating Voltage：100-240V
• Input Voltage：220V
• Transport Package：Carton Packaging
• Specification：754*700*209mm
• Trademark：TOPENERGYS
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS , Year

Product Specifications:

TP-PRJ4-300W

TP-PRJ4-400W

TP-PRJ4-500W

TP-PRJ4-500W

TP-PRJ4-800W

Product power(W)

300

400

500

600

800

Input Voltage(AC/V):

90 ~ 305VAC

90 ~ 305VAC

90 ~ 305VAC

90 ~ 305VAC

90 ~ 305VAC

Product Efficiency(Typ%):

94%

94%

94%

92%

93%

Frequency Range(Hz):

50-60

50-60

50-60

50-60

50-60

Power Factor(Typ):

≥0.95

≥0.95

≥0.95

≥0.95

≥0.95

Electrical Protection:

Overcurrent protection, overvoltage protection, overtemperature protection, short circuit protection

Power Brand:

Meanwell

Meanwell

Meanwell

Meanwell

Meanwell

LED Chip

Lumileds

Lumileds

Lumileds

Lumileds

Lumileds

Color Temperature(CCT):

3000K,4000K,5000K,6500K

CRI (Ra>):

80+

80+

80+

80+

80+

Lamp Luminous Flux(lm):

42000LM

56000LM

71000LM

81000LM

112400LM

Lamp Luminous Efficiency(lm/w):

140Lm/W

140Lm/W

142Lm/W

135Lm/W

140Lm/W

Beam angle(°):

10° 45° 60° 90°, 60°×145°

Lamp Body Material:

 fin shape aluminum +copper tube

Working Temperature(ºC):

 -40ºC-90ºC

 -40ºC-90ºC

 -40ºC-90ºC

 -40ºC-90ºC

 -40ºC-90ºC

Working Lifetime(Hour):

50000

50000

50000

50000

50000

IP Rating:

IP67

IP67

IP67

IP67

IP67

Certification:

CE, FCC,ROHS,TUV, CB, SAA, ETL

Dimming mode:

3-in-1 dimming (0~10Vdc; PWM; resistance; intelligent timing dimming; DALI)

Place of Origin:

Made in China

Warranty(Years):

5Years

5Years

5Years

5Years

5Years

Wenbo and Noise:

250mVpp

250mVpp

250mVpp

250mVpp

250mVpp

Voltage Accuracy:

±2.5%

±2.5%

±2.5%

±2.5%

±2.5%

Salt spray test:

Yes

Yes

Yes

Yes

Yes

Withstand voltage

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

I/P-O/P:3.75KVAC

Main Features

Electrical protection
Overcurrent protection, overvoltage protection, overtemperature protection, short circut protection

Corrosion resistance

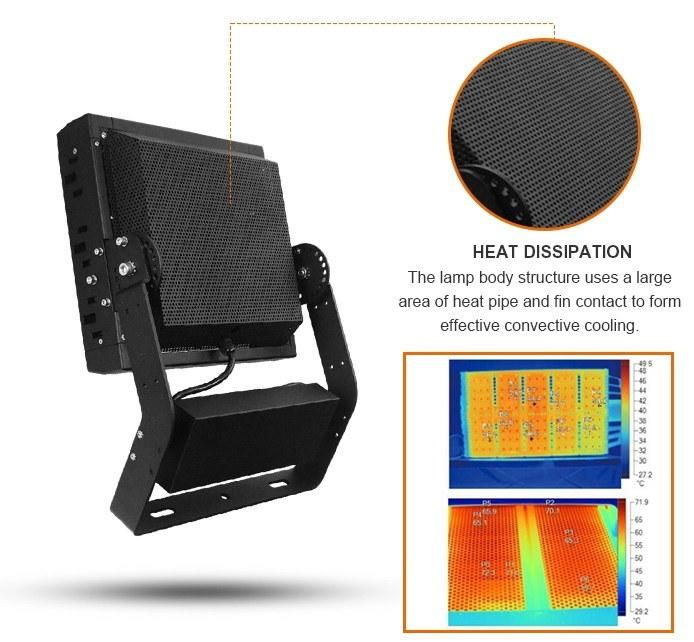

the lamp body is electrophoretically treated and has strong corrosion resistance. it passed the 200 hours smoke test.
waterproof IP65, meets various outdoor harsh enviroment requirements.

Strict shocking test ensure safety in all situations. Built-in respirator to adjust temp difference to avoid atomization.
compatible with multiple reflection cup.

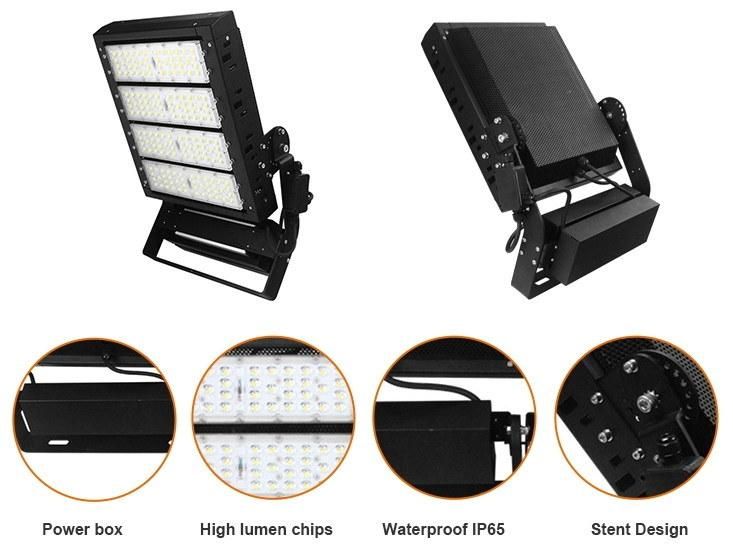

Product Details




Dimension:

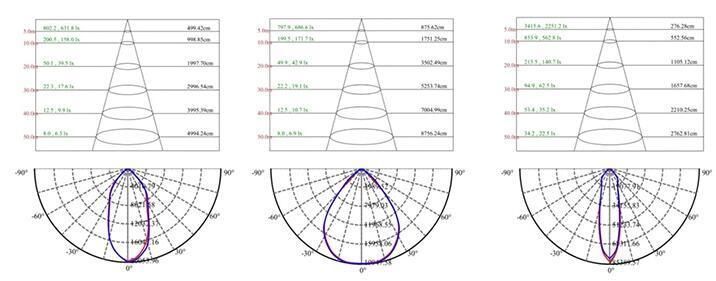

Light distribut curve

Application :

Professional TV broadcast stadium lighting.  Entertainment and amateur gym lighting program.

Golf course lighting program,  Indoor stadium lighting. outdoor stadium lighting, sports lighting.
