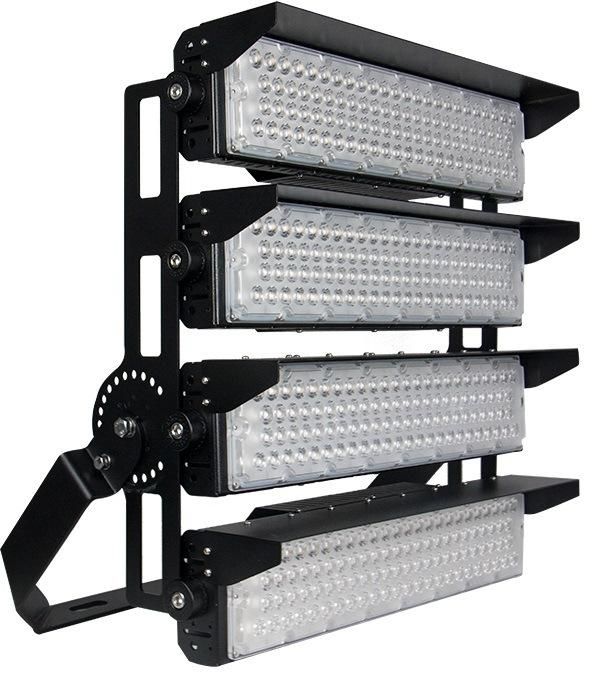

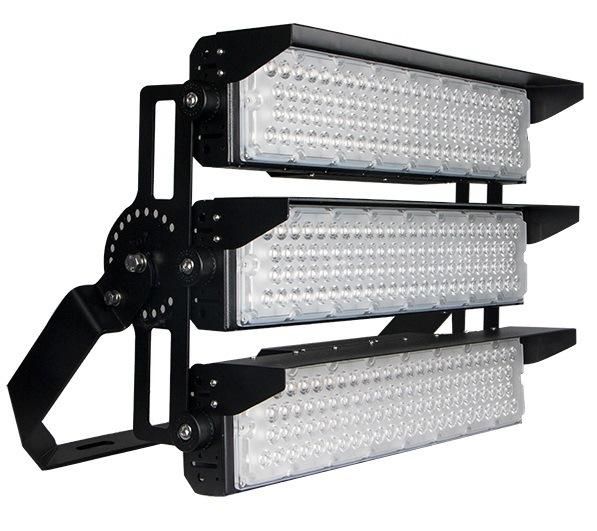

High Performance Portable Soccer Field LED Spotlight 750W 800W 1000W for Stadium
Rayborn Lighting Co., Ltd.- Color Temperature：3000-6500K
- Lamp Body Material：Aluminum
- Power：800W
- Projection Distance：25-35m
- Application：Park, Square, Factory, Garden, Soccer Field, Sport Arena
- IP Rating：IP65
Base Info
- Model NO.：Rb-Fll675-800W
- Certification：CE, EMC, LVD, RoHS, VDE
- Input Voltage：AC90-305V
- LED Chips Brand：SMD5050
- Item No：Rb-Fll675-800W
- Voltage：AC 90-305V
- LED Power：800W LED Flood Light
- Lamp Driver：Meanwell Driver LED Flood Light
- LED Chip：SMD5050 High Brightness LED Chip
- Power Factor：>0.98
- LED Luminous Efficiency：160-170lm,W
- Viewing Angle：10,30,60,120,63*135,85*135 Degree
- Color Rendering Index：Ra>80
- IP Rate：IP66 Waterproof Dustproof
- Transport Package：1PC,Carton
- Specification：CE,ROHS
- Trademark：Rayborn
- Origin：China
- HS Code：9405409000
- Production Capacity：40000PCS,Month
Description
High Power LED Flood Light Main Feature:
1.LED: 160lm/w high brightness LED Chips
2.Power supply: Meanwell HLG
3.Material: powder coated die cast aluminum.
4.High light transmittance plastic lens for each leds,lamp luminous flux can
reach 130-140lm/w.
5.Internal power supply design,make the flood light safer for operation
6.Adjustable bracket equipped with three different fastening points,which
enable the installation of the fitting in each position needed.
7.10/30/60/120/63*135/85*135 degree beam angle optional,different application are
fulfilled in one simple design,which can direct the light to the exact area
needed,no light pollution.It's especially suitable for stadium and sports
field.
8.Maintence free during it's lifespan.
9.80-90% energy efficient compared with conventional lights
10.color of body: silver/gray/black.
11.IP Rating : IP66
Competitive Advantage of Outdoor LED Floodlight:
1. High efficiency to meet rigorous photometric requirements.
2. System rating 50,000 hours LM80 to reduce maintenance.
3. LED Flood light has high-pressure cast aluminum electrical box painted electroplating both inside and outside, stainless steel or plating chromium fittings, making the installation flexible and convenient. Scuba patent technology making the optical system precision and efficiency.
4. LED high efficiency and long life, not only provides a bright, diversity, lasting and innovative lighting environment, but also greatly reduce the purchase system and maintenance costs.
5. Vented housing design isolates LED module from driver for long life and improved performance.
6. Tempered glass lens protects LEDs and allows for easy cleaning/debris removal.
7. Adjustable mounting bracket allows you to direct light where you need it.
8. IP66 Rated.
Spectrum of Stadium LED Flood light :

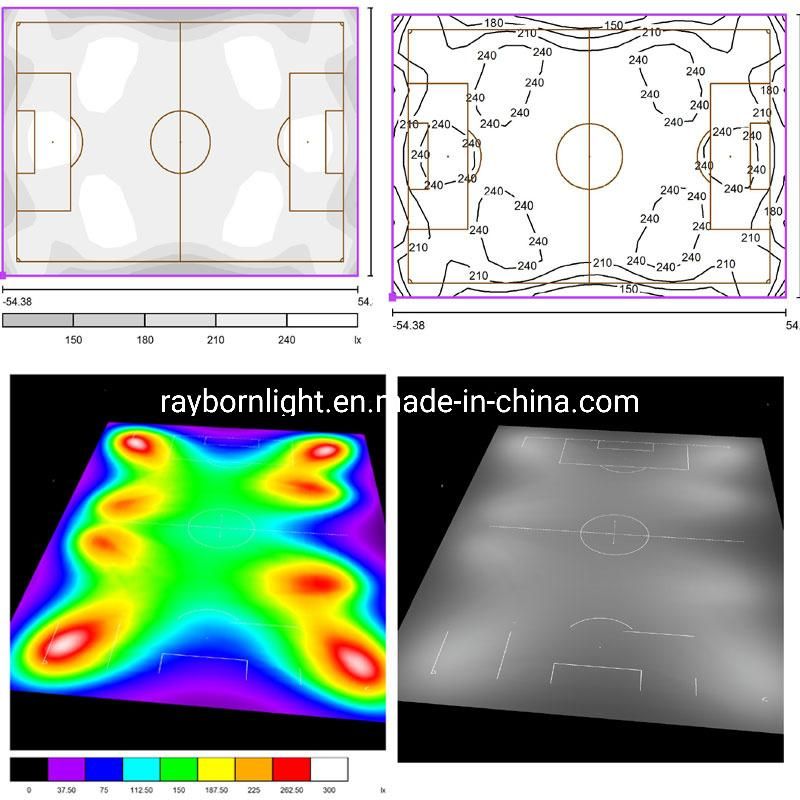

Professional simulation of Stadium LED Flood light :
LED Flood light more than 24hours aging test :

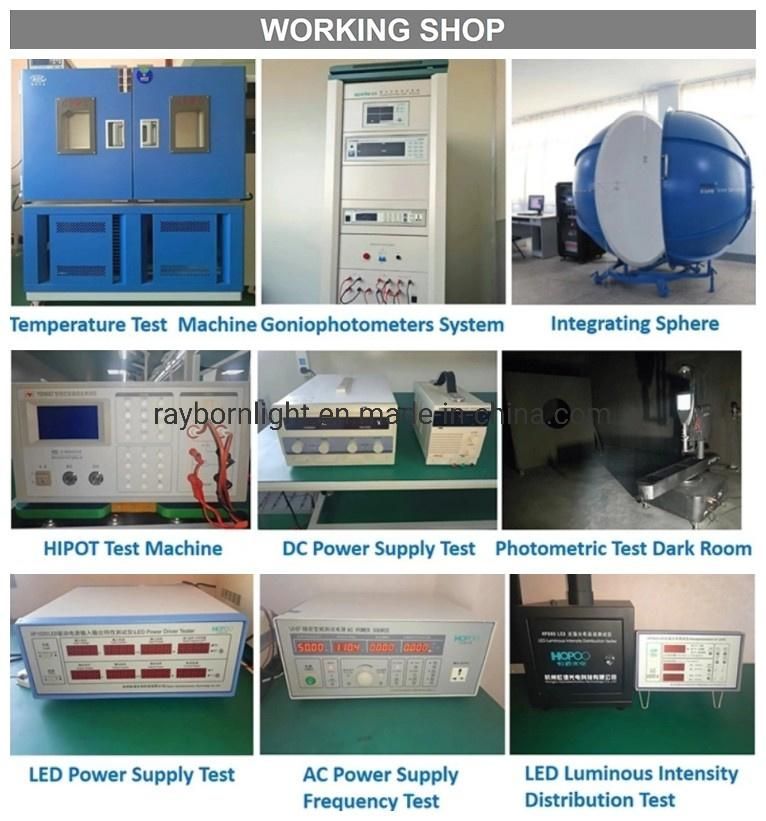

Before shipping, all the LED flood lights will be over 24 hours aging tested, inspection department will test 100% products including light up test , power wattage test , high-Voltage test , waterproof test , ground connection test and so on, defective rate is controlled less than 0.1%. Quality is ensured, you can be assured.

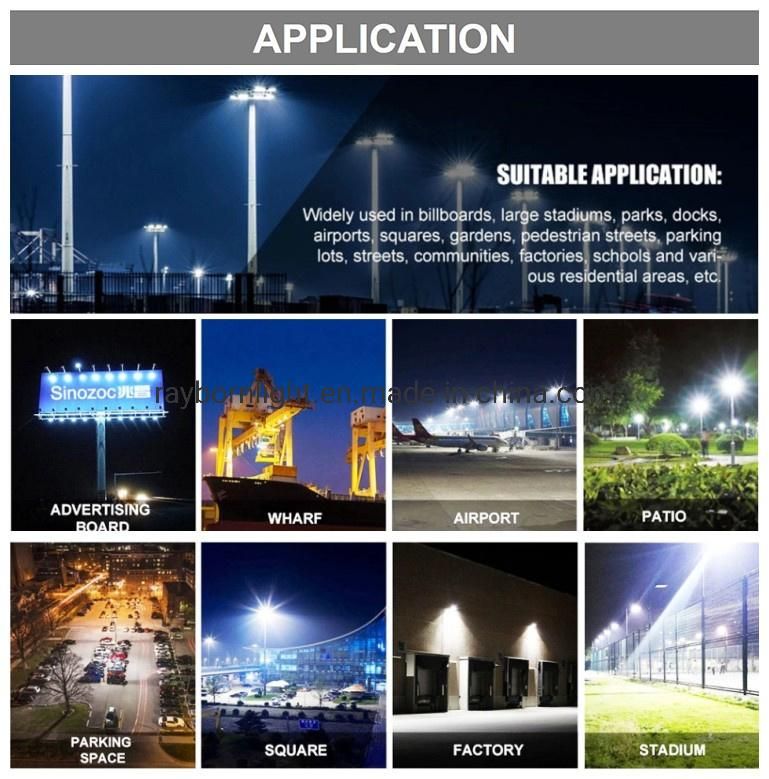

Outdoor LED Flood light Applications :
1. Advertising board,playground and stadium lighting.
2. Parking lot and airport lighting.
3. Highway and Railway tunnel lighting.
4. Bridge and culvert lighting.
5. Square,garden,and building lighting.
Widely used in factory,gymnasium,billboards,buildings,lawns,landscaping,offices,the site of light project and decorative lighting project etc.
Company Information:
Rayborn Lighting Co.,Ltd is a professional manufacturer ,focus on Industrial LED lights and commerical LED lights research ,devolopment ,production,sales ,on service,was in High-end operation and service provider in High-power led .Under the country "saving "polics,we are striving to create environment protection ,energy saving ,long life lighting and earned a reputation of being a quality supplier of LED lighting .
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions,our factory has passed the authentications of ISO9001:2000,CE, FCC, ROSH ,TUV authentication.
Payment terms:
1. Payment: T/T, L/C at sight, Western Union ,Paypal available
2. Samples can be available within 5-7 working days; Order: 10-20Days
3. Shipping freight is quoted under your requests
4. Shipping port:Shenzhen , China
5. Discounts are offered based on order quantities
FAQ:
1. What is the general business process?
Answer : Send Inquiry to Rayborn. → Specification Confirmation → Quotation → Sample List Confirm → Proforma Invoice → Payment Bank Slip → Sample Delivery → Sample Satisfactory → Bulk Order List → Proforma Invoice → 30% Deposit Payment in Advance → Production Ready → 70% Balance bank slip → Delivery → After Sale Service
2. What is the warranty?
Answer : 5 years warranty is offered depending on different types of lights. If item fails due to quality problem during warranty, we can send new replacement with freight on ours immediately if urgently. Or we prefer to send replacement with next order.
3. What is the payment term?
Answer : For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order, L/C is negotiable
4. Can I add my logo on the product label?
Answer : Yes, but order quantity is requested depending on different lights.
5. I don't know how many Led Flood Light should I use, can you advise?
Answer : Yes, we can offer our professional solution for you, IES file is available if you have the design team.
