• Model NO.：PL-SL-40W
• Input Voltage：AC90-305V
• With Light Source：With Light Source
• LED Chips Brand：Nichia
• Transport Package：Export Standard Cartons
• Specification：93*35*13cm
• Trademark：PEONYLIGHTING
• Origin：China
• HS Code：940510000
• Production Capacity：500000PCS,Year

Basic Info.

Model NO. PL-SL-40W Input Voltage AC90-305V With Light Source With Light Source LED Chips Brand Nichia Transport Package Export Standard Cartons Specification 93*35*13cm Trademark PEONYLIGHTING Origin China HS Code 940510000 Production Capacity 500000PCS/Year

Product Description

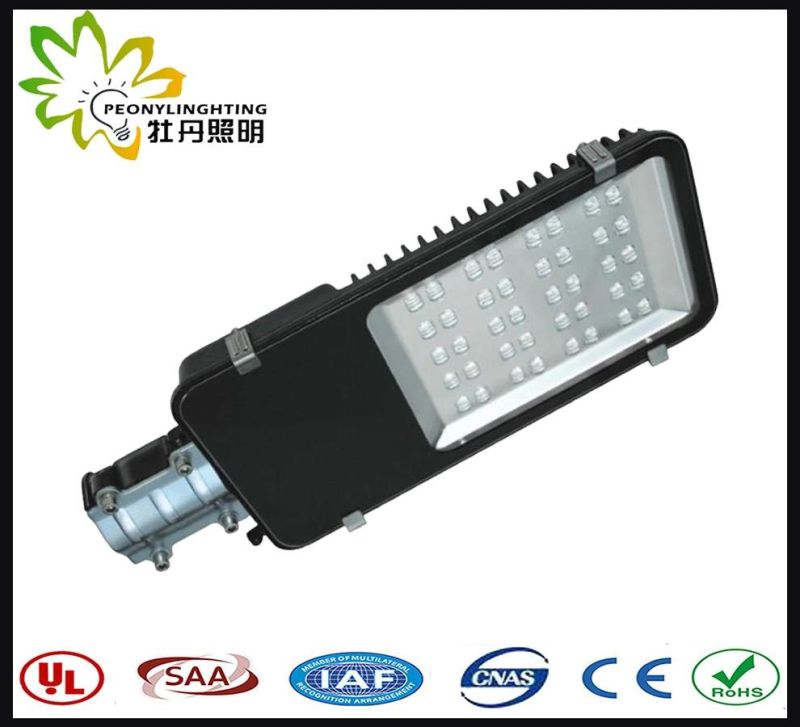

Shenzhen outdoor led street light manufacture 40w led road light ,led street lamp





Key Features

1).Adopting high-power 3030smd as light source. Energy-saving, environment protecting and long life.

2). 5mm toughened transparent glass/lens , high temperature resisting, easy for lights penetration, transmittance as hight as 92%.

3).The radiator adopts Aluminium alloy with high thermal coefficient, Lamp surface adopts oxidation technology, corrosion-resistance and ensure the radiating.

4).Constant current supply, good stabilize and high security.

5).Energy sawing up to 80%.

6).Good-Looking shape, easy installation

7).Applicable for the expressway, road in down town, over bridge, port, factory lighting and so on..

8).Lampshade material: Die cast aluminum housing, Toughened safety glass, painting coating.

9).The metal part which is between pole and street light is designed as original pole size.

Datesheet



Material:Aluminum+Toughened Glass	Luminous Flux(LM): 100-120lm/w
LED Quantity:40pcs lumileds3030smd	Color index (CRI) :≥80Ra
Power: 40W	IP Grade: IP 66
Working Frequency: 50HZ-60HZ	Working Temperature: -50ºC-+50ºC
Working Voltage: AC90-265V	Working Humidity:<95%
Bean angle :60*120°	Lifespan:LED≥50,000Hs
Color Temperature:3000K,4000K,6000K	Power Factor:≥95%
Lamppost aperture:60mm	Warranty :5-8 years

Remark:

lamp size:500*210*80mm
ctn size:53.5*23.5*10cm
G.W:3.5kg

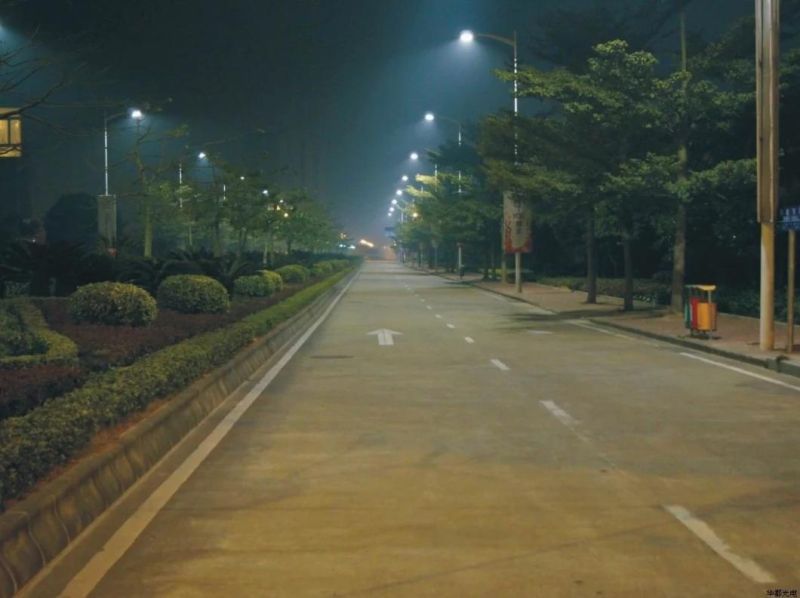

Application

road, park, highway ,country yard etc.

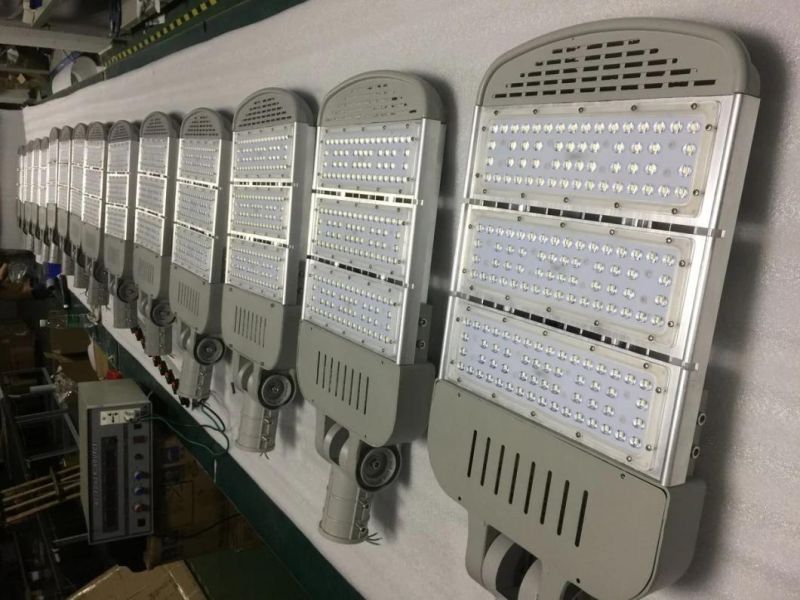

Workshop




FAQ

Q: Whether the  LED lights really have 50,000 hours lifespan?

A: 50,000 or longer lifespan is only theory from lab test.But due to working environment are different from

in lab,actual lifespan is only  <=30,000hours. Meanwhile it can also be 50,000 hours lifespan if it adopt very good material.

Q: For same power,why different suppliers with different brightness?

A: Different chips,or same chip but different brightness version.The brightness will be different.But for same chip

and same brightness version,the brightness will be slight difference.But please make clear the brightness difference

between LEDs and lamp fixture.

Q:What is colour temperature?A: Kelvin is a way to measure "temperature", the light from LED lights emit a certain color, which we have catagorized

in CTT(kelvin).For example, a warmer (lower color temperature) light is often used in public areas to promote relaxation,

while a cooler (higher color temperature) light is used to enhance concentration in offices.

Q: What is CRI?

A: CRI is a figure which feedback the real objects colors.Higher CRI with higher cost.

Q: What is PF and efficiency?

A: PF and efficiency is to feedback the driver electrical performance.Higher PF and efficiency with higher coste other questions, please feel free to contact us, you will get reply at the first time
