• Model NO.：LCD-ST-G6-205-LNA30-LEDiL
• Certification：CCC, CE, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Osram
• Transport Package：Carton Boxes
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405421000
• Production Capacity：50000PCS , Year

  Materials and finishing

Housing - Aluminium Alloy

Protector - High-impact clear glass (IK 08) or and polycarbonate lens

CoatingBlack and RAL colours on requestInstallationBottom-entry mounting spigot™ kitFixingø60-65 mm Fixing holes or ¢ 40mm on requestsDimensions (LxWxH)

Maxi - 651 x 307 x 117 mm
Mid 3- 489 x 307 x 117 mm
Mid 2- 378 x 291 x 117 mm
Mid 1 - 317 x 291 x 117 mm
Mini - 331 x 205 x 117 mm

Weight (with gear)

Maxi - 10.3 kg

Mini - 4.5kg

AccessYesAerodynamic resistance (CxS):

Maxi - 0.027m²

Midi - 0.015m²

Electrical Characteristics

Line Voltage220VACMains voltage Tolerance (AC)85-265VLine frequency50/60HzElectrical Safety Class (IEC)Class ISurge protectionYes - 3-4KV (10kV/10kA on requests)Lighting control

-on requuests below

- Incorporated downward facing daylight switch

- Pre-programmable stand-alone dimming

- Solar version for Midi is available

Power supply

Power Factor≥0.97RemovableYesThermal SafetyYes

Environment

Storage temperature-40< T < 85Enclosure TightnessIP65 IP 66 IP67 IP68Enclosure Mechanical Withstand ImpactIK 08Enclosure Mechanical Withstand VibrationsModified IEC 60068-2-6



Application

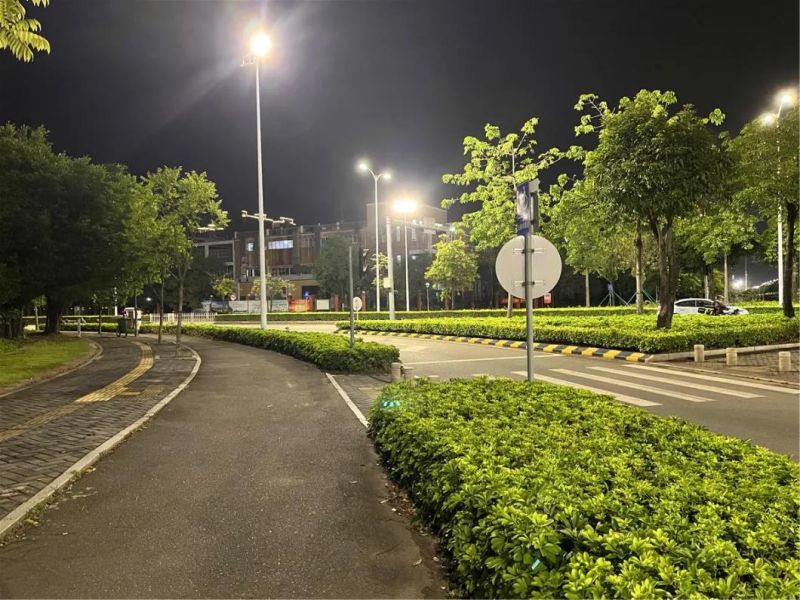

• Façade lighting• Area lighting• Security lighting• General floodlighting• Car parking lighting• General street lighting

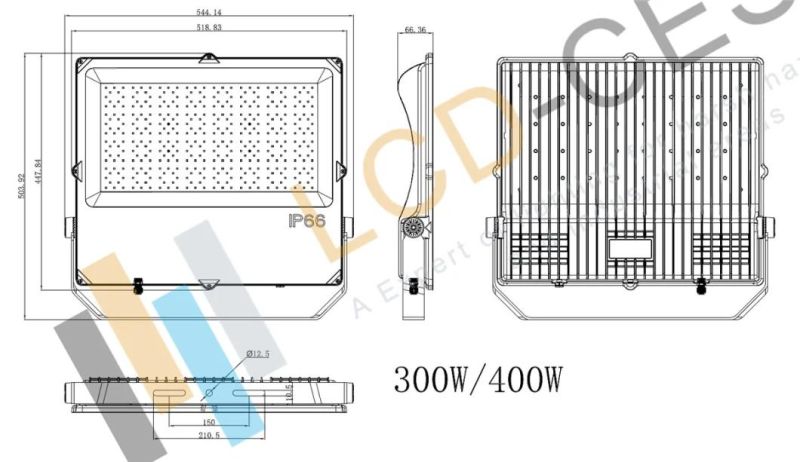

Products Dimensions in MM

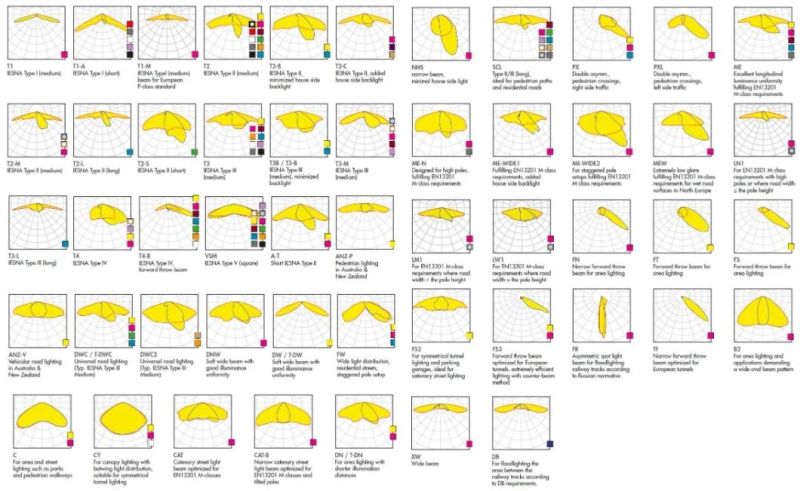

PHOTOMETRIC DIAGRAMS


Installation


PLC dimmer master controler



FAQ



1. What 's your payment method?

In general,we use Paypal and Western Union for the total order less than US$ 500 in order to reduce the extra fee, Bank Tranfer payment can be accepted for large order too.



2. How long will it take to execute my order ?

This depends on the order quantity.Our nornal delivery time is 5-7 working days.



3. How much will the shipping charges be ?

This will depend on the size of your shipment and the method of shipping.Whe inquiriedabout shipping charges,we hope that you let us know the detailed information such as the post code and quantity ,your favorable method of shipping (by air or by sea ) and your designated port or airport.



4. Do you provide samples ?

Yes ,we can provide samples of all the items listed.In general of facture rule, the sample cost and shipping cost will be in buyer side.We can send the sample by DHL,FEDEX,EMS and UPS .



5. Do you have products in stock?

For most common items we have stock but we could not reserve all the items in stock.Ifthere is any in stock,we will inform you with details.



6. What the warranty term for your products?

All of our products have at least one year warranty in normal use. Please provide or video ia any quality problem during this period.We will replace a new one to you in thenext order.



7. Can I visit you?

Sure, please let us know if you wanna visit our factory ,we will arrange it for you.



8. Do I need to send the defective products back to you for warranty.

No,you don't need to send it back for warranty for the defective products.If any damage happens not caused by misure or vandalism,then we 'll send you a new one.

Features
Streamline shape, back self-cleaning
No tool to open the electric box, open the cover and cut off the power
Hidden respirator, equilibrium pressure
0-90 degree adjustable tailstock
Evenly spread the LED, and the heat dissipation is uniform
Nano reflector, repair light type, improve light efficiency

Specification

Barn with a width of approx. 35-75 m illuminated by a row of LCD-LYEGM-K125 lamps
Cattle barns underwent a great deal of modernization over the last few years both in terms of design and equipment.However, there is one area that has remained largely unaffected: lighting technology.The new LED-LCD-LYEGM-K125-LAMP represents a major leap forward as far as providing the best possible lighting conditions!

It is now sufficient to install one row of lamps in barns with a width of up to 35-75 m!
The flexible settings of the LED-LCD-LYEGM-K123-LAMP make it possible to light the illuminated area much more evenly than with conventional lamps.What is more, LED-LCD-LYEGM-K123-LAMPs can also be dimmed down.When used in night mode, approx. 70% of the lamps can be switched off by means of the DALI-LED-Control-system.The remaining 30% of the lamps will be dimmed down to 20%, creating "nighttime" illumination.


Other benefits:
• Savings in energy, maintenance costs, etc. of up to
approx. 80%.
• Service Life at least 15 years, 100.000 operating hours.
• LED light does not attract flies.
• LED lamps are exceptionally robust!

Properties:
• Designed especially for cattle barns
• Color temperature 3000K 4000K 6500K, wide spectrum
• IP67 water-resistant and moisture-proof
• Seven-year warranty*

Technical Specifications:Type / light sourceLED / light emitting diode SMD3030 or SMD5050Triplex bracket and framestainless steel #316 or 304Installation instructionsFastening at the cable duct,As an alternative, on the ceiling,Alternatively, using the rope systemLamp housingtotally copper freeAluminum #1070 / extruded/power-coatedFinished housingred or greyUseful lifeApprox. 75,000 hours of operationProtection class IP 65 / IP66Operating temperature-30°C to +50°CSuitable for exterior areas YesVoltage / frequency100-277V AC / 50-60 HzDimmableYes

Light output:
Color temperature ...................................... 3000K 4000K 6500K (full spectrum)
Color rendering index ................................ Ra > 75
Chip efficiency ........................................... >150-200 lumen / watts
System efficiency ....................................... >130-160 lumen / watts
Lumen continuity ........................................ >80%at 100.000 hrs
Light outlet ................................................. Lenses / adjustable

Dairy barn lighting intended to enhance performance requires that the barn be lit evenly with 200-350 lux.Lactating cows need 16 hours of light and 8 hours of darkness. Dry cows, on the other hand, need 8 hours of light and 16 hours of darkness. The economic efficiency of this investment is due to not only the higher yield produced by the cows but also the improved health and fertility of the animals.
Other possible applications of the LED-LCD-LYEGM-K123-LAMP for indoor and outdoor use:
Industrial enterprises, manufacturing shops, food plants, cold storage facilities,warehouses, parking garages/lots, traffic lights,agriculture, cattle barns, workshops, grain stores, etc.

- The benefits -
LEDs help conserve energy! .....A 200 Watt LED light flood generates the same output as a 2000 Watt halogen lamp
LED lamps last for a long time!....Offering a burning life of approx. 50,000 hrs, they will last for 20-25 years when used 6 hours a day. Their capacity will then still be approx. 70% of their initial brightness.
LED lamps are robust!.....No other lamps are as resistant to vibrations, blows and percussions as LED lights
LEDs without UV and infrared radiation....The light spectrum of the LEDs is within the "visible range" and free of UV or infrared radiation. This prevents the plastic enclosure from becoming "brittle" and provides for a gentler illumination of the products. Better still, LED lighting does not attract any flies(insects).
LED lamps are more expensive upfront!....LED lamps are slightly more costly than conventional lamps.However, this is only true as far as the purchasing price is concerned. You will find that the benefits of lower energy,installation and servicing costs as well as the long useful life afford you a quick return on your investment.
Notice on LED installation!...The heat generated by the LED lamp needs to be dissipated appropriately. This will extend the useful life and guarantee a high light output over the long run.
LED disposal!...LED lamps are plain electric scrap rather than hazardous waste such as fluorescent or halogen lamps or energy-efficient lamps which contain mercury.
LEDs - no maintenance costs!...Thanks to their long useful life LED lamps usually do not require a change of the illuminants
