Hot Sale IP65 LED High Mast Lighting with Best Price (BDG-0014)

BAODE LIGHTING GROUP CO., LTD.

Color Temperature：Warm White
Lamp Body Material：Aluminum
Pole Height：15m-40m
Power：400W, 1000W, 2000W
Projection Distance：40m-80m
Usage：Aairport

Base Info

Model NO.：BDG-0014
IP Rating：IP65
Certification：CCC, CE, CQC, FCC, RoHS
Input Voltage：220V
LED Chips Brand：Bridgelux
Warranty：3 Years
Color：According to Clients′ Requirement
Metal Protection：Hot Dipped Galvanized
Thickness of Galvanization：86 Micron
Wind Index：Grade 12
Steel：Grade Q-235
Light Source：Sodium Light or LED
Life Span：20-25years
CRI：70
CCT：3000-6000k
Transport Package：Plastic and Box
Specification：CE, ROHS, FCC
Trademark：Baode
Origin：Yangzhou Jiangsu
HS Code：940540900
Production Capacity：1000 Piece,Pieces Per Month

Description

Heightfrom 18m to 50 mSuit forhighway, expressway, parkway, freeway, central motorway junction, truck and bus terminals, railyards, ship docks, airports, ferry terminals, prisons, industrial and commercial sites, international borders.Shaperound, multi-pyramidal, column form, polygonal or conicalMaterial
Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
Tolerance of Dimension±2%Lighting Source400 W- 5000 W high pressure sodium flood light, light extension :up to 30 000 m²Light plateVarious figure of selection ,material with hot dip galvanization steel frameLifting System
Lifter fixed in the inner of the pole with lifting speed of 3~5 meter per minute
Equipped e; ant ferromagnetism brake and break -proof device, manual operation applied under power cut
Electric Appliance Control DeviceElectric appliance box to be the hold of the pole ,lifting operation could be 5 meter away from the pole through wire .Time control and light control could be equipped to realize full-load lighting mode and part lighting modeSurface treatmentHot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.Joint of PolesInsert mode, inner flange mode, face to face joint mode .Design of poleAgainst earthquake of 8 gradeWind Speed80 Km/HourWeldingWe has past flaw testing. Internal and external double welding makes the welding in shapeThickness6 mm to 20 mmProduction ProcessRaw material test→Cutting→Molding or bending →Welding (longitudinal ) →Dimension verify→Flangewelding→Hole drilling →Calibration →Deburr →Galvanization or powder coating, Painting→Recalibration→Thread→PackagingPackagesOur poles as normal cover by Mat or straw bale at the top and bottom ,anyway also can following by client required

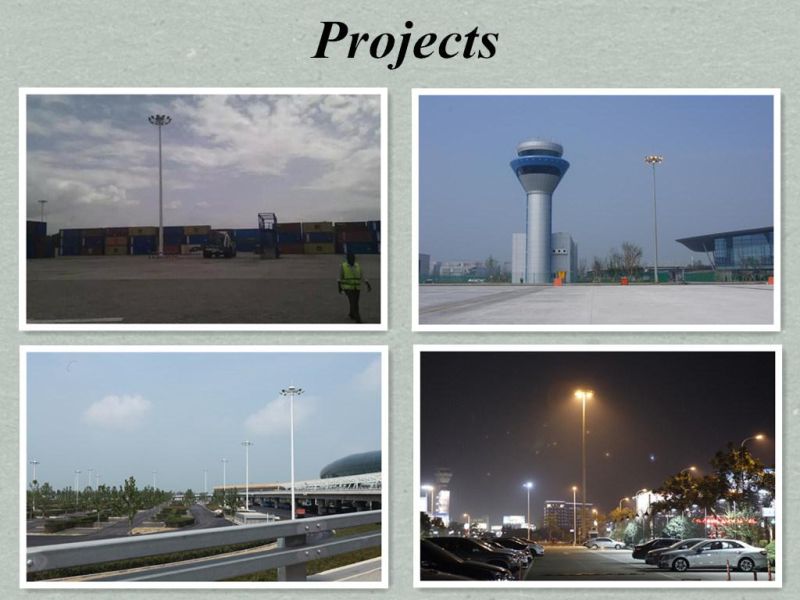

Our Projects:

Angola Seaport&plant area high mast lighting project

Morocco Seaport high mast lighting project

Bangladesh Seaport high mast lighting project

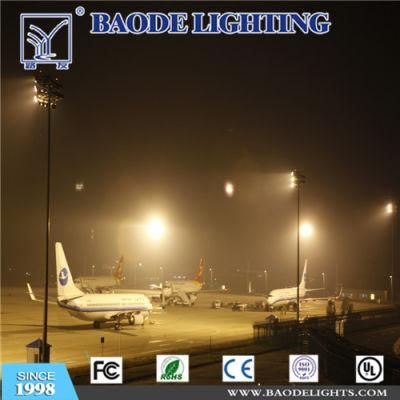

Yangzhou Airport high mast lighting project

Chengdu Airport high mast lighting project

Beijing Airport high mast lighting project

Hot Sale IP65 LED High Mast Lighting with Best Price (BDG-0014)

Company Information 21 Years Manufacturing Experience
Since 1998, we have started manufacturing street lighting. The 21 years' experiences have been a persuasive insurance for us to offer reliable products.

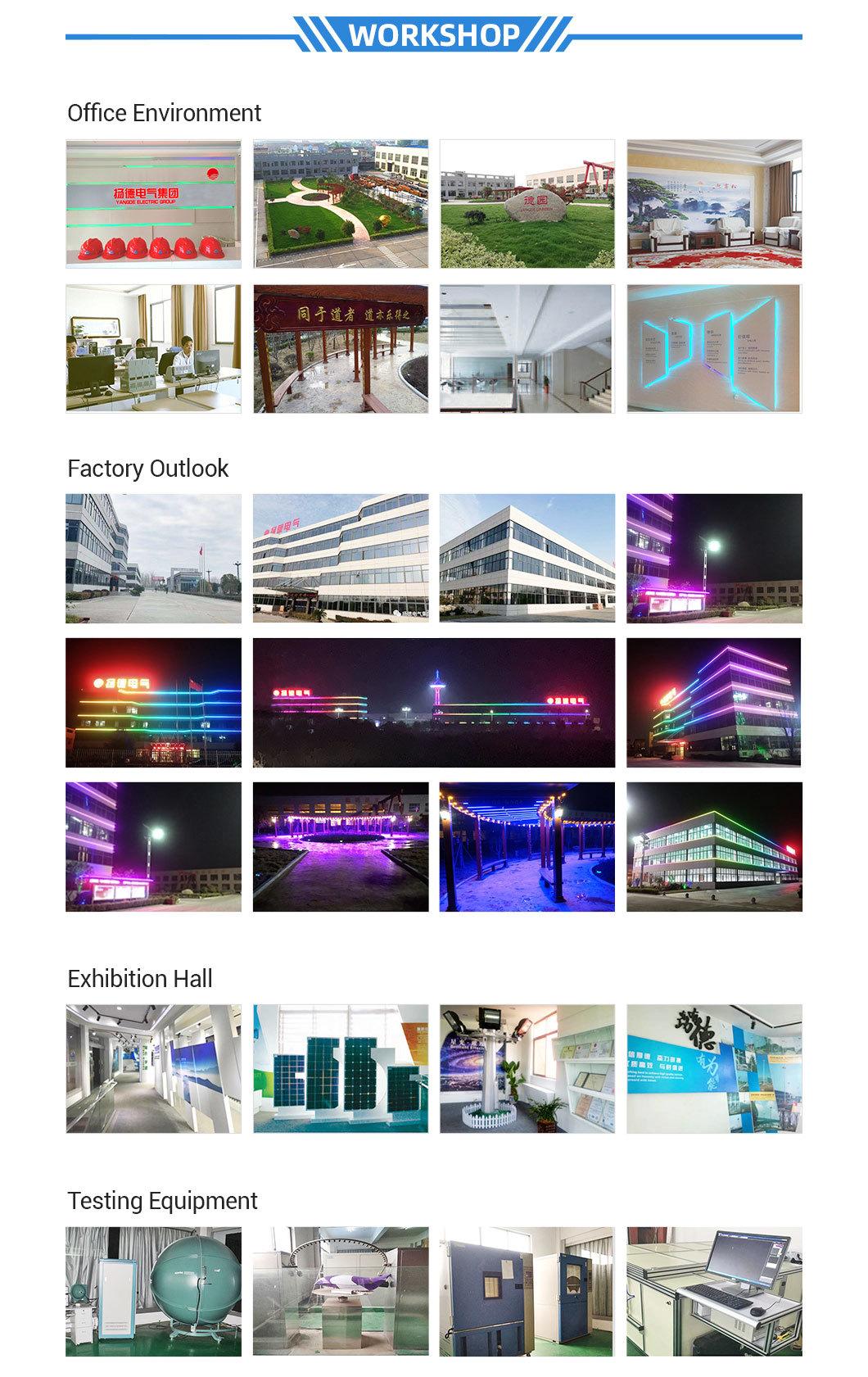

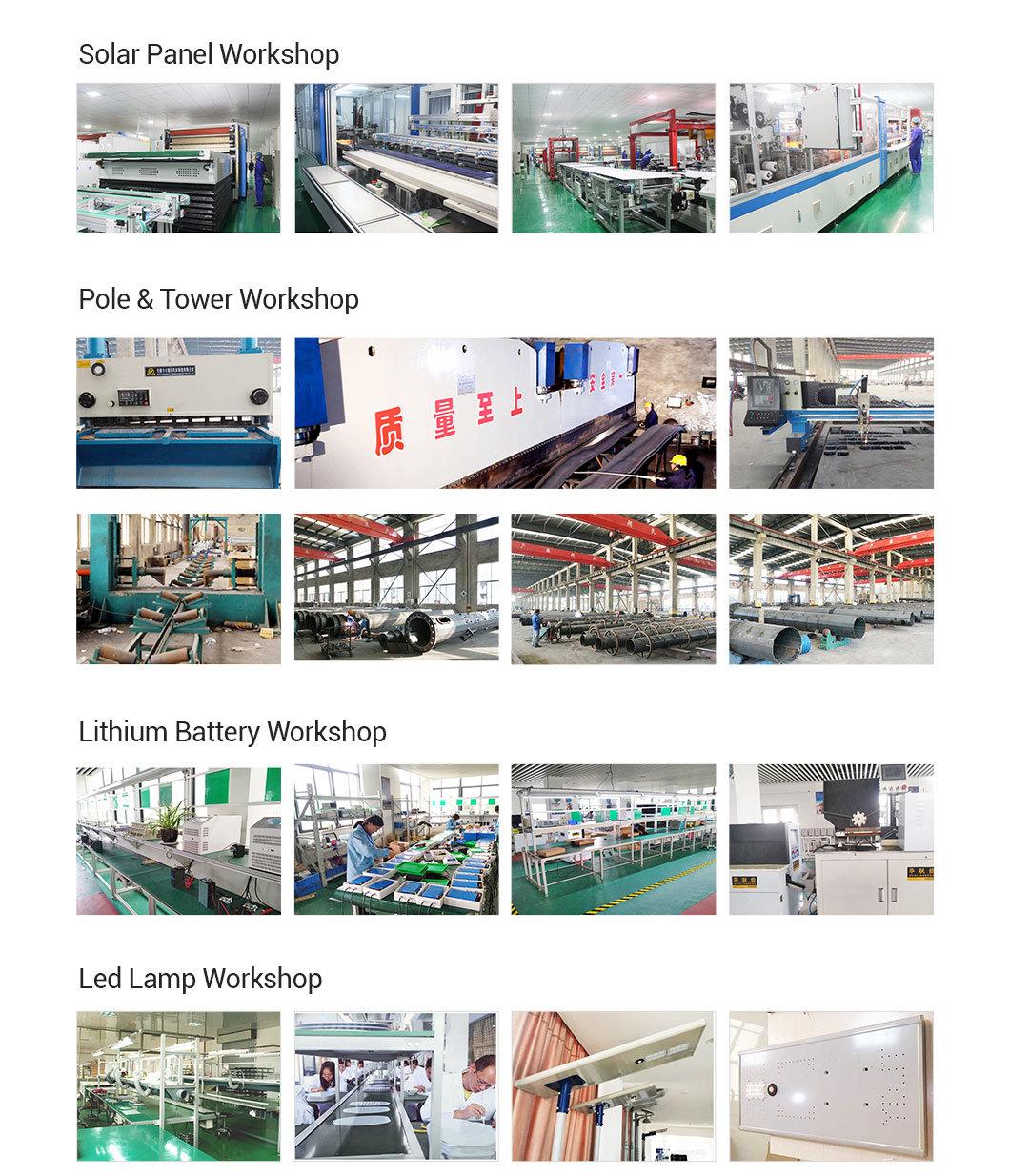

Large Factory with Complete Facility
We have 400 staffs with factory area 6000 m2.  We also equipped with complete production and testing equipments, such as Steel Pole Rolling Machine, Spray Machine, Pressure Machine, Integrating Sphere, Lighting Simulating Machine and Weather-ability Testing Machines, etc . .
  Our 60 experienced engineering team work with the PV institute of Shanghai FUDAN University , Shenzhen Foxconn to R&D outdoor lighting products. We have obtained over 20 national patents and built our own brand LUYOU.
Manufacturing main components to save cost. BAODE manufactures the solar panel, light fixture and pole to control the cost and quality.
  Factory outlet. There's no middleman between the manufacturer BAODE and domestic and oversea buyers. Hot Sale IP65 LED High Mast Lighting with Best Price (BDG-0014)
