• Model NO.：CS-FFXZ-50
• Certification：CB, CCC, CE, RoHS, SASO
• Input Voltage：100-240V
• With Light Source：With Light Source
• LED Chips Brand：Epistar
• Delivery Time：5-7days
• Watt′s Option：50W Until 150W
• Light Color Opiton：White,Neutral, Warm White
• LED Qty /Module：72PCS,108PCS,192PCS
• Chip′s Brand Option：Epistar,Bridgelux, ,Osram,CREE
• Life Span：20,000hours -50,000hours
• IP Rating Option：IP65 or IP67
• Work Temperatu：-40ºC~+70ºC
• Installation Height：7-9m
• Chip′s Size：3030
• CRI：>80
• Watt：50W
• Transport Package：Carton+Plastic Foam
• Specification：L375W243H75MM
• Trademark：Capson
• Origin：Zhongshan Guangdong
• HS Code：9405409080
• Production Capacity：100000 Per Week

Basic Info.

Model NO. CS-FFXZ-50 Certification CB, CCC, CE, RoHS, SASO Input Voltage 100-240V With Light Source With Light Source LED Chips Brand Epistar Delivery Time 5-7days Watt′s Option 50W Until 150W Light Color Opiton White/Neutral/ Warm White LED Qty /Module 72PCS/108PCS/192PCS Chip′s Brand Option Epistar/Bridgelux/ /Osram/CREE Life Span 20,000hours -50,000hours IP Rating Option IP65 or IP67 Work Temperatu -40ºC~+70ºC Installation Height 7-9m Chip′s Size 3030 CRI >80 Watt 50W Transport Package Carton+Plastic Foam Specification L375W243H75MM Trademark Capson Origin Zhongshan Guangdong HS Code 9405409080 Production Capacity 100000 Per Week

Product Description

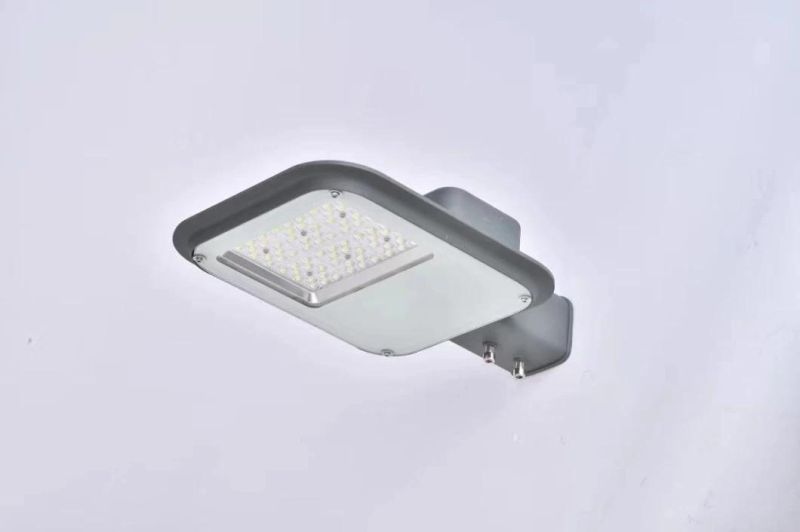

Outdoor High Lumen 120lm/W 5Years Warranty Ce RoHS Certified IP65 50W LED Street Light

Product name	LED Street Light 50W
Item No.	CS-FFXZ-50
Power option	50w ~ 150w
LED chips	Cree 3030 72pcs
Light effect	120lm/w
Lumen output	6000lm/w
Driver brand	Meanwell ELG or HLG
Input voltage	AC85V-265V
IP rating option	IP65 or IP67
Life span	25,000hours or >50,000hours
CRI (color rendition index)	≥80Ra
Power factor	≥0.95
Dimension	L375W243H75mm
Optional beam angle	60*130°
Material	Aluminum Alloy
Operating Tem	-40ºC~ +70ºC
Warranty	2,3,5,Years
Dimmable options	yes
Packing size	L38W26H11cm

The main characteristics
1. High-power CREE 3030SMD is used as the light source. Energy saving and environmental protection, long service life.

2. Toughened transparent glass, high temperature resistant, easy to light transmission, light transmittance up to 92%.

3. The radiator adopts aluminum alloy with high thermal conductivity, and the lamp surface adopts oxidation technology to resist corrosion and ensure heat dissipation.

4. Constant current source, good stability and high safety.

5. Energy saving up to 80%.

6. Beautiful appearance and easy installation.

7. Suitable for highway, urban road, bridge, port, factory lighting, etc.

8. Lamp cover material: die-cast aluminum shell, toughened safety glass, paint coating.

9. The metal part between the rod and the street lamp is designed to be the original rod size.
