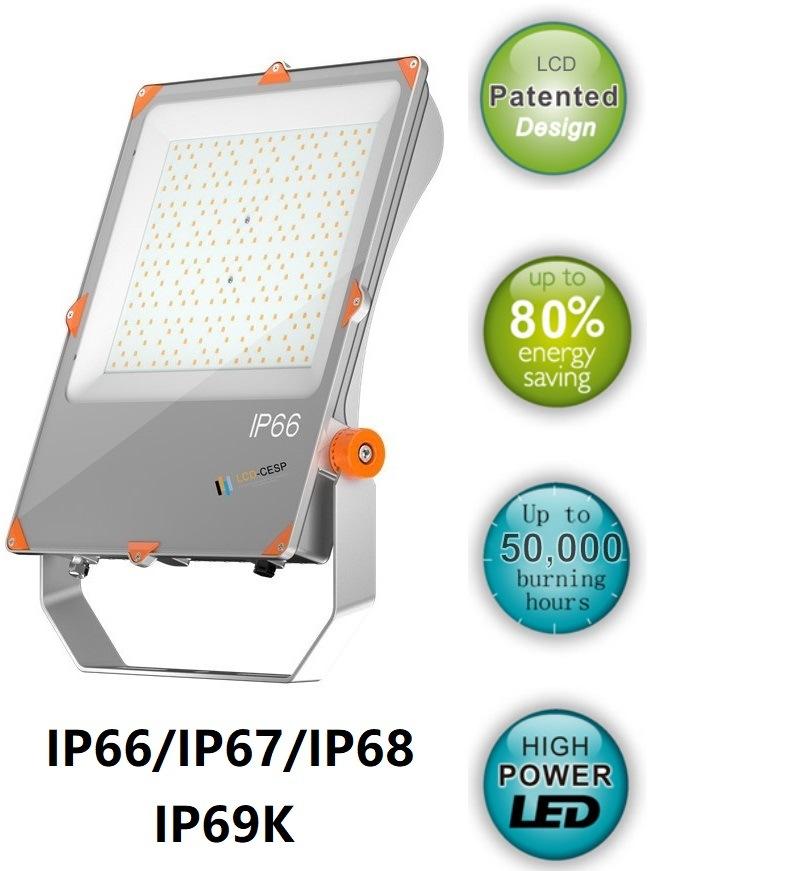

• Model NO.：LCD-ST-G6-600-LNTYPE III
• Certification：CCC, CE, CQC, C-tick, EMC, Energy Star, ETL, FCC, FDA, GOST, GS, LVD, PSE, REACH, RoHS, SAA, SASO, UL, VDE, TUV
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• Transport Package：Carton Boxes
• Trademark：LCD brand
• Origin：Shenzhen City, China
• HS Code：9405421000
• Production Capacity：50000PCS , Year

  Materials and finishing

Housing - Aluminium Alloy

Protector - High-impact clear glass (IK 08) or and polycarbonate lens

CoatingBlack and RAL colours on requestInstallationBottom-entry mounting spigot™ kitFixingø60-65 mm Fixing holes or ¢ 40mm on requestsDimensions (LxWxH)

Maxi - 651 x 307 x 117 mm
Mid 3- 489 x 307 x 117 mm
Mid 2- 378 x 291 x 117 mm
Mid 1 - 317 x 291 x 117 mm
Mini - 331 x 205 x 117 mm

Weight (with gear)

Maxi - 10.3 kg

Mini - 4.5kg

AccessYesAerodynamic resistance (CxS):

Maxi - 0.027m²

Midi - 0.015m²

Electrical Characteristics

Line Voltage220VACMains voltage Tolerance (AC)85-265VLine frequency50/60HzElectrical Safety Class (IEC)Class ISurge protectionYes - 3-4KV (10kV/10kA on requests)Lighting control

-on requuests below

- Incorporated downward facing daylight switch

- Pre-programmable stand-alone dimming

- Solar version for Midi is available

Power supply

Power Factor≥0.97RemovableYesThermal SafetyYes

Environment

Storage temperature-40< T < 85Enclosure TightnessIP65 IP 66 IP67 IP68Enclosure Mechanical Withstand ImpactIK 08Enclosure Mechanical Withstand VibrationsModified IEC 60068-2-6



Application

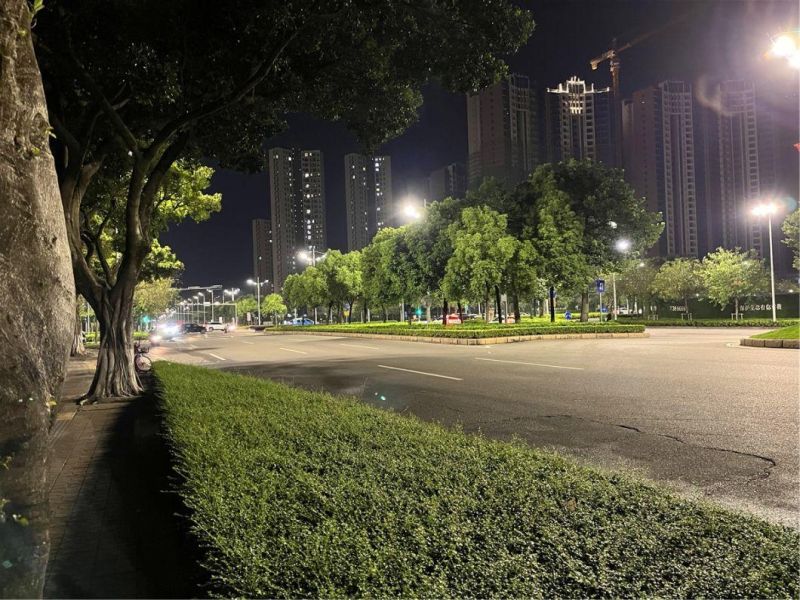

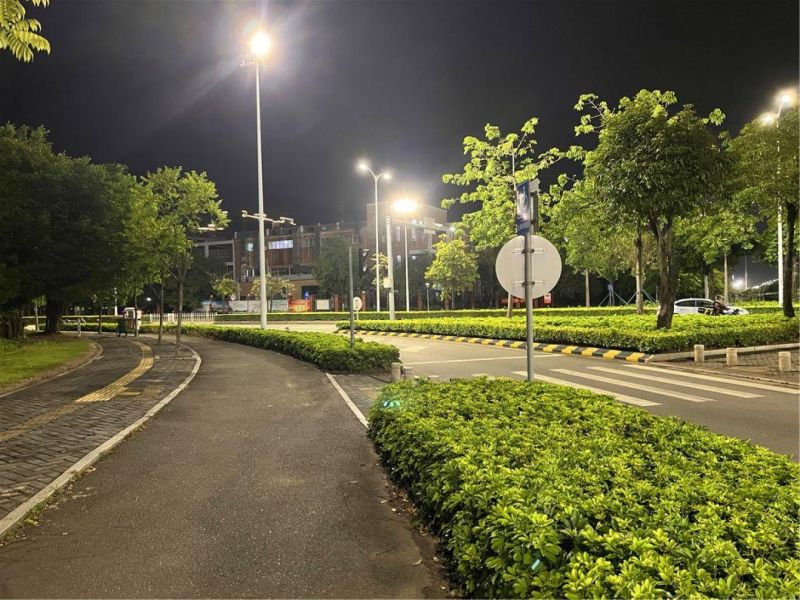

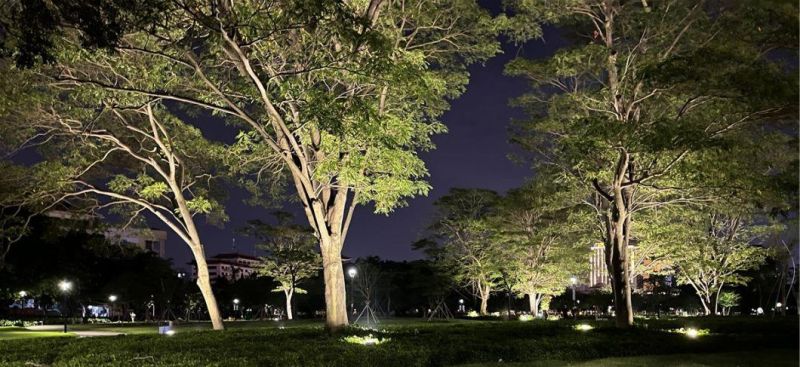

• Façade lighting• Area lighting• Security lighting• General floodlighting• Car parking lighting• General street lighting

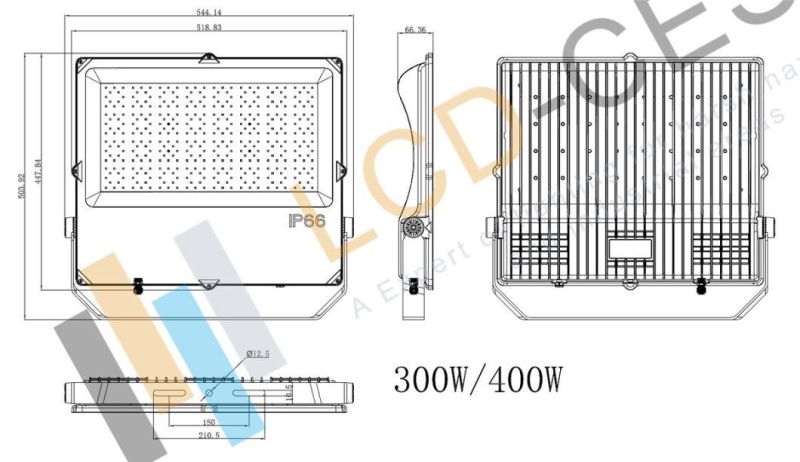

Products Dimensions in MM

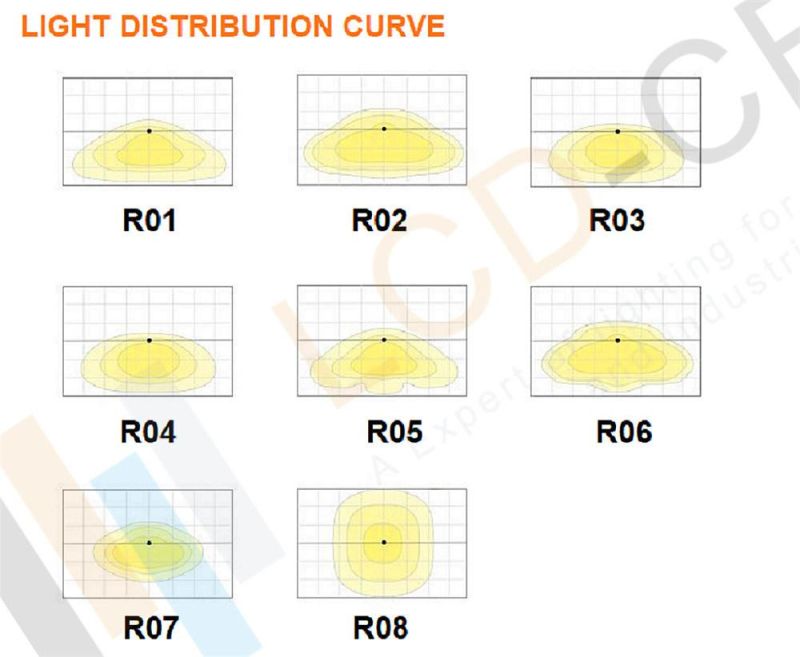

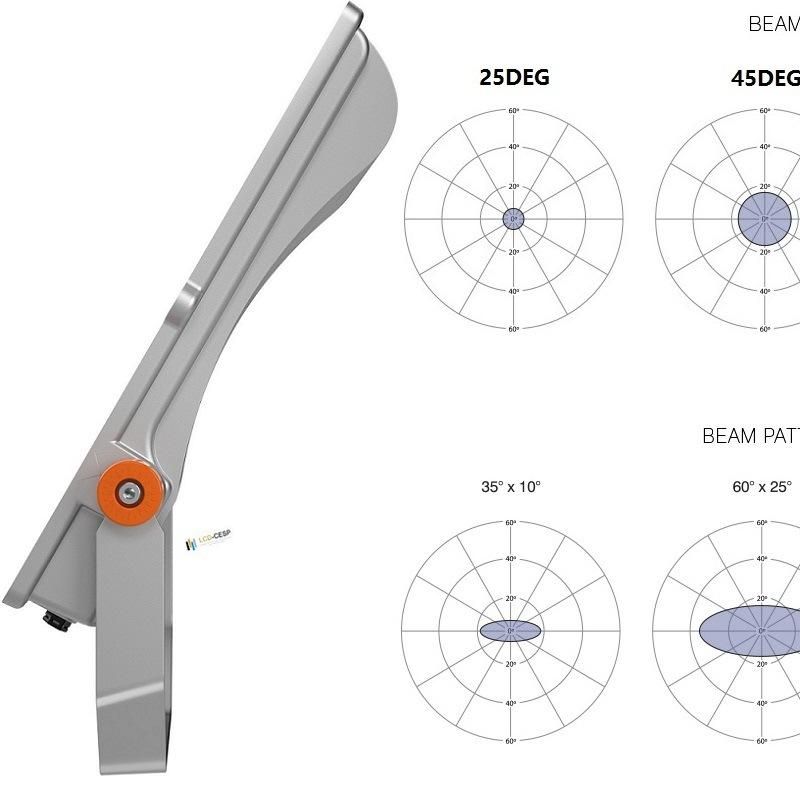

PHOTOMETRIC DIAGRAMS





FAQ



1. What 's your payment method?

In general,we use Paypal and Western Union for the total order less than US$ 500 in order to reduce the extra fee, Bank Tranfer payment can be accepted for large order too.



2. How long will it take to execute my order ?

This depends on the order quantity.Our nornal delivery time is 5-7 working days.



3. How much will the shipping charges be ?

This will depend on the size of your shipment and the method of shipping.Whe inquiriedabout shipping charges,we hope that you let us know the detailed information such as the post code and quantity ,your favorable method of shipping (by air or by sea ) and your designated port or airport.



4. Do you provide samples ?

Yes ,we can provide samples of all the items listed.In general of facture rule, the sample cost and shipping cost will be in buyer side.We can send the sample by DHL,FEDEX,EMS and UPS .



5. Do you have products in stock?

For most common items we have stock but we could not reserve all the items in stock.Ifthere is any in stock,we will inform you with details.



6. What the warranty term for your products?

All of our products have at least one year warranty in normal use. Please provide or video ia any quality problem during this period.We will replace a new one to you in thenext order.



7. Can I visit you?

Sure, please let us know if you wanna visit our factory ,we will arrange it for you.



8. Do I need to send the defective products back to you for warranty.

No,you don't need to send it back for warranty for the defective products.If any damage happens not caused by misure or vandalism,then we 'll send you a new one.

Features
Streamline shape, back self-cleaning
No tool to open the electric box, open the cover and cut off the power
Hidden respirator, equilibrium pressure
0-90 degree adjustable tailstock
Evenly spread the LED, and the heat dissipation is uniform
Nano reflector, repair light type, improve light efficiency
