• Model NO.：HPZMFLI
• Certification：CE, EMC, LVD
• Operating Voltage：85-265V
• Input Voltage：220V
• LED Chips Brand：Bridgelux
• LED Light Source：SMD 2835
• CRI (Ra>)：80
• Beam Angle(°)：120 Degree
• Working Temp.：-20 - 50ºC
• Warranty：3 Years
• Lifespan：50000h
• Transport Package：White Box,Color Box,Customized
• Specification：Check detail in list
• Trademark：HPZM or OEM
• Origin：China
• HS Code：9405409000
• Production Capacity：5000PCS,Day

Basic Info.

Model NO. HPZMFLI Certification CE, EMC, LVD Operating Voltage 85-265V Input Voltage 220V LED Chips Brand Bridgelux LED Light Source SMD 2835 CRI (Ra>) 80 Beam Angle(°) 120 Degree Working Temp. -20 - 50ºC Warranty 3 Years Lifespan 50000h Transport Package White Box/Color Box/Customized Specification Check detail in list Trademark HPZM or OEM Origin China HS Code 9405409000 Production Capacity 5000PCS/Day

Product Description

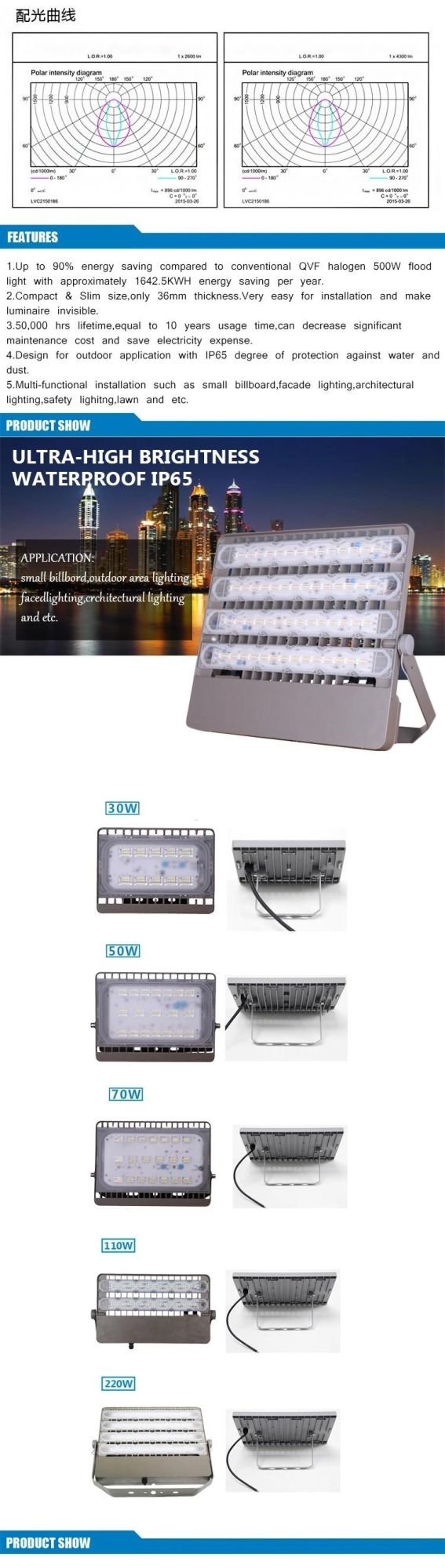

Hot Style LED Flood Light with Dia-casting Aluminum

Model	Voltage	Power	Size/mm	Chip Type  /Led Qty	Color Temp.	CRI	PF
HPZMFLI001	AC85-265V  AC220-240V	30W	195*140*50	SMD2835	3000K  4000K  6000K	Ra>80	>0.9
HPZMFLI002	AC85-265V AC220-240V	50W	270*203*50	SMD2835	3000K  4000K  6000K	Ra>80	>0.9
HPZMFLI003	AC85-265V  AC220-240V	70W	315*235*50	SMD2835	3000K  4000K  6000K	Ra>80	>0.9
HPZMFLI004	AC85-265V  AC220-240V	100W	315*235*50	SMD2835	3000K  4000K  6000K	Ra>80	>0.9
HPZMFLI005	AC85-265V  AC220-240V	110W	510*365*5	SMD2835	3000K  4000K  6000K	Ra>80	>0.9
HPZMFLI006	AC85-265V  AC220-240V	220W	510*500*53	SMD2835	3000K  4000K  6000K	Ra>80	>0.9

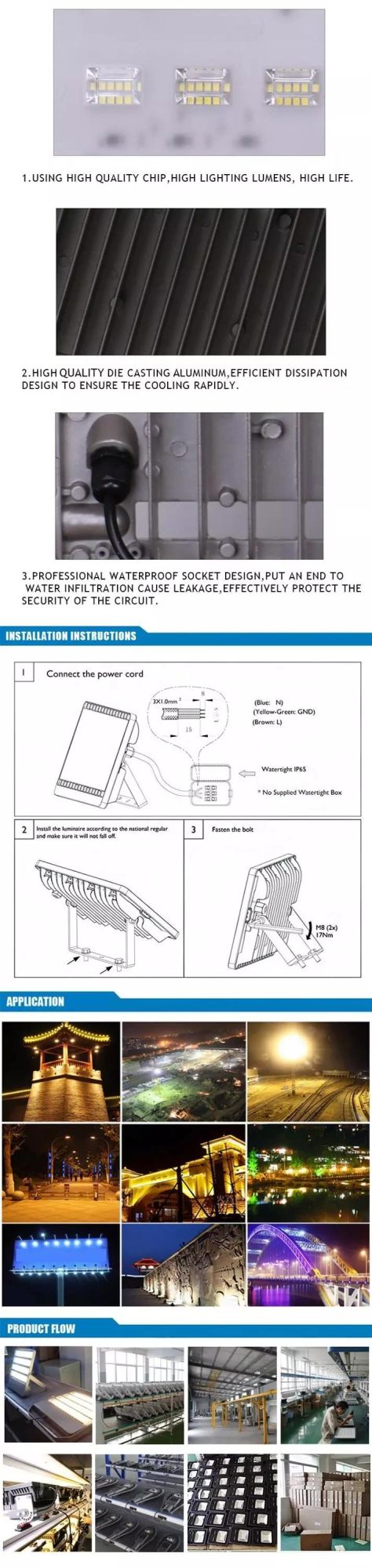

Advantages:
1. ADC#12 pure aluminum material+60°/90°reflector for option+high brightness led chip
2. Adopt professional outdoor powder coated.
3. Using professional tempered glass, explosion-proof, and the transmittance reached as high as 93%, certification for anti-collision IK07 testing.
4. The light reflector is made of PC material, which is insulated and heat-resistant up to 150 degree. And the reflective rate reached up to 97%, that's because this flood light is optical designed, approched to zero light loss.
5. Stainless steel holder.

-Use professional flood light's thermal grease under the chip, let the heat run out quickly.

-Use professional waterproof glue to seal every hole

-Use toughened glass, hard enough and won't be broken during transportation

-With reasonable compact light structure, and expertise radiating design, ensure the lights working temperature lower,reduce light decay and expand lifetime

-High efficiency constant current driver , power factor can reach 0.95

-Work perfectly in the high humidity environments -No delay start, no glare

-Energy-saving: saving 80% than the ordinary lamp;

-Eliminates maintenance and reduces costs.

-Easy installation

Application

1.Workshop, factory, station, hypermarket, exhibition, center, gym
2.Advertising board, outdoor advertisements ,wall ,gymnasium and so on
