• Certification：RoHS
• Voltage：220V
• Light Source：With Light Source
• Transport Package：Carton

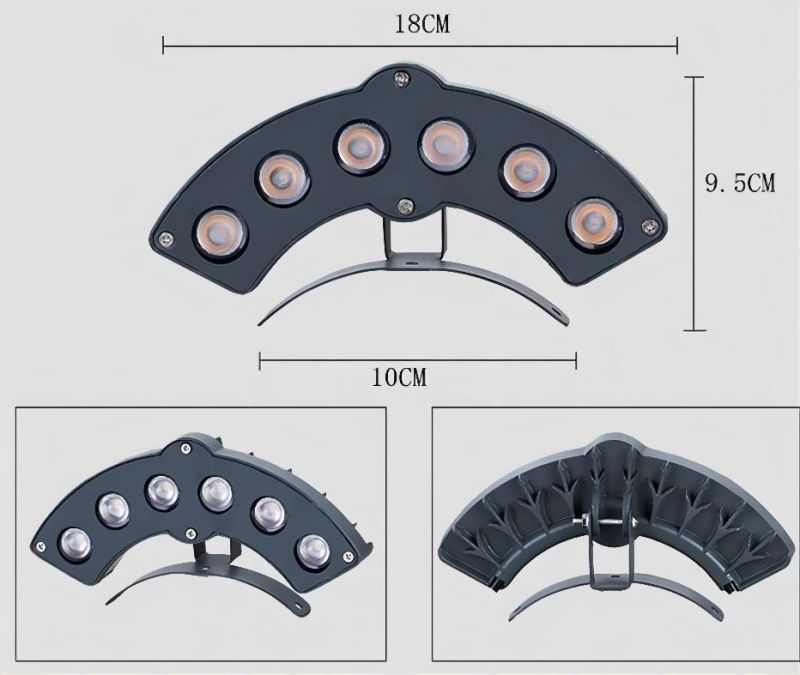

• Specification：30x22x15 cm
• Origin：China
• Production Capacity：500K

Basic Info.

Certification RoHS Voltage 220V Light Source With Light Source Transport Package Carton Specification 30x22x15 cm Origin China Production Capacity 500K

Product Description

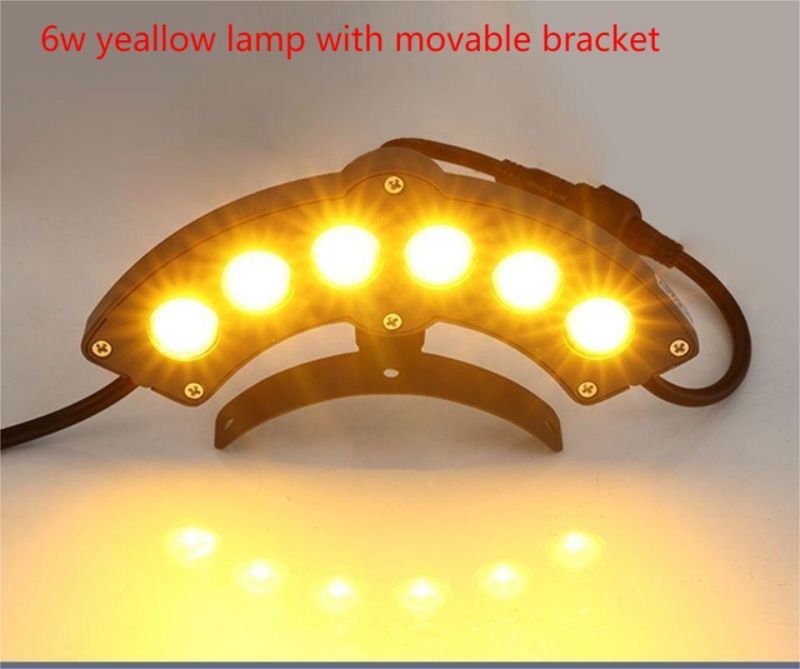

The 6w Corrugated lamp is a kind of  outdoor decoration light belong to home roof material .
photo 1


If client need the above product, Please feel free to contact us. Differant quantity have differant price.








1, About corrugated lamp(LED outdoor decoration light/home roof tiles light)

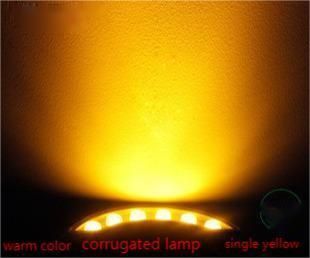

At present, corrugated lamps are mostly used in ancient temples and other places with tiles. High quality and high-power 1W / 3W led greatly improves the brightness of the product, with extremely low calorific value, low power consumption and long service life. Generally, there are 3 or 5 high-power lamp beads, which are divided into white light, warm white light and golden yellow light. Golden light is more likely to be used.

The lamp body is generally made of pure aluminum (heat dissipation), and the lamp cover can be made of tempered glass or PC cover. The luminous angle is generally 15 ° 30 ° 45 ° 60 ° 90 ° or can be customized. 2, Tile category:

The tiles used in ancient buildings are mostly CHINESE Tang celadon tiles and glazed tiles in terms of surface material characteristics; From the perspective of laying mode, most of them are inverted tiles, dry corrugated tiles and. Different materials and laying methods also have different requirements for lighting.

3. Advantages:

1. Easy installation

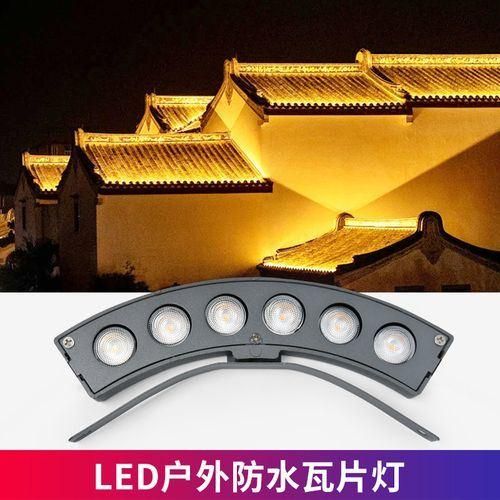

The main reason why led corrugated lamp can be widely used in ancient buildings is its unique shape, which fits perfectly with the tiles, so that led corrugated lamp has great advantages in installation. The construction personnel can easily fix the corrugated lamp on the tile without any surprise. From the appearance, the aesthetic feeling of the ancient building can still be maintained. This is the reason why corrugated lamps are so widely used in ancient buildings.

2. Reasonable design

The design of LED corrugated lamp is very scientific. When combined with corrugated, the lighting effect will not be weakened, and it has strong stability, good light transmission, large overall power, but very small volume. This series of design makes led corrugated lamp stand out among many lighting tools. And because the place of use is at the top of the building, the design of its all aluminum lamp body and tempered glass makes the corrugated lamp more durable, which is deeply loved by ancient building builders.

3. Cultural significance

The use of LED corrugated lights also has a certain cultural role. The lighting project of ancient buildings has a more profound historical and cultural significance for an antique city. It is a higher requirement for lighting tools of ancient buildings not to damage the aesthetic feeling of ancient buildings to the greatest extent. Therefore, cultural inheritance should also be considered in the selection of lighting methods, and led corrugated lamps are produced precisely because of this demand. At the same time, the scientific nature of corrugated lamps also reflects the wisdom of ancient architectural design in China

4, How to select appropriate lighting fixtures

For celadon tiles, the surface color is dark, the texture is rough, and the overall reflectivity is relatively low. Therefore, if this kind of tiles are to be illuminated, the illumination should be relatively high, and the total output of the light source should be large; For glazed tiles, on the contrary, higher reflectivity requires relatively low lumen output of the light source. For glazed tiles, due to their smooth surface, compared with rough green tiles, their diffusion degree is low. Glazed tiles are not suitable for lighting at too narrow angles. In this case, it is easy to cause a large amount of light reflected into the sky.

As for the inverted tile laying form, the way of layer by layer is not easy for light propagation, and its laminated gap and height often hinder the diffusion of light on the whole building surface. Therefore, the inverted tile laying is more suitable for medium and narrow angle irradiation, and the emitting position of lamps shall be raised as high as possible to avoid being blocked by the laminated tiles.

As for the laying form of dry corrugated tiles, the installation method of the first butt joint is easy for the overall transmission and lighting of light, and is suitable for the medium wide angle lighting form.

4, How to select appropriate lighting fixtures

For celadon tiles, the surface color is dark, the texture is rough, and the overall reflectivity is relatively low. Therefore, if this kind of tiles are to be illuminated, the illumination should be relatively high, and the total output of the light source should be large; For glazed tiles, on the contrary, higher reflectivity requires relatively low lumen output of the light source. For glazed tiles, due to their smooth surface, compared with rough green tiles, their diffusion degree is low. Glazed tiles are not suitable for lighting at too narrow angles. In this case, it is easy to cause a large amount of light reflected into the sky.

As for the inverted tile laying form, the way of layer by layer is not easy for light propagation, and its laminated gap and height often hinder the diffusion of light on the whole building surface. Therefore, the inverted tile laying is more suitable for medium and narrow angle irradiation, and the emitting position of lamps shall be raised as high as possible to avoid being blocked by the laminated tiles.

As for the laying form of dry corrugated tiles, the installation method of the first butt joint is easy for the overall transmission and lighting of light, and is suitable for the medium wide angle lighting form.


6, Requirements for corrugated lamp:

For the corrugated lamp, its installation position determines that the final effect should basically be the lighting category of light and dark, so its angle should be small, its size should be small, and its output lumen should be large. In case of special paving conditions such as flat tiles (the building surface is basically flat), the widened asymmetric light distribution category can be selected to form a large area of uniform lighting. But small size, easy to install in the corrugated is the most basic feature.

In terms of angle selection, at present, the minimum angle we can use is 8 ° lens, and the lumen output is basically above 150lm. It is better to use the upper and lower supports to adapt to the laying form of different tiles.
